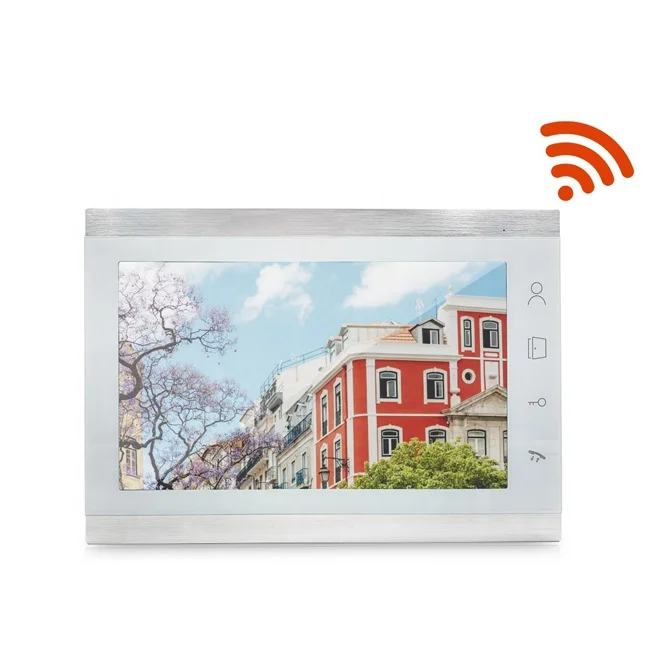

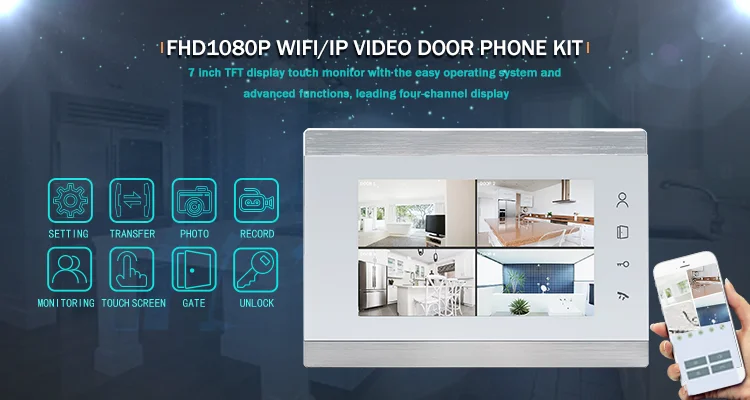

morningtech 7 inch Wifi Video Intercom Doorbell with Camera IP Video Door Phone SD Card Mobile Unlock
*AHD /TVI/ CVI/ 1080P/ 960P/ 720P/ CVBS video input
*10inch TFT display resolution 1024*600
* motion detection

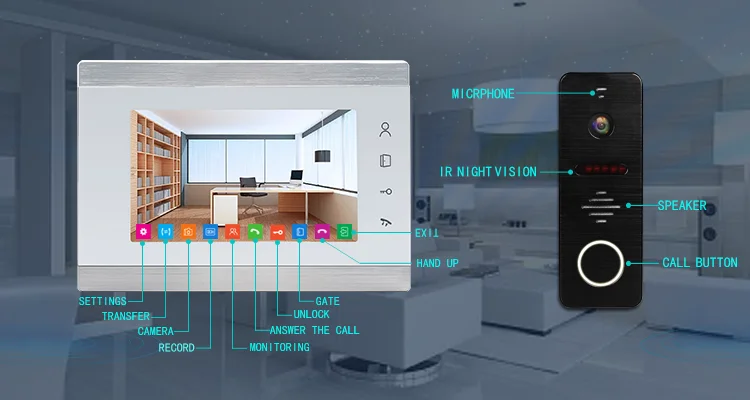

*Talking/ Unlock/ Monitoring/ Internal calling / Transfer calling
*Support max. 512G SD Card
* Support setting un-lock time, suitable for different electronic lock
*4CH channel motion detection simultaneous detection, while triggering the recording function,
*Support for iOS and Android phones or tablets
*Adopt Huawei HI3520DV300 professional DVR chip, perfect video processing effect.
| PRODUCT PARAMETERS" | |
| Model | 96103-DP |
| Monitor | 10"TFT Touch Screen |
| Resolution | 1024(H) *3(RGB) *600(V) |
| Network | WIFI/RJ45port |
| Internet cable | Cat 5/Cat 6 |
| Intercom Mode | Duplex communication |
| Channel | 4 channels |
| Video-Input | CVI/ TV I/ CVBS/ AHD Camera |

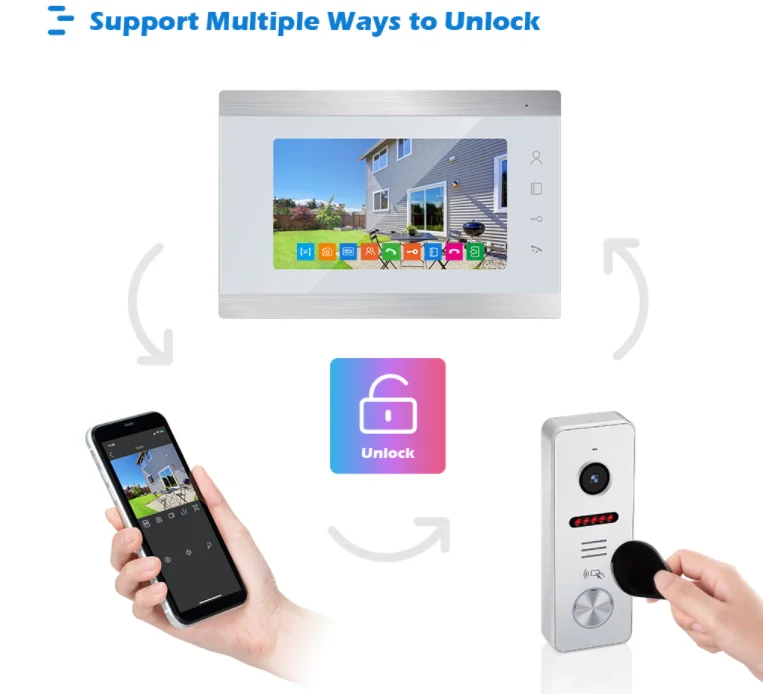

| Unlock | Monitor, smartphone, and tablet unlock |
| Leave message time | The 30S/60S Optional |
| Conversation Duration | Max120S |
| Ringtone | Definition |
| Power Consumption | 800mAMax |
| Powersupply | External Power DC12V, built-in power AC 100-240V |

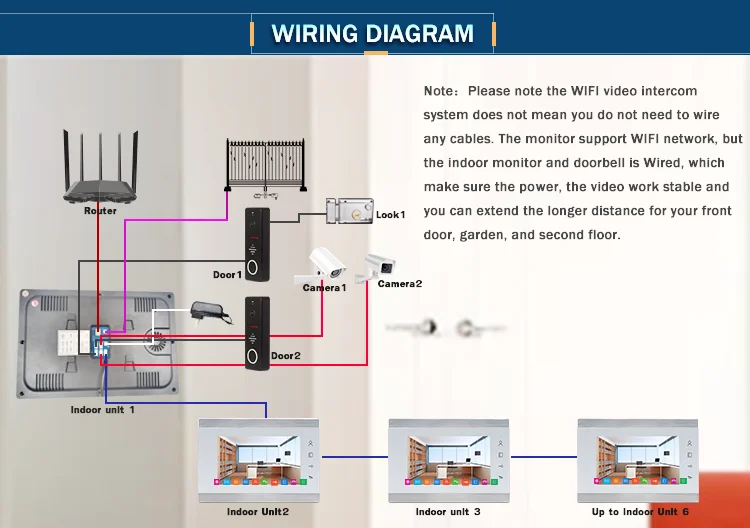

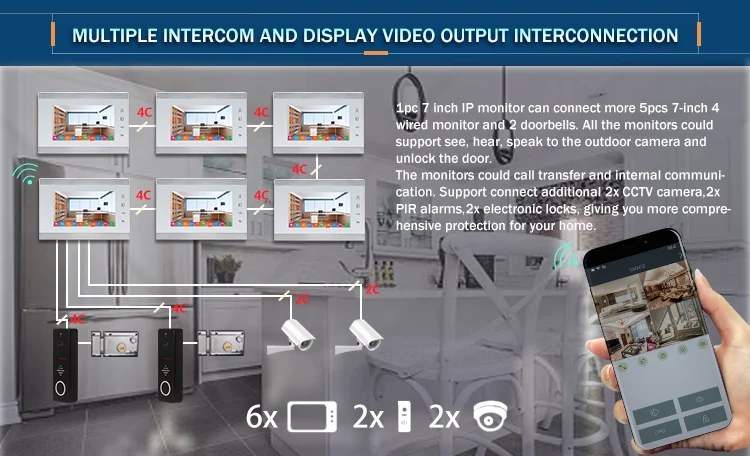

| Multiple Intercom | Up to 6 monitors (The slave monitor is4wireCVBS monitor) |
| Memory | Support Max 512GBSD card |
| Motion Detection Area/time | Can be optional |
| Material | Wire drawing aluminum case |
| Operation Temp | 0℃+80℃ |
| Installation | Surface Mounted |
| Model | 94206AHD-1080P |
| Material | Aluminum alloy |
| Camera Sensor | 2.0MP |
| View angle | 160° |
| LEDs For NightVision | IR LEDs(120°) |
| Connection | 4wire |
| Power Consumption | 200mAMax |
| Operation Temp | -40℃+50℃ |
| Waterproof Rate | IP65 |
| RFID card | RFID card |
| Installation | Surface Mounted |
Products Details Show











Video Door Phone: Neutral Package, ( according to different specifications). we can provide another carton size as your request.
Delivery time
7-30 business days after receiving payment.
Shipment
1: By EMS, DHL, FedEx, TNT, UPS, or another express.
2: By our forwarding agent (by air or by sea).
3: By your own forwarding agent.
4: By domestic forwarding agents to any city in China.
1. What is the market advantage of your products?
A: Exquisite design, AHD camera 2.0MP lens, Entertainment multi-function MP3/MP4, and alarm display, The most stable WIFI 4 channel VDP+Fingerprint call panel in the current market.
2. How long will you be able to deliver the product?
A: Sample order (5 sets) about 7days. Bulk order (100-300set) about 20days. Bulk order (More than 500set) about 30days.
*Try to order as soon as possible, and arrange production sooner.
3. What is the market advantage of your products?
A: Exquisite design, AHD camera 2.0MP lens, Entertainment multi-function MP3/MP4, and alarm display, The most stable WIFI DVR video door phone+Fingerprint call panel in the current market.
4. Is It possible to support CVBS outdoor unit?
A: Yes, the AHD series VDP could support the AHD & CVBS Video door phone. But CVBS series just only support the CVBS video door phone.
5. Do you have motion detection for video intercom?
A: Yes! It's by software, no need connect with PIR Sensor, motion detection from 1 call panel or 2 camera
6: How to play Music or Movies by indoor monitor?
A: Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
7: What is a Voice message?
A: When you not at home, but your visitor pressing the call panel, after the 30s or 120S, call panel will Auto say: “Please leave a message” so that when you come back home can check the video from the indoor monitor who is come to you and when.
8: Please explain transfer calling how to work with the Video doorbell?
A: First our system supports connecting 6 indoor monitors, When visitors press the outdoor bell, Alina has answered the call, but the visitor is looking for Mom, and mom in another room (No5 monitor ), So Alina can choose No5 transfer call to Mom.
9: Why 7-inch monitor resolution is 1024*600, the other company only 800*480?
A: Because we are doing different from the market, In order to help our customers have a Competitive advantage, win the market!
10: Warranty
A:22months warranty
