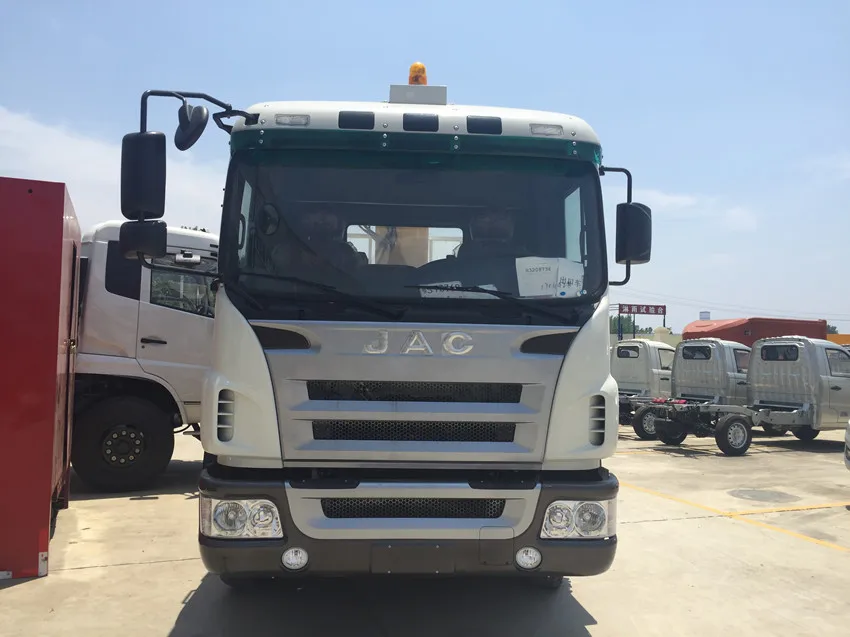

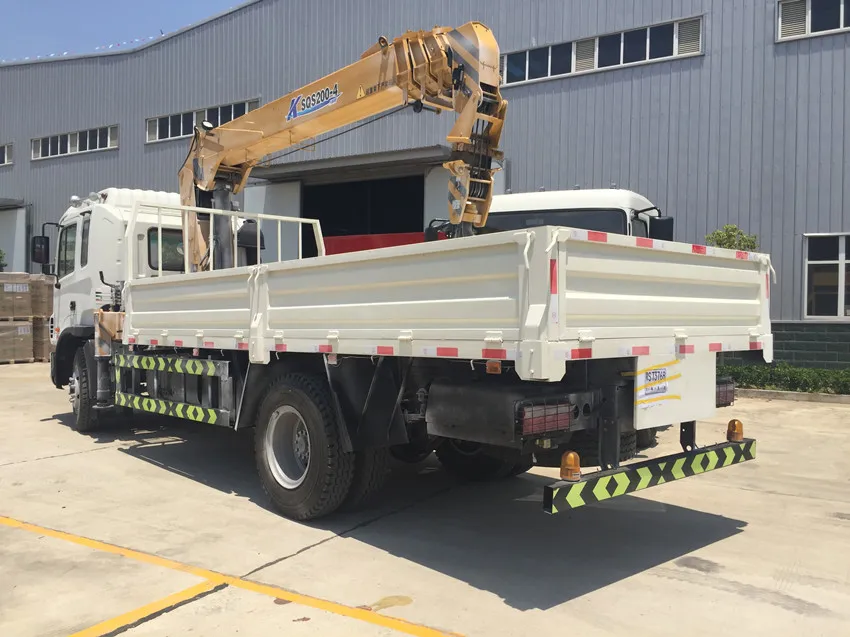

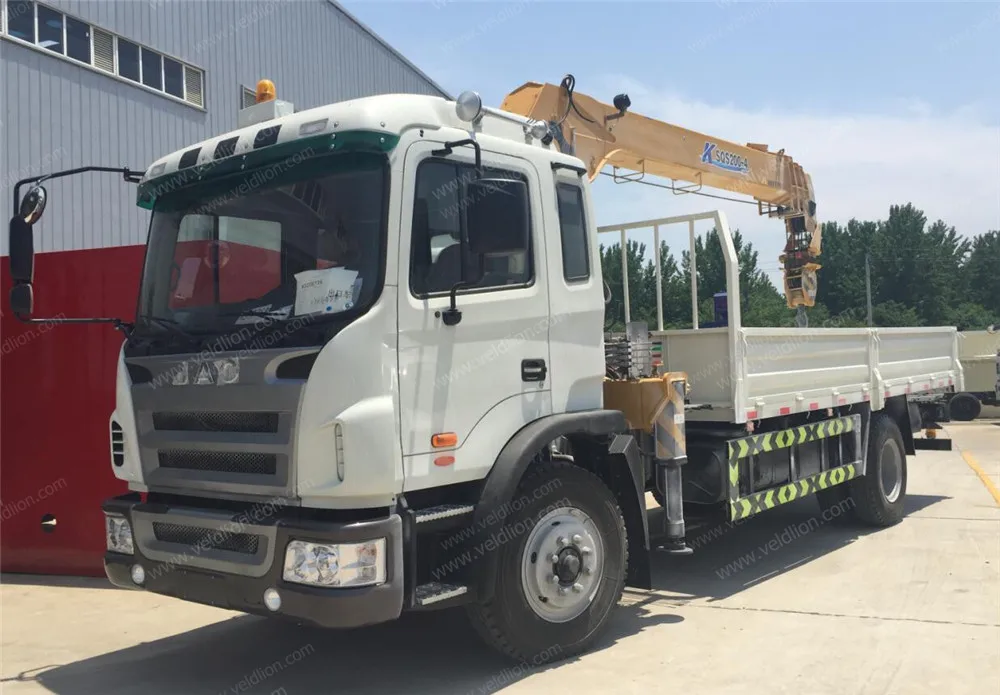

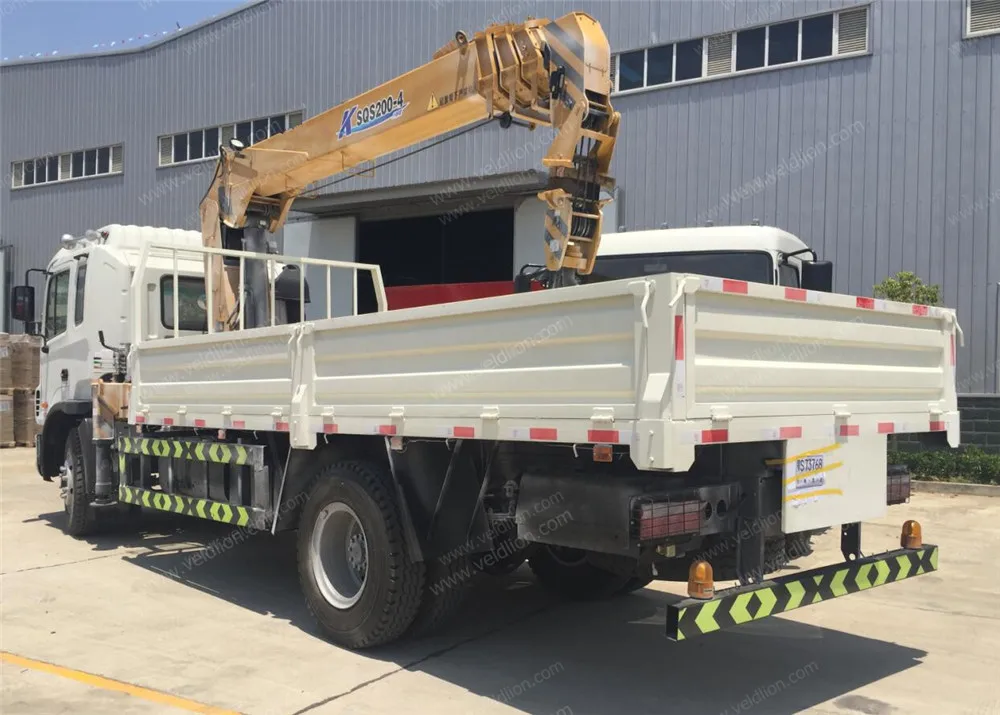

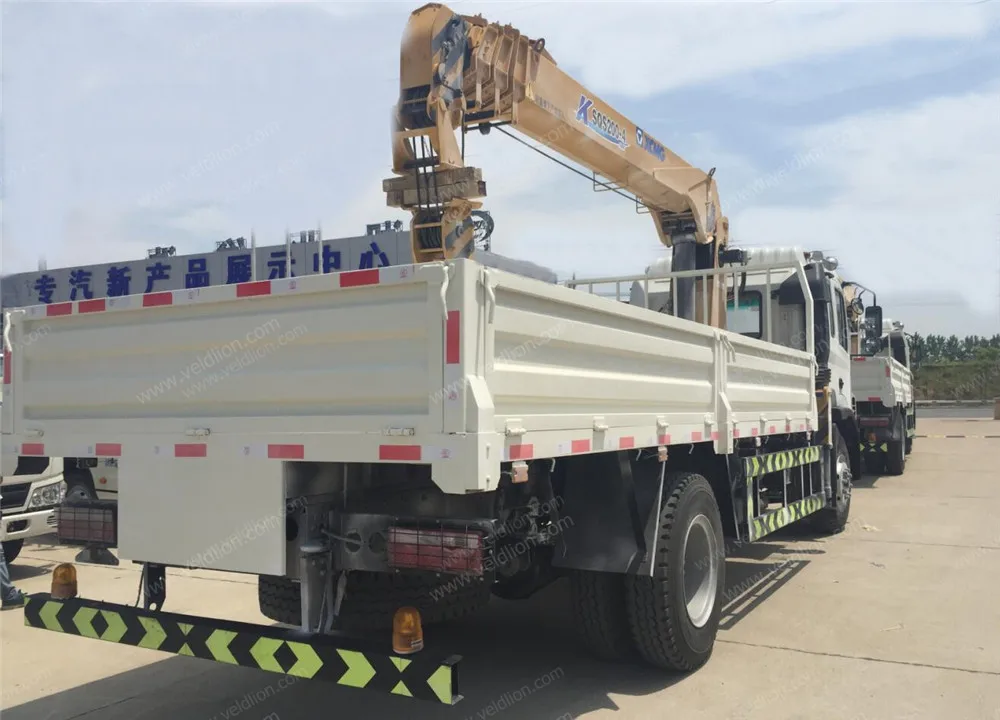

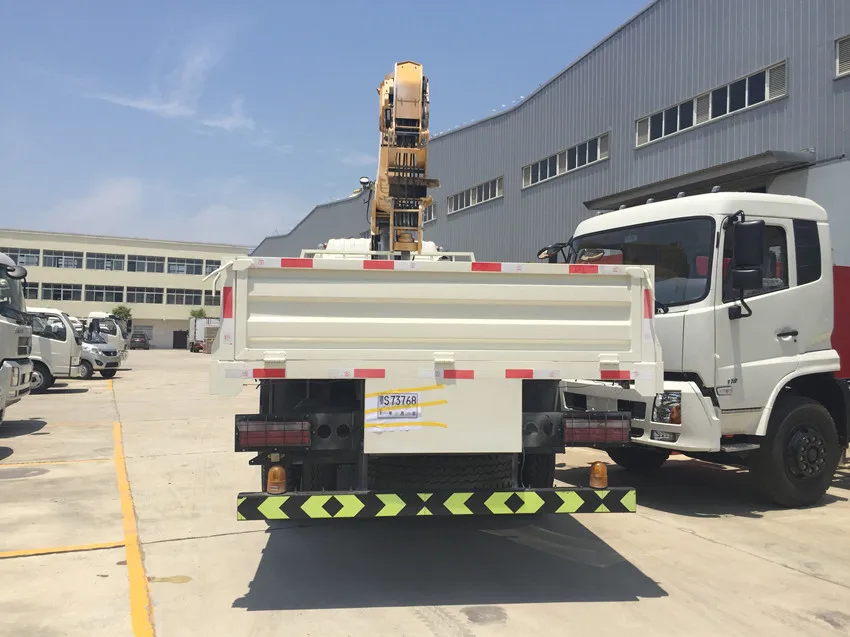

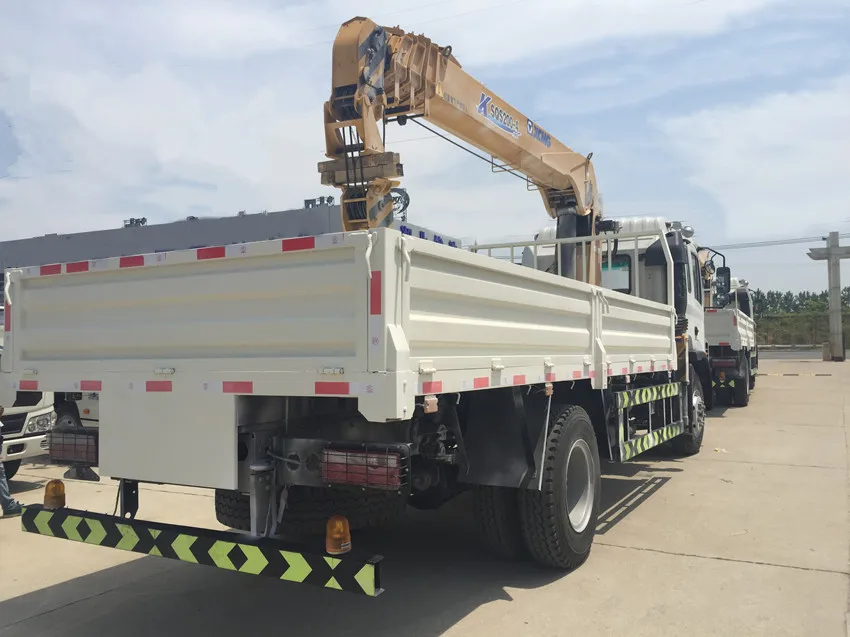

8TON flatbed tow truck mounted crane SQS200
- Category: >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd. [Hubei China]Hubei
Share on (60764058055):
Product Overview
Description
Product Description
| TECHNICAL SPECIFICATION | ||||||
| Main specification | Chassis brand | JAC | ||||
| Chassis model | HFC1131 | |||||
| Drive model | 4x2 left hand drive | |||||
| Overall dimension(L*W*H) | 9000x2500x3550mm | |||||
| The size of the cargo box (L*W*H) | 5000x2300x550 mm | |||||
| Total weight | 13000 kg | |||||
| Curb weight | 5760kg | |||||
| Rated Loading capacity | 7240 kg | |||||
| Wheel base | 5000 mm | |||||
| Performace paremeters | Max speed | 105 km/h | ||||
| Max gradeability | 34% | |||||
| Radius of turning | ≤10 | |||||
| Cabin | Type | Half Height cabin | ||||
| Seat | Air seat | |||||
| AC | standard | |||||
| Heater | standard | |||||
| MP3 | standard | |||||
| Cabin suspension | 2 springs in front and 2rubber pad in rear | |||||
| Copilot visor | standard | |||||
| Engine | Model | CA6DF2D-19 | ||||
| Type | Diesel,direct injection, turbocharged | |||||
| Max output power | 190/230 (HP/RPM) | |||||
| Max torque | 680/1400~1600 (N.m/rpm) | |||||
| Displacement | 6557 ml | |||||
| Oil pump | Domestic | |||||
| Emission standard | Euro 2 | |||||
| Clutch | Model | Single, dry plate,diaphragm spring | ||||
| Specification | Φ395 mm | |||||
| Transmission | Model | CA6T138-85 | ||||
| Gear ratio | 7.285/0.783 | |||||
| PTO | standard | |||||
| Front axle | Model | "Ⅰ"style break face, max loading: 5ton | ||||
| Rear axle | Model | JAC, Max loading: 9ton | ||||
| Steering | Type | Power steering withdomestic Steering gear | ||||
| Fuel tank | Material | Iron, 200L | ||||
| Brake | Type | Dual-circuitair brake | ||||
| ABS | Standard | |||||
| Tyre | Model | 10.00R20 16PR | ||||
| Electronic system | Batteries | 12 volt-120Ah×2 | ||||
| Alternator | 28 volt / 70 amp | |||||
| Starter | 24 volt / 6KW | |||||
| Other configuration | With 4kg fire extinguisher , with side fender, with warning lights | |||||
| 8T Chinese straight arm | ||||||
| CRANE Model | SQ8SK3Q | Max Lifting Capacity(kg) | 8,000 | |||
| Max Lifting Height(m) | 13.5 | Max working radius(m) | 11.5 | |||
| Max Lifting Moment(T.M) | 20 | Recommend Powe(kw) | 27 | |||
| Max Oil Flow of Hydraulic System(L/min) | 55 | Max Pressure of Hydraulic System(MPa) | 27 | |||
| Oil Tank Capacit(L) | 160 | Rotation Angle | all Rotation | |||
| Crane Weight(kg) | 3300 | Installation Space(mm) | 1200 | |||

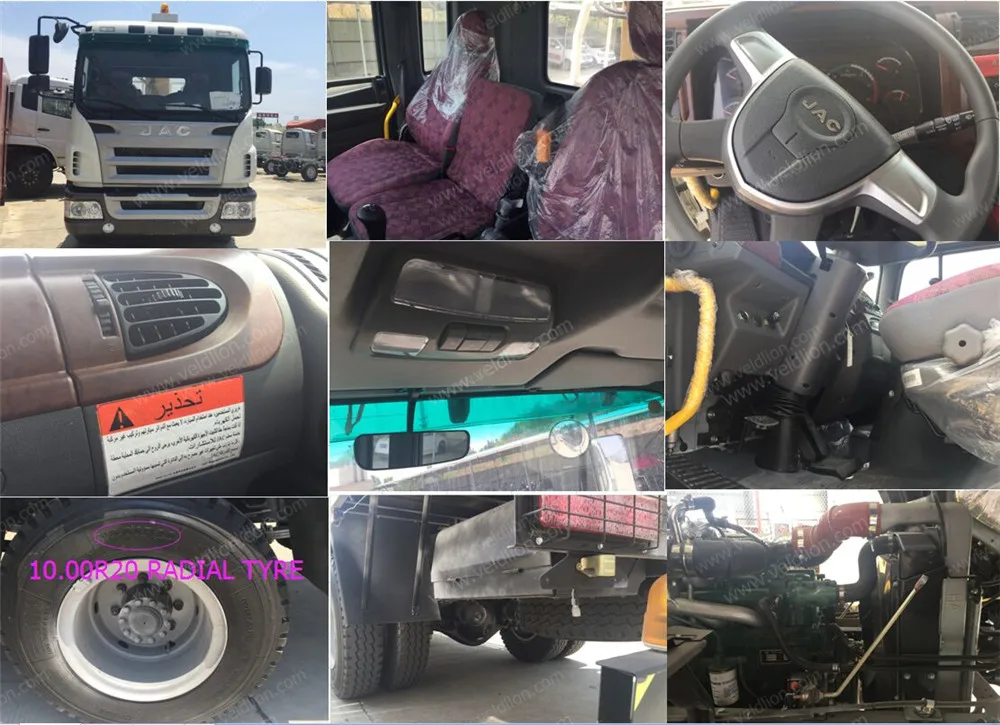

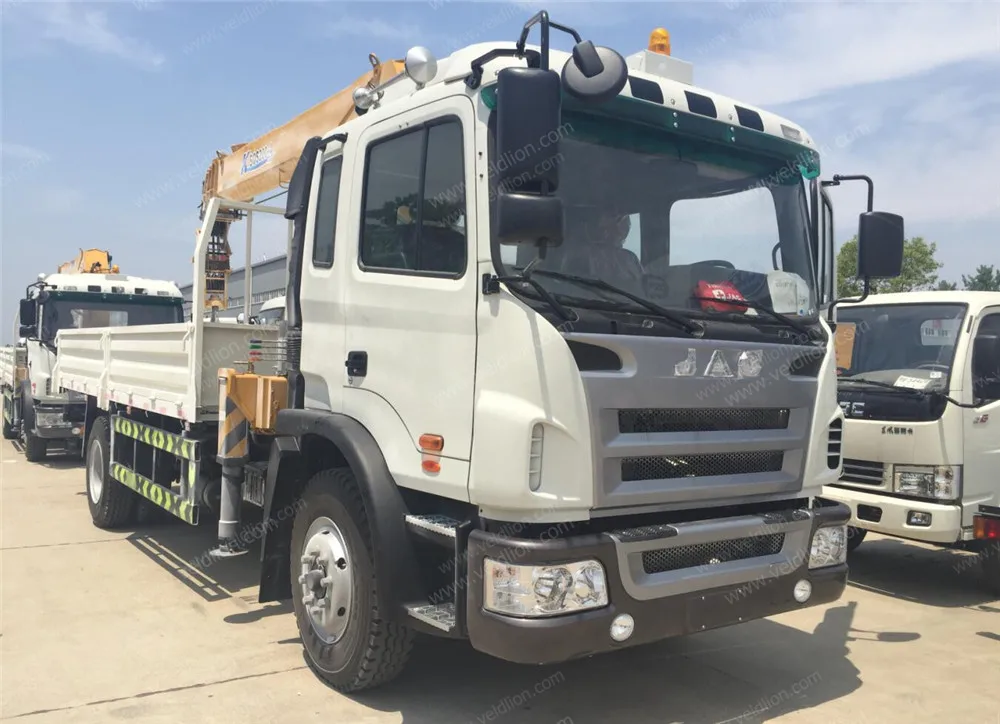

TRUCK CHASSIS DETAIL

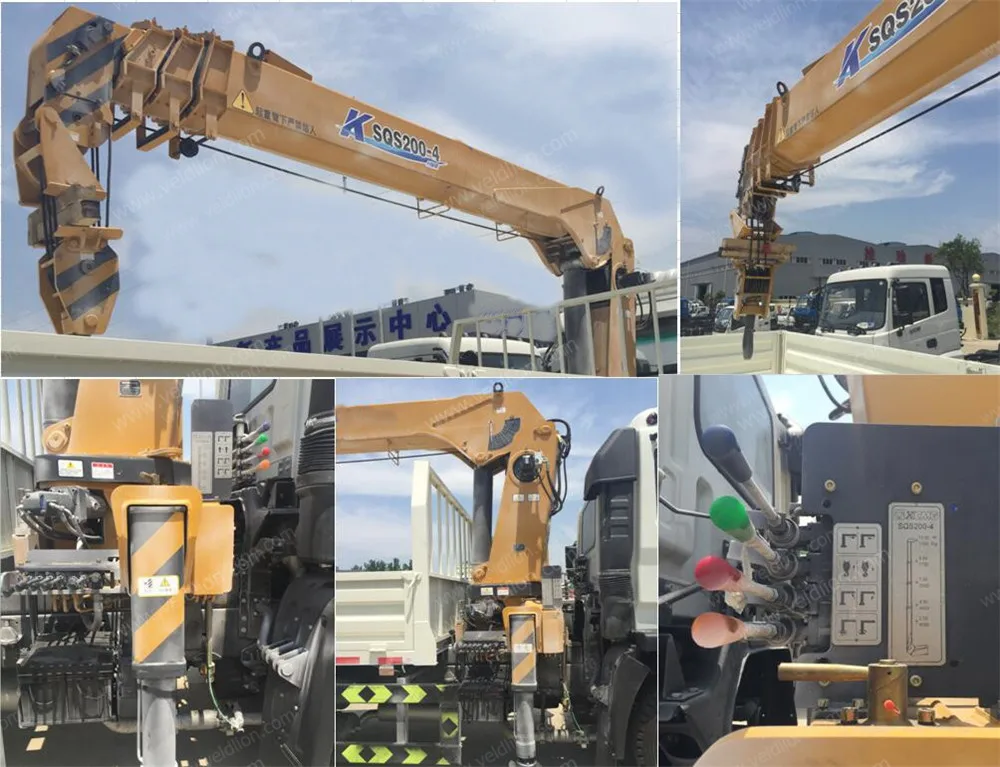

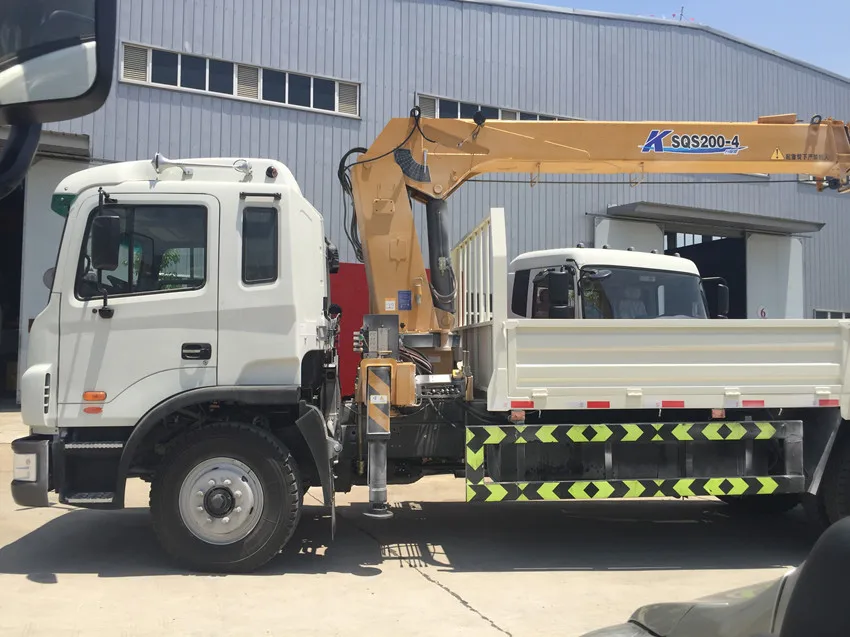

CRANE DETAILS
We can offer 1ton to 20tons lifting cranes. Straight arm and knuckle arm are optional.

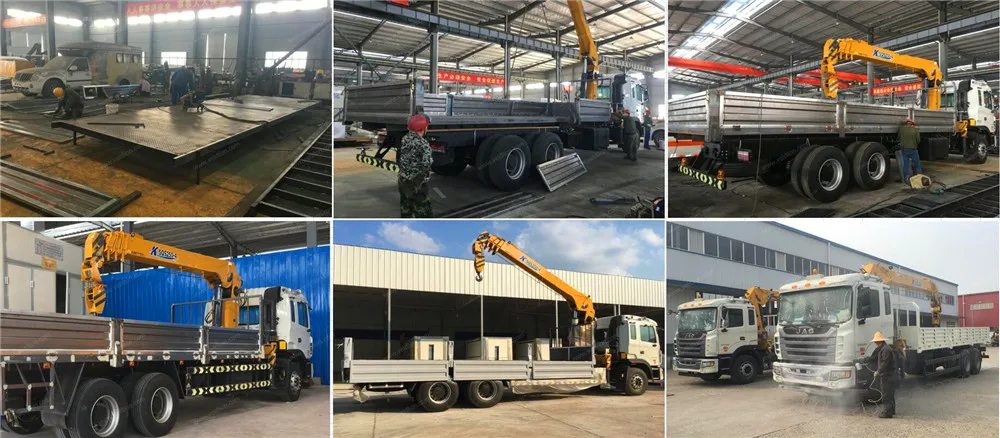

CRANE WORKMANSHOP

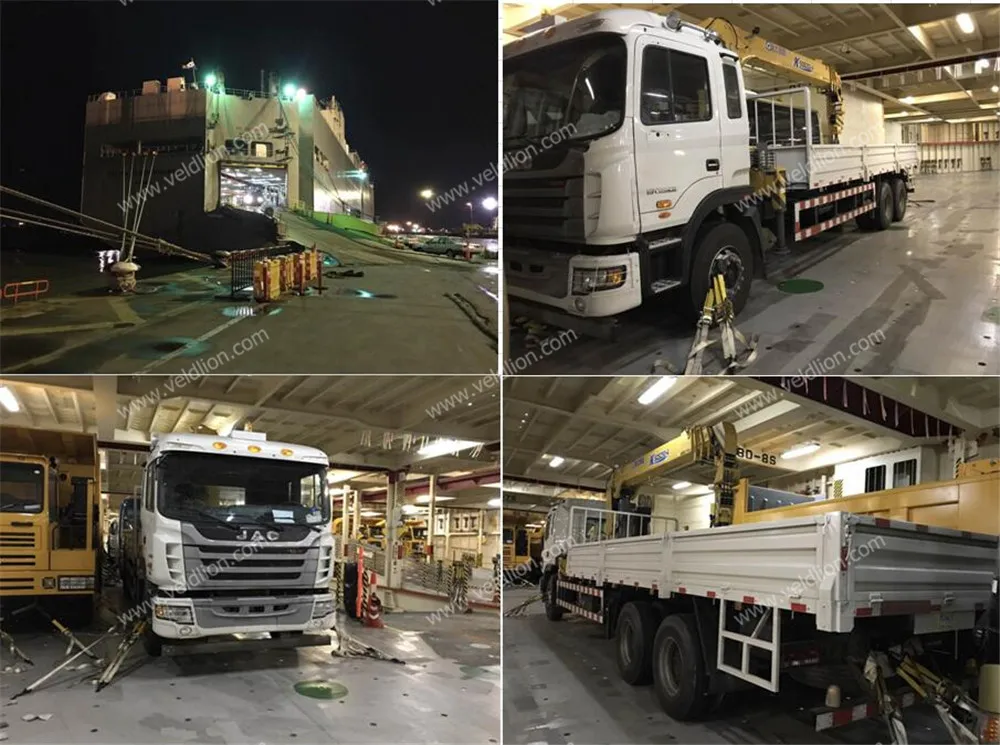

CRANE SHIPPING
Nomally our truck mounted crane are shipped by RORO vessel or bulk vessel as below:
