IP Output Satellite Receiver HD DVB S2 SRT/UDP/RTP/FEC HD SDI IRD Decoder receiver
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (60764073051):
Product Overview
Description
Product Description

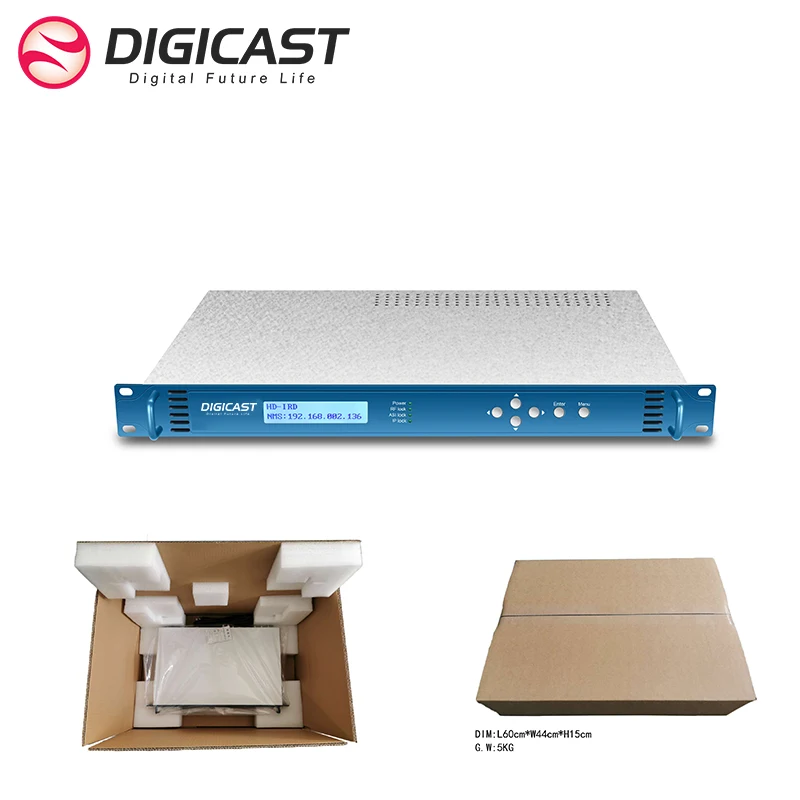

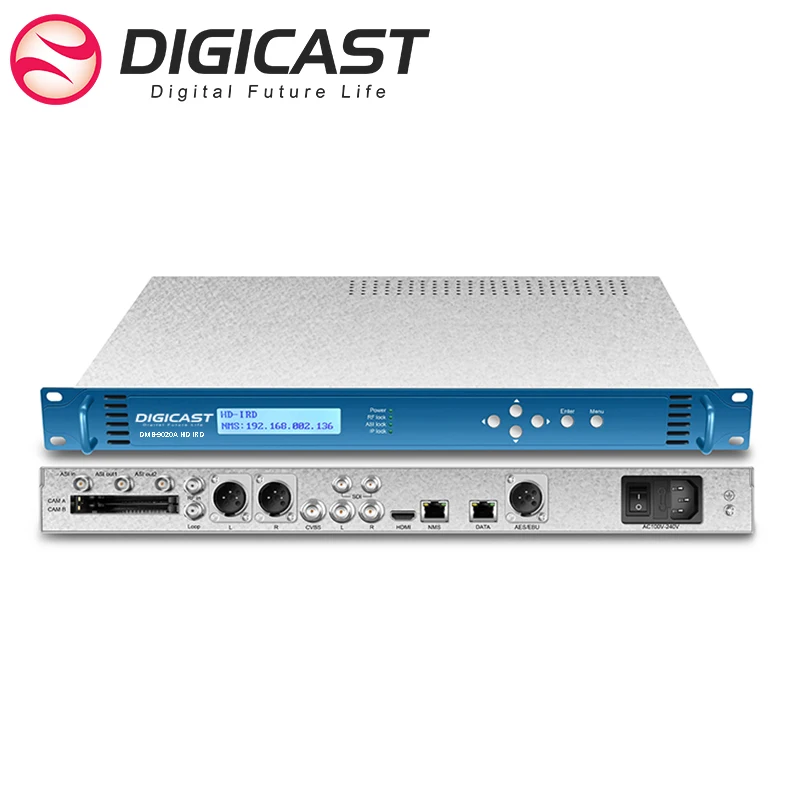

DMB-9020A 24-CH Professional Receiver
DMB-9020A Professional IRD is a high-density and flexible device, integrating broadcast level receiver, demodulation, decrypting and decoding function. It supports ASI,IP and various of Tuners input which can be selected respectively from DVB-C/T/T2/S/S2 for option with two Tuner independent input. And it also capable of receiving lots of channels from different frequencies. It supports AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding. It supports RF/ASI/IP input 1080P/1080I/720P/576I/480I output resolution.
DMB-9020A Professional IRD is designed in standard 1U Chassis, it can be placed directly on the rack. Meanwhile, it delivers Mreliable video quality program source with advanced video decoding (AVS+/H.265/H.264/MPEG2) technology, IP (1*RJ-45, 100/1000 Base-T) and 2 ASI mirrored out. It supports 2 independent CAM card can decrypt two programs, Each CAM can decrypt multiple channels from Tuner/ASI/IP. And it also supports BISS decryption.
DMB-9020A Professional IRD is becoming very popular among distribution system, IPTV applications and digital TV head-end system for DTV operators, broadcast service providers and IPTV integrators etc.
DMB-9020A Professional IRD is designed in standard 1U Chassis, it can be placed directly on the rack. Meanwhile, it delivers Mreliable video quality program source with advanced video decoding (AVS+/H.265/H.264/MPEG2) technology, IP (1*RJ-45, 100/1000 Base-T) and 2 ASI mirrored out. It supports 2 independent CAM card can decrypt two programs, Each CAM can decrypt multiple channels from Tuner/ASI/IP. And it also supports BISS decryption.
DMB-9020A Professional IRD is becoming very popular among distribution system, IPTV applications and digital TV head-end system for DTV operators, broadcast service providers and IPTV integrators etc.
Features
* Support AVS+/H.265/H.264/MPEG2 video decoding
* Support UDP/RTP/SRT(Optional)
* Support DRA/AC3/EAC3/AAC/MPEG audio decoding
* Twoindependent CAM card which decrypt 2 channels programs
* Support HD and SD signal input
* Support Biss-1/Biss-E descrambling mode
* ProvideCVBS/HDMI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP output.
* Support RF/IP/ASI input
* Each CAM can decrypt multiple channels from Tuner/ASI/IP
* Provide BISS descrambling
* Support dynamic monitoring of signal input strength and SNR
* Support signal lock-lose alarm
* Supportidentify the resolution automatically or manually set
* Support HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 and AVS decoding
* Pluggable and changeable design
* LCD/Keyboard and web-based B/S management
* Updates via web
* Support DRA/AC3/EAC3/AAC/MPEG audio decoding
* Twoindependent CAM card which decrypt 2 channels programs
* Support HD and SD signal input
* Support Biss-1/Biss-E descrambling mode
* ProvideCVBS/HDMI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP output.
* Support RF/IP/ASI input
* Each CAM can decrypt multiple channels from Tuner/ASI/IP
* Provide BISS descrambling
* Support dynamic monitoring of signal input strength and SNR
* Support signal lock-lose alarm
* Supportidentify the resolution automatically or manually set
* Support HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 and AVS decoding
* Pluggable and changeable design
* LCD/Keyboard and web-based B/S management
* Updates via web
Specification
RF Input for option
DVB-C Tuner Input
* Input Frequency:48~862MHz
* Input Level:45~75dbuV
* Constellation:16/32/64/128/256 QAM
* Input port: 1*RF input, 1*RF loopout, 75Ω
DVB-T/T2 Tuner Input
* Input Frequency:44~1002MHz
* Input Level:-20~-100dbm
* Constellation:
DVB-T: QPSK, 16QAM, 64QAM
DVB-T2: QPSK, 16QAM, 64QAM,265QAM
* Input port: 1*RF input, 1*RF loopout, 75Ω
* Bandwidth: 6/7/8 M
DVB-S/S2 Tuner Input
* Input Frequency: 950~2150MHz
* Symbol rate: 1~45Msps
* LNB power supply : 13V, 18V, off , 22KHz
* Constellation: QPSK,8PSK
* Signal Strength: -25~ -65dBm
* Input port: 1*RF input, 1*RF loopout, 75Ω
Transport Stream Output
Video
Decoding format: MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+
Audio
Decoding format: MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
HDMI: 1 *HDMI
Resolution & frame rate:1080P60/1080P50/1080I60/1080I5/720P60/720P50/576P /576I/480P /480I
* Input Frequency:48~862MHz
* Input Level:45~75dbuV
* Constellation:16/32/64/128/256 QAM
* Input port: 1*RF input, 1*RF loopout, 75Ω
DVB-T/T2 Tuner Input
* Input Frequency:44~1002MHz
* Input Level:-20~-100dbm
* Constellation:
DVB-T: QPSK, 16QAM, 64QAM
DVB-T2: QPSK, 16QAM, 64QAM,265QAM
* Input port: 1*RF input, 1*RF loopout, 75Ω
* Bandwidth: 6/7/8 M
DVB-S/S2 Tuner Input
* Input Frequency: 950~2150MHz
* Symbol rate: 1~45Msps
* LNB power supply : 13V, 18V, off , 22KHz
* Constellation: QPSK,8PSK
* Signal Strength: -25~ -65dBm
* Input port: 1*RF input, 1*RF loopout, 75Ω
Transport Stream Output
Video
Decoding format: MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+
Audio
Decoding format: MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
HDMI: 1 *HDMI
Resolution & frame rate:1080P60/1080P50/1080I60/1080I5/720P60/720P50/576P /576I/480P /480I
SDI: HD/SD-SDI, 2*BNC, 75Ω
* SD-SDI output:SMPTE 259M, 270Mb/s(10bit)
* HD-SDI resolution: SMPTE 292M, 1.485 Gbit/s(20bit)
Analog video output
* Video interface: 1*BNC, 75Ω
* CVBS format: PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ
Data Output
* Subtitle: DVB/EBU
* Teletext: DVB/EBU
* Closed Caption :EIA 608, EIA 708, EIA 6
Input interface:
ASI
* Input: 1*BNC input, 75Ω; 2*BNC output, 75Ω
* Input/output bitrate: ≤200Mb/s
* TS over IP:
* Interface: 1*RJ-45, 100/1000 Base-T
* IP Protocol:UDP/RTP, Unicast, Multicast
Descrambling
* CAM/CI Qty: 2
* BISS Mode: Mode 1, Mode E
System
Local and remote management
* Interface:1*RJ-45, 10/100 Base-T
* Remote management: HTTP Web

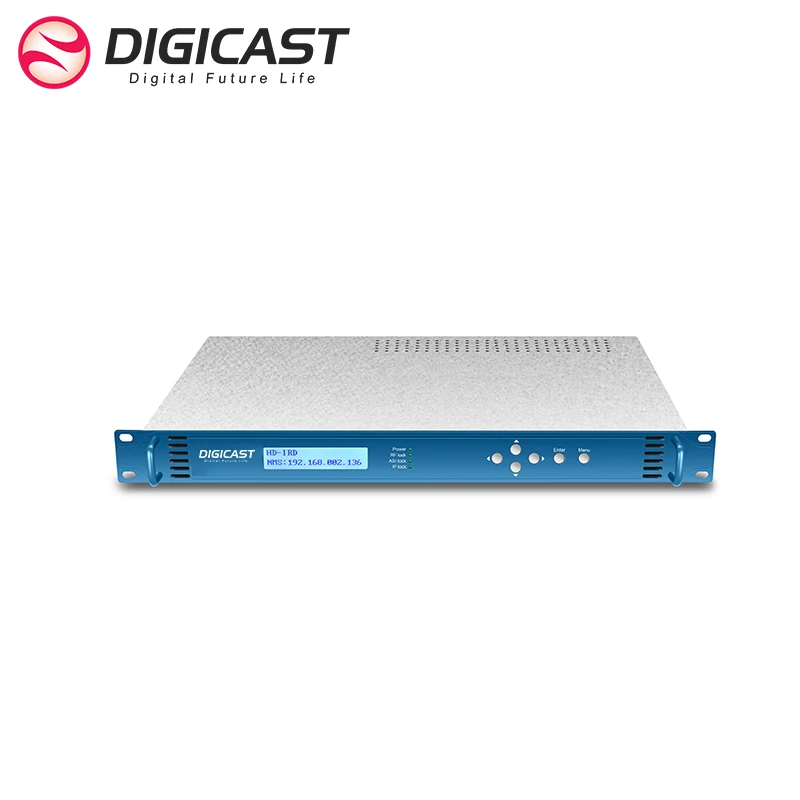

* Local management: Front pannel button and LED
* SD-SDI output:SMPTE 259M, 270Mb/s(10bit)
* HD-SDI resolution: SMPTE 292M, 1.485 Gbit/s(20bit)
Analog video output
* Video interface: 1*BNC, 75Ω
* CVBS format: PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ
Data Output
* Subtitle: DVB/EBU
* Teletext: DVB/EBU
* Closed Caption :EIA 608, EIA 708, EIA 6
Input interface:
ASI
* Input: 1*BNC input, 75Ω; 2*BNC output, 75Ω
* Input/output bitrate: ≤200Mb/s
* TS over IP:
* Interface: 1*RJ-45, 100/1000 Base-T
* IP Protocol:UDP/RTP, Unicast, Multicast
Descrambling
* CAM/CI Qty: 2
* BISS Mode: Mode 1, Mode E
System
Local and remote management
* Interface:1*RJ-45, 10/100 Base-T
* Remote management: HTTP Web
* Local management: Front pannel button and LED
