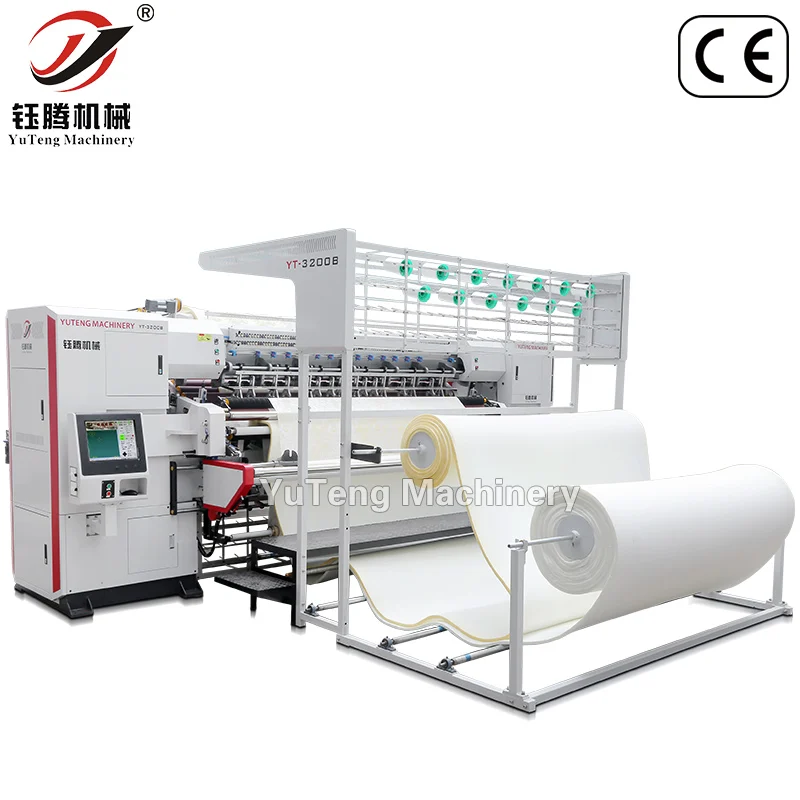

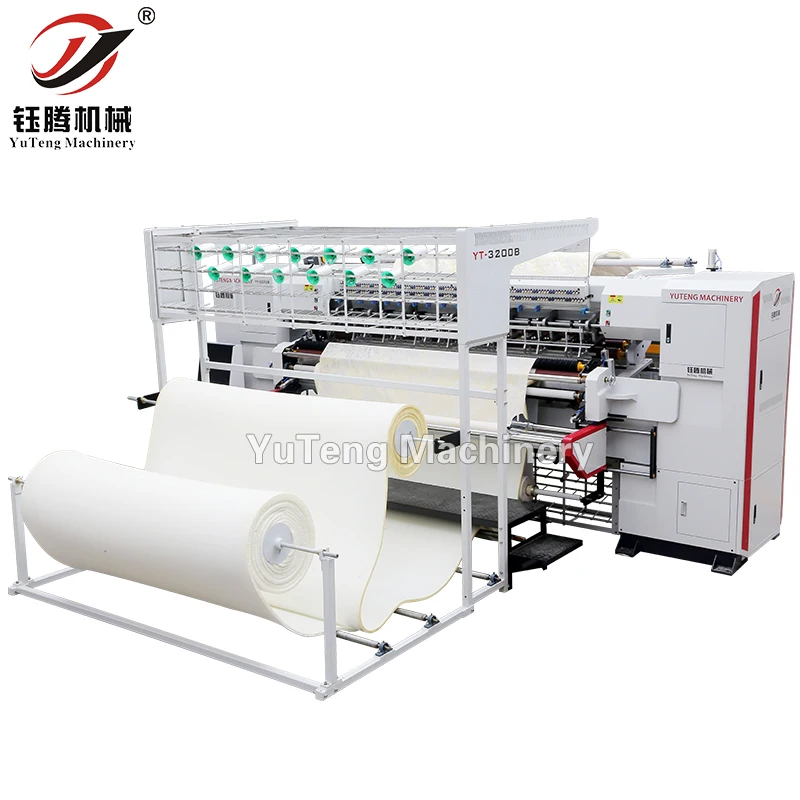

YuTeng Computerized Industrial Multi Needle Quilting Machine For Mattress,Chain Stitch Quilting Machine



Model	YT-3200B
Dimension(L*W*H)	5050*1600*2300(mm)
Quilting Width	2450mm
Needle  rows	3
Space between needle rows	3"+2";3"+3"
Space between needle	25.4mm
X-axis movement displacement	300mm
Thickness of quilting	≤80mm
Stitch length	1-12mm
Speed of operation(m/hour)	60-230(m/hour)
Model of needle	21#,22#,23#,24#
Quilting Speed(r/min)	1200(r/min)
Voltage(AC)	380V/50HZ   220V/60HZ
Total power	8KW
Gross weight	5300kg

* Can be customized according to customer requirements













 ♦ Product main features :

1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.

2,360°Multi-span and independent patterns,automatic thread trimming function.

3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.

4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .

5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function

6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.

7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.

8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.

9,Infrared safety protection and Auto-stop sensors detection function.

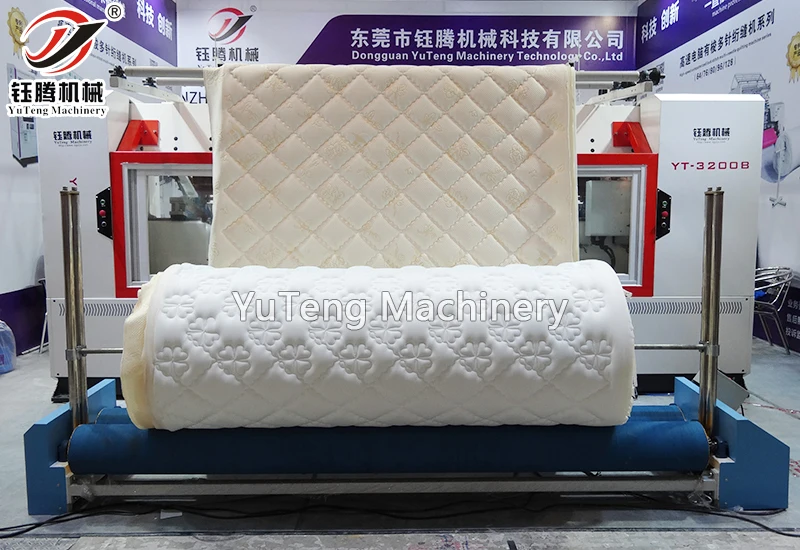

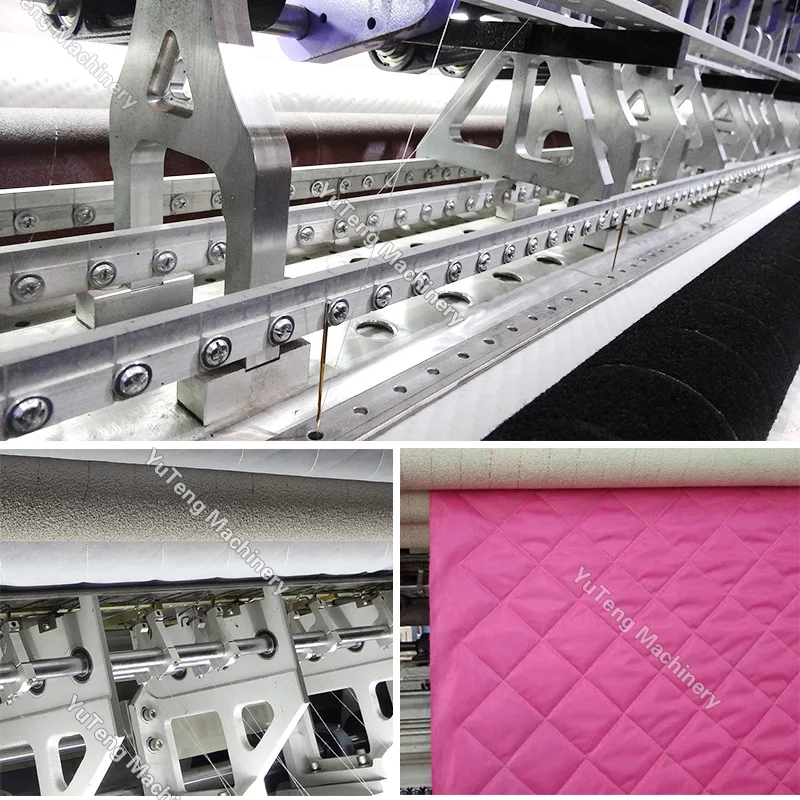

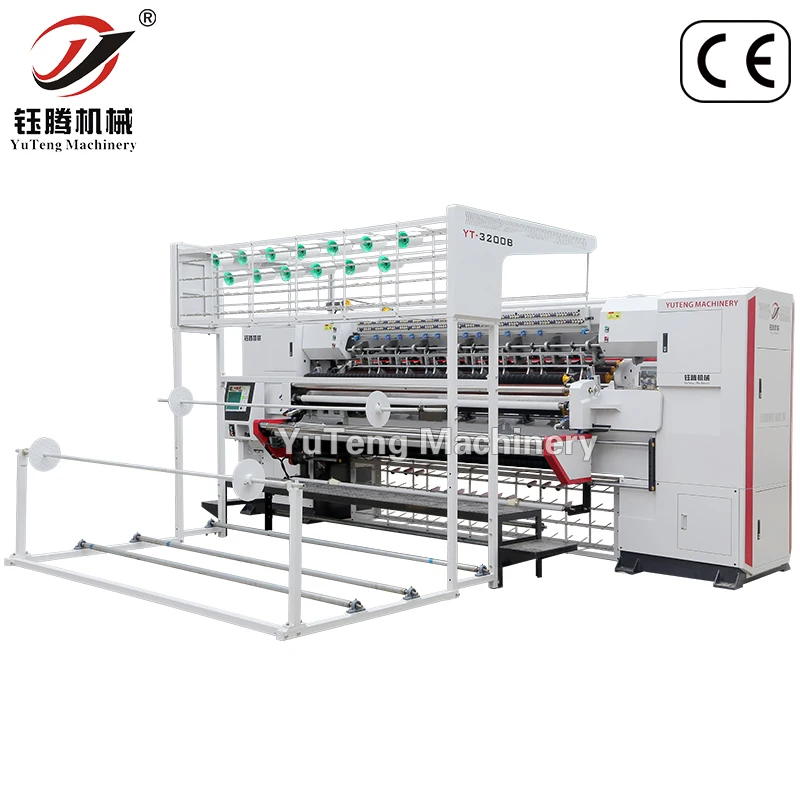

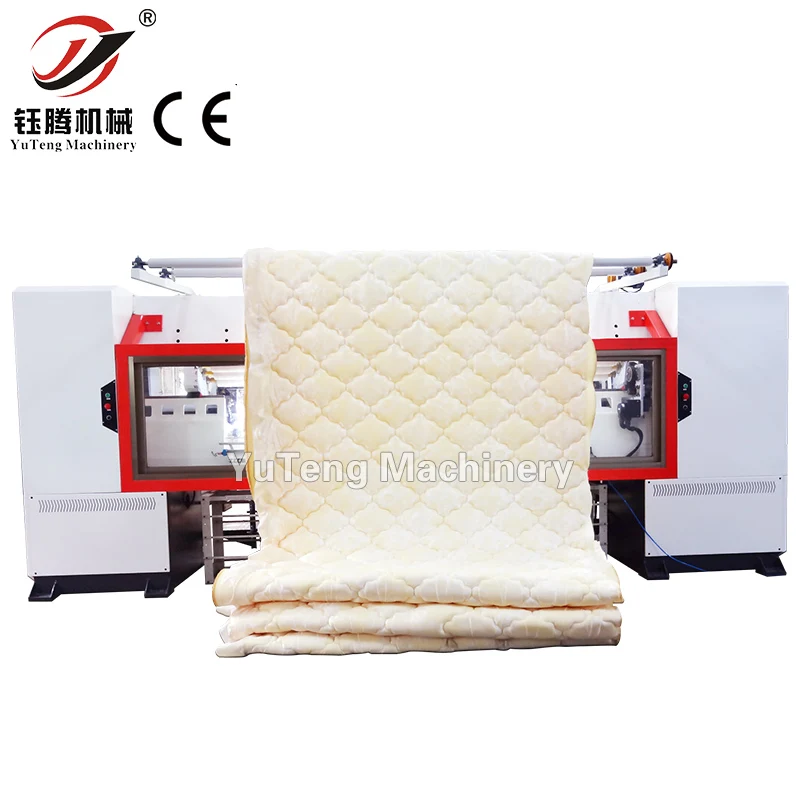

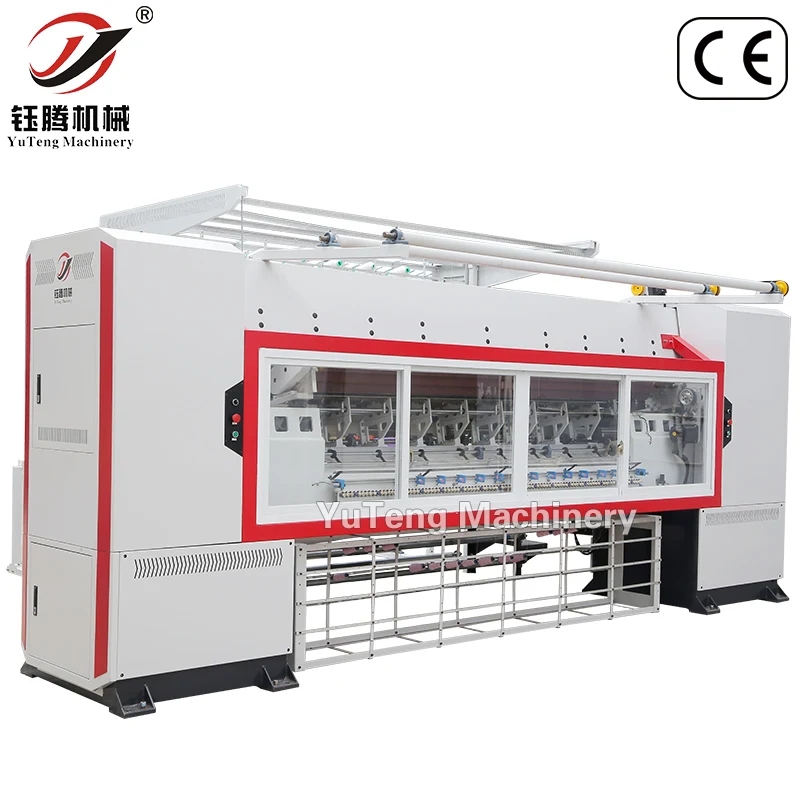

 ♦ Machine picture:





















 ♦ Purpose :

Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.

















 ♦ Certificate :

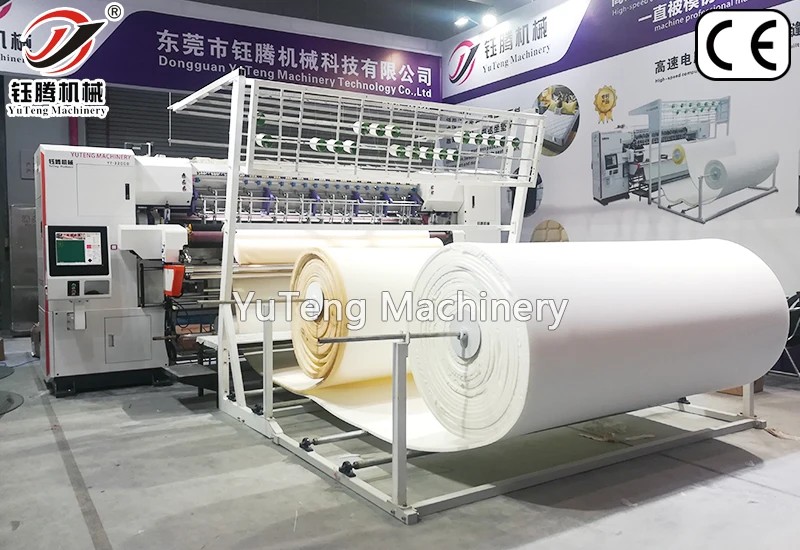

 ♦ Company pictures :







Our Services:

1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.

5.Visit our Factory.
