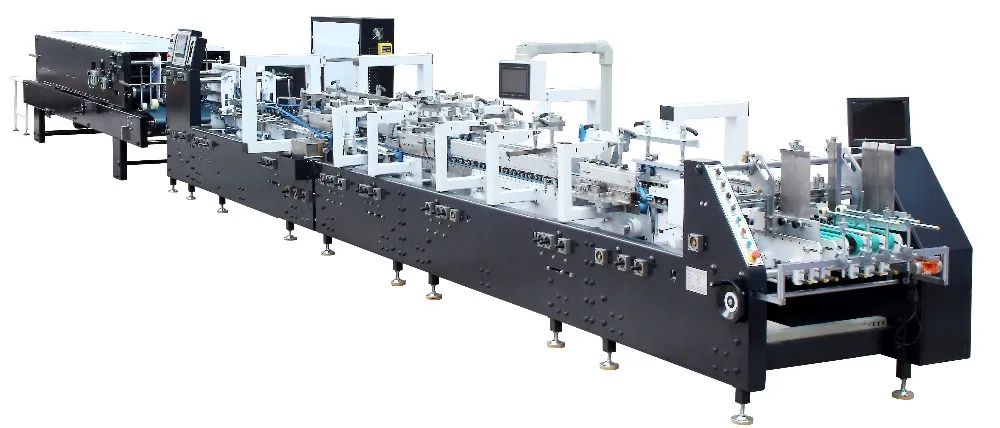

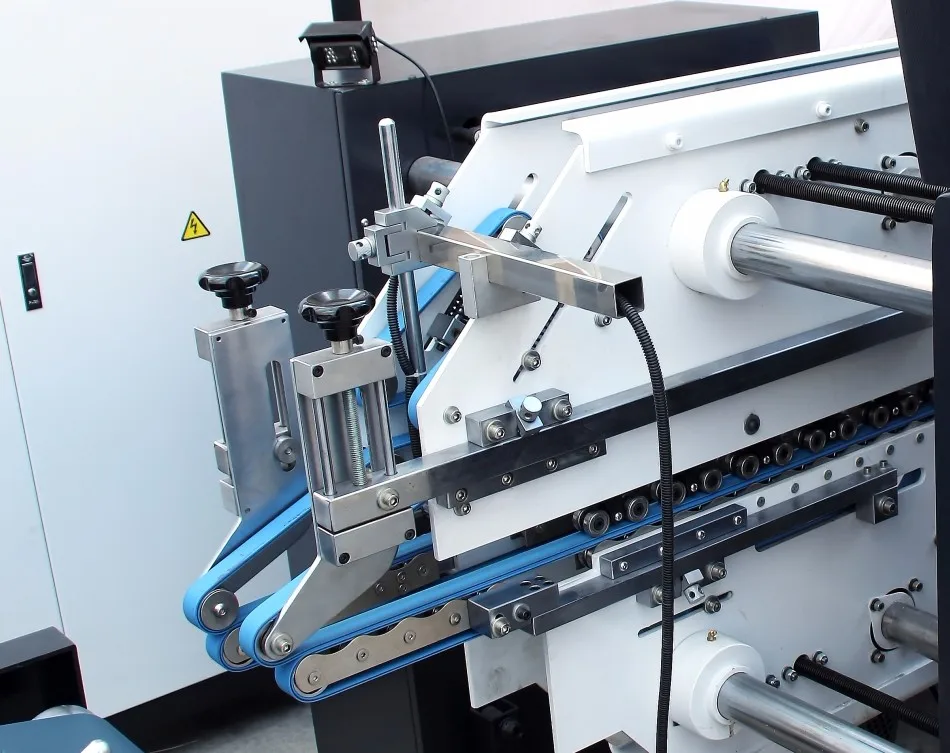

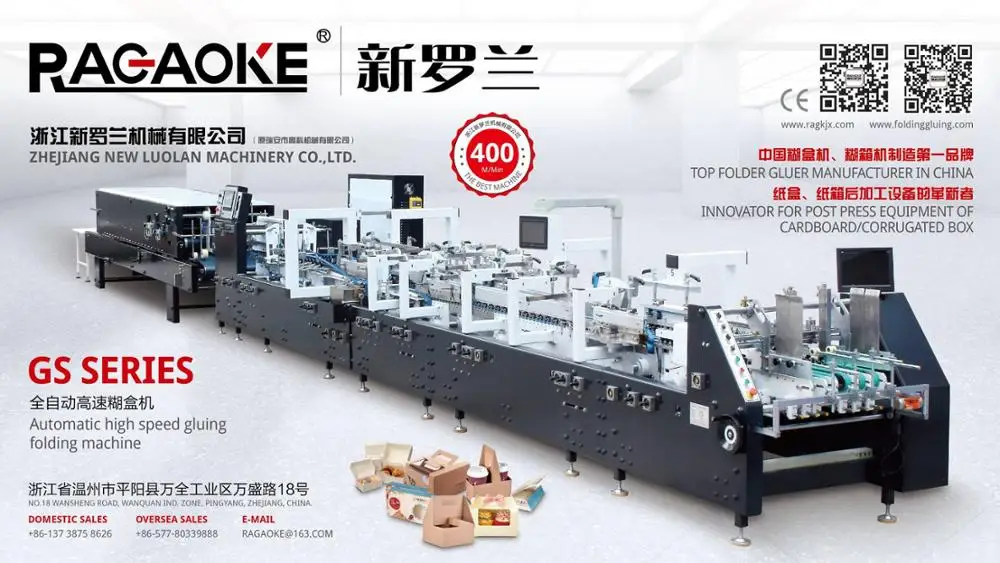

GK 650GS 4/6 POINTS CAKE PIZZA BOX GLUING PASTING MACHINE

ZHEJIANG NEW LUOLAN MACHINERY CO., LTD.

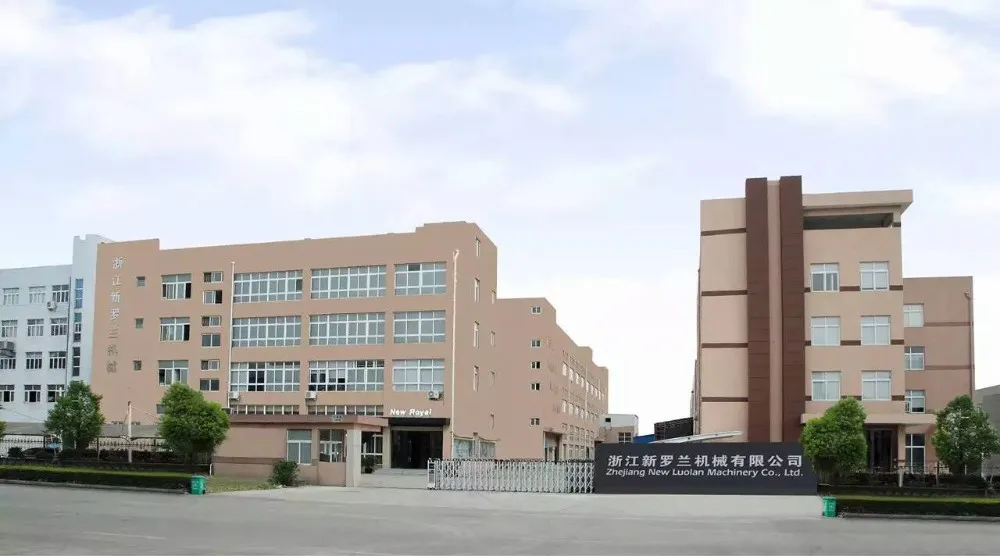

Located in Pingyang, Wenzhou, Zhejiang province, China, Zhejiang New Luolan Machinery Co., Ltd. is a professional manufacturer of folder gluer and window patching machine

Our mission

Providing stable and high efficient automatic post=processing equipment and solutions for production-oriented paper package enterprises.

Our prospect

Making New Luolan become the first brand in China’s paper package automatic post-processing equipment and solutions field through technology and innovation.

Our value concept:

Thinking from the perspective of clients, striving to create value for clients;

Encouraging total involvement in innovation, achieving win-win through cooperation.

Main Features

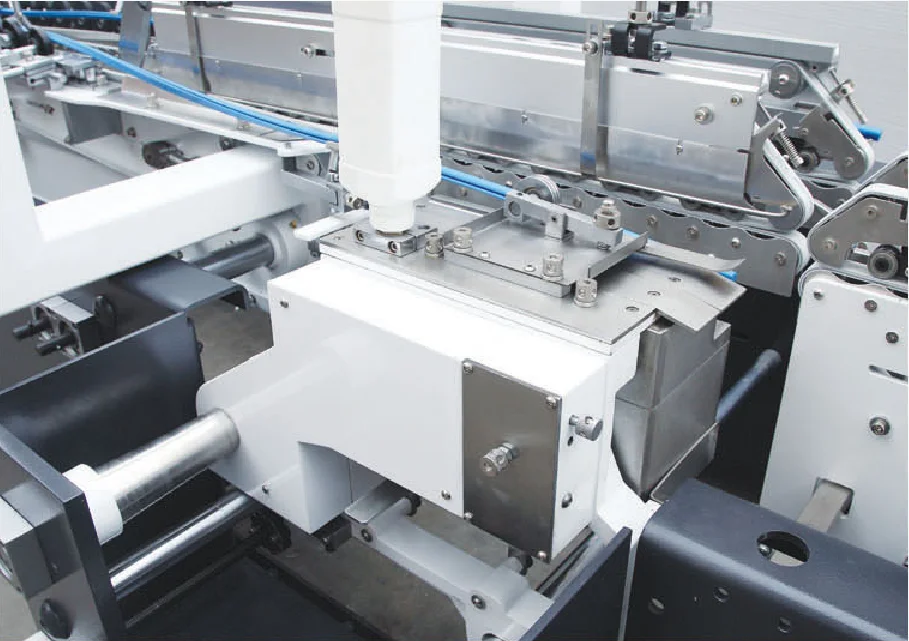

1) Electronic upper gluing system by guns.。

2)Machine using motorized and united electronic back folding system with intelligent servo motor technology.

3) Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touch screen.

4) Equipped with 8 nuzzles, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.

5) Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes

6)Processed Materials :  Carton board max.\t650 gsm
Corrugated flute type:   N, E & F
Speed max.: 400 m/min
Inching speed :10 m/min
Thickness of folded box max.: 12 mm

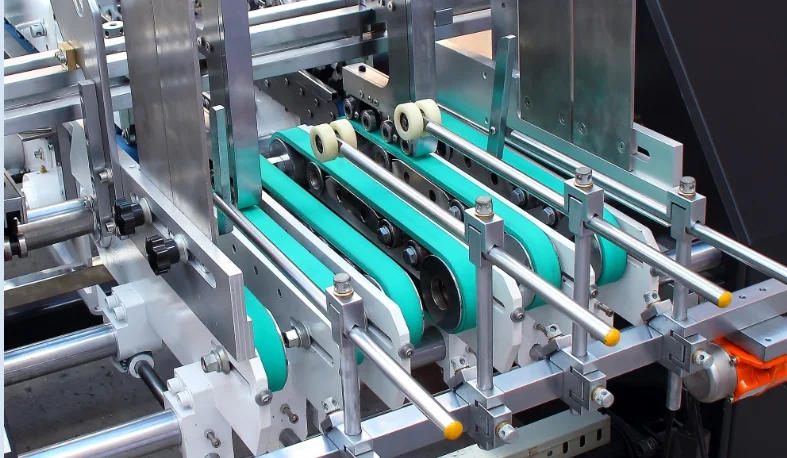

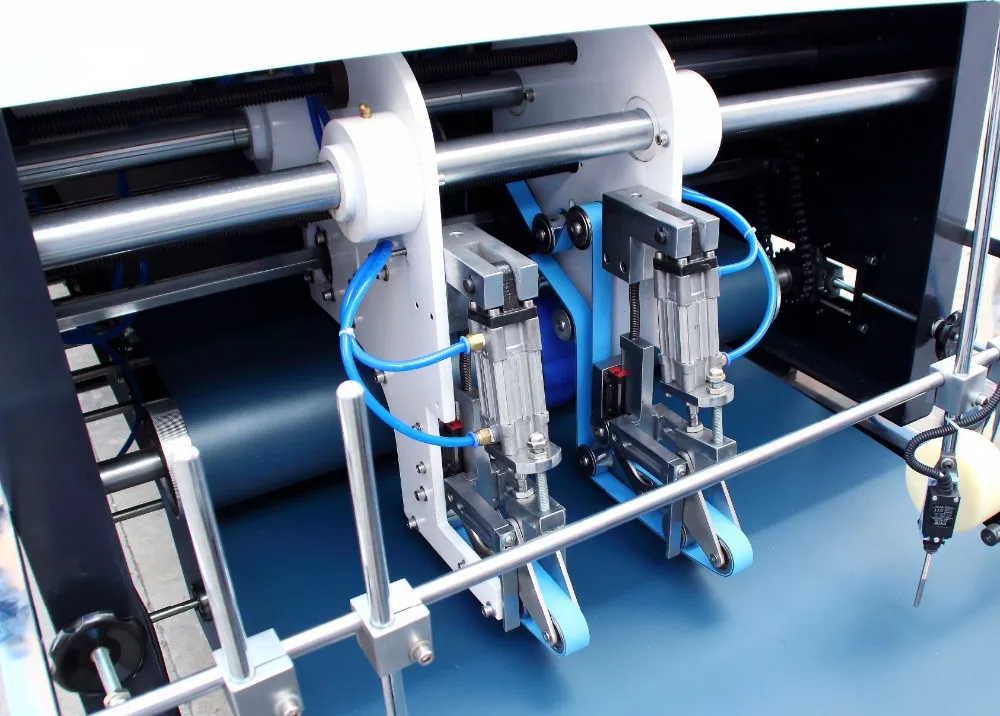

Feeding section

Independently motorized servo motor control, simultaneous feeding mode with the main motor.

Operators can operate feeder switch  in any regional.

Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.

Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box samples.

Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.

Aligner section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Glue section

Special first folding line pre-fold 180°. third line 170° ,

which perfectly meeting the requirements of automatic packaging industry.

One glue box at left side for side gluing.

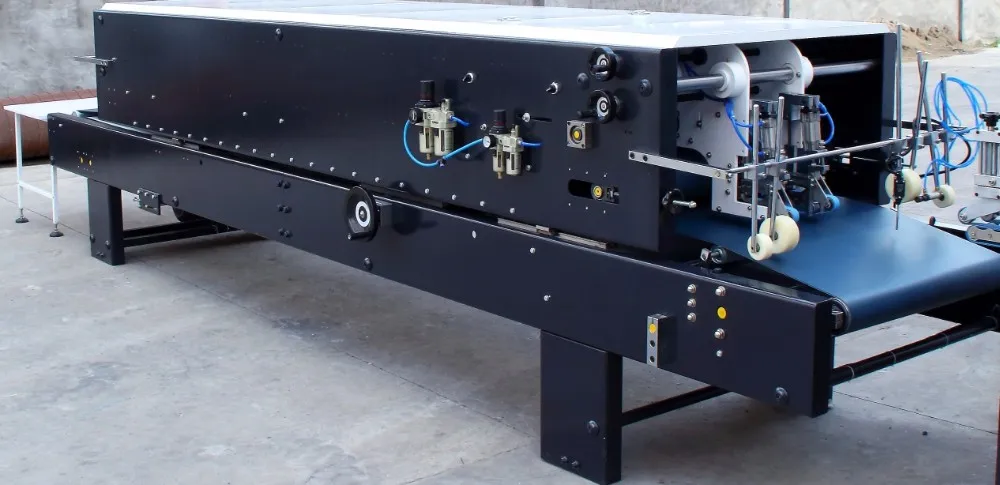

Press section

Equipped with special additional sponge belt for the press of boxes valley part.

 Upper section moves back and forward, allowing for different box length.
Pneumatic pressure regulator ,which can effectively ensure the uniform of fitting pressure, makes machine easy to adjust.
