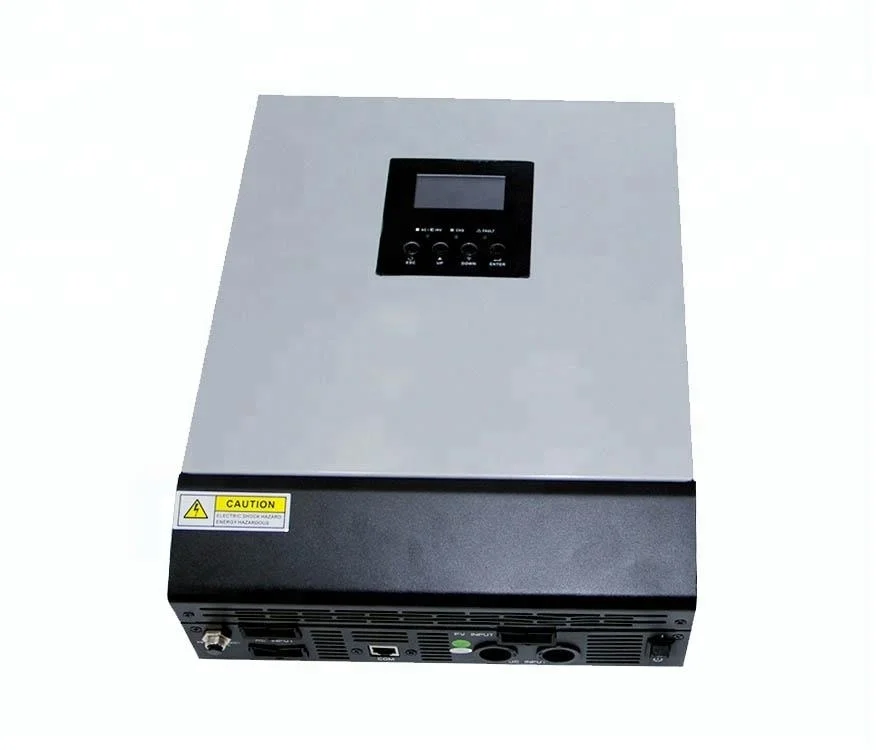

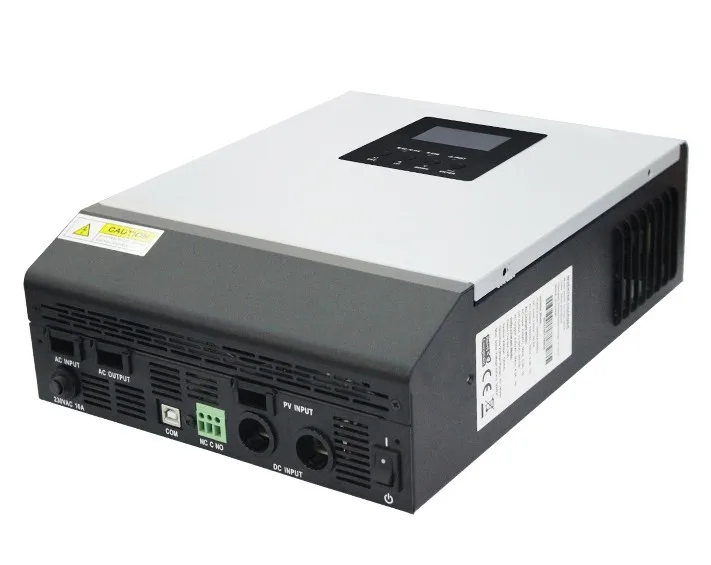

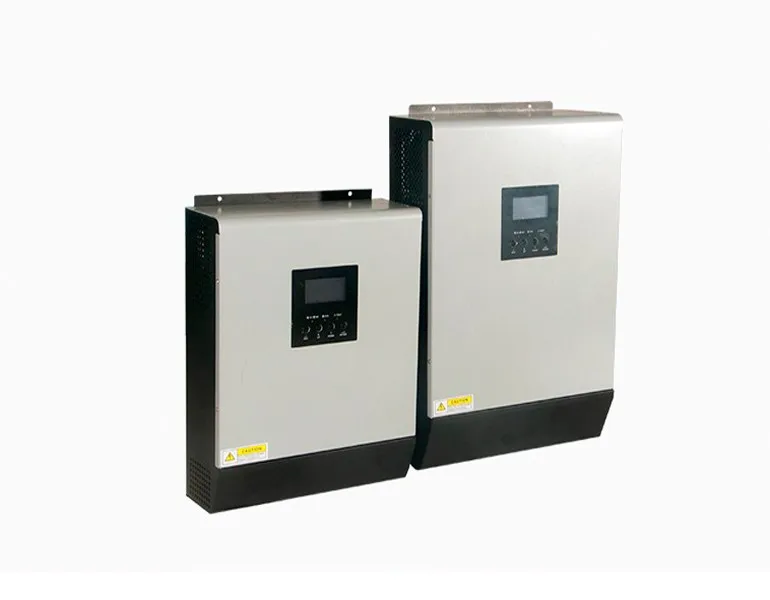

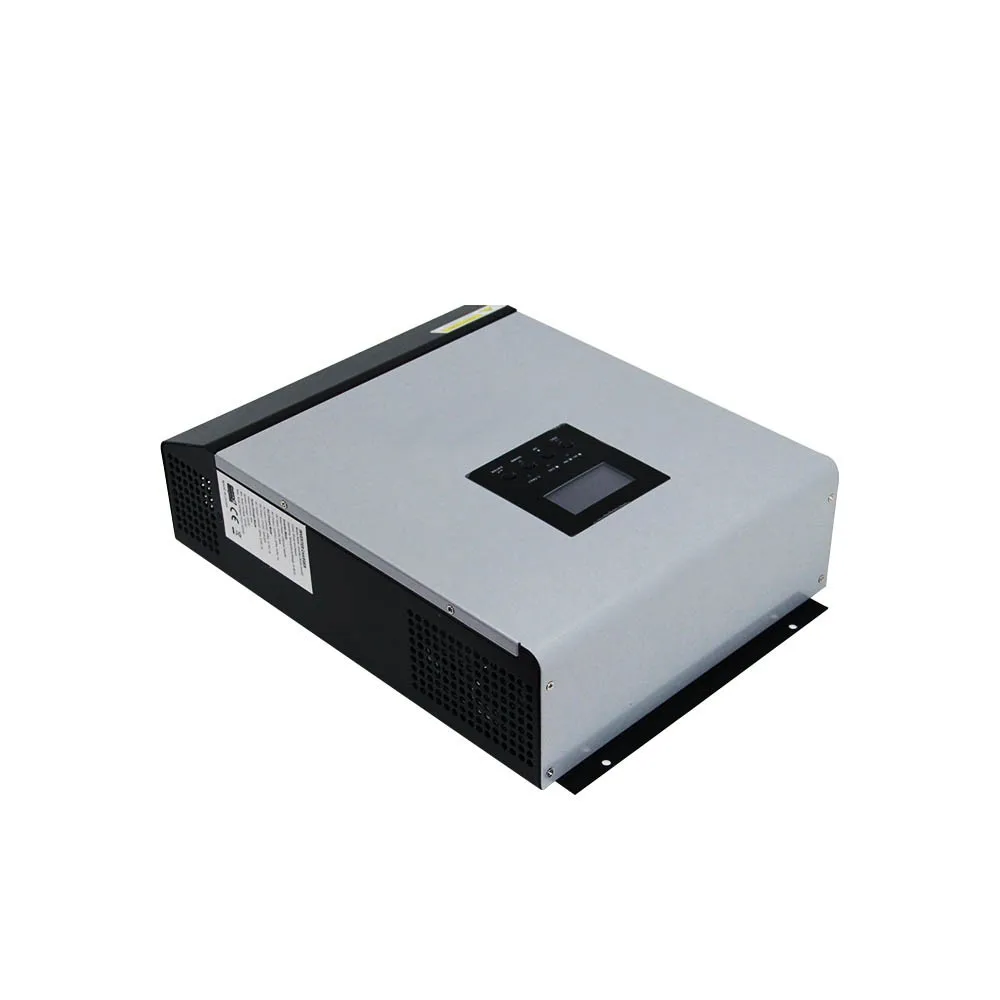

Pure Sine Wave Off Grid Solar Hybrid Inverter 5KVA with MPPT solar charge controller in built

Off Grid Solar Hybrid Inverter

* Pure sinve wave inverter, inbuilt solar charge controller & AC input charger

* Compatible to mains voltage or generator power

* Configurable AC/Solar input priority via LCD setting
* Auto switch between AC power & Solar power

* Auto restart while AC is recovering

* Selectable input voltager range for home appliances and personal computers

* Overload, over-temperature, battery reverse polarity, output short circuit protections

* Battery equalization for optimized battery performance and lifecycle

* Parallel operation with up to 9 units only available for 4KVA/5KVA models

* Colde start function.

Solar Power and AC Power available

The system will provide power from the Solar power and the AC power (from power grid or generator).
The system will recharge the battery pack.

The system will auto switch to solar power if AC power failed.

Solar Power and AC Power not available

The system will auto switch to battery if no sunshine and AC power.
The battery pack will supply power for the loads.

The system will auto switch to solar power or AC power if they are recovering.

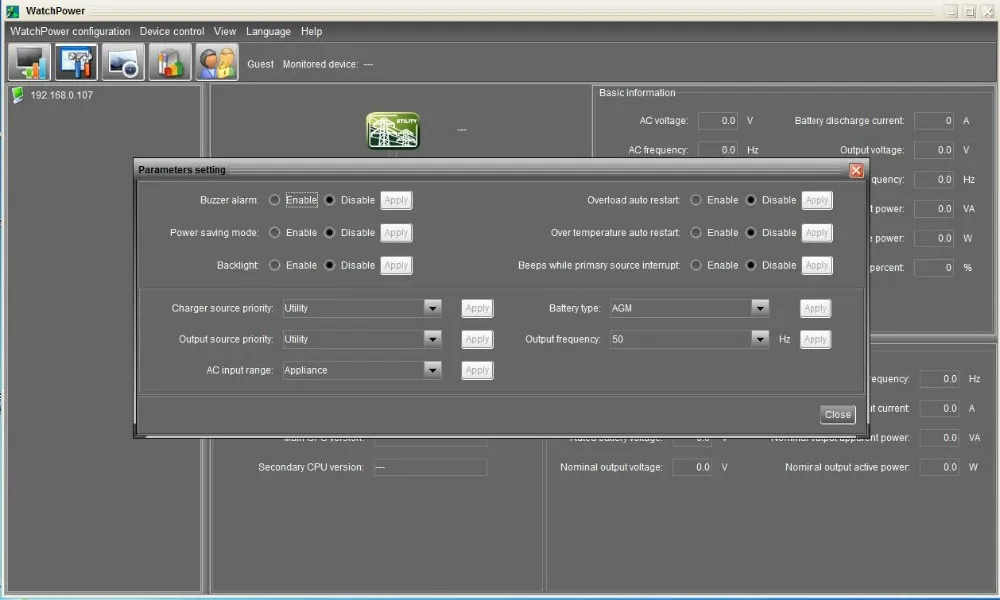

Monitoring Software

The inverter come with monitoring software can monitoring multipke devices via serial port at the same time.

It includes data log for device, alarm messages, fault messages, and parameters setting for device.

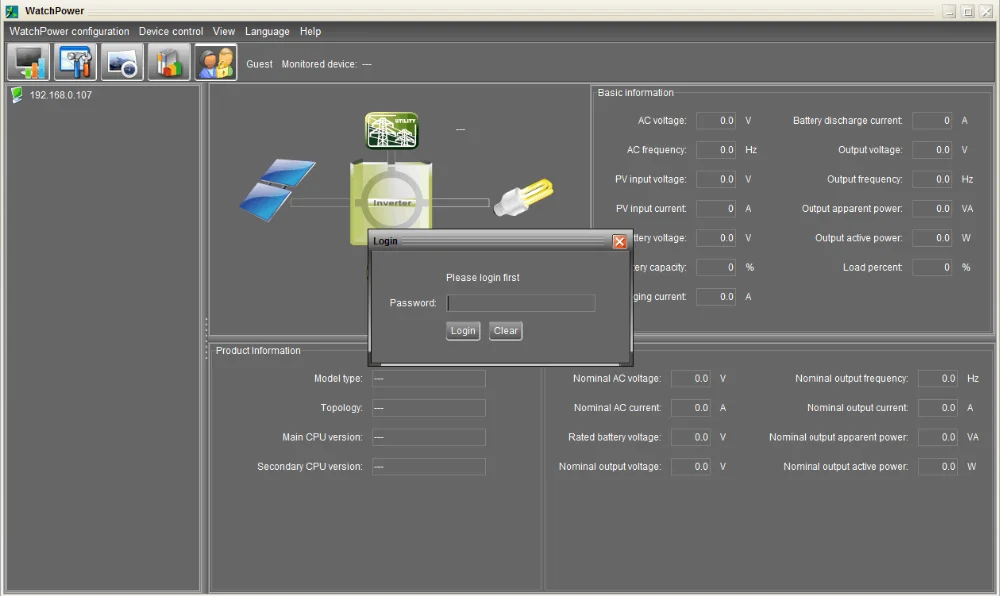

Log in

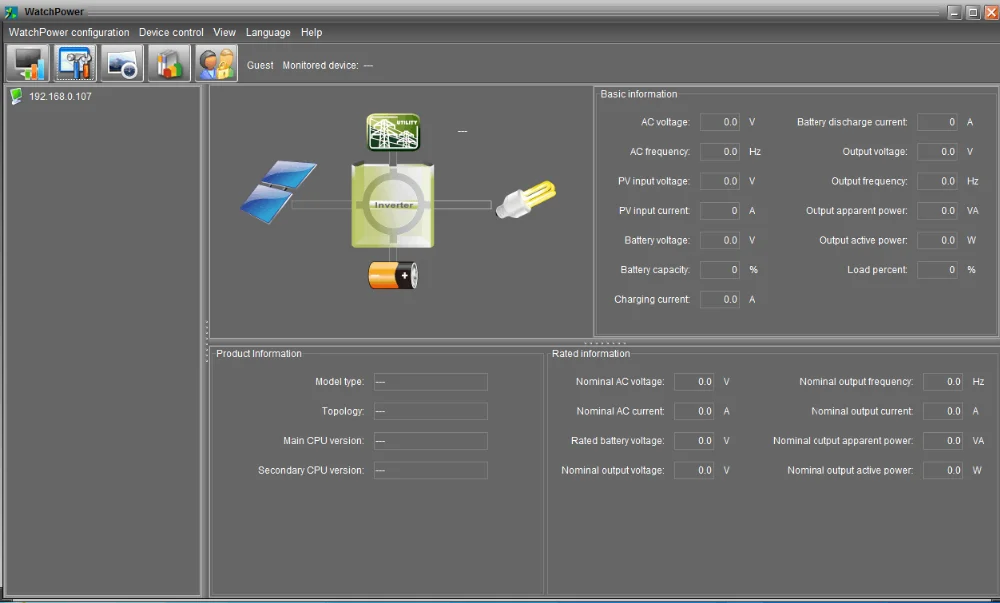

General info

Parameters setting
