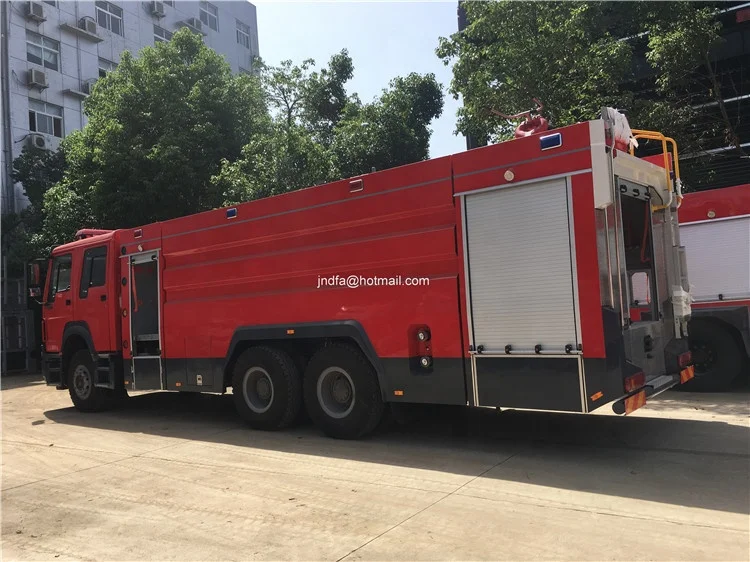

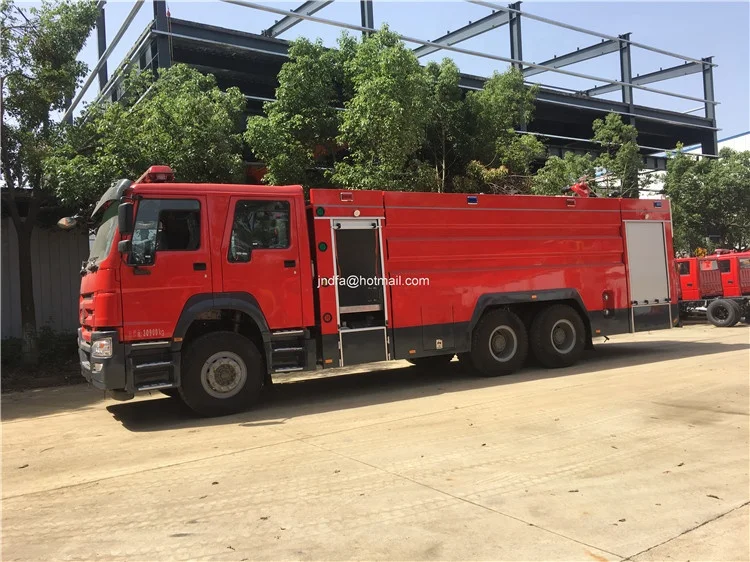

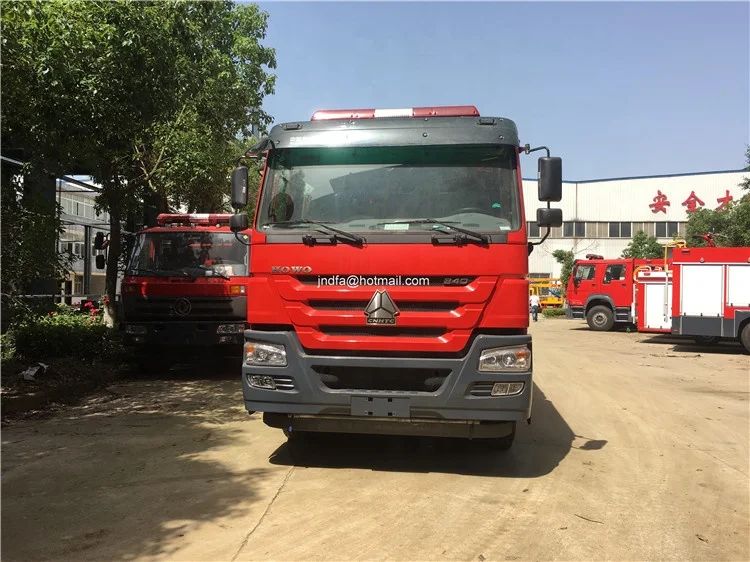

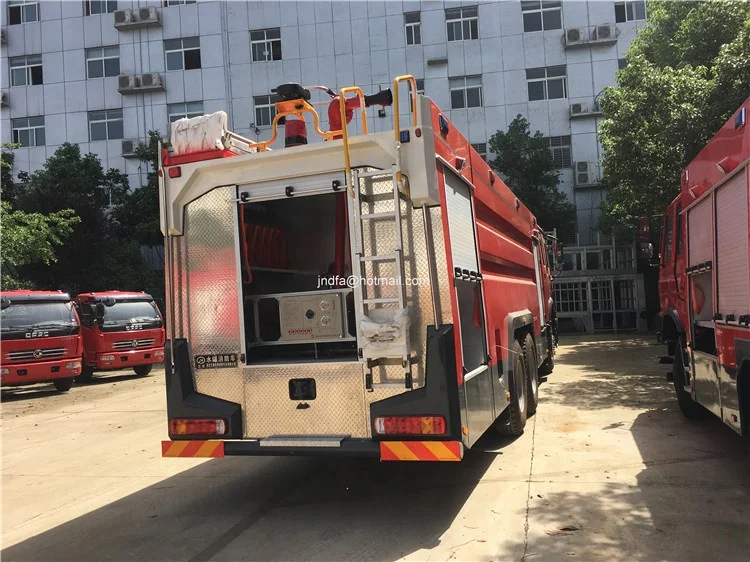

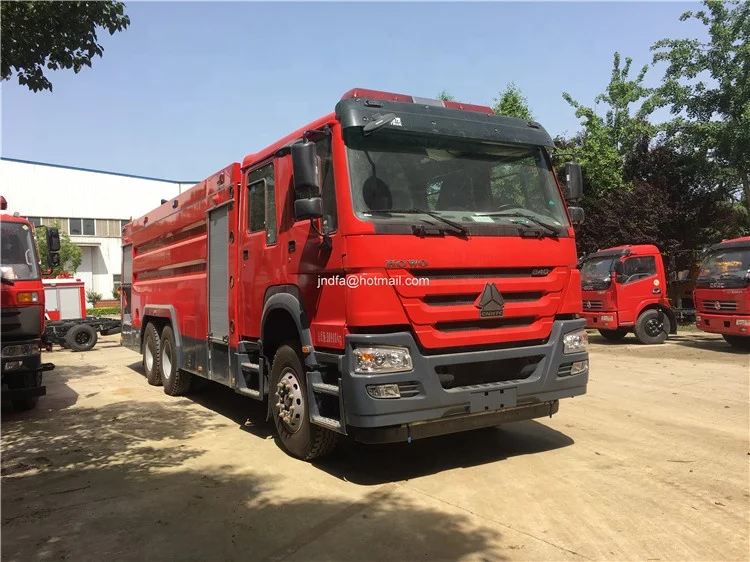

Instructions of HOWO 340hp back two bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck
Instructions of HOWO 340hp back two-bridge 8 tons water foam firefighter truck

Instructions of HOWO 340hp back two bridge 8 tons water foam firefighter truck

Share on (60764134931):


Price:$37,000.00 - $38,000.00

Quantity:


Product Overview

Description



Product Description


Instructions of HOWO 340hp back two-bridge water firefighter truck
[Main technical parameters]
Product Name:Foam fire truck
Product model: JDF5313GXFPM160 foam fire truck
The total mass (Kg) 30900
Rated load capacity (Kg) 15700
Service quality (Kg) 14750
Tank volume (m3) 15.637
Dimensions (mm) 10480×2500×3550
Carriage size (mm) × ×
The number of passengers in the cab (person) 2+4
Approach angle / departure angle (°) 16/9
Front suspension/rear suspension (mm)1500/2950
Number of axes 3
Wheelbase (mm)4600+1350,4575+1400
Axial load (Kg): 6370/24530 (with two axes)
The maximum speed (Km/h) 80
Others: Extension: 80 mm; Total volume of the tank is 15.637 m3; Tank capacity is 12500 kg; Volume of the tank: 12.5 m3; Tank size(length × width × height): 4210 × 2150 × 1450 ( Millimeters); Class B foam tank carrier fluid capacity of 3200kg; tank volume:
3.137 cubic meters; tank size (length × width × height): 1055 × 2150 × 1450 (millimeters); firefighters by 75 kg / person; ABS models and manufacturers: 4460046300 / WABCO Automotive Control System (China) Co., Ltd.; side protection and rear lower protection material material: Q235, integrated structure; rear lower protection device height from ground: 480mm.

[chassis technical parameters]
Chassis model: ZZ5347N4647D1
Chassis name: Special operating vehicle chassis
Dimensions (mm) 9895×2496×3125
Number of tires 10
Approach angle / departure angle (°) 16/19
Tire specifications 12.00-20, 12.00R20, 315/80R22.5
Number of leaf springs 10/-, 10/12
Front track (mm) 2022
Fuel Type: Diesel
Rear track (mm)1830/1830
Emission standard: euro IV
Engine Model: D10.30-40
Engine manufacturer: China Heavy Truck Group Co., Ltd.
Displacement (ml): 9726
Power (Kw): 221




Company Profile








Hubei Jiangnan Dongfeng Special Automobile Co., Ltd. is a leading company specializing in special-purpose automobiles. Relying on strong technological capability , we can produce and sell the DONGFENG serial fueling vehicles, street sprinklers, fire engines, garbage trucks, Aerial platforms, truck cargo cranes, wreckers, high-pressure wash vehicles , vacuum suction -type sewers /scavengers and other related products.

Our products can be divided into 13 classes and 288 varieties with high quality and excellent after-sale service. With a guarantee card, our customers can enjoy superior service in any service centre in China.

We welcome old and new friends to choose us.


FAQ


1. who are we?
We are based in Hubei, China, start from 2007,sell to Domestic Market(36.00%),Southeast Asia(22.00%),Africa(20.00%),Eastern Asia(14.00%),South Asia(4.00%),South America(2.00%),Mid East(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fire Truck,Aerial Platform Truck,Road Wrecker,Garbage Truck,Road Sweeper

4. why should you buy from us not from other suppliers?
Established in 1995, Hubei Jiangnan (Dongfeng) Special Automobile Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of Special Automobiles.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
