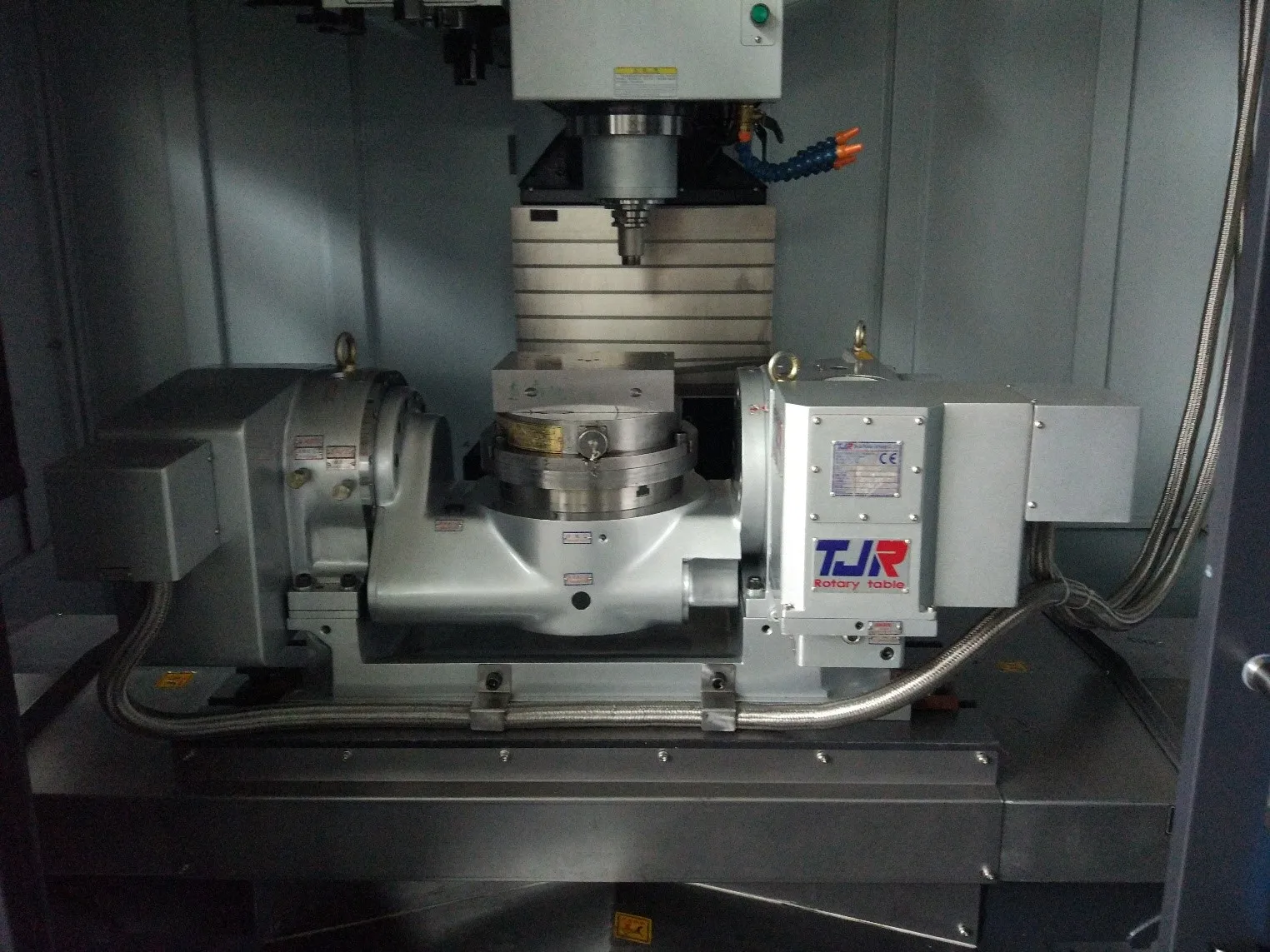

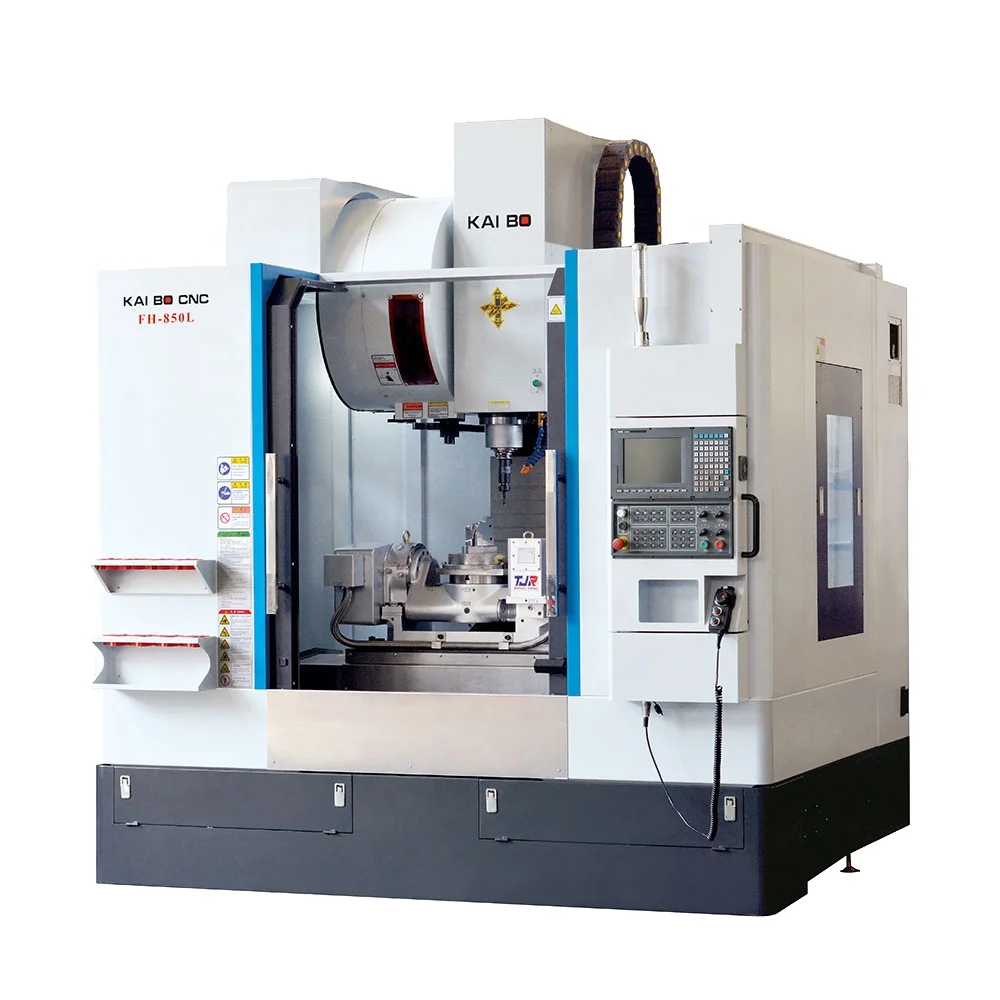

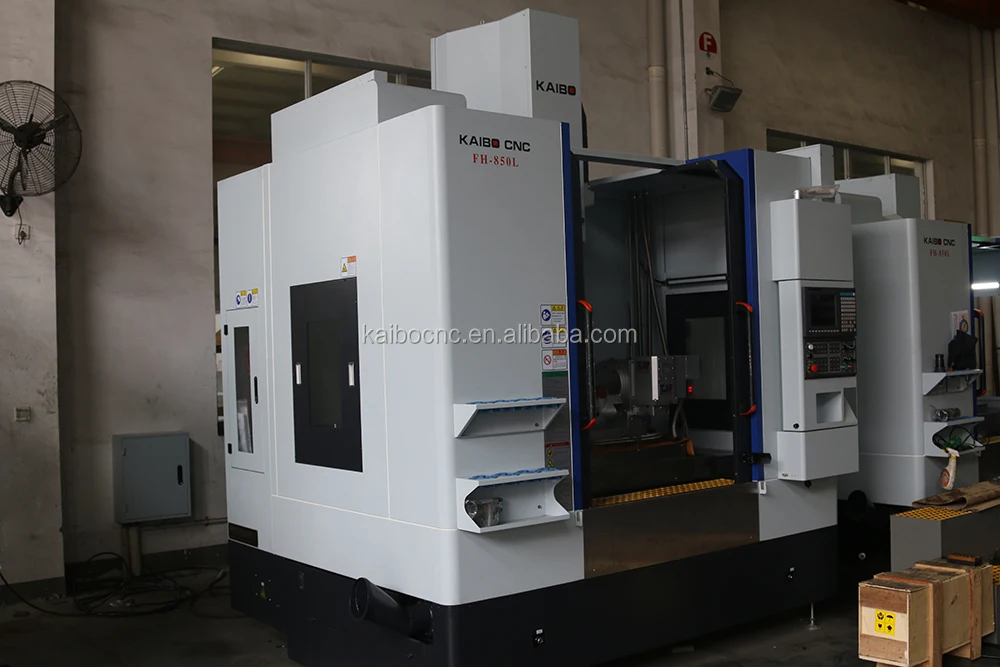

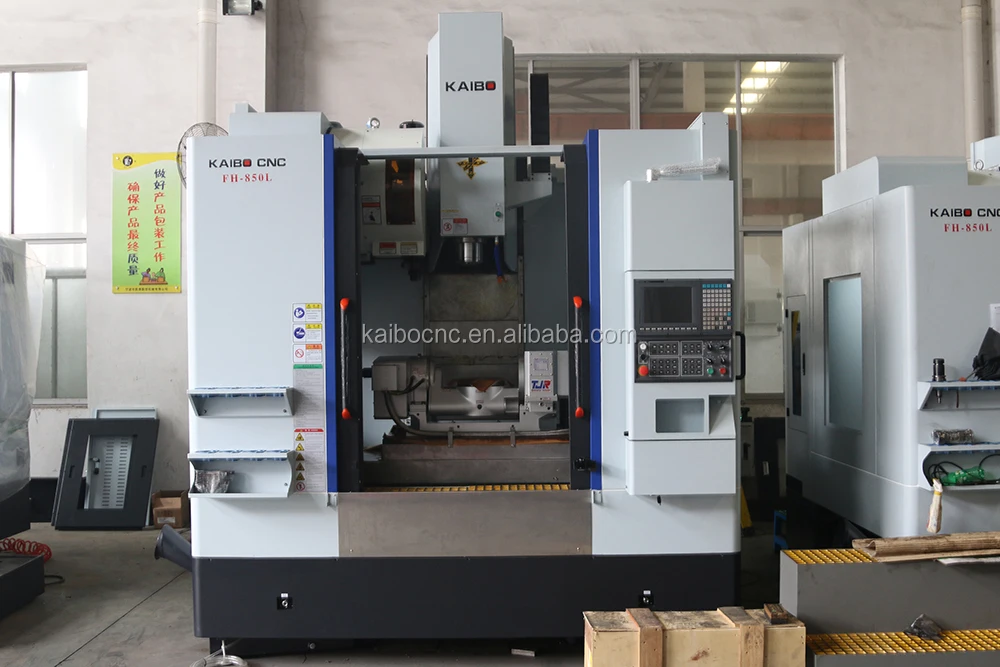

China professional manufacturer High Precision cnc milling machine 5 axis Vertical Machining Center
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60764135733):
Product Overview
Description
PRODUCT FEATURES
5-axis simultaneous machining
X/Y/Z axis travel: 800/550/600mm
Powerful inline direct-drive spindle
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
X/Y/Z axis travel: 800/550/600mm
Powerful inline direct-drive spindle
All linear guideways for enhanced rigidity and accuracy
Optional for HPC function.
Large capacity side-mount tool changer
PRODUCT PARAMENTERS
Parameter/Model | FH-855L | ||
Accuracy | Positioning accuracy | 0.01mm | |
Repeat positioning accuracy | 0.005mm | ||
Worktable | Worktable size | 920*550mm | |
T-slot size | 5T-18-100mm | ||
Max. load | 600Kg | ||
Travel | X/Y/Z axis travel | 800/550/600mm | |
Spindle nose to worktable | 140-740mm | ||
Spindle center to Column | 550mm | ||
Feed | Max. feeding speed G00 | 48m/min | |
Max. working speed G01 | 12m/min | ||
X/Y/Z axis motor power | 2.0/2.0/3.0kw | ||
Spindle | Drive type | Direct-type | |
Spindle motor power | 7.5-11kw | ||
Spindle Max. speed | 12000rpm | ||
Tool holder | BT40 | ||
Tool Magazine(Opt.) | ATC type | Arm type | |
ATC capacity | 24pcs | ||
Common | Power supply and total capacity | 3P/380V/50Hz/20KVA | |
Machine weight | 6000Kg | ||
Dimension | 2500*2200*2500mm | ||

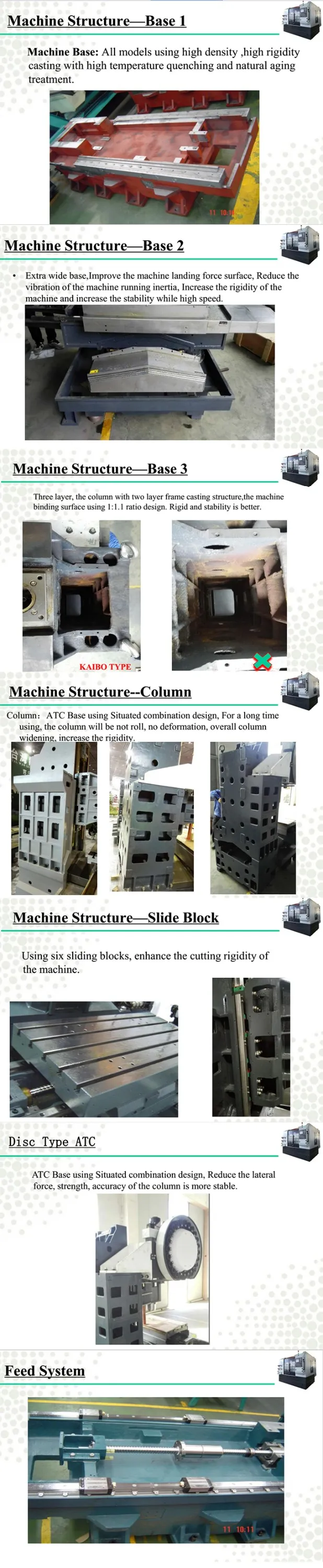

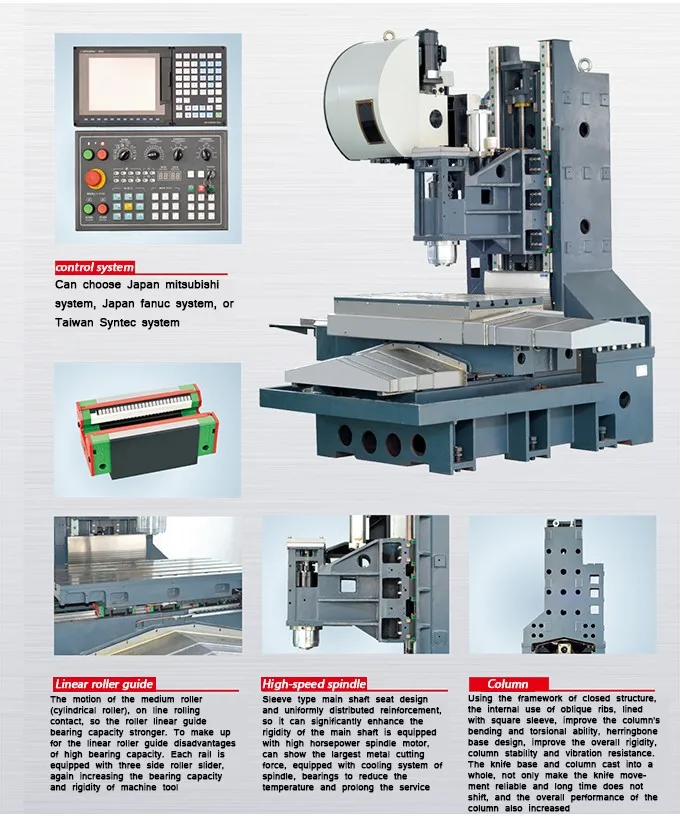

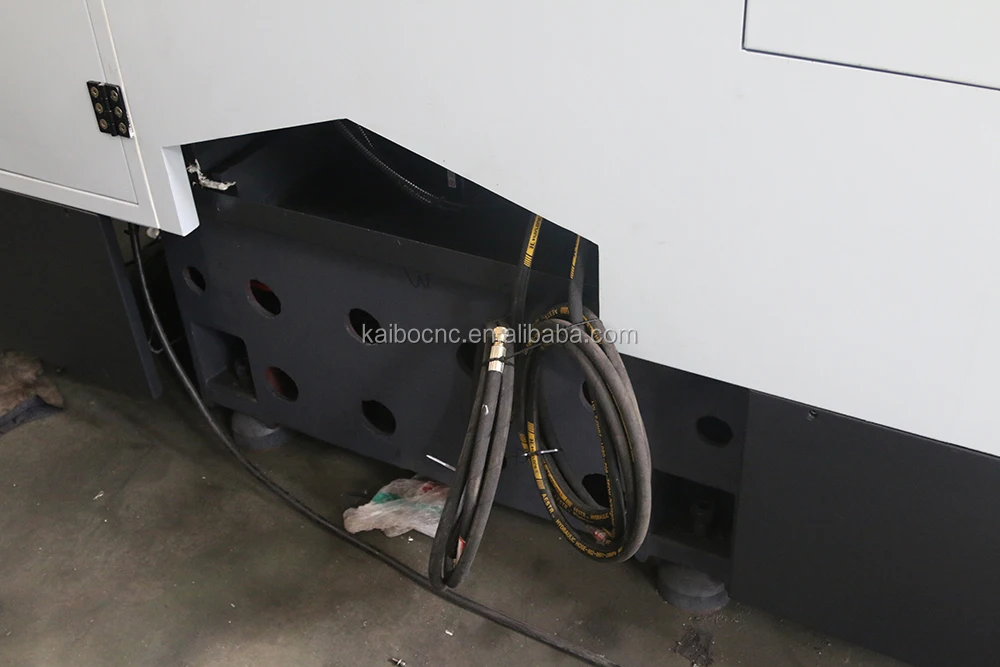

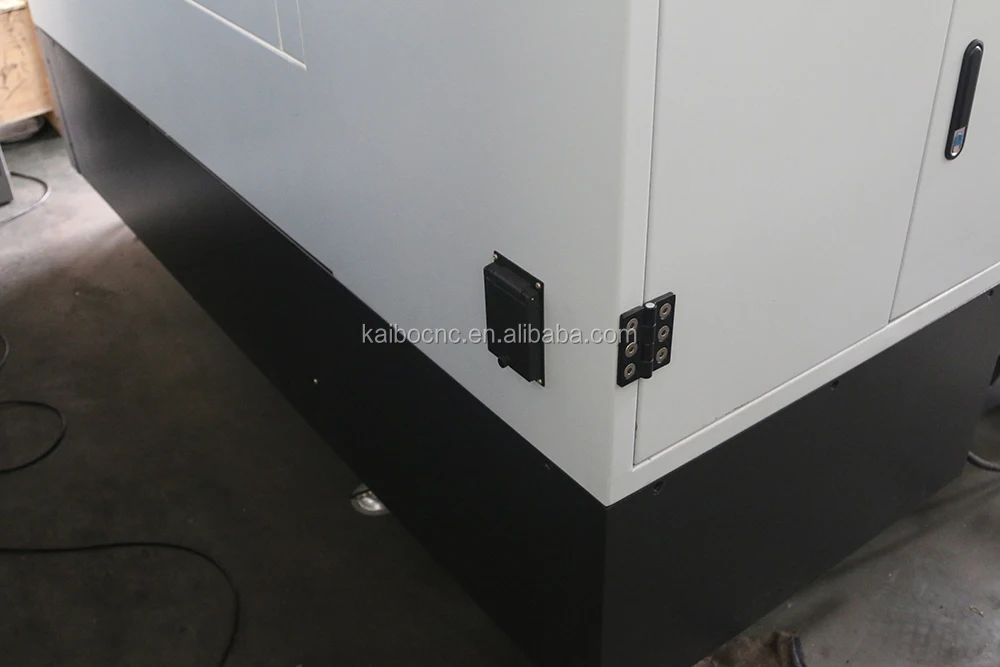

PRODUCT DETAILS

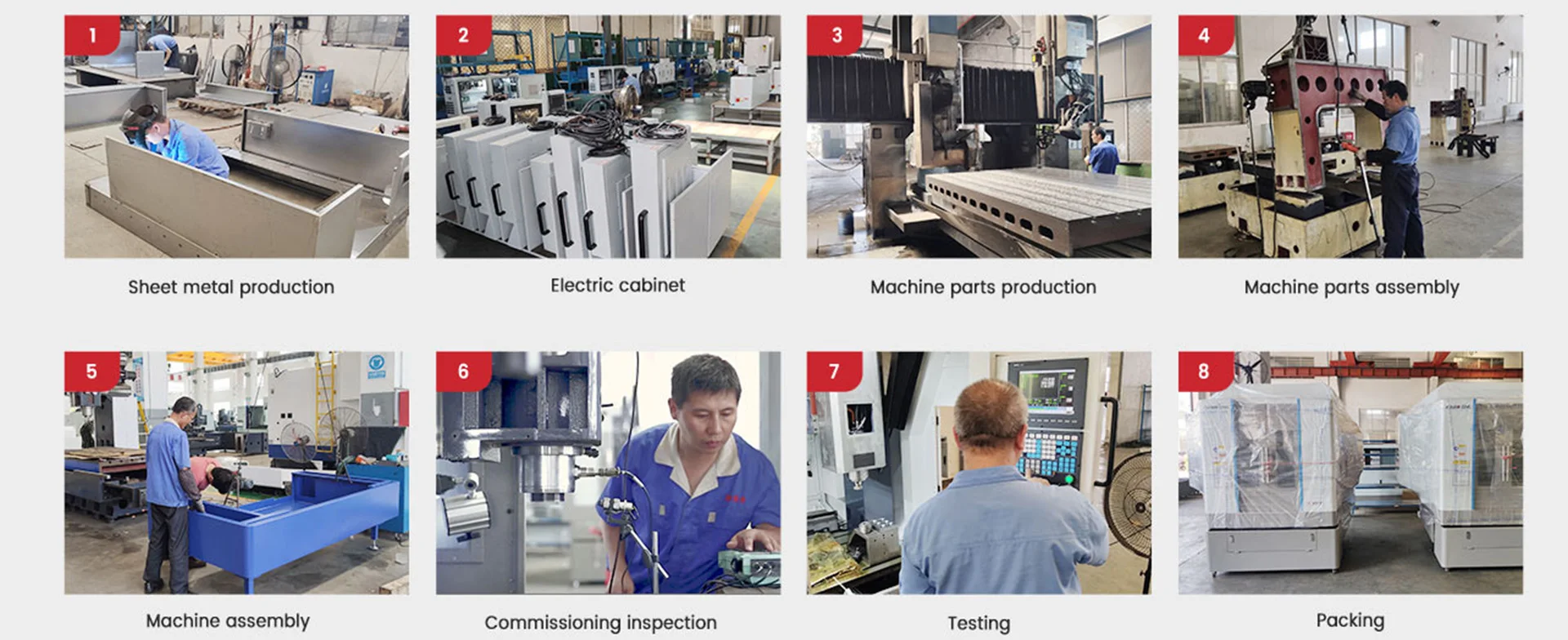

PRODUCTION PROCESS

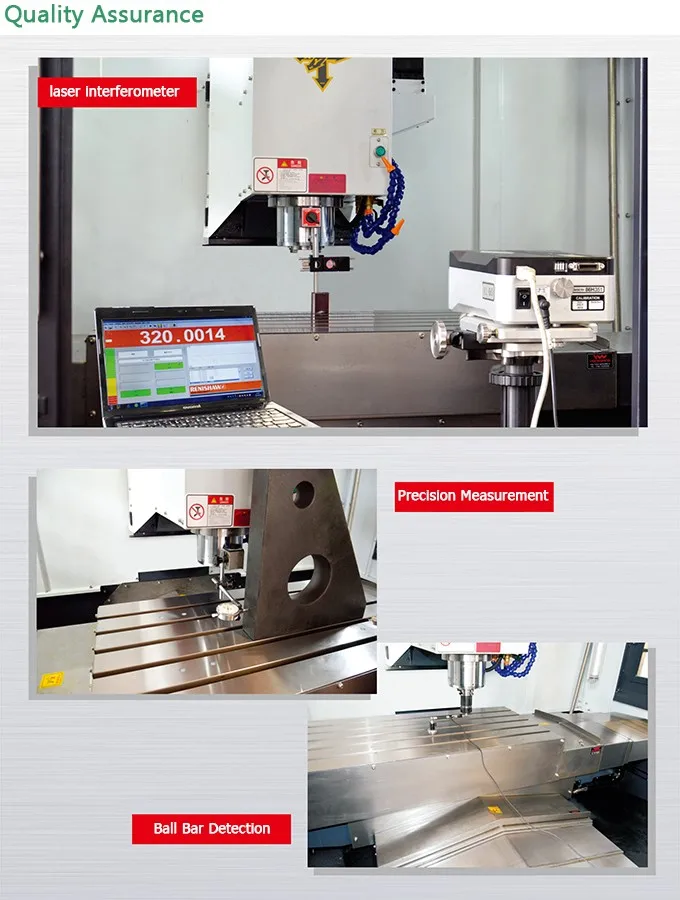

QUALITY INSPECTION
Ningbo Kaibo CNC Machinery Co., Ltd.
FAQ
1. Which CNC Machine is suitable for me?
A: Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
A: Such as Steel, iron, copper, aluminum, plastic, organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum plastic plate, and other materials.
3. What servic can we enjoy as for the after-service?
A: Internet service by sending emails and videos,communicating online or calling.
And 1 year warrantee.During the warranty period, we will sent damage of the machine parts(non-human factors) for free.
A: Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
A: Such as Steel, iron, copper, aluminum, plastic, organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum plastic plate, and other materials.
3. What servic can we enjoy as for the after-service?
A: Internet service by sending emails and videos,communicating online or calling.
And 1 year warrantee.During the warranty period, we will sent damage of the machine parts(non-human factors) for free.
