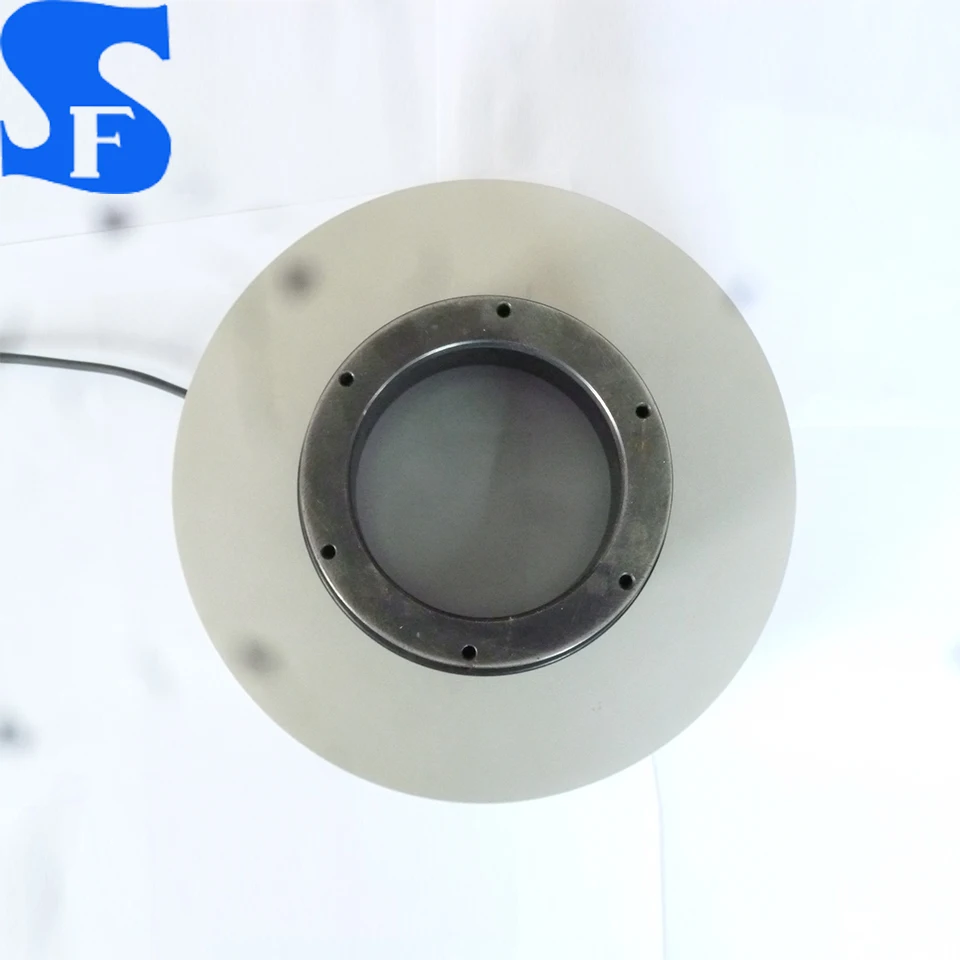

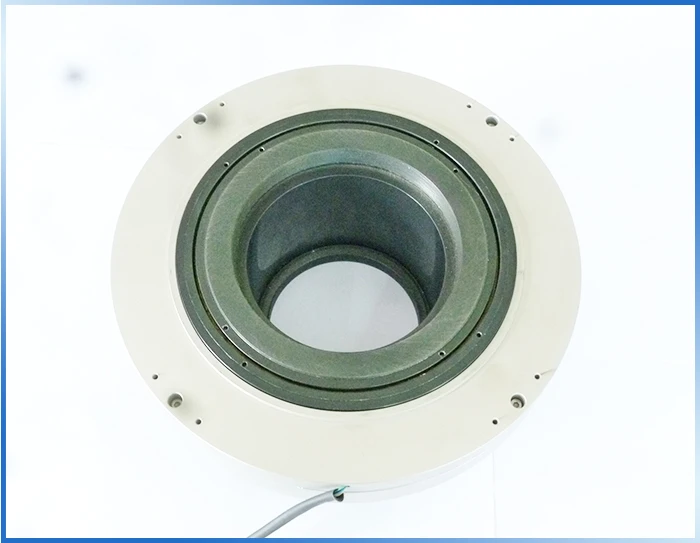

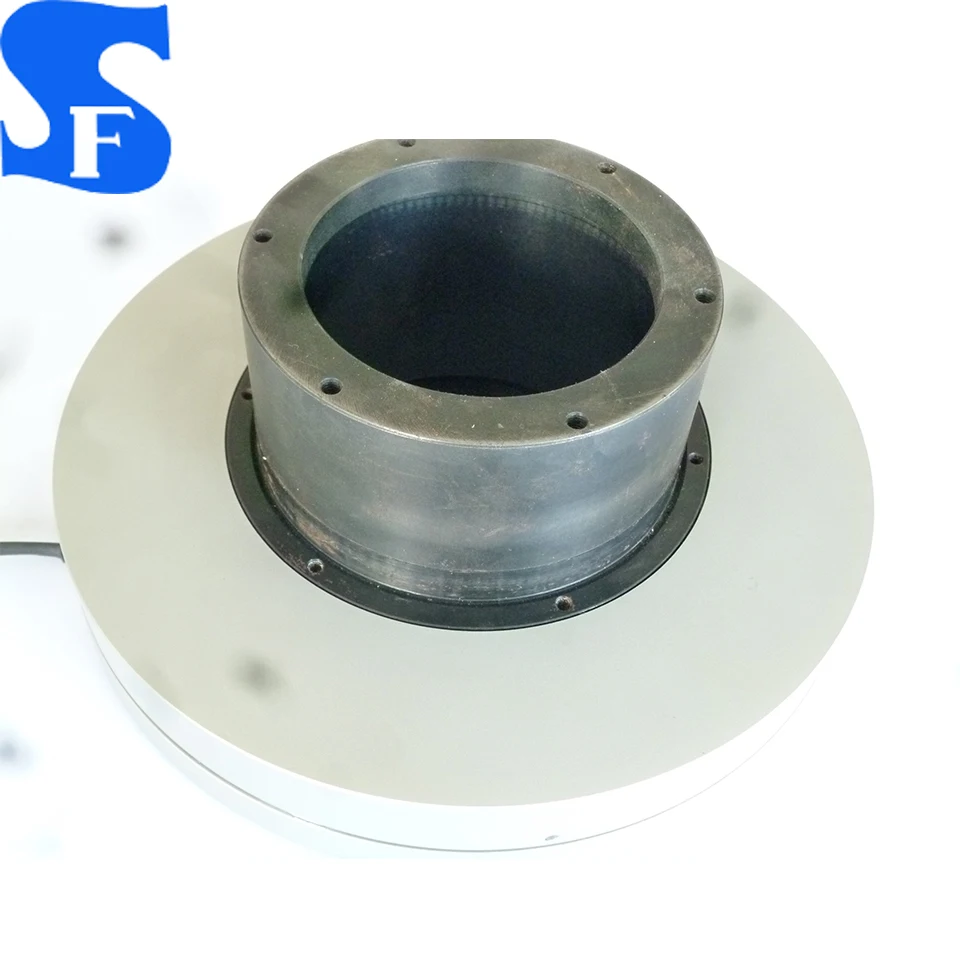

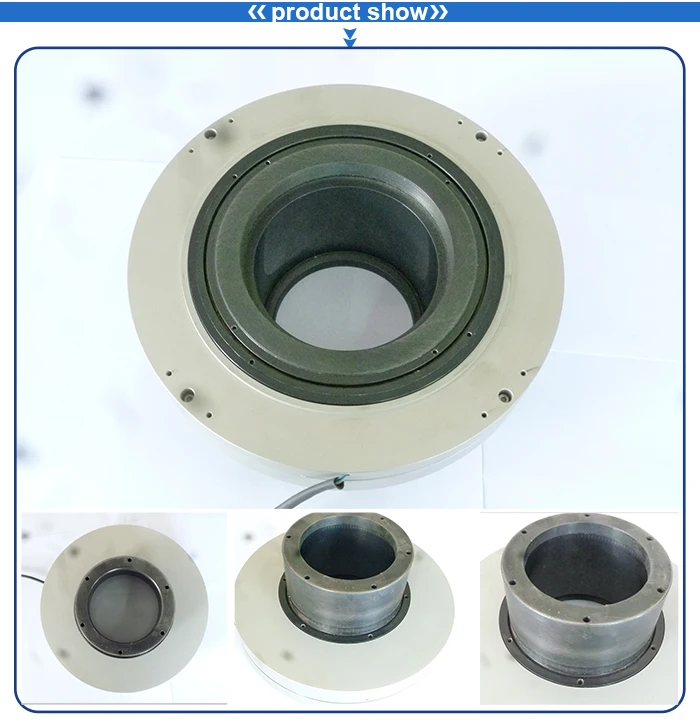

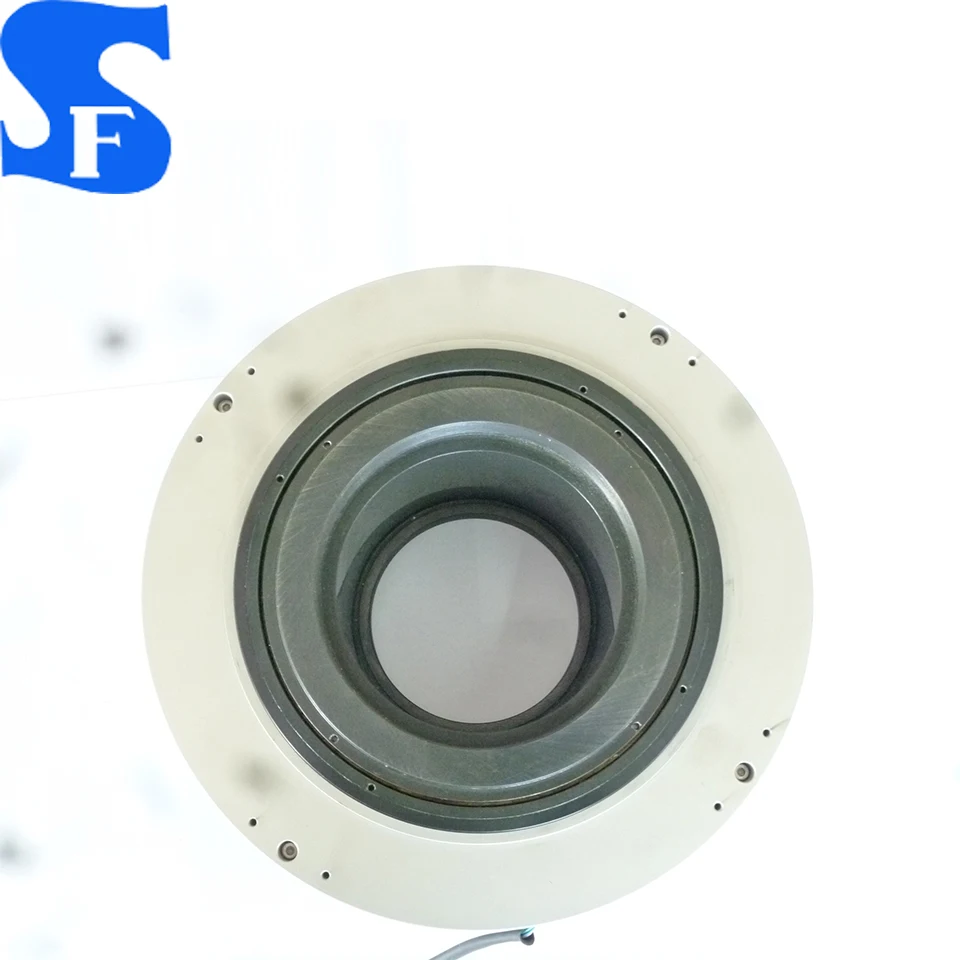

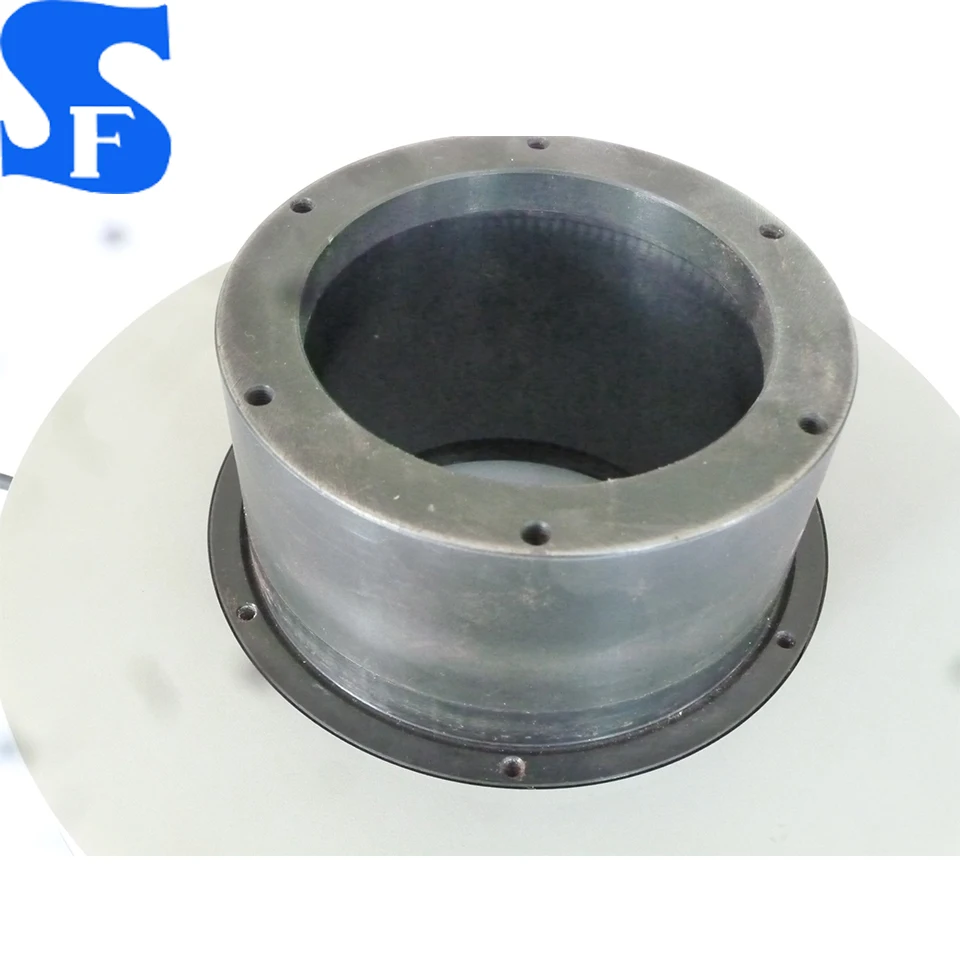

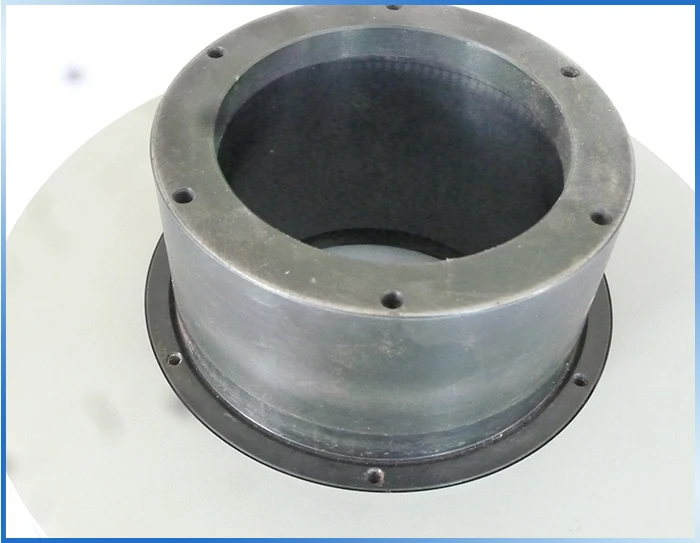

SF outer diameter 230mm hollow shaft optical absolute rotary encoder

Angle Range

0~360°

Bit

16~21

Resolution

0.6”

Accuracy

±5”

Operating Voltage

DC5V

Output Code

Pure Binary

Refresh

200Hz

Wiring Method

Rs485 Serial

Operating Temperature

-40℃~+70℃

Storage Temperature

-45℃~+80℃

Starting Torque

6*10^-2N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

2*10^-5Kg.m²

Max Rotating Speed

400r/min

Vibration Resistance

50m/s²(10~200Hz) 2 Hours in xyz Direction

Shock Resistance

980m/s²  2 Times in xyz Direction,each time 6mS

Protection

IP54

Operating Temperature

30~85%RH

Weight(no cable)

Around 1.8Kg

Accessories

-

Plug Code

1

2

3

4

5

6

7

8

9

Form

Paraliel

Vcc

0V

2⁰

2¹

2²

2³

2⁴

2⁵

2⁶

20

21

22

23

24

25

2¹⁷

2¹⁸

2¹⁹

2²⁰

-

-

Serial

1

2

3

4

5

6

7

8

9

Vcc

0V

TXD+

TXD-

Plug Code

10

11

12

13

14

15

16

17

18

19

Form

Paraliel

2⁷

2⁸

2⁹

21⁰

2¹¹

2¹²

2¹³

2¹⁴

2¹⁵

2¹⁶

Shield

FG

Serial

Shield

FG

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
