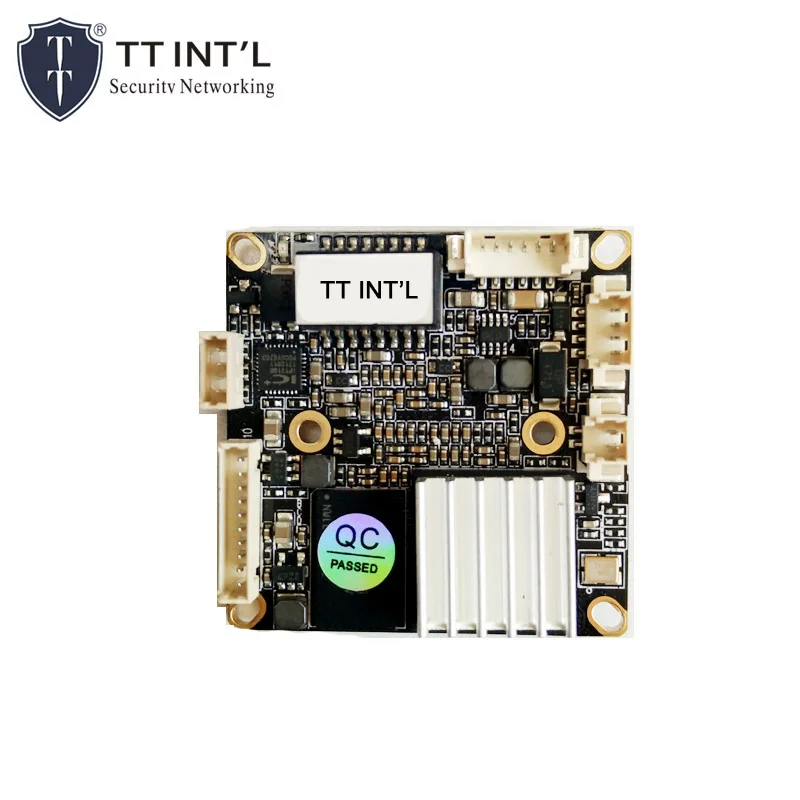

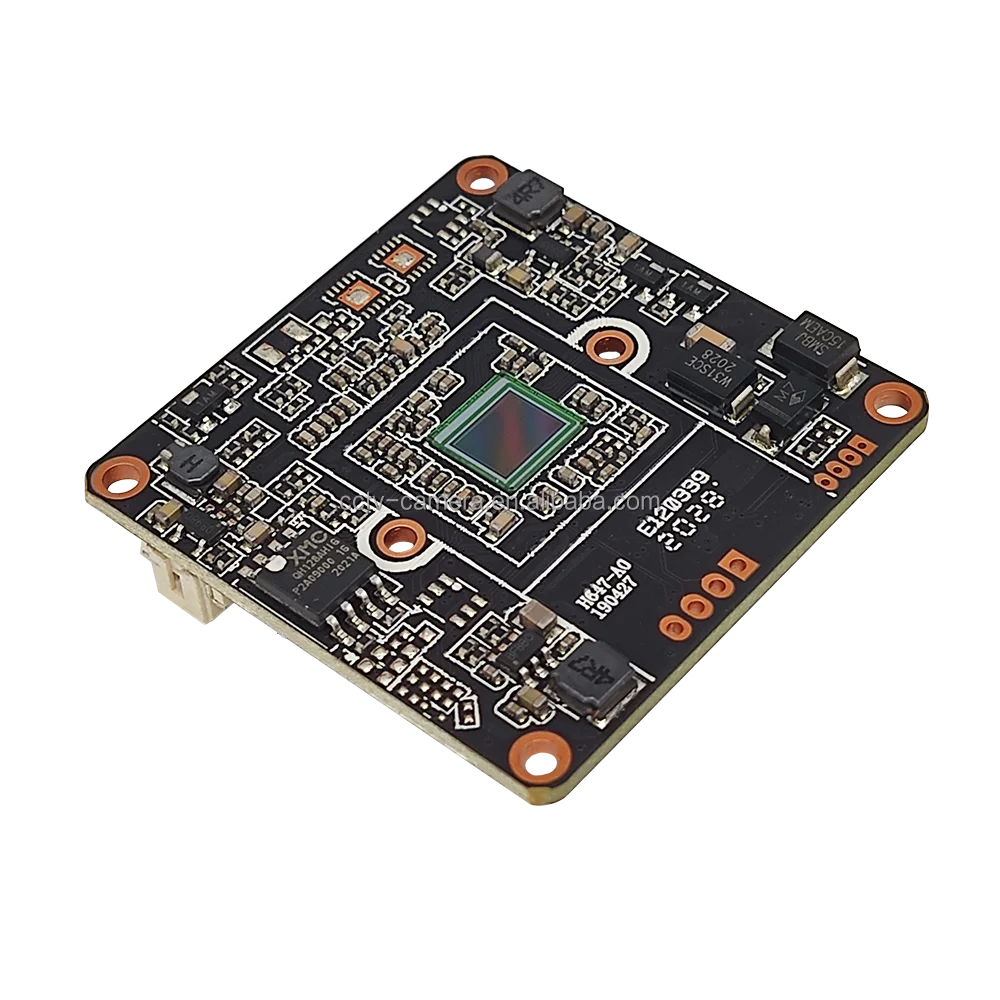

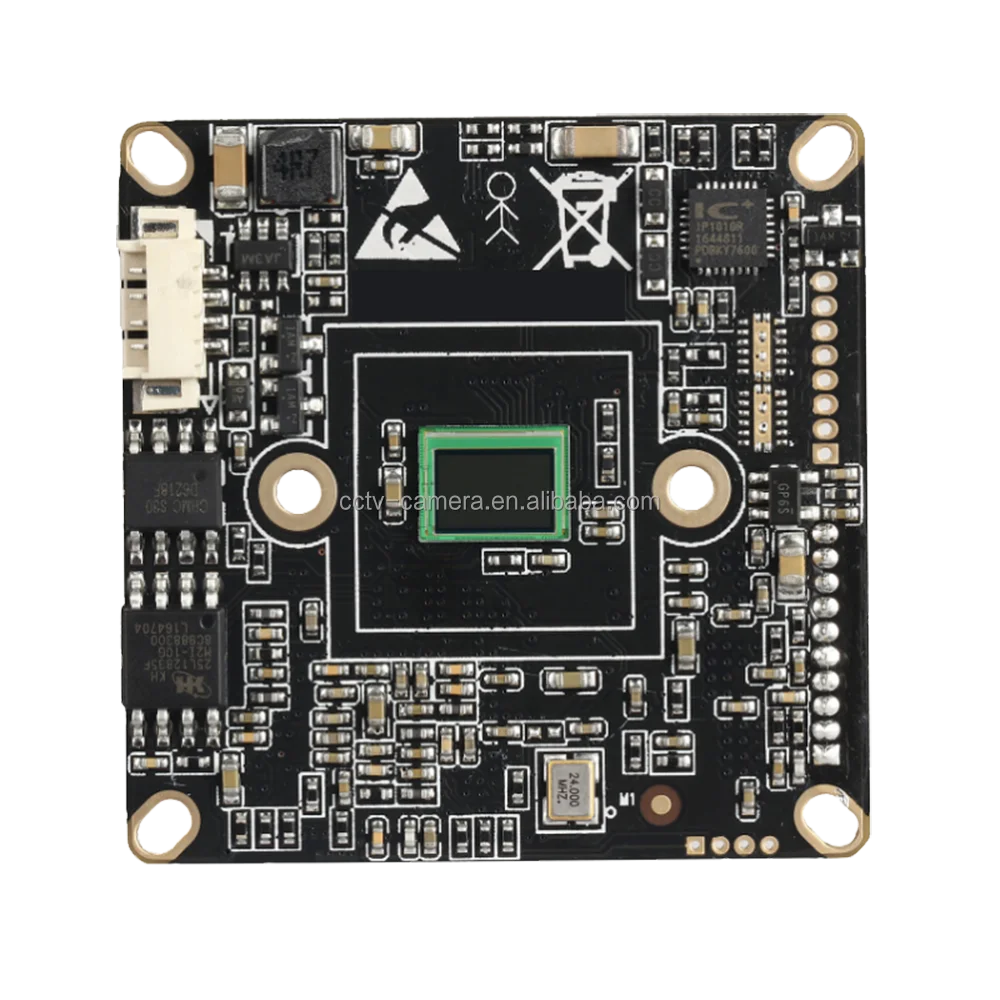

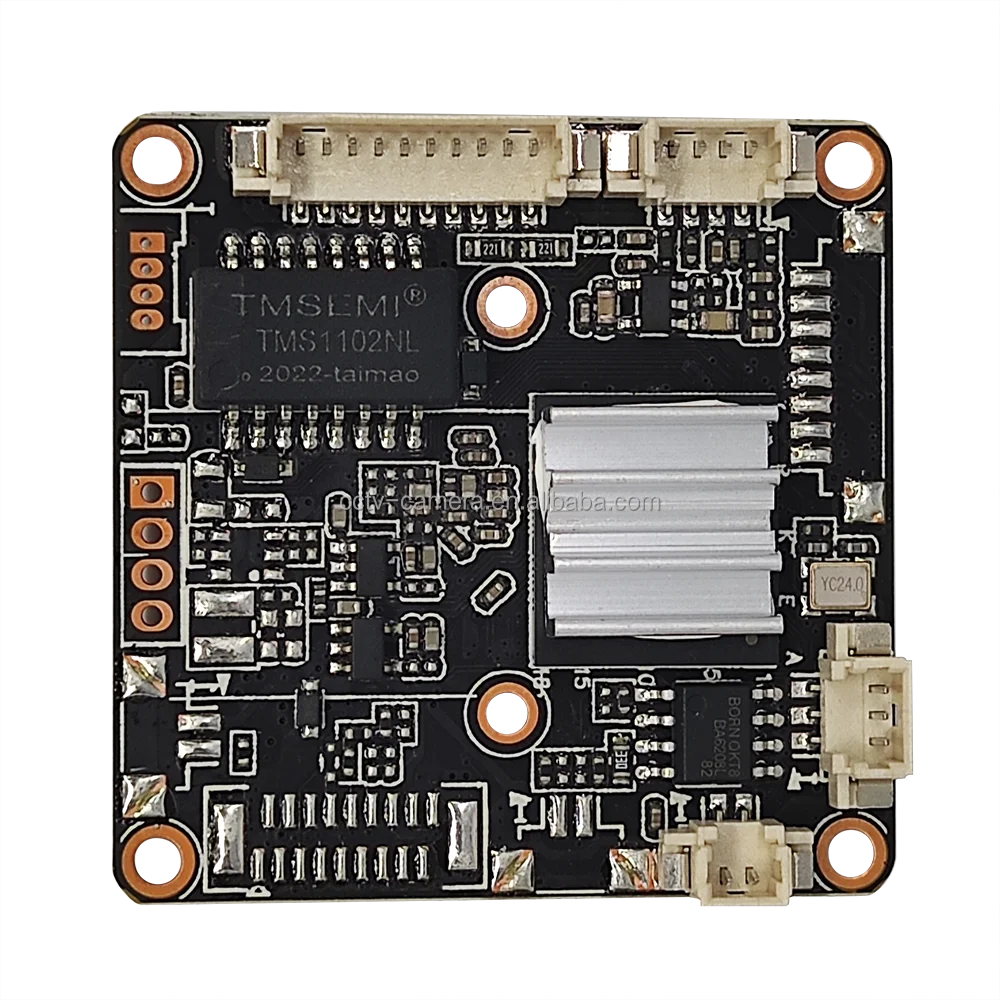

Hi3516EV300 IMX335 CCTV Security Camera PCB Board Audio 2K 4MP IP Camera Module

Model

TT-X4M

Image Sensor

1/2.7" Progressive

 Scan CMOS

Min.   Illumination

0.02Lux @(F1.2,AGC on)

0Lux with IR

Shutter time

1/50 s ~ 1/10,000s

Lens

6-22mm Motorized Zoom Lens

Day& Night

Auto Switch IR Cutter Filter

Wide Dynamic

90 dB

DNR

3D DNR

Compression Standard

Compression

H.264 + / H.264 / MPEG

H.264 Code

Main Profile

Video Bit Rate

32Kbps~16Mbps


Resolution

2592*1520

Frame Rate

2592*1520 (25/30fps)

Image Enhancement

AGC, 3D DNR, WDR, Sharpness

Image Settings

Motion Detection, Privacy Mask, Video Tampering

Day/Night Switch

Auto/Outside Trigger/Color/Black White

Network

Network Storage

NVR & CMS

Protocols

TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, Hikvition's Private Protocol

General Function

Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask

System Compatibility

ONVIF2.4, PSIA, CGI, SPR

Browser

IE

Interface

Interface

1* RJ-45 10M/100M Ethernet Port

Serial Port

RS-485 (Optional)

Reset button

1* Reset button(Optional)

Video Port

BNC (Optional)

Micro SD

Micro SD/TF (Optional)

Alarm

1* Alarm Input (Optional)

Audio Input

AV Port (Optional)

Audio Output

AV Port (Optional)

wireless

WIFI (Optional)

General

Operating Temp.

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Operating Humidity

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

PoE

PoE (IEEE 802.3af Class3) (Optional)
