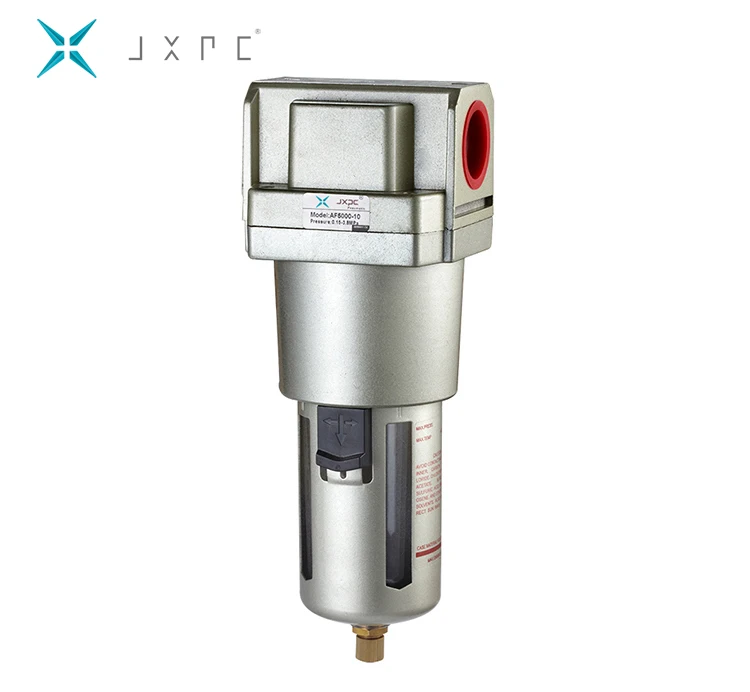

JXPC JAF5000 Airtac пневматический Регулятор Airtac пневматическое оборудование
- Category: Pneumatic & Hydraulic >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.
Share on (60764184344):
Product Overview
Description
Product Description
- Temperature Range: 5-60 Degree
- Max. Pressure of 0.95 Mpa
- Body Material: Aluminum Die-casting Forming
- Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
- The Filter Removes Solid Particles And Condensates With Compressed Air
| JAF1000-5000 Series Filter&Regulator | ||||||
| Model | JAF1000 | JAF2000 | JAF2500 | JAF3000 | JAF4000 | JAF5000 |
| Guaranteed.pressure resistance | 1.5MPa | |||||
| Max.Working Pressure | 1.0MPa | |||||
| Working Temperature | 5~60℃ | |||||
| Filter precision | 25um(5um is optional) | |||||
| Recommended Oil | Turbine No.1 oil ISOVG32 | |||||
| Bowl material | Polycarbonate | |||||
| Bowl guard | None | Available | ||||
| Pressure Adjusting Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||
| Drain Function | Differential Drain Automatic Drain | |||||
| Valve type | With overflow | |||||
| Model | Specifications | Accessories | Drain function | Auto drain model | |||
| Rated flow | Port size | Boel capacity | Weight | Brackef | |||
| JAF1000-M5 | 110 | M5 | 4 | 0.07 | Manual drain | ||
| JAF2000-01 | 750 | G1/8 | 15 | 0.19 | B240 | JAF2000-01D | |
| JAF2000-02 | G1/4 | JAF2000-02D | |||||
| JAF3000-02 | 1500 | G1/4 | 20 | 0.29 | B340 | a.Zero pressure drain A.Manual drain | JAF3000-02D |
| JAF3000-03 | G3/8 | JAF3000-03D | |||||
| JAF3000-03 | 4000 | G3/8 | 45 | 0.55 | B440 | JAF3000-03D | |
| JAF4000-04 | G1/2 | JAF4000-04D | |||||
| JAF4000-06 | 6000 | G3/4 | 45 | 0.58 | B540 | JAF4000-06D | |
| JAF5000-06 | 7000 | G3/4 | 130 | 1.08 | B640 | JAF5000-06D | |
| JAF5000-10 | G1 | JAF5000-10D | |||||
