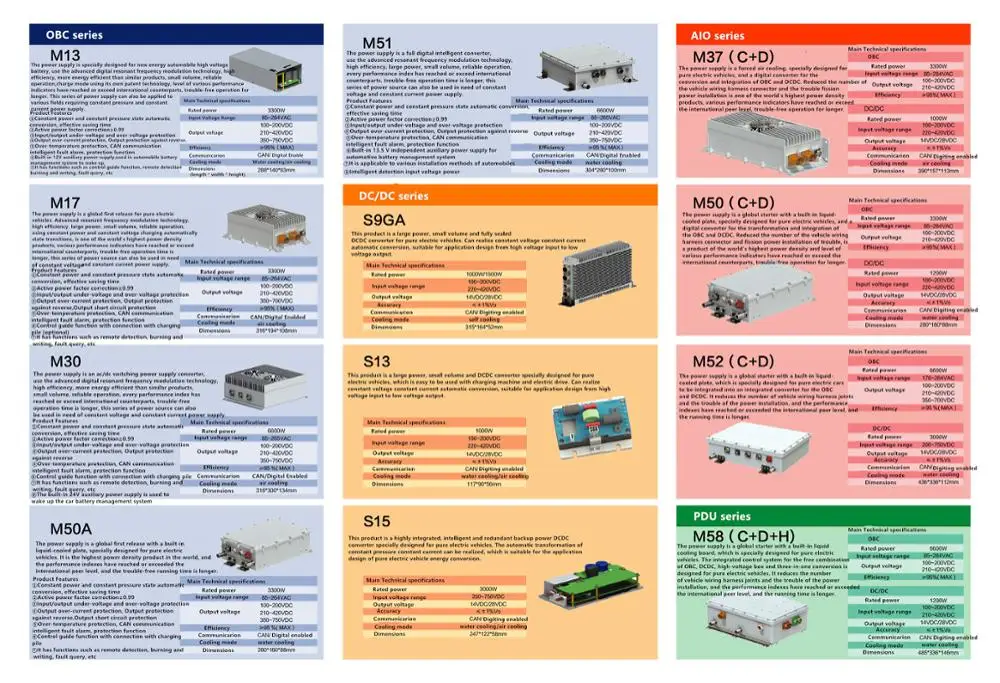

3300KW 360VDC automatic On Board Charger for EV

Input Electrical Characteristics

Rated Input Voltage

220Vac

Input Voltage Range

85Vac ~ 265Vac

Frequency range

47Hz~63Hz

Maximum Input Current

15A

MAX Efficiency

95% (not include auxiliary power)

Power Factor

≥0.99@220Vac/360V/18.3A

Output Electrical Characteristics

Rated Output Power

3.3KW(220Vac~265Vac)

Rated Output Voltage

+360Vdc

Output Voltage Range

+250Vdc~+420Vdc

Max Output Current

12A

Precision of Voltage Regulation

≤±1%Vo input 175Vac-264Vac, output 10%-100% load

Precision of Current Regulation

≤±1.5%

Output Voltage Tuning error

≤±0.5%

Ripple and Noise

≤±1%Vo  20M oscilloscope,Twisted-pair cable test.

Protection

Output Current Limited Protect

>120%

Output Short Circuit Protection

Yes

Output over Voltage Protect Point

>425V

Output under Voltage Protect Point

<240V

Input over Voltage Protection Point

>270Vac

Input under Voltage Protection

<80Vac

CAN Communication Fault

Continuous 20S does not receive instructions from BMS or VCU

Over Temperature Protect

85±5℃

Insulation Voltage

Output - Input 2.0kVdc

Input - Shell  2.0kVdc

Output - Shell 2.8kVdc

Insulation Resistance

≥10MΩ

Environmental Requirement

Environmental  Temperature

Working temperature: -30℃~+70℃

(Intelligent Derating for Case Temperature Above 70℃)

Storage temperature: -45℃~+95℃

Environmental Humidity

Working humidity: <90%RH (Non-condensing)

Storage humidity: <95%RH (Non-condensing)

Cooling Method

Water cooling

Weight

<6.5kg

Size

284*195*125mm
