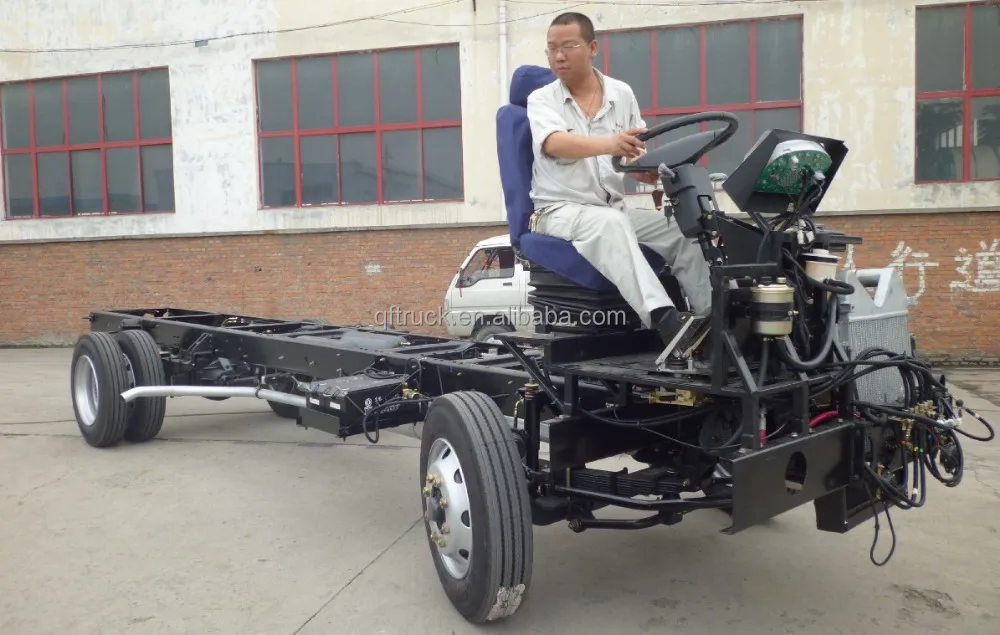

China Dongfeng 12m tourist bus chassis for sales in Botswana
- Category: >>>
- Supplier: Shiyan Qianfeng Industry & Trade Co. Ltd
Share on (60764229748):
Product Overview
Description
Product Description

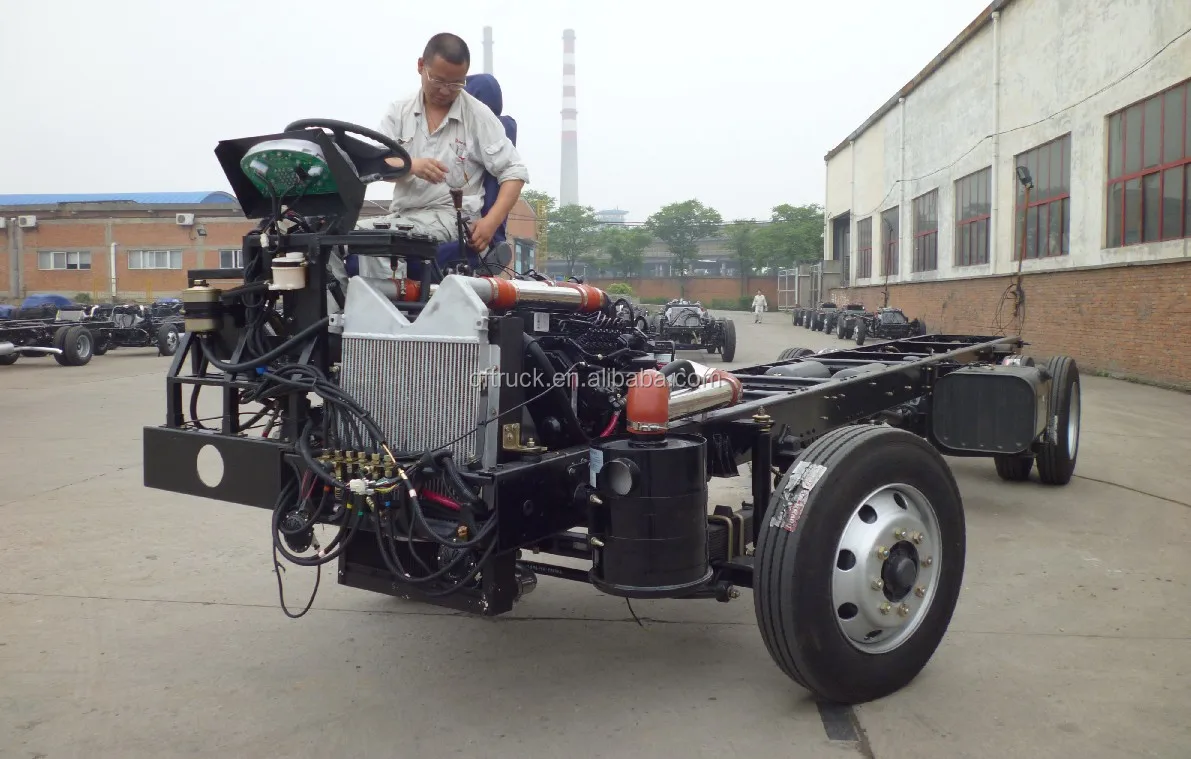

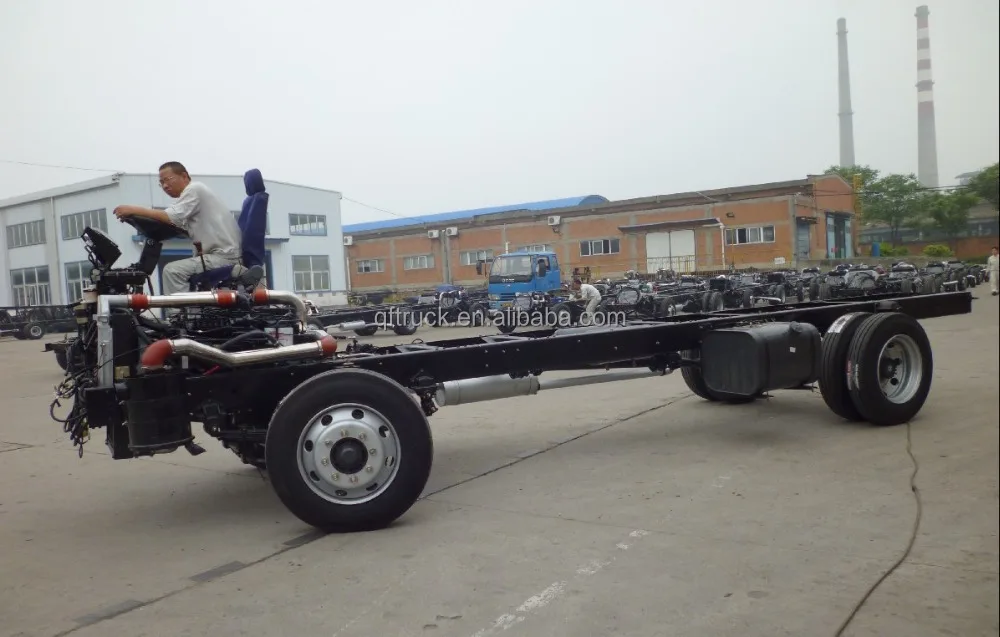

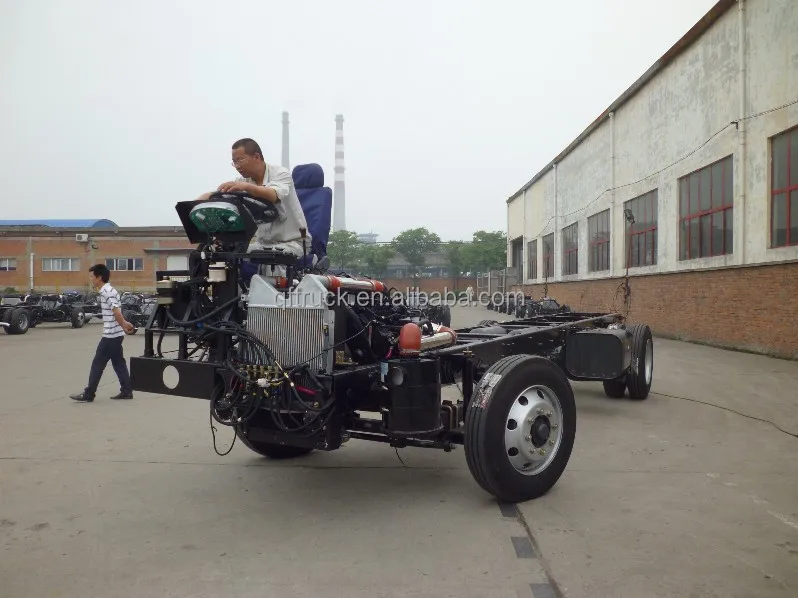

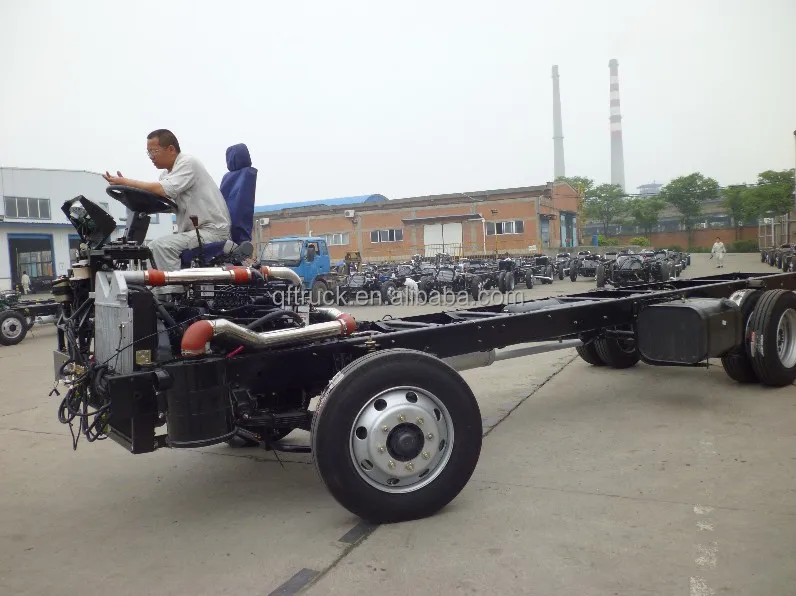

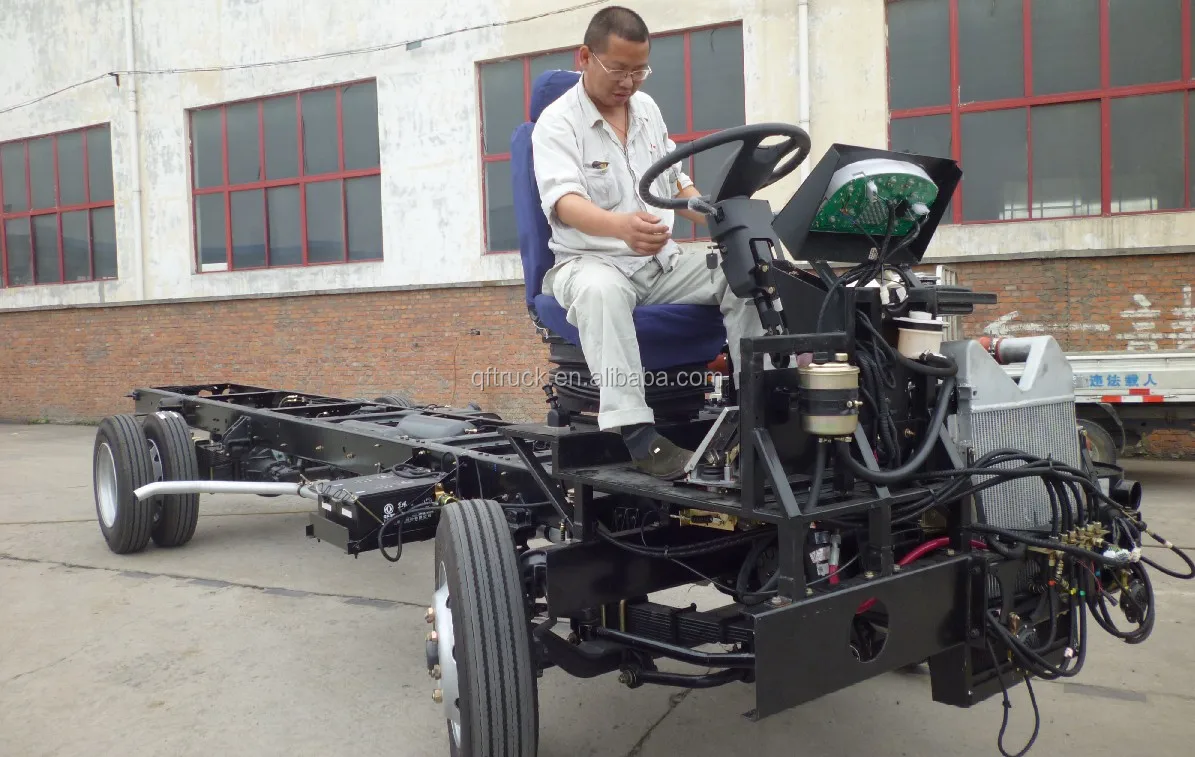

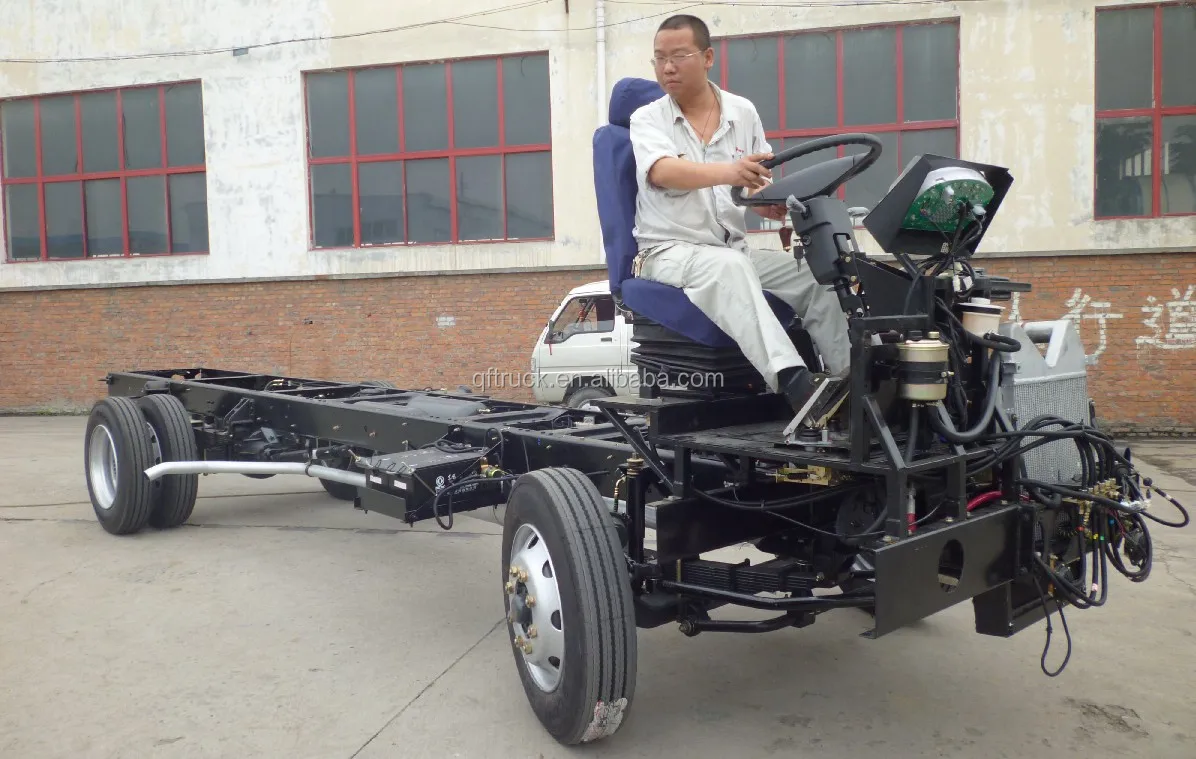

Dongfeng EQ6120KSD 4x2 tour bus chassis 12m with front engine
Chassis model | EQ6120KSD coach bus chassis 12m |
Overall simension(mm) | 10360/10760x2462 |
Wheel track(mm) | Front/rear 2030/1860 |
Wheelbase (mm) | 5800/6200 |
Front/rear suspension(mm) | 1900/2660 |
Min ground clearance(mm) | 248 |
Ground clearance of upper frame(full load)mm | Front axle 900 |
Rear axle 920 | |
Tare weitht(kg) | 4300/5450 |
Authorized total mass(kg) | 16000 |
Front/rear axle load(kg) | 5500/10500 |
Max speed(km/h) | 100 |
Min.turning diameter(m) | 22 |
Max.grade ability(%) | 30 |
Limited mode fuel consumption/100km(L) | 26 |
Ramp angle(°) Approach/departure angle | 12 15/13 |
Equipments | |
Engine model | EQB235-20 235HP Euro II Cummins engine |
Engine type | 6L,Turbo,inter cooling |
Rated power(kw/r/min) | 173/2500 |
Max.torque(N.m/r/min) | 800/140-1600 |
Gearbox | ZF manual transmisson |
Gearbox model and operation way | Flexible shaft |
Files bit rate ratio | 6.593/4.013/2.339/1.407/1.00/0.732/6.604(R) |
Front axle pattern | Fist type and I axle |
Rear axle pattern | Ramming welding rear axle ,one grade differential |
Rear axle differential ratio | 4.875 |
Chassis frame | 250mm same cross section beam |
Clutch | 420 spring clutch |
Steering gear | Power steering wheel |
Suspension system | (10/12)non-independent,multiple spring |
Braking system | Double route brake,drum brake |
Braking system | Spring brake |
Tire specification | 11.00R22.5 |
Note: | Front diesel engine (long front suspension) |
Introduction of characters to the suitable vehicles equipped: suitable for re-equiped about 11.5meters sleeping berth/passenger inter city bus, | |

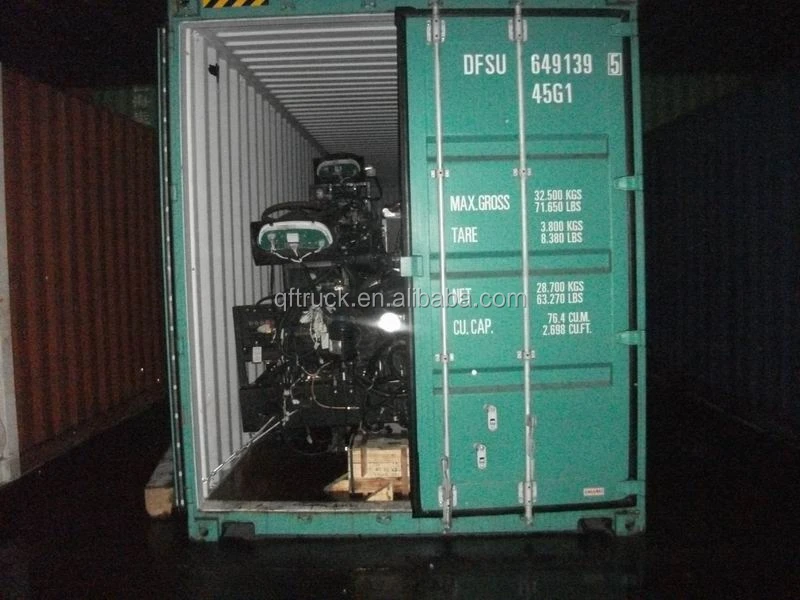

Packaging & Shipping
Naked,vehicle surface spray anti-rust wax before shipment.
Our Services
· One year quality warranty for key parts such as axles, engine, transmission;
· All spare parts would be OEM and supplied at cost prices;
· Overseas service center to ensure efficent after-sales service;
· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Company Information
Shiyan Qianfeng Indstry & Trade Co., Ltd
which is one of branches for famous vehicle manufacturer of Dongfeng Motor in China and producing all kinds of special-purpose vehicles.Our company has independent export qualification, and has a lot of customers from domestic and overseas. Our leading varieties include more than 200 types of trucks such as :
1) Bus series:
Minivan-minibus-tourist bus-city bus-school bus-off road bus-CNG bus-special bus.
2) Truck series:
Minitruck-light truck-heavy duty truck-dump truck-off road truck-CNG truck-LNG truck-pickup truck- tractor truck.
3)Special-purpose truck series:
Ambulance truck-fire fighting truck-garbage truck-concrete mixer truck-refuse compactor-fecal suction truck-sewage suction truck-fuel tank truck-chemical liquid tank truck-high altitude operation truck- crane truck-instructional truck-van truck-livestock truck-mobile shop truck-refrigerator truck-water wagon-sprinlker truck-bulk cement truck-wrecker truck-sweeper truck-asphalt distributor truck-water and so on.
4) Chassis series:
Bus chassis-truck chassis-off road vehicle chassis-diesel or CNG/LNG chassis.
5) Trailer and semi-trailer series:
2 or 3 Axles flatbed semi-trailer/low flatbed semi-trailer/skeleton semi-trailer/container semi- trailer/sidewall semi- trailer/various tanker semi-trailer/dump semi-trailer/refrigerator semi-trailer/car and wood transport semi-trailer and so on.
6)Spare parts:
Whole vehicle spare parts.
Our company has solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What 's more , it has roundly passed the ISO9001-2000 and the 3C(China compulsory of certification).
Our survival is based on the quality and credit standing is the guarantee of our success. We will do as we can that treating customers honestly,managing flexibly, guaranteeing high quality but low price, and keeping high effeciency.We promise that all the products are adapted and sold by us can get warranty services for one year and enjoy maintenance for all life.What's more, Chinese mainland after service can be dealt with in 48hours.
Hereby, we warmly welcome new and old friends to vist our company at anytime, and hope we can have a good and win-win business relationship between us in the near future.
