High Precision Quality Manual Paper Paper Roll To Sheet Cutting Slitting And Rewinding Machine
- Category: >>>
- Supplier: Baoji Xintai Precision Equipment Manufacturing Co. Ltd.
Share on (60764238245):
Product Overview
Description

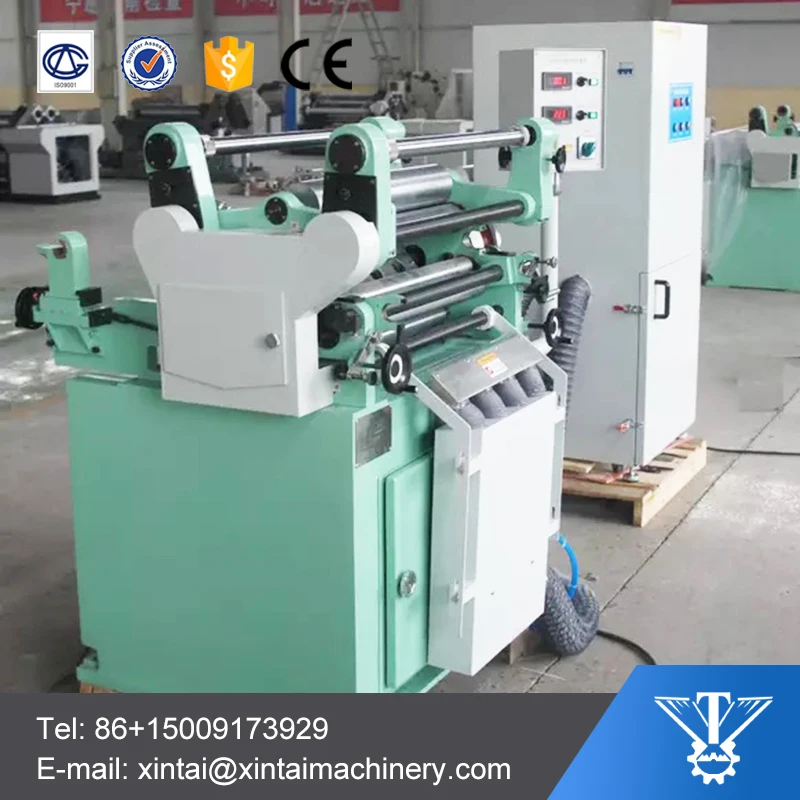

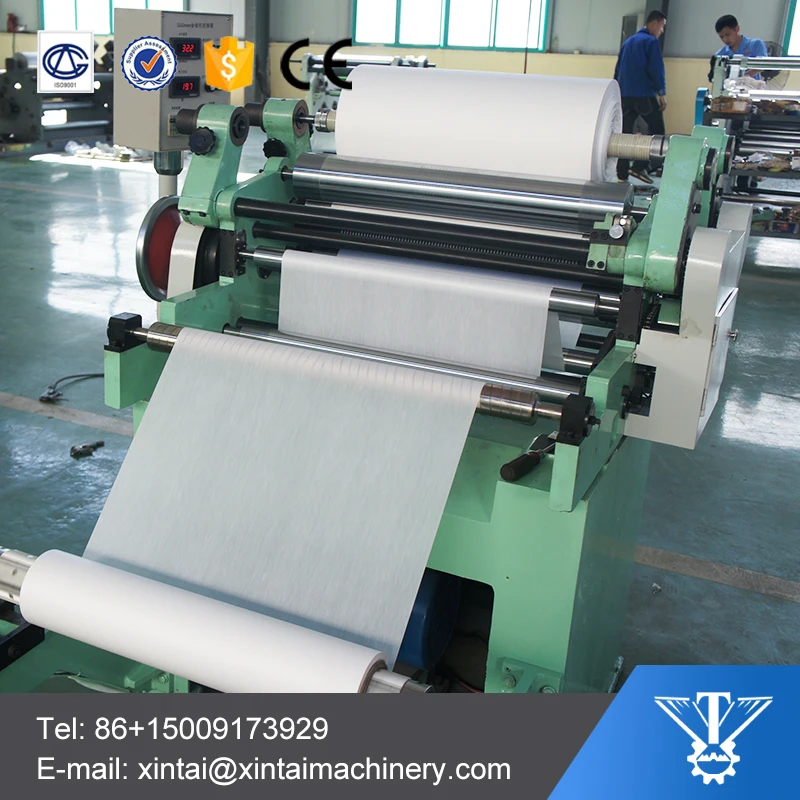

High Quality Manual Paper Paper Roll To Sheet Cutting Machine
Product Description

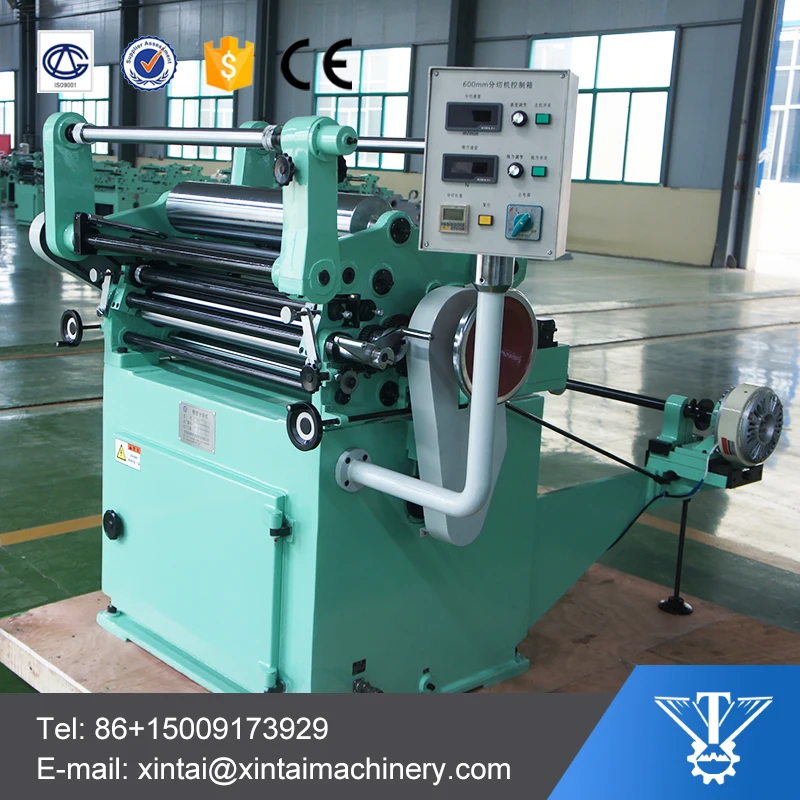

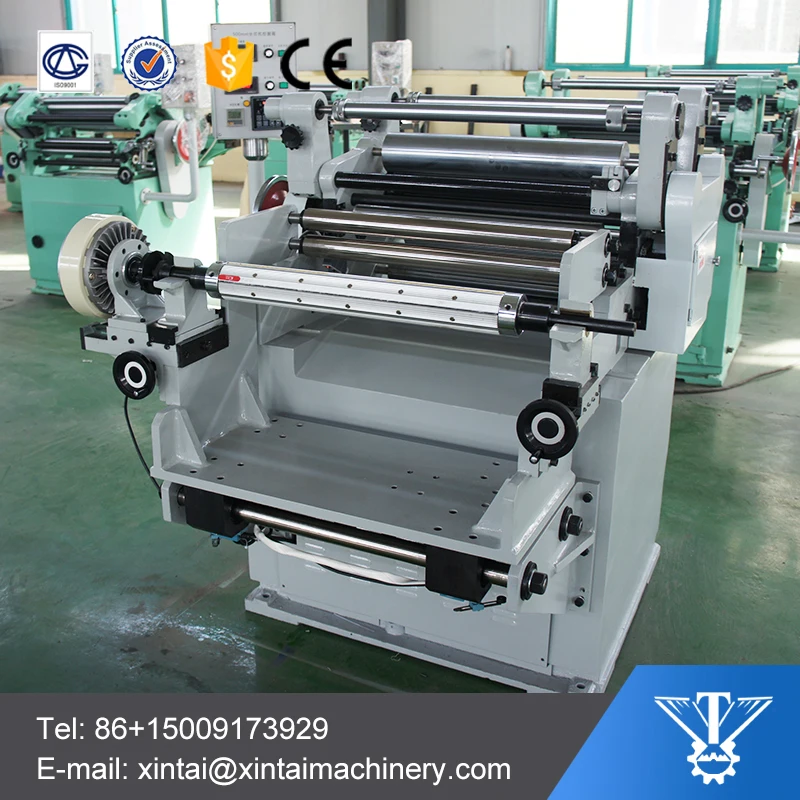

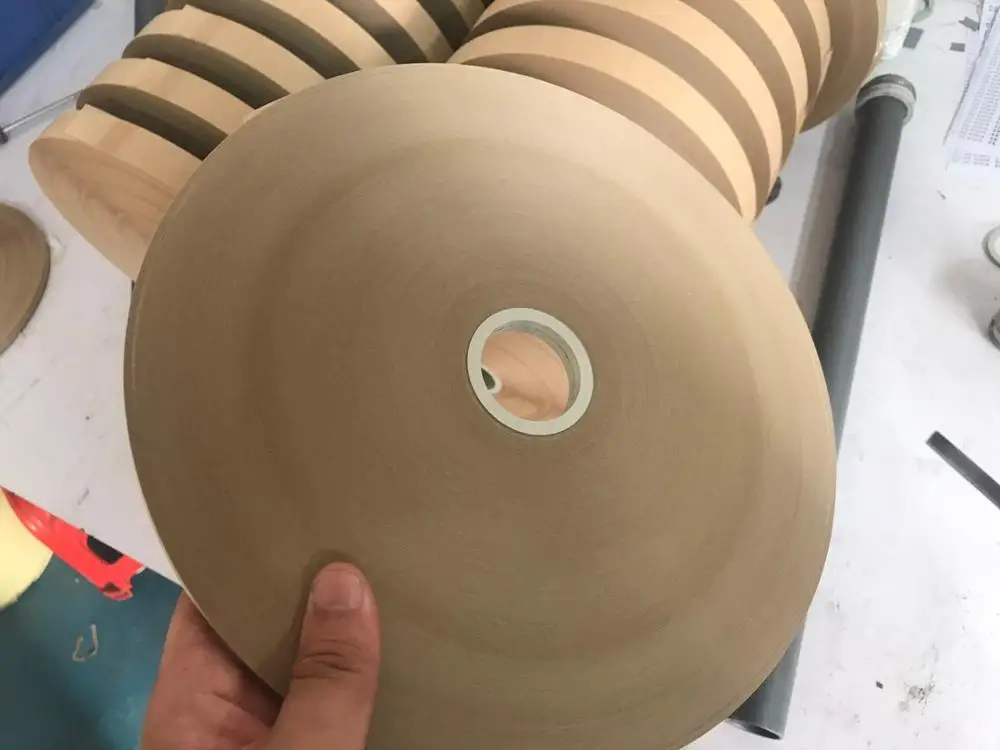

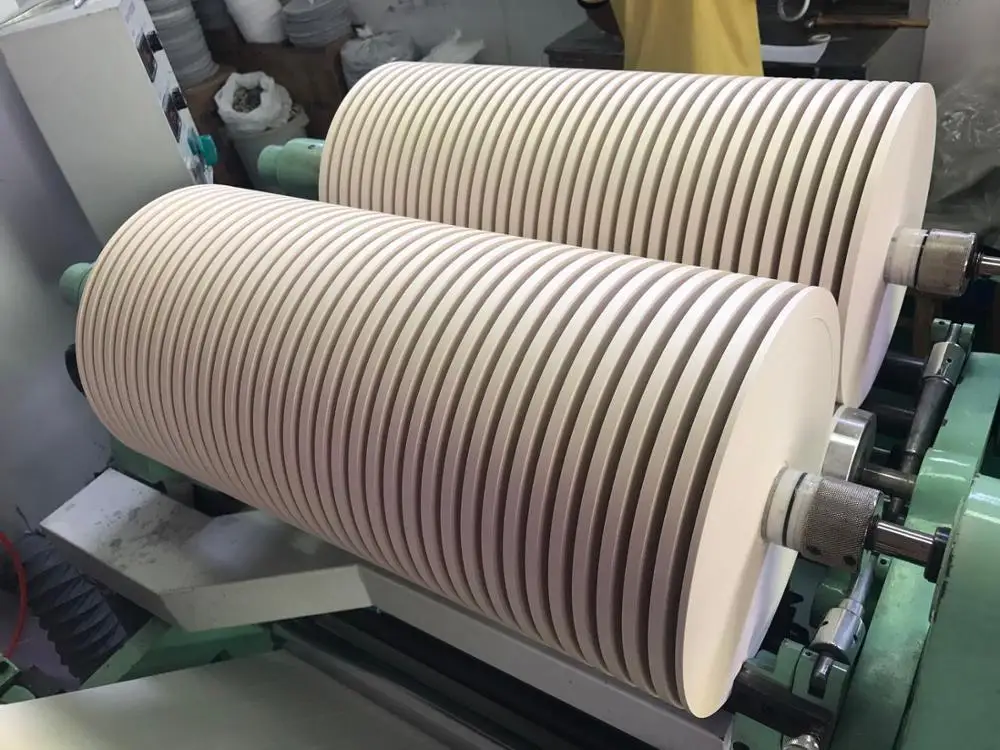

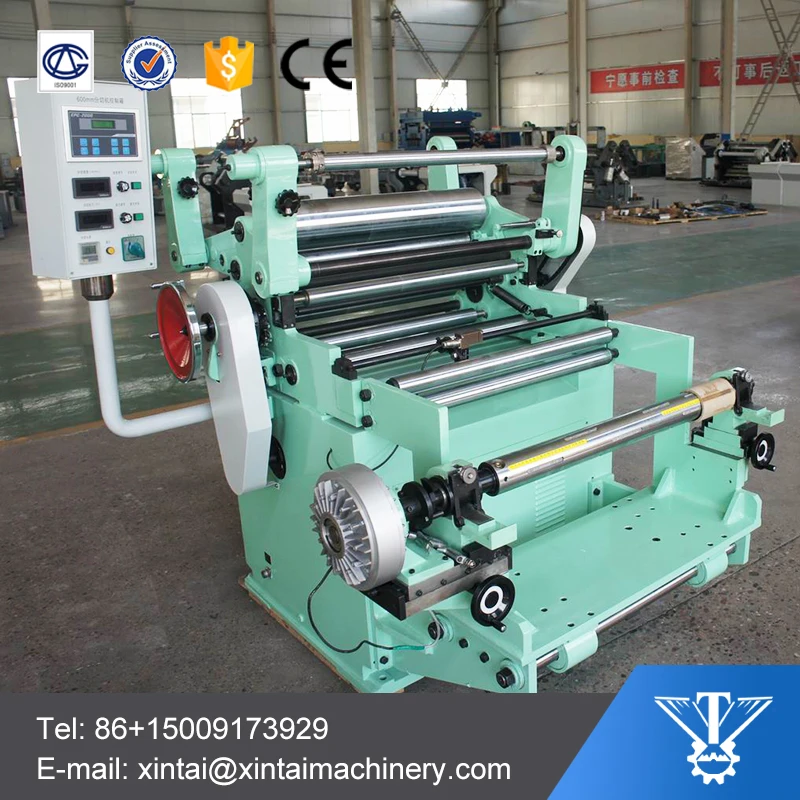

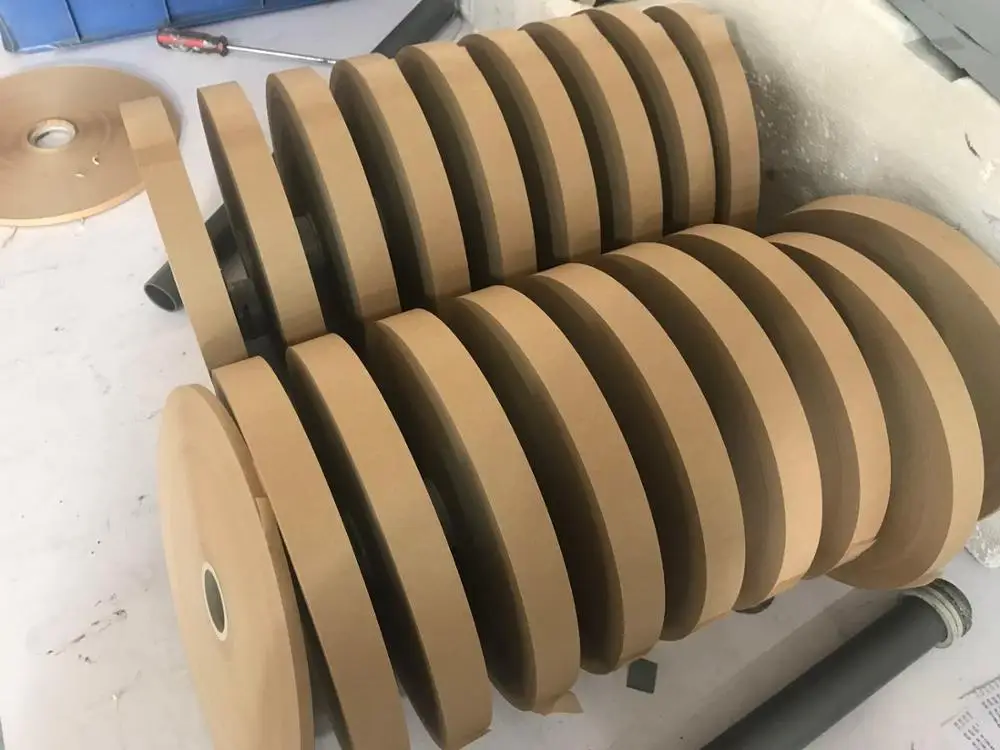

The precision cutting machine is used to slit paper coil, plastic coil, tap, metalloid materil and metal foil. And the cut strip will be re-winded as a coil after slitting. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.
a
Product Details
| type | XTF500mm | XTF600mm | XTF700mm |
| the max diameter of raw material coil | φ500mm | φ600mm | φ700mm |
| the max width of bar material | 500mm | 600mm | 700mm |
| inner diameter of raw material coil | φ35~75mm | φ35~75mm | φ35~75mm |
| the min width of completed material | 2.2mm | 5mm | 5mm |
| the max diameter of completed material | φ270mm | φ300mm | φ300mm |
| the max bar quantity of slitting | 49 strips | 50 strips | 50 strips |
| the max slitting diameter | φ40mm | φ75mm | φ75mm |
| number of rewinding shafts at time | 2 | 2 | 2 |
| the max slitting speed | 140m/Min | 120m/Min | 120m/Min |
| scope pf tension adjustment | 0~150N | 0~150N | 0~150N |
| main transmission motor | 4KW | 4KW | 5.5KW |
| shell dimension | 1170mm×1032×1283mm | 1350mm×1100mm×1400mm | 1350mm×1200mm×1400mm |

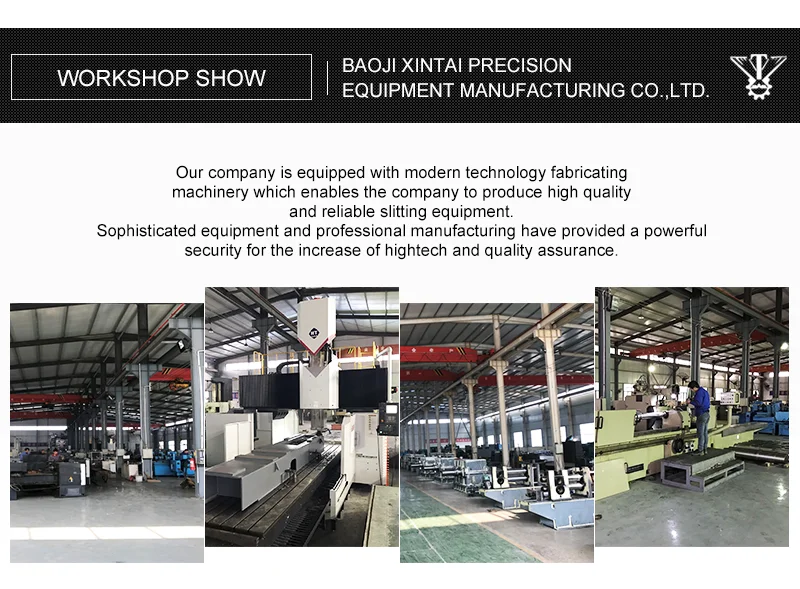

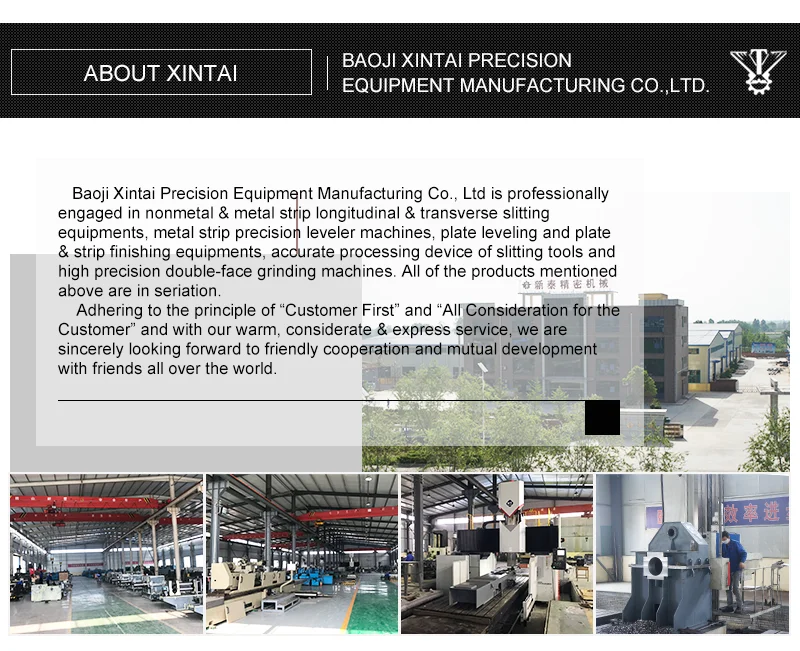

Company & Factory
