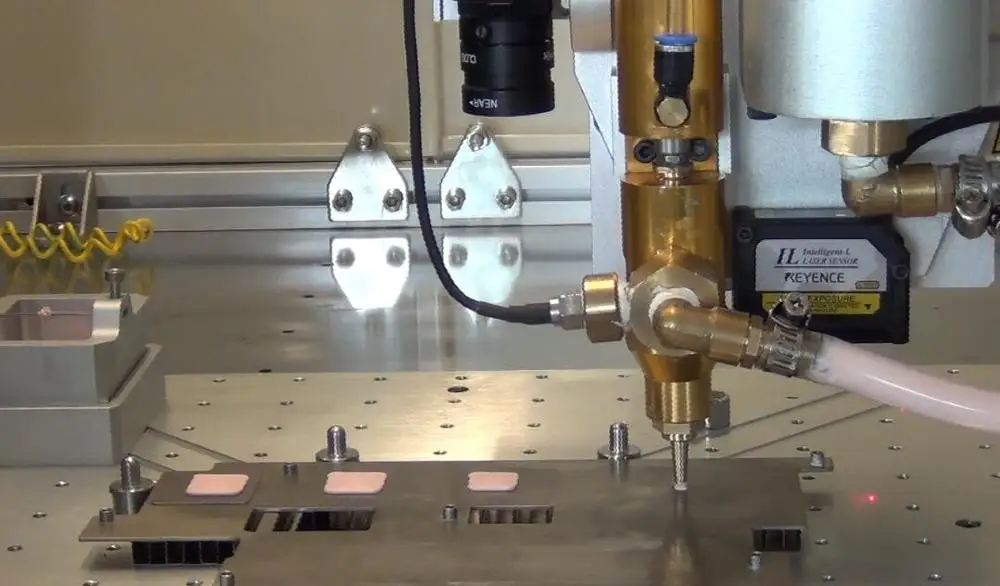

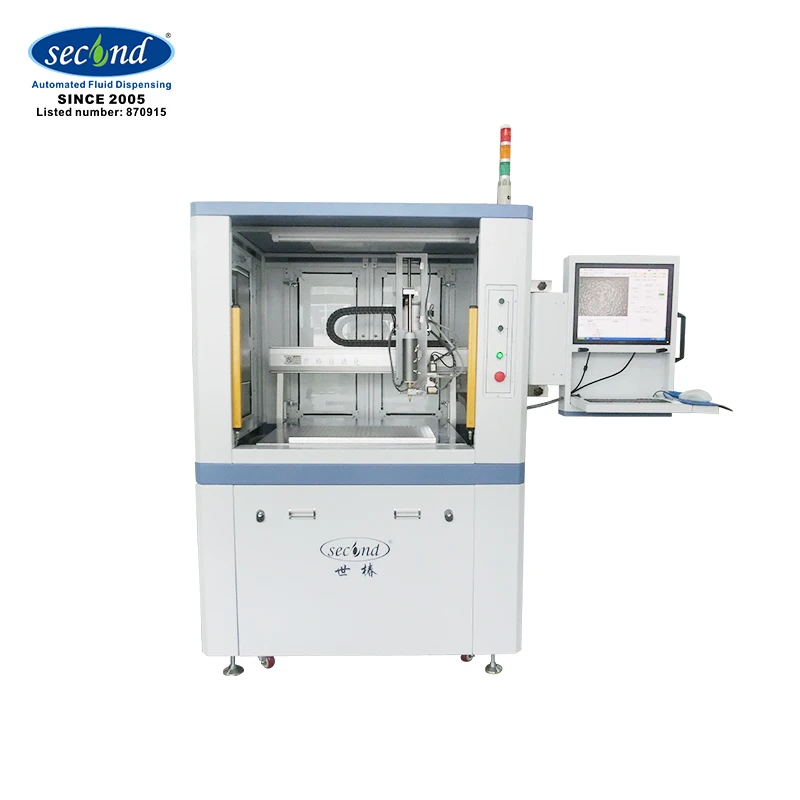

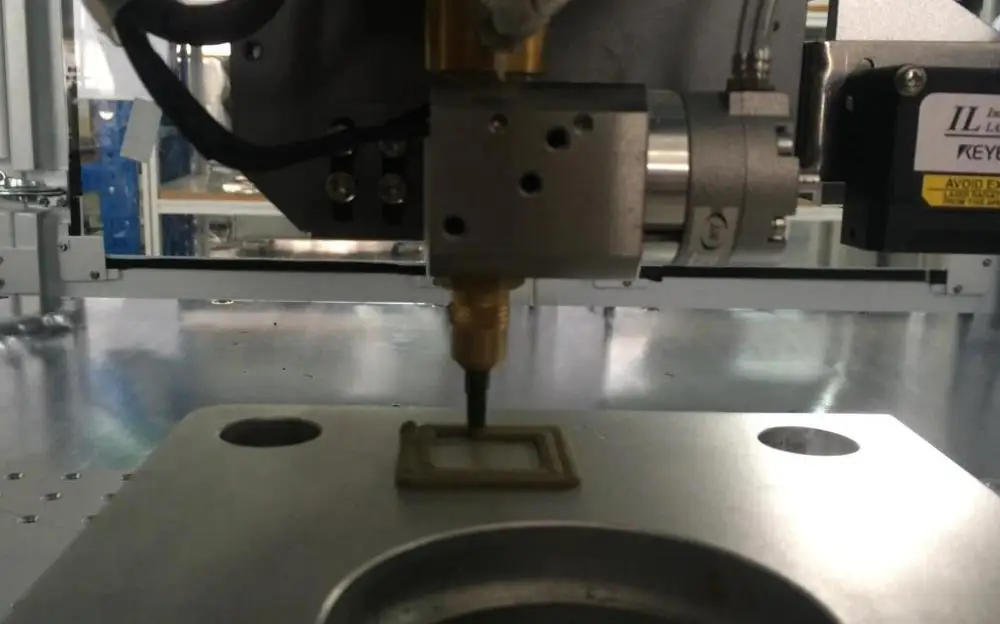

CE certified Freestanding Automatic Servo Robotic Silicon Glue Dispensing Machine SEC-500ADW




Advantages



  • ISO9001:2008 approved

  • Qualified supplier for Foxccon, ASUS, Microsoft,HUAWEI,etc.

  • OEM/ODM service optional

  • 10 year liquid-control equipment R&D experience


Click to get our catalouge





Application





















































Model



SEC-500ADW



Work Area



500(X)*500(Y)*100(Z)mm



Travel speed



500mm/sec



Resolution



0.001mm



Repeatability



±0.02mm



Operation system



Windows XP



Drive Mode



Servo motor/ball screw



Power supply



AC220V50-60HZ  2.5KW



Size



1170*1270*1850mm



Weight



600kg



Work Condition



Humidity:20-90%,  Temperature:0-40°C







































Liquid control system



Glue Feeding Device









Glue Tank(2600ml, 1.5 Gal, 5 Gal optional)



300CC Glue Catridge (optional)



5CC/10CC/30CC/50CC Syringe(optional)



Dispensing Valve












Pneumatic spray valve/piezoelectric ceramic spray valve(optional)



Back-suck valve(optional)



Hitting valve(optional)



Dispensing nozzle (optional)



Confiugration

































Cleaning Cup Component



Stainless Steel



Pressure Detecting System



Alarm in high –pressure or low-pressure



Servo Measuring Function



Standard



Glue Dispensing Container Component



Stainless Steel Cup



Safety Gate Grating



yes



Lift Gate



no










Features


1.Operating interface of WINDOWS XP which is easy to learn.


2.Functions of drawing points, lines, surfaces, circle, consecutive complement of irregular curves and three axes linkage;


3.Hard disk has super memory capacity, and software has functions of regional array, translation, rotation and computation, etc.


4.The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters. With this method, glue outflow is quite stable without leaking and dripping;


5.CCD assisted process programming and instructing function enables real time tracking and displaying coordinate position so as to shorten the programming time and improve programming efficiency.


6.Optional double worktable can be chosen to save time of placing and picking up workpieces,or using with device of automatic importing and exporting materials to promote efficiency and competitive advantages of enterprises


7.According to the production process, worktable can be installed for positioning PIN, glue guns, soleplate heating and temperature regulating device;


8.Simultaneous operation is possible by choosing the optional fine adjustment rubber package fixture to improve working efficiency;


9.Optional 300 CC cartridge or pressure barrel storing glue can be chosen for operation to reduce time of changing glue


10.Intelligently disrupting glue to prevent dragging glue, which saves much glue and reduces process of glue amendment;


11.Controlling the time resolution of glue outflow within 1ms;


12.Continuous operation with single-plate and multi-fixture can be conducted to improve efficiency;


13.Especial high-speed rotary valve of Second makes glue outflow at the beginning and the end more precise.


14.It is applied to fluid dispensing, such as, UV glue, AB glue, COB ( black glue ), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on;


15.Applicable objects: mobile phones, computer case, CD-ROM driver, printer, ink folder, PC board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors,SMT, clocks, toys and medical apparatus.

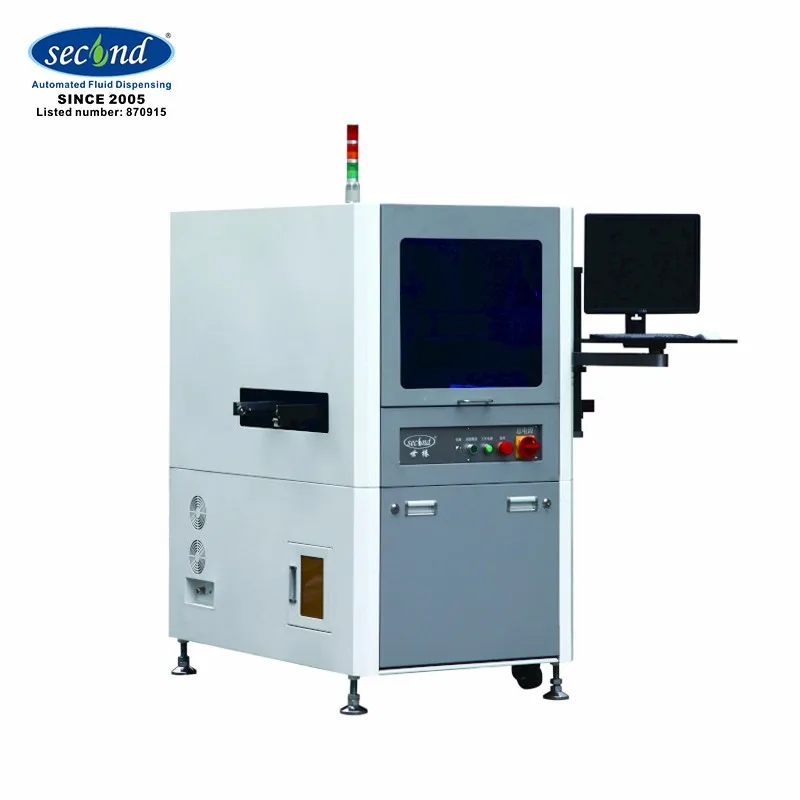

SEC-400ADW 2.jpg





Click to get our catalouge







Packaging & Shipping





Package : wooden box


Shipping mode: FOB Shenzhen


Delivery time: Within 15 working days after receiving the advance payment.


paste-pic-dp_uuid_4rtmb





Our Services





 1 Free sample test


 2 ONE year warranty


 3 OEM/ODM available


 4 Soonest lead time


 5 Responsible after-sale service







Click to get our catalouge






Company Information


Shenzhen Second Intelligent Equipment Co., Ltd., it was founded in 2005. It is awarded and certified as a national high-tech enterprise. The company provides integrated fluid dispensing, potting, and coating solutions from research, development, production, pre-sales, and after sales services. The products includes various types of precise automatic fluid dispensing, potting, two components potting, and coating machines in the form of desktop, freestanding, inline, or cobot combined systems. Also the company is capable of producing custom design machines for customers.





Second Intelligent Factory View, our factory located in Songgang Shenzhen, we are welcoming your visit from all the around world!


Second Intelligent Factory View


Second Intelligent Production Line, we are the first hand manufacturer automatic fluid dispensing machine, including AB glue mixer, desktop glue dispensers and Reverse Osmosis machines.


Production line.jpg





Second Intelligent Clients


Second Intelligent Clients


Second Intelligent Global Exhibitions, this year we achevied fuel cell production line projects and will exhibit the FC EXPO 2019 in Tokyo to seek more worldwide opportunities, let us meet there, our booth No. D402B.







FAQ


Dear Customer,


Greetings from Second Intelligent!


As below Q&A to let you know more about Second Intelligent:


1 Are you factory or trade company?


  We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.


2 How long is your machine warranty?


  12 months


3 What is your lead time?


   For standard specification machine, we have inventory and could prepare the machine within 7 working        days. For custom request, desktop machine 7-10 days, freestanding machine 12-20 days, RO roller                 machine 20-40 days.


4  Do you provide free training for using and installing the machine?


   Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.








In order to recommend more suitable machine, please let us know the following information:


1 Glue type: please give us the data sheet if you have


2 Glue is easy caking?  A Yes, need vacuum tank B No, no special request


3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly


4 Glue package amount


5 Need vacuum system when pouring glue into our tank  A Yes  B No


We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
