  • China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China

China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China

Share on (60764279231):


Price:RUB 8,339.62 - RUB 15,302.04

Quantity:


Product Overview

Description

Product Description

Product Application

China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China is specially designed for storage and carrying machine.Usually used on semi-electric pallet truck,adopt manual valve to control the pallet up-down,and it's overheat protection system,safe and reliable.
SPECIFICATIONS FOR China High Quality Hydraulic Pump Part Power Unit 12V Dc Hydraulic Power Unit Made in China
Model
Motor Volt
Motor Power
Rated Speed
Displacement
System pressure
Tank  Capacity
YD-DC12VCESWAEE04DS3
12V
1.6KW



2850 RPM
1.8mL/r
18Mpa
6L
YD-DC24CESWAEE04DS3
24V
1.6KW
1.8mL/r
18Mpa
6L
YD-DC12DESWAFF04DS3
12V
2.0KW
2.1mL/r
23Mpa
8L
YD-DC24DE24LCFI(7)05DS3
24V
2.2KW
2.1mL/r
23Mpa
7L

Special Notes

1) The duty if this hydraulic power unit is S3.I.E.,30 seconds on and 270 seconds off.

2) Clean all the hydraulic parts concerned before mounting the power unit.

3) Viscosity of the oil should be 15-68cst.

4) This power unit should be horizontal.

5)  Check the oil level in the tank after the first star of the power unit.

6) Change the oil after the first 100 hours of using the power unit,then change the oil every3000 hour.

Certifications
Detailed Images

Hydraulic power unit Parts

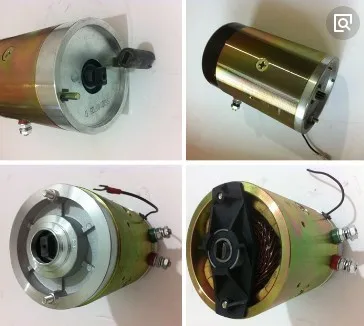

Name: Motor

Brand: LIFT

Original: China

DC motor,International standard steel casting motor with CE & SA certificntion.

Center Manifold Features

Name: Center manifold
Brand: LIFT
Original: China
According to customers requirement,We designed for the usages in different flow and mounting condition.

Hydraulic power unit Parts

Name: Spare part
Brand: FELIFT
Original: China
 Solenoid valve: Max pressure:300bar

                            Max flow:20L/min

                            Coil power:18W

Oil Tank Main Features

Name: Oil tank
Brand: LIFT
Original: China

International standard palstic tank

Colour:White

"W" type:Horizontal    "L" type:Vertical
