Датчик дифференциального давления для измерения жидкости и газа
- Category: >>>
- Supplier: Shenzhen Teren Control Technology Co. Ltd.
Share on (60764305905):
Product Overview
Description
Product Description

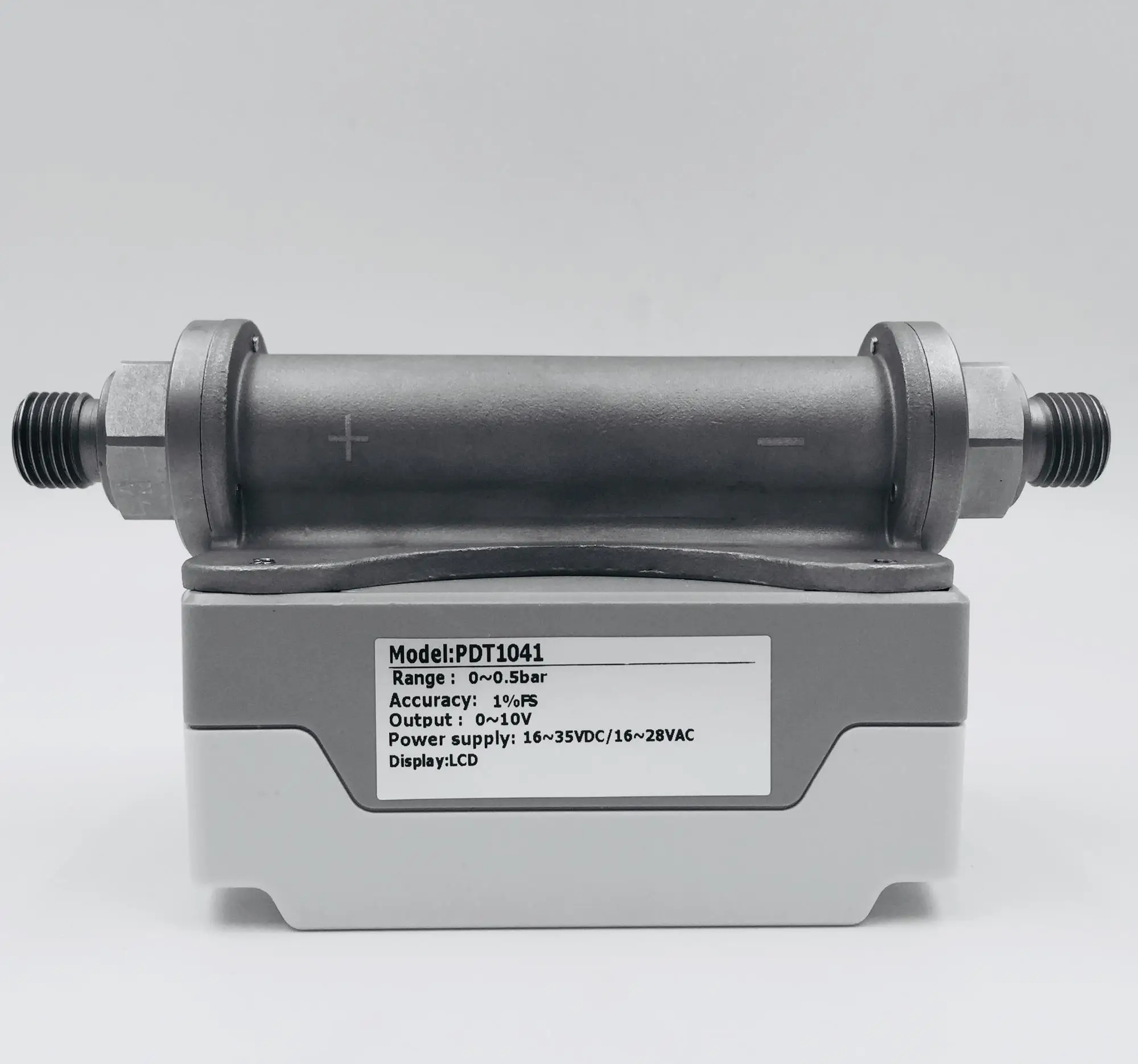

PDT Differential Pressure Transmitter
PDT Differential Pressure Transmitter as below
Applications & Features
For diff. pressure measurement of compatible fluid and gas
Specifications
Sensor: glass micro fused silicon strain sensor
Power: Current output :18.5~35VDC (RL=500Ω) ,
8.5~35VDC (RL=0Ω),
Voltage output 16~35VDC, 16~28VAC
Output: 4~20mA (2 wires), 0-10VDC(2 wires) or RS485
Output Load: ≤500Ω (current), ≥2KΩ (0-10VDC)
Accuracy: typical ±0.5%FS (BFSL), see range specifications
Range: see range specifications
Display: large LCD, with unit indication ( multiple settable )
Working temperature: -20~70°C
Medium temperature: -20~85°C
Compensation temperature: 0~55°C
Pressure Limits: see range specifications
Medium compatibility: 17-4PH stainless steel
Response time: ≤500ms
Protection: IP65
Approval: CE

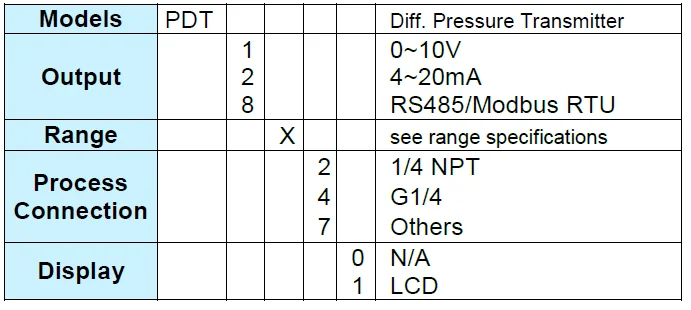

Models

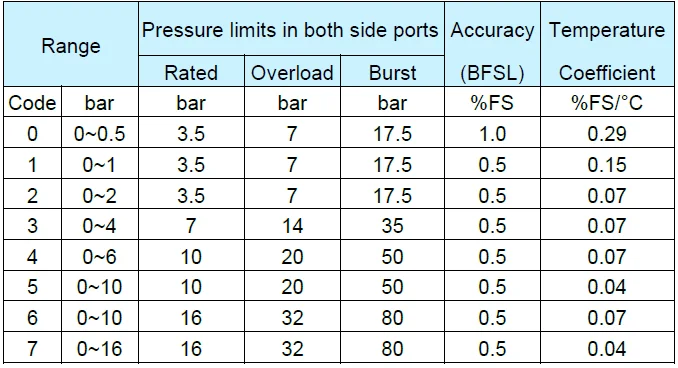

Range specifications
Packaging & Shipping
Sample Order | Order | OEM Order |
| Three work days | 2 weeks | 3 weeks |
Port
Shenzhen, Hong Kong
Our Services
Why choose us ?
♦ Specilizng in manufacturing products of HVAC for almost 10 years.
♦ Harsh process of production and strict testing system.
♦ Material could be traced.
♦ High quality with competitive price.
♦ Delivery in time.
♦ Reply in 24 hours.
Company Information
We focus on the HVAC and BAS industry and supply various measurements and control instruments over 13 years.
We have very experienced technical R&D team. As a goal of becoming a qualified brand, we will continue to satisfy more customers all over the world. We are also the biggest distributor of Dwyer in China. At the same time, we are the supplier of Dwyer on the PCB of humidity instruments.
We are located in Shenzhen and are ISO9001 certificated factory with hundreds of workers. In 2016, we had a turnover of RMB 100 million.
CERTIFICATIONS:
FAQ
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Payment terms?
100% T/T in advance.
Q3: Delivery time?
One week.
Q4: Shippment?
DHL, UPS, TNT etc.
Q5: Is OEM/ODM available?
Yes, it's available.
Q6: Warranty?
18 months.
Q7:Are you a factory or a trade company?
We have our own R&D team and factory.
