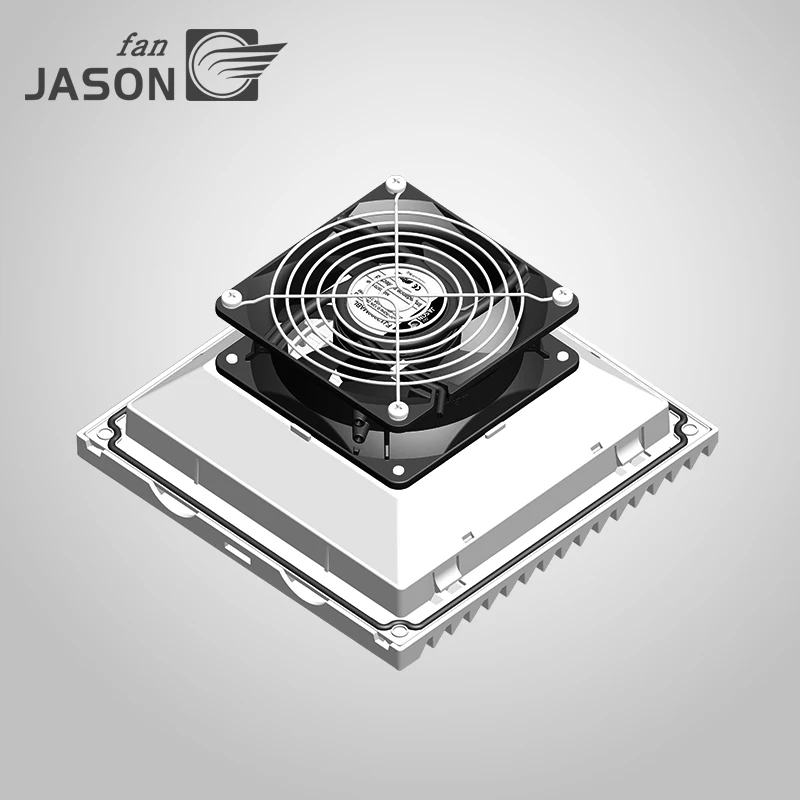

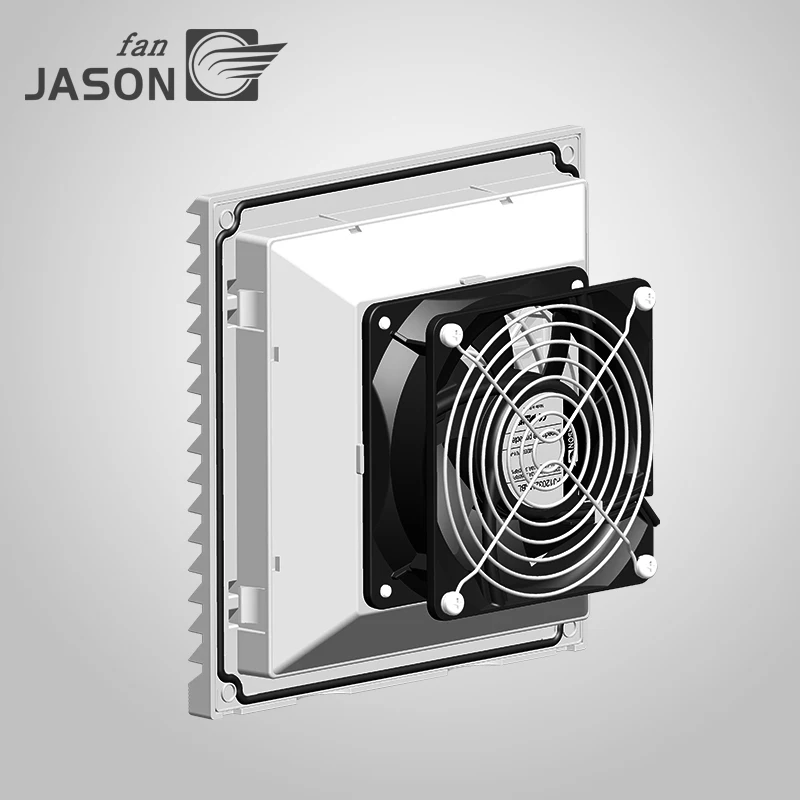

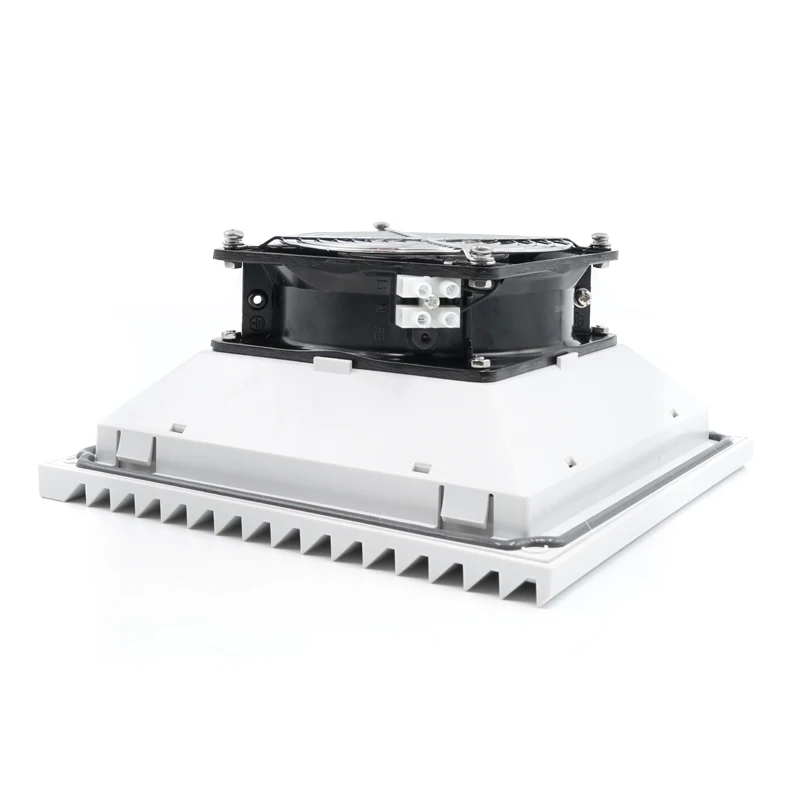

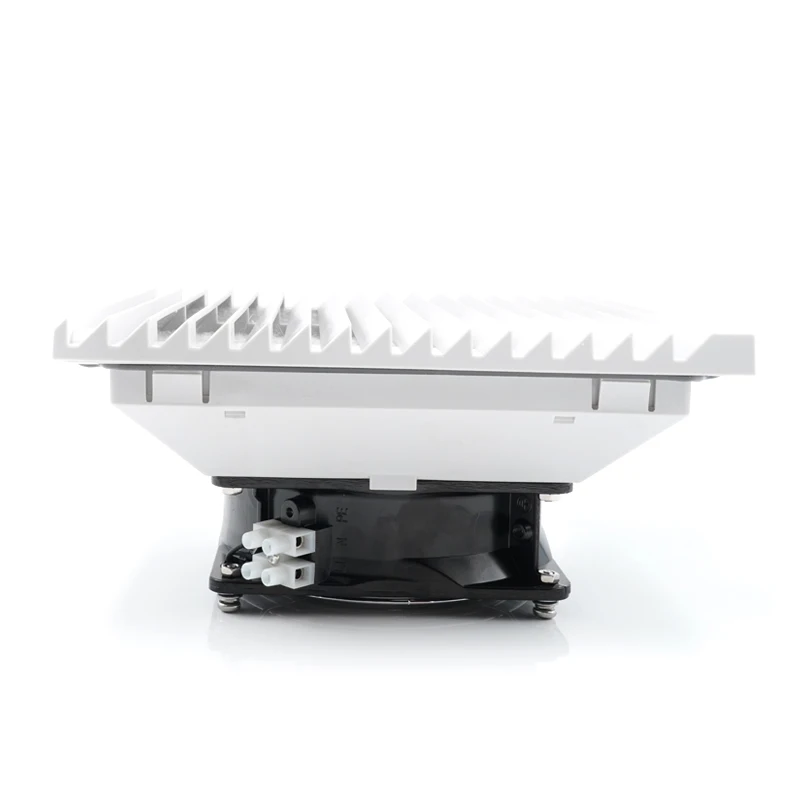

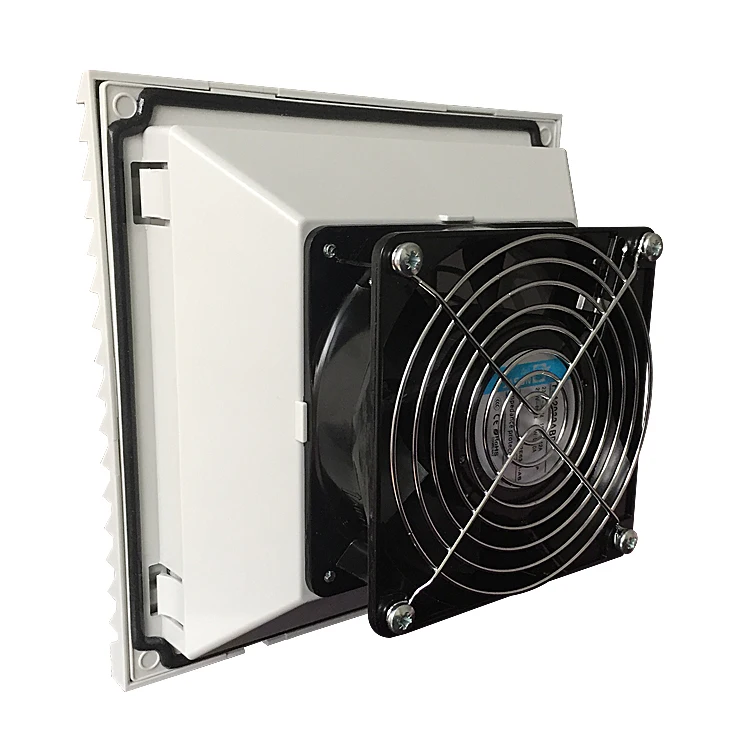

204*204mm fan filter Jason fan AC DC Ventilation with cooling fan, air filter for cabinet FJK6623PB

Product Overview

Description

ventilator fan filter Jason fan AC DC 204*204mm Ventilation with Exhaust Fans, air filter for cabinet cooling fan FJK6623PB

Characteristics:
It comprises of a axial fan, a protective housing on the front and rear
surfaces and filter designed to retain dust particles.
The filters that equip the fans must be cleaned and replaced regularly.
This filter can be replaced during operation without risk of touch
with the rotating part.
Material of filter pad: 100g/ M3 nylon fiber compound, Filtration
efficiency up to 7 3%.
Operation Temperature/Humidity Range: (under unconcretionary
state) -20ºC ~ +70ºC (temperature), 0% ~ 95% (himidity)
RAL 7035 grey is the standard offer with the possibility to change to
RAL 7032 by means of a replacement grille.
Bear in mind the pressure losses caused by the outlet element (grille
with filter, ventilation louvre or simple opening) when determining
the fan flow rate.
Protection class: E N 60 5 29 I P 5 4 (not suitable for outdoor equipment).

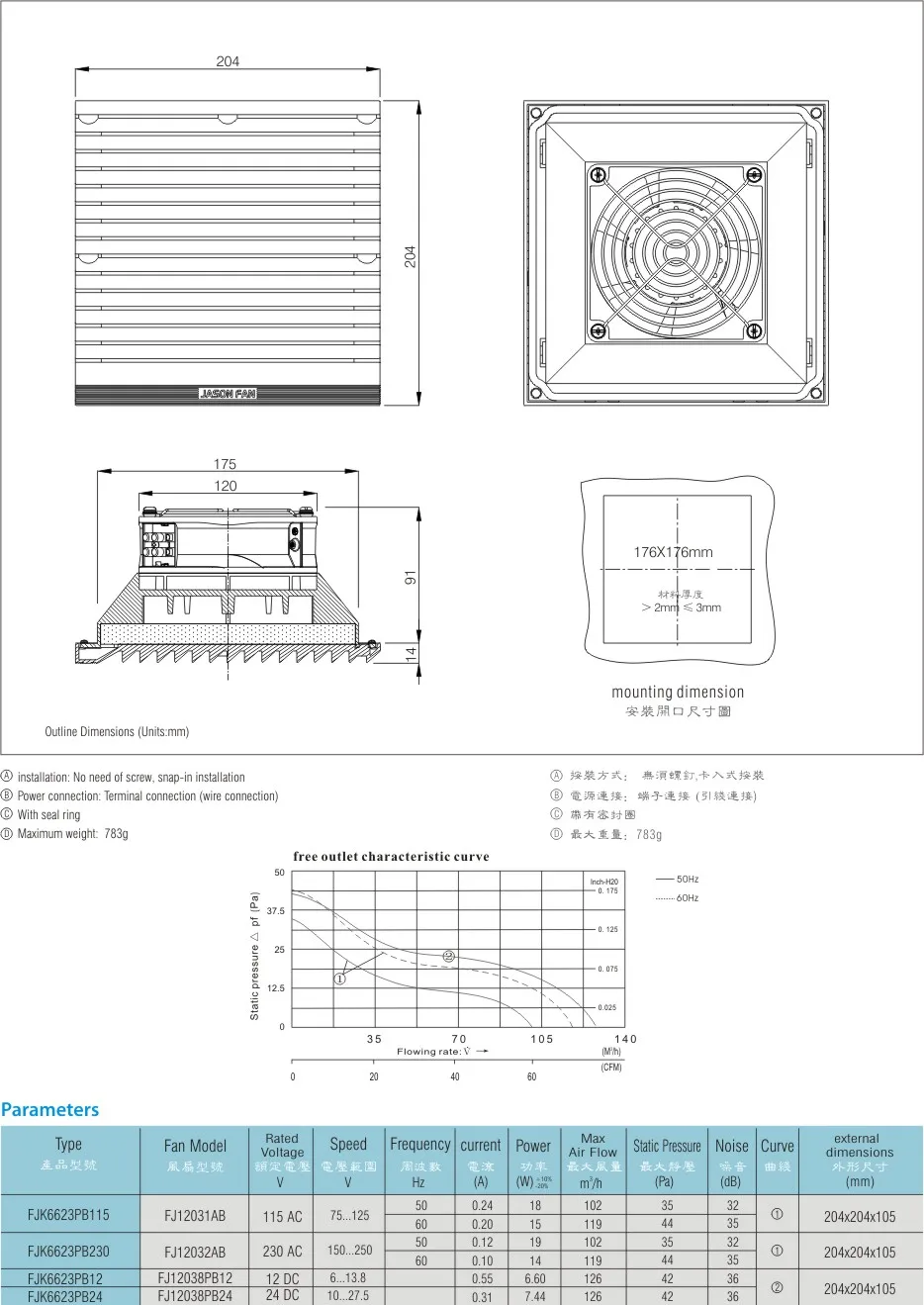

Type	Fan Filter
Temperature & Humidity	-30ºC ~ +80ºC, 0% ~ 95%
Power connection	Terminal connection
Protection Grade	IP54
Model Number	FJK6623PB230
Voltage	AC230V
Power:	50/60Hz
Air Volume	102-119 M3/H
Certification	CE, ROHS CSA
Unit weight	0.783KG
Color	RAL7035


Packaging & Delivery:
Packaging Details: 20 PCS/CTN
Weight: 21.2KGS/CTN
Size: 64 x45 x 44cm
Delivery Detail (sample): Shipped in 3-8 days after payment
