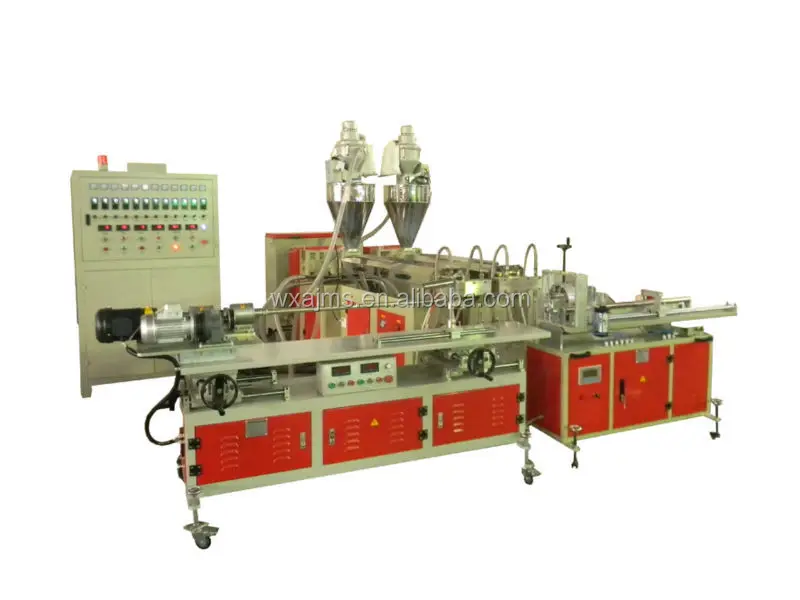

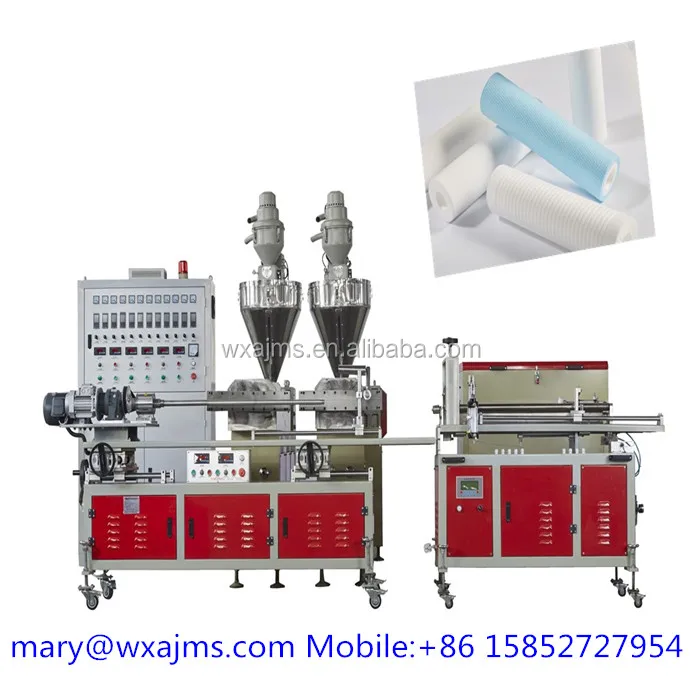

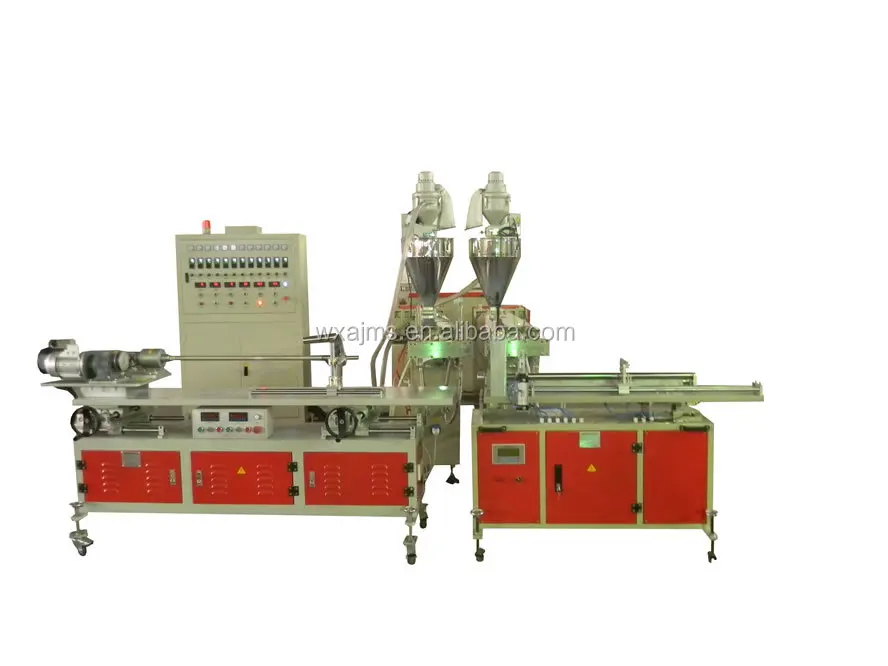

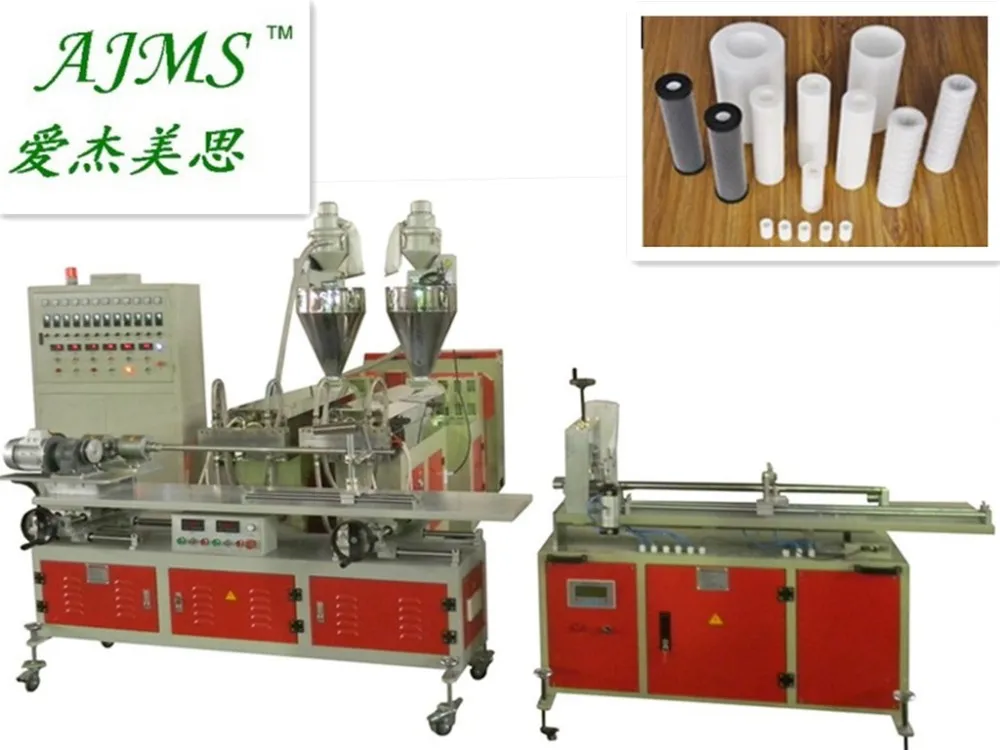

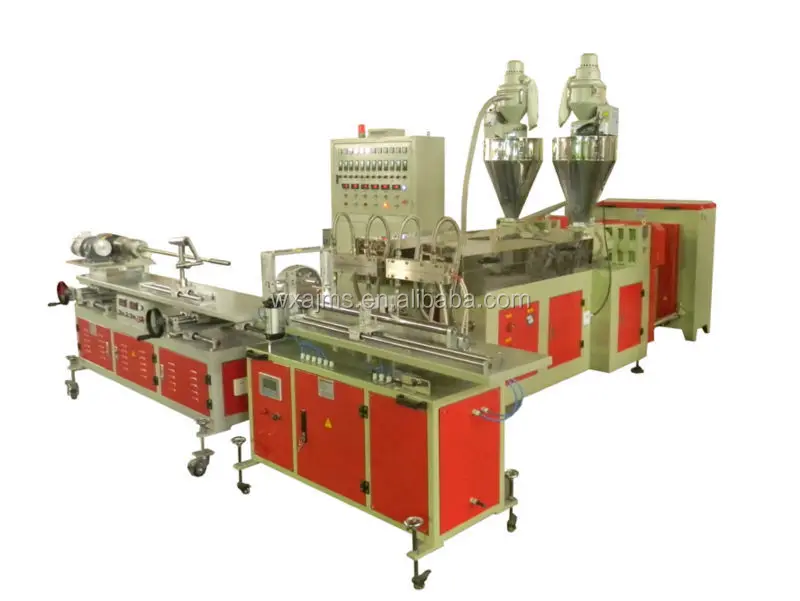

High Output Water Filter Cartridge Making Machine

Capacity

1800-2500 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,

100-110 gram

Rated Power

29 KW

Actual Power

14-17 KW

Raw Material

Polypropylene ( fiber grade)

Insider Diameter

28 mm (15 mm-40 mm is for customer’s request)

Outer Diameter

38 mm-120 mm( on the basis of  ID 28 mm.)

Length

10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’

Filter precision

1 um,5 um,10 um,20 um,30 um...............100 um

Surface of filter cartridge

Smooth surface orange peel surface

Grooves surface(grooving machine )

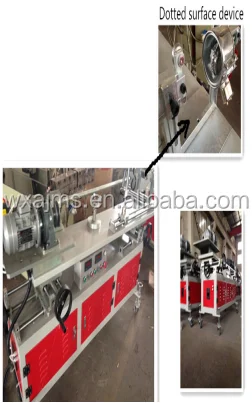

Dotted surface (this device we have added on receiving device )

Graining toll/stripe surface (extra tool)

Logo on surface (carving machine produce logo & company name on

the surface of pp filter)

Machine weight

1.2 Ton,After Packing 1.5 Ton

No.

Name

Q’ty

Specification

1

Roots Blower

1 set

l Origin:Taiwan,China, Type: GRB100

l Size:2000 mm*500 mm*1000 mm

l Weight:300 KG

l Power:7.5 KW

l Capacity :2.5 M ³ /min   Speed: 1540 r/min

( controlled by large electric controller)

l Material : Iron with plastic-sprayed surface.

   air through screw,air from roots blower is much

steady.

2

Air Heating Machine

1 set

l Brand:AJMS

l Heating the compressor air

l Power:8 KW

l Two heating system controls one mold..

l density of two layers of pp cartridge is

different.

   with 8 pcs of axis fan to exhaust remain heat

from oven. (1 KW/pc,total 8 KW)

l We supply its electric lines.

l Material of all air pipes inside of air heating

machine is stainless steel.

3

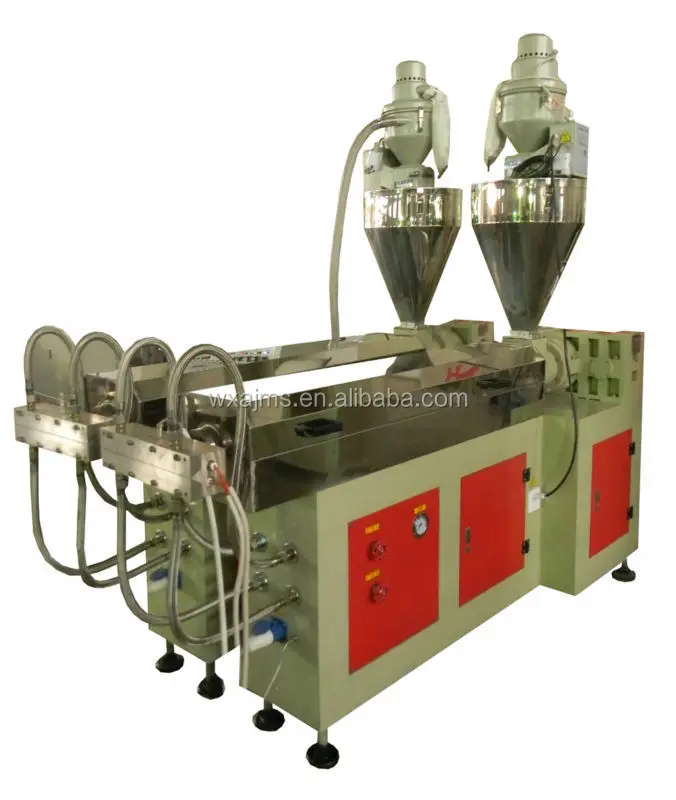

Extruder

1 set

l Brand:AJMS

l Control outsider layer’s Density

l Spec:45/25:1

l Total power : 4 kw(4 kw /one extruder)

l Material of surface : stainless steel

l Hard-toothed gear box is better than cycloid

gear box.

l Heat by 12 pcs of ceramic hearing loops,

800 w/pc

l variable Frequency system.One Inverter

controls it.

l There are two heating pipes inside mold

power ,

0.5 KW/pc.

l The first heating temperature is lower than

the second.

l We supply its electric line..

4

Molds

1 set

l Brand:AJMS

l Material: specialized mold steel

l Inside :metal Filter net

l Spec: L=550 mm,300 pcs of holes on each

spray

nozzle, diameter is 0.35 mm

l Material:SS 321,long life,bearing high

temperature.

   Power:1.5 KW ( 1.5 KW/pc)

Now we used 550 mm length mold,capacity is more,

power is

same as before

5

Receiving Device System

1 set

l New upgrade(it ‘s our patent,patent

no:201430489017.9)

l Brand:AJMS

l Receive the sprayed pp and form pp filters

on this machine.

l Size:2200 mm*700 mm*1100 mm

l Weight:360 kg . Material: Stainless steel.

l Total power :3 kw (2 sets of motors)

l 2 sets of aluminum motors and turbine

transmission system (4 pole motor)

l 28 shaft, different shaft decides different ID

of pp filters .

l material :iron(we can’t use stainless steel).

l We have added a new dotted surface device

on receiving device,this device could make smooth

filter cartridge to dotted surface. ( if you donnot

need this device,could tear down this device by

yoursely)

6

Automatic Cutting Machine

1 set

l New Upgrade device.(it’s our patent,patent

no:201430489017.9)

l Size:1150mm*600mm*1300mm*

l Weight: 80 kg

l Cut slime filter 35-65 mm or big blue 100-200 mm

diameter.

l We will supply electric line,if something wrong with the

part,it will sound a warming.

l Cut any length pp filters required.

7

Automatic Feeding Machine

1 set

l Abilty: 350 KG/TIME

l Material: cast aluminum and stainless steel,

plastic-sprayed surface.

l Main power:220 v

l Brand Name:XY-300G

l Power:300 w/set(We supply its electric power)

l Total:0.3 kw

l Over travel-limit switch control feeding ,

stopping to feed material and drying material

automatically at the same time.

l Size:40*36*60mm(L*W*H)

l Weight:11 KG

l Capacity:7.5 L

8

Larger Controller

1 set

l Brand:AJMS

l Large controller controls two air heating

systems inside air heating machine.

l it could show their temperature,double

extruder

heating temperature and two motors’ speed.

l Meanwhile the machine will show their

temperature and motors speed..It has 2 inverters (it is HOLIP ,belongs to dan foss).

l Warning device,if something wrong with

electric,the light will flashing

l Electric line which connect and main power is

bought by yourself.

l Switch: Schneider,Inverter: ABB,

Temperature controller: OMRON

l All parts(speed of roots blower,

tempreature...)controlled by this part.

9

Mold Cleaning Oven

1 set

l Heating ,to make the residual pp become

carbonization.

l Size:600 mm*700 mm*1150 mm

l Weight:55 kg

l Power:2 KW

l Material:Iron with spraying lacquer

l Material of heating pipes :Iron

l Putting put double layers of insulation

cotton inside of wall.

l Setting its heating temperature in advance,

you could start machine when you   cleaning molds.

This is temperature controlled,within range not change.

l More better for the molds,delay the mold used life,

advanced in market.
