15 MW electricity Coal Fired Middle Pressure CFB Boiler for Power Plant
- Category: >>>
- Supplier: Shandong Longsheng Biotechnology Co. Ltd.
Share on (60764384350):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Parameter \t\t\t\t\t\t\t
Product Name | 15 MW electricity Boiler for Power Plant |
Applied Area | Power Plant/Station, Factory |
Model | Customziation |
Capacity Range | 70 t/h ~ 75 t/h |
Working Pressure | 5.2MPa, 6.6MPa |
Working Temperature | 450℃, 485℃ |
Dimension | depends on capacity |
Standard | China GB, ASME, EN |
Combustion | CFB |
Manufacturer Grade | China A Grade, ABS certified, TUV certified |
Fuel | Coal |
Output | Superheated Steam, Saturated Steam, Hot Water |
Structure | - Full membrane water wall protected combustion - Full positive steel sealing at rear part - Full steel structure supporting/hanging |
Water/Steam Circulation | Natural Circulation |
Certificate | - China GB Certificate - ASME "S" Certificate (w/wo "S" Stamp) - CE Certificate - Other Certificate as per Customer requirements |
New or old | - Design per Customer requirements - Fabricate per Customer order- Brand New Product |
Applied Area | - Industry (Sugar mill, oil mill, wood factory, rice factory, etc) - Power plant - Heat power co-generation plant |
Spare Parts | - Materials for installation and erection conveniency - 2 years operation spare parts (optional) |
Emission Control System (option) | The following techniques are adaptable as per emission requirements - SNCR de-NOx- Multi-Cyclone Separator - Bag Filter - ESP (ElectroStatics Precipitator) - Wet Scrubber |
\t\t\t\t\t\t\t\t\tProduct Show \t\t\t\t\t\t\t

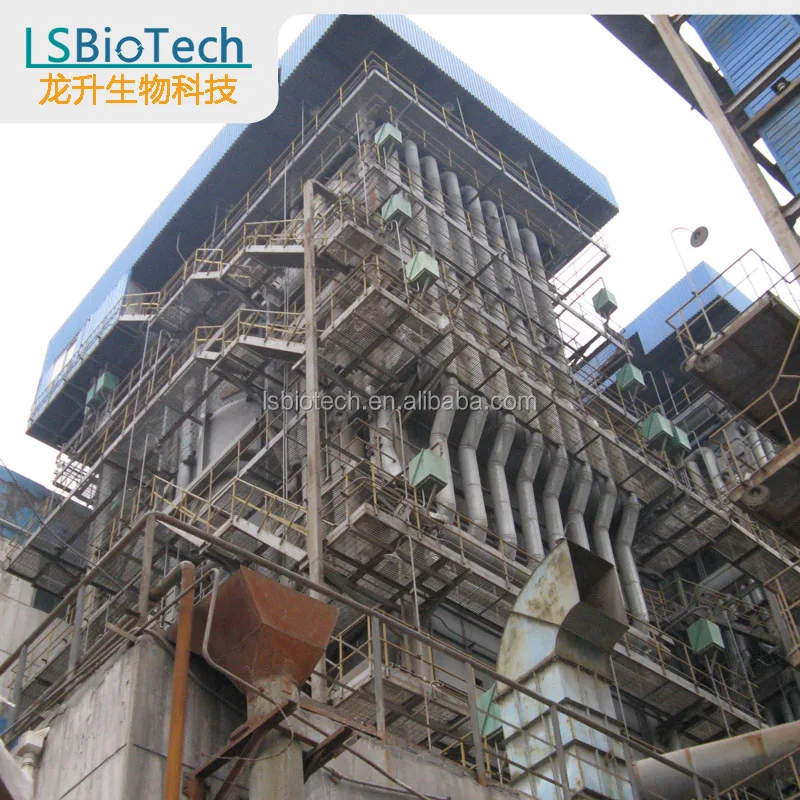

Sub-High Pressure Boiler
Boiler Capacity : 70 ~ 75 tph
Common Steam Para.: 5.2 MPa + 450 ℃
6.6 MPa + 485 ℃
Driving STG : 15 MWel
Factory Show & QA
Packing & Delivery
Packing
Different packing methods are chosen depend on transportation type.
1. Plywood Protection
for special material protection
2. Plywood Box Packing
for small and high value product
3. Steel Frame Packing
for general product
4. Steel Frame Packing
for general product
5. Steel Frame Packing
for general product
6. Steel Frame Packing
for general product
FAQ
Q:How to get a Quote?
A:As boiler has many different types. Please provide the following basic parameters before place RFQ to us:
a. Steam temperature, Steam pressure, Steam flow at Boiler outlet
b. Fuel Analysis Report (if have)
c. Fuel type, moisture, carolic value (LHV & HHV), ash, dimension (if no have b)
d. Combustion type of Boiler (option)
e. Steam turbine capacity in kW or MW (option)
f. Scope of supply
Please be noted, it is always the best that you provide as much information as possible to get a good Quote sheet.
Q:How long is your delivery time?
A : It is very dependent on the capacity of equipment. Delivery time should be determined after technical discussion. Please contact our sales.
Q:How long is your delivery time?
A : We guarantee 12 months from the date of shipment departure.
