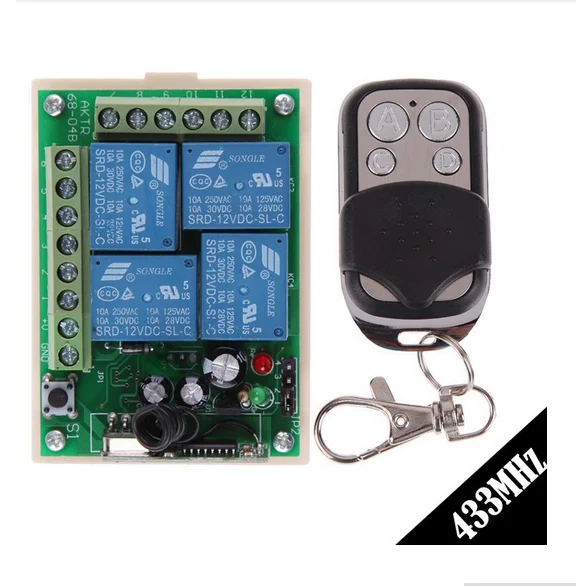

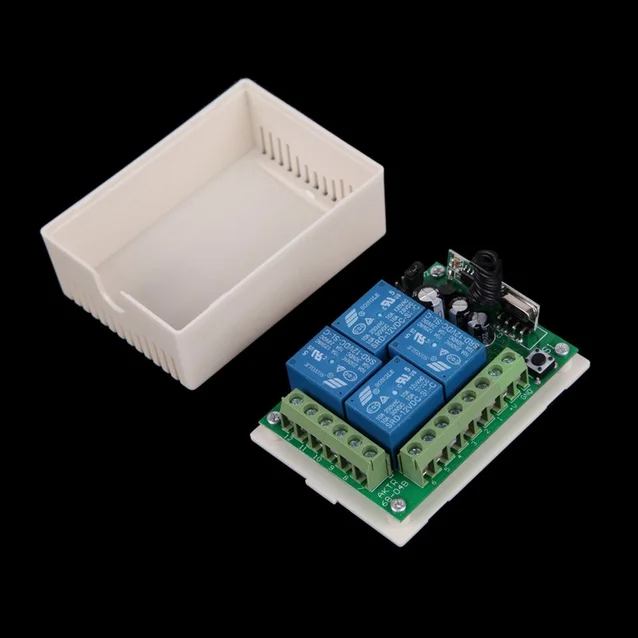

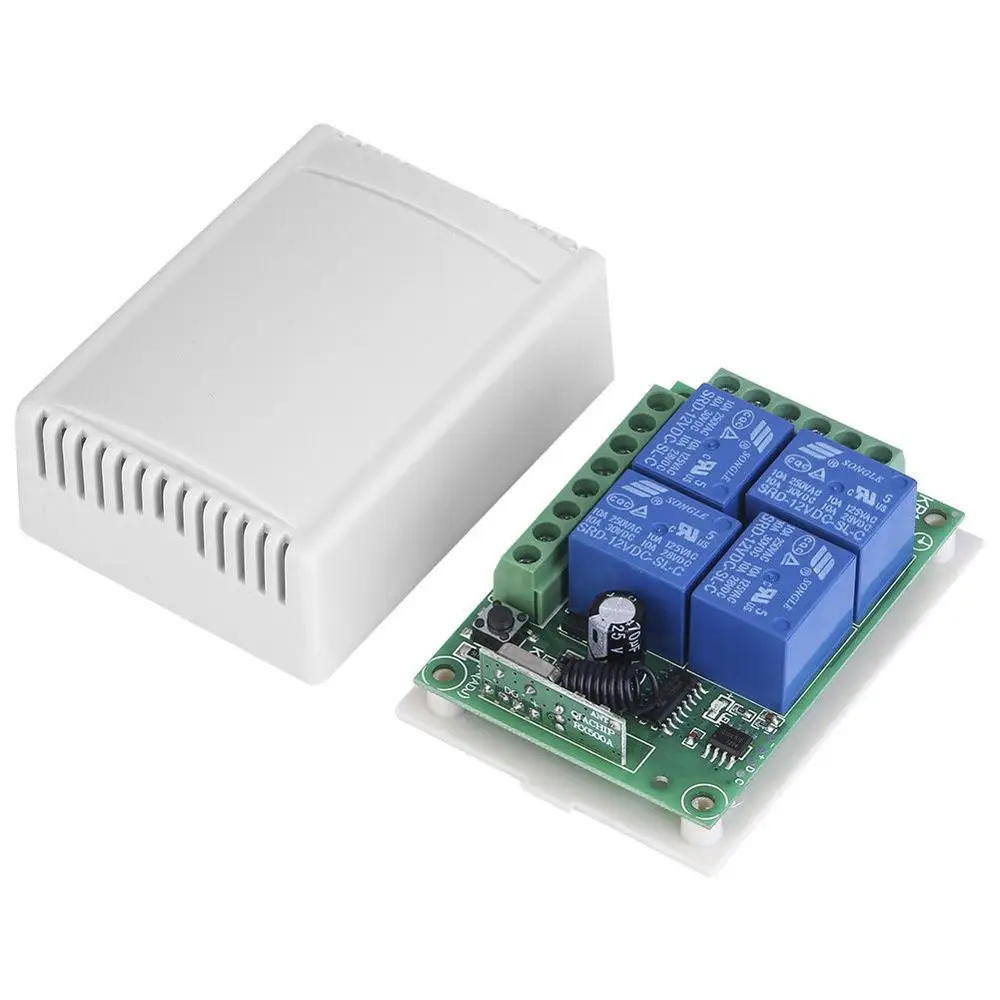

12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter
12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter

12V 4 Channels 4 Buttons Universal Wireless Remote Control Switch Relay Receiver RF Remote Transmitter

Share on (60764392430):


Price:$3.59 - $6.39

Quantity:


Product Overview

Description


Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter



Product Description













Description:
This item has 4 relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz remote control.

Features:



  • It has 4 relays which can make the equipment turn or reverse, on/off and so on come true.

  • Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.

  • The volume is small and the performance is stable and reliable, high receive sensitivity.

  • It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.

  • It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz remote control.



Specification:
Condition: 100% Brand New
Input Voltage: DC10-14V
Standby Current: <5MA
RF Frequency: 433MHZ
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: >98dBm
Remote Control Distance: >100 meter(in open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control: 50
Support remote control type: Fixed code, learning code
Channel: 4CH
Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
Wiring Method: Fixed wiring terminal
Working Voltage: DC12V
Output Current: 10A
Output: Normally open, Common, Normally closed
Product Size: Approx. 50 * 72 * 26mm / 2.0 * 2.8 * 1.0inch
Package Weight: Approx. 100g

Package Included:
1 x Wireless Relay Switch
1 x Remote Controller

How to use:
1. Jog/Non-latched: Press one button is working /ON. Loosen your finger on the same button is stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4. Delay: Press remote control's one button, relay is working, release the remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay.

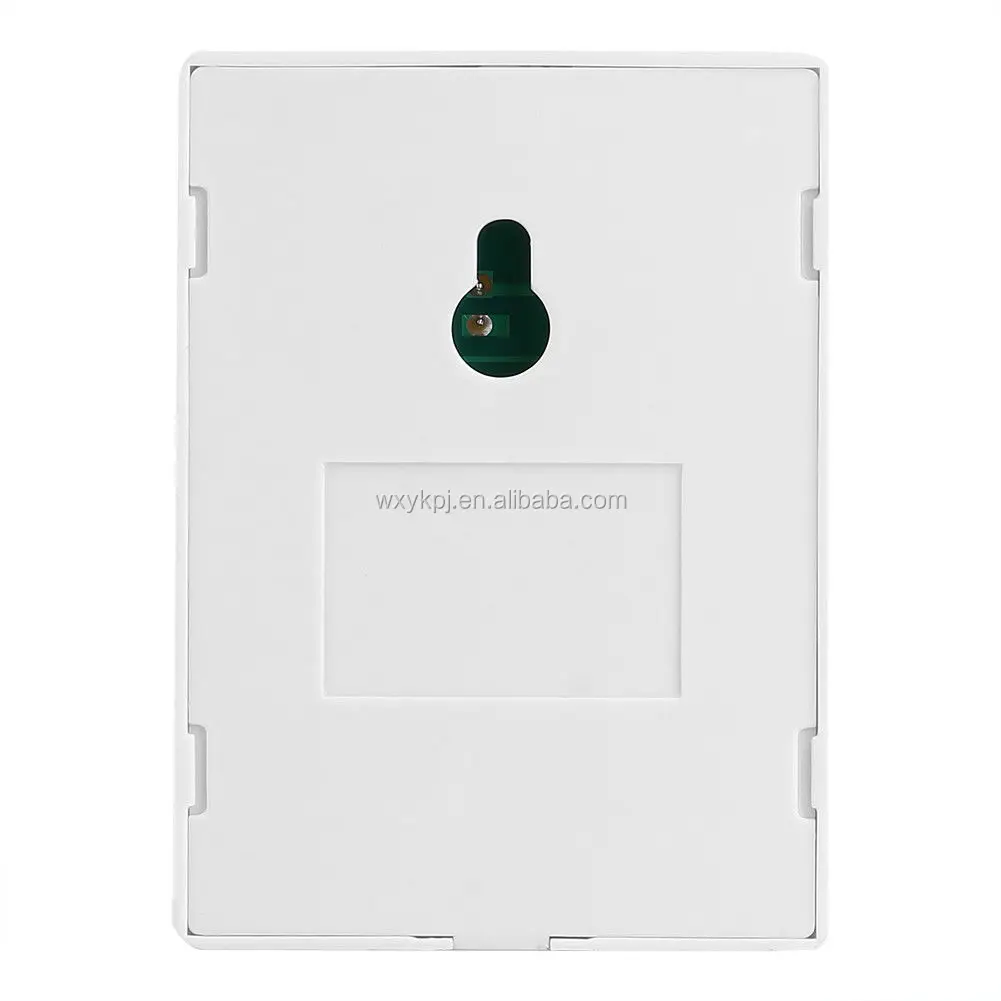

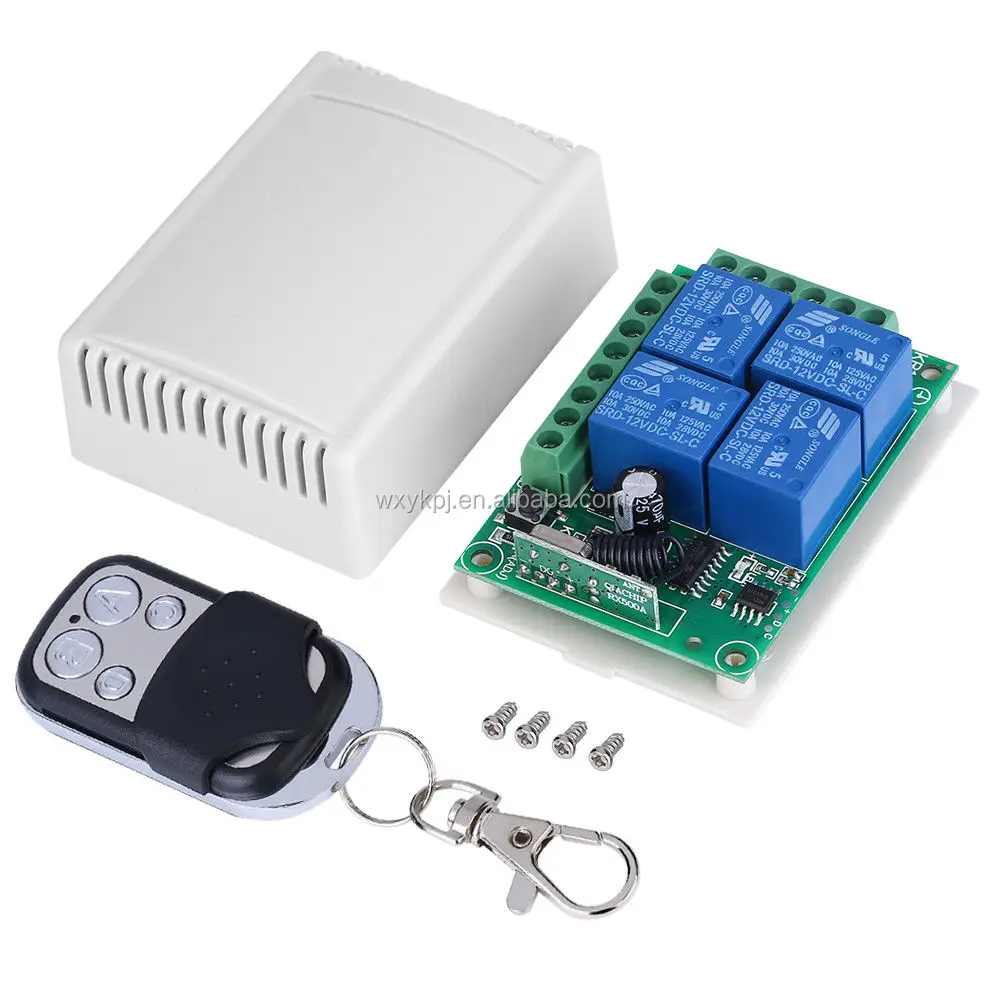

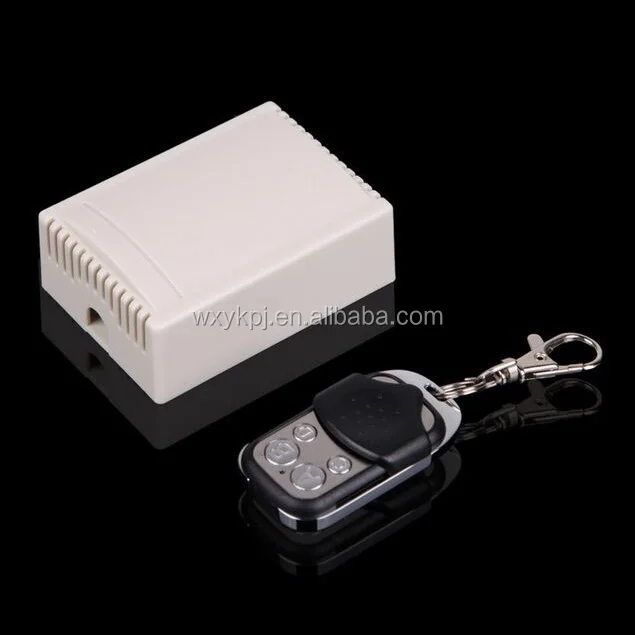

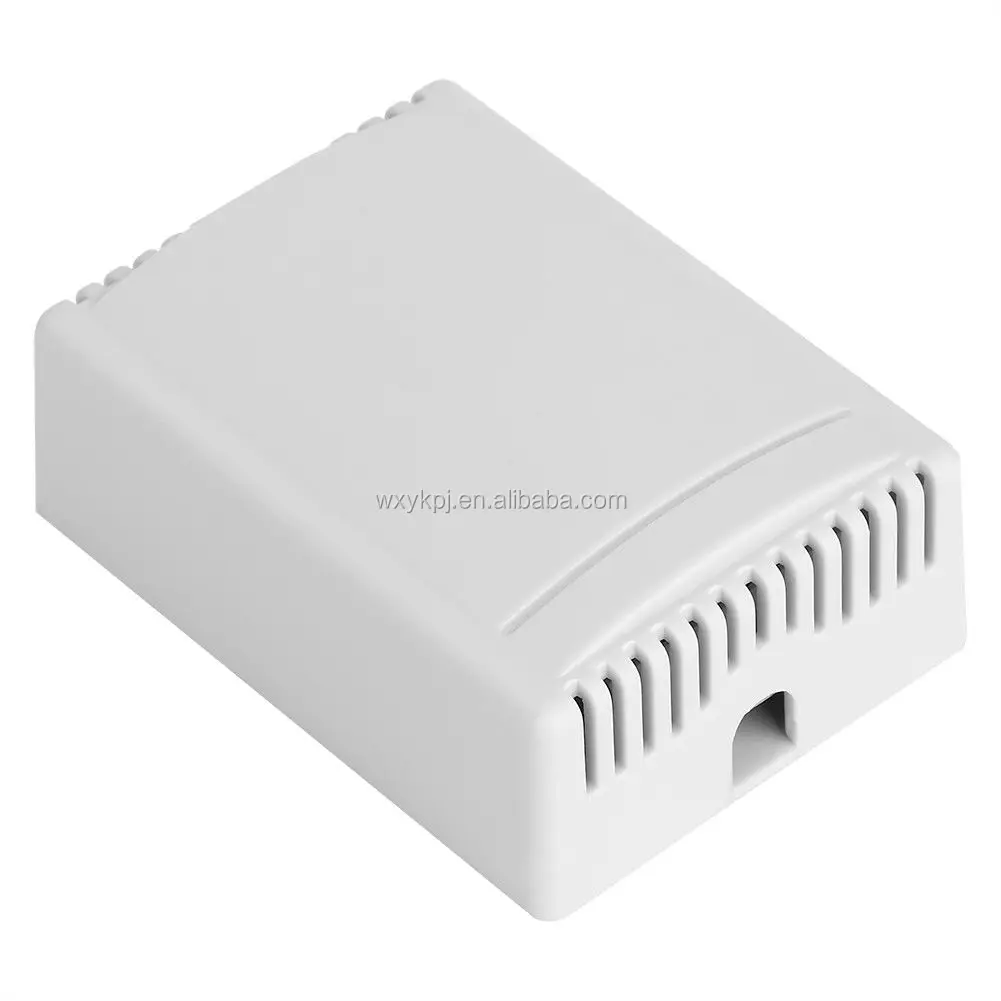

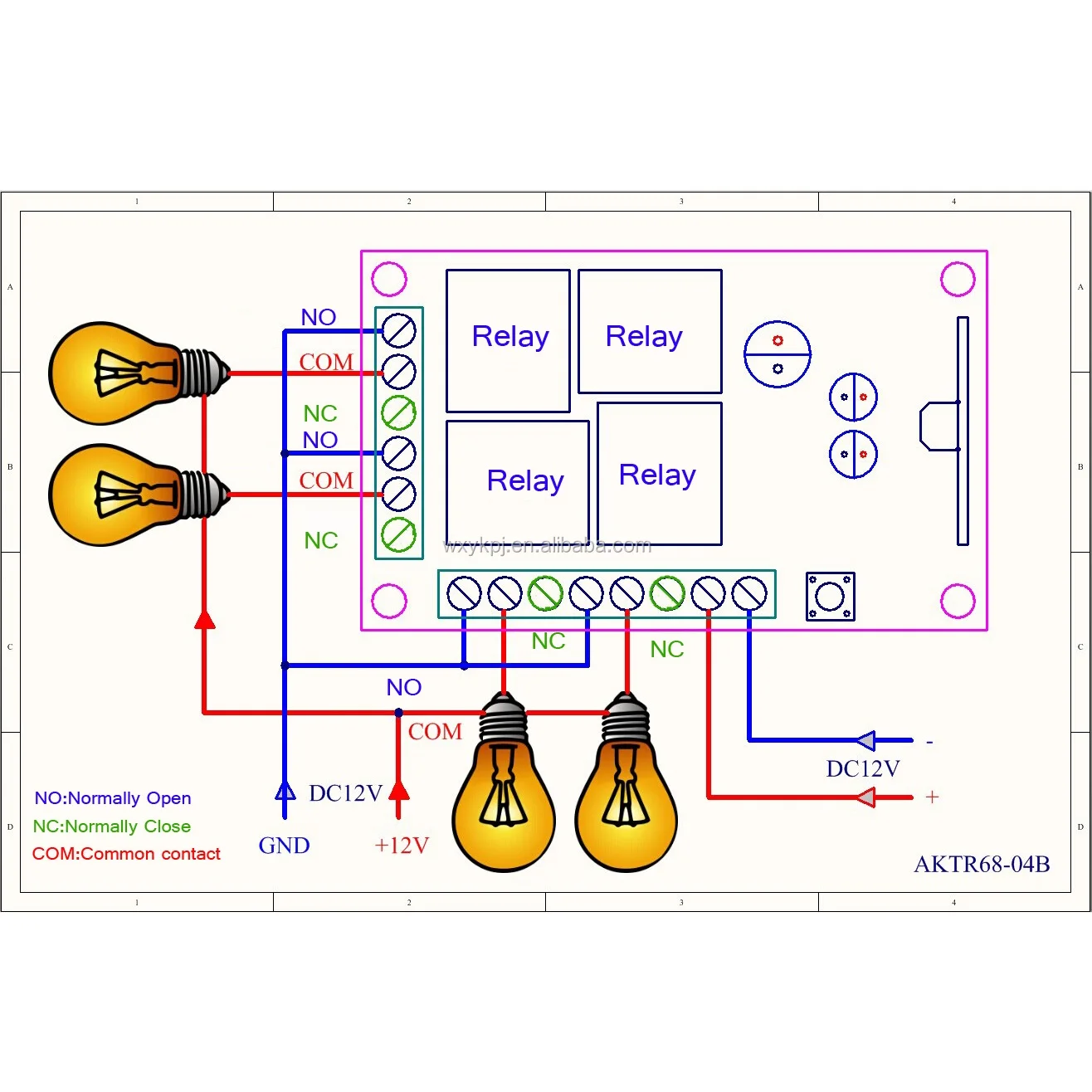

 AK-TR68-04B+C4B (1).pngAK-TR68-04B+C4B (5).jpgAK-TR68-04B+C4B (2).pngAK-TR68-04B+C4B (1).jpgs-l1600 (1).jpgs-l1600 (6).jpgs-l1600 (7).jpgs-l1600.jpg
