2472 Activated Carbon Media Filter Water Tank With 150 Psi

Share on (60764401657):


Price:

Quantity:


Product Overview

Description


Product Details

Ion Exchange Resin Fiberglass Filter Pressure Water Tank

Frp tanks are made of high quality composite material HDPE liner,with blow molding technique, it provides continuous seamless inner liner shell.

Epoxy resin system and FRO filament winding outer shell, which reinforces the liner and provides strong strength for high pressure application.

FRP vessel features:
1. FRP Tank made from fiberglass reinforced plastic composite material and 100% corrosion resistant;
2. Light, easy for transportation;
3. Easy installation and low maintenance.
Application :
1. Industrial Water Treatment with multi-layer media;
2. Water Softening;
3. Aquaculture, fish farming filtration system
Specification:
Operating Condition
Operating pressure : 150psi
Operating temperature:49℃
Test
250.000 times of cycle test from 10 psi to 150 psi with standing pressure
Color
Natural, Blue, Gray, Black and Blown, other are available on request.

Product Parameters
\t
Model
\t
Dia. X Height (mm)
\t
Top Open
\t
Bottom Open
\t
Liters
\t
610
\t
155x255
\t
2.5 NPSM
\t
N/A
\t
3.33
\t
618
\t
155x465
\t
2.5 NPSM
\t
N/A
\t
6.8
\t
635
\t
155x880
\t
2.5 NPSM
\t
N/A
\t
13.86
\t
717
\t
180×450
\t
2.5 NPSM
\t
N/A
\t
8.1
\t
744
\t
180×1135
\t
2.5 NPSM
\t
N/A
\t
24.25
\t
817
\t
205×438
\t
2.5NPSM
\t
N/A
\t
11.2
\t
835
\t
205×890
\t
2.5 NPSM
\t
N/A
\t
24.8
\t
935
\t
230×910
\t
2.5 NPSM
\t
N/A
\t
31.2
\t
948
\t
230×1230
\t
2.5NPSM
\t
N/A
\t
44.56
\t
1017
\t
255x440
\t
2.5NPSM
\t
N/A
\t
17.7
\t
1035
\t
255×905
\t
2.5NPSM
\t
N/A
\t
38.4
\t
1054
\t
255×1380
\t
2.5 NPSM
\t
N/A
\t
61.6
\t
1252
\t
300×1340
\t
2.5 NPSM
\t
N/A
\t
90.7
\t
1354
\t
335×1400
\t
2.5 NPSM
\t
N/A
\t
109.34
\t
1465
\t
335×1650
\t
2.5" NPSM
\t
N/A
\t
148.2
\t
1665
\t
405×1650
\t
2.5 NPSM
\t
N/A
\t
195.1
\t
1665
\t
405×1650
\t
4"UN
\t
N/A
\t
203.1
\t
1865
\t
460x1650
\t
4"UN
\t
N/A
\t
251
Product Introduction

Frotec Water Filter Fiberglass Pressure Vessel

Product Details Show

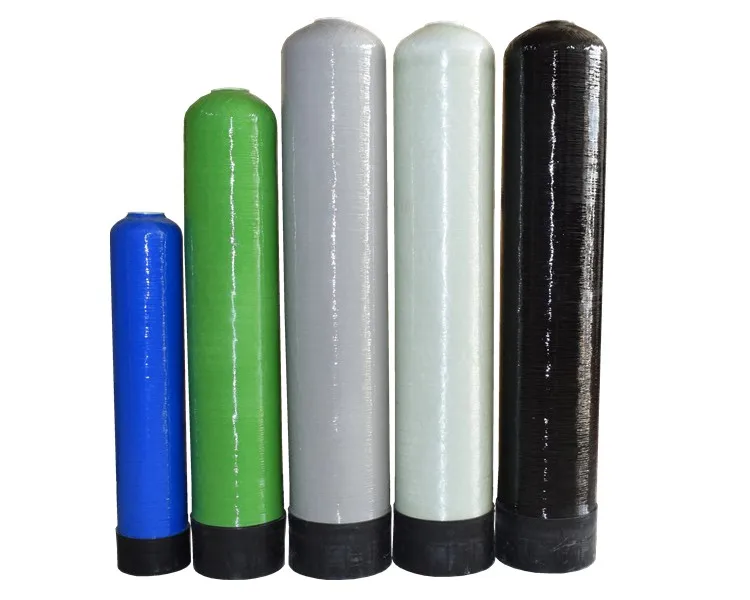

Other size
Main Products
Company & Exhibition

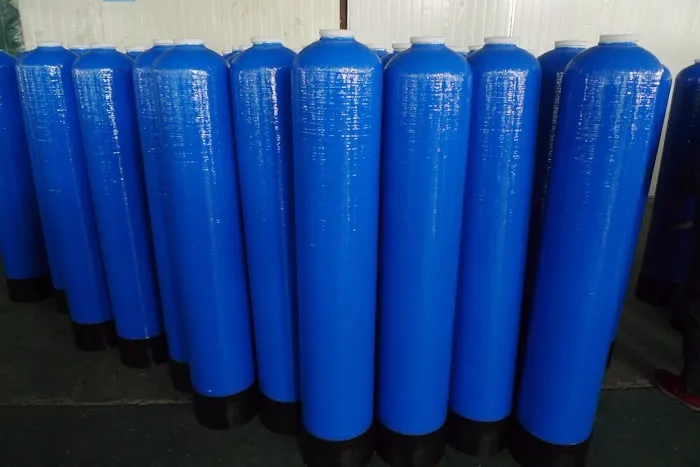

Product Packing
