FV 2010T PLUS портативный Экран 4,5x17 дюймов, светодиодный радиографический ndt Просмотр пленки и денситометр
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (60764402863):
Product Overview
Description

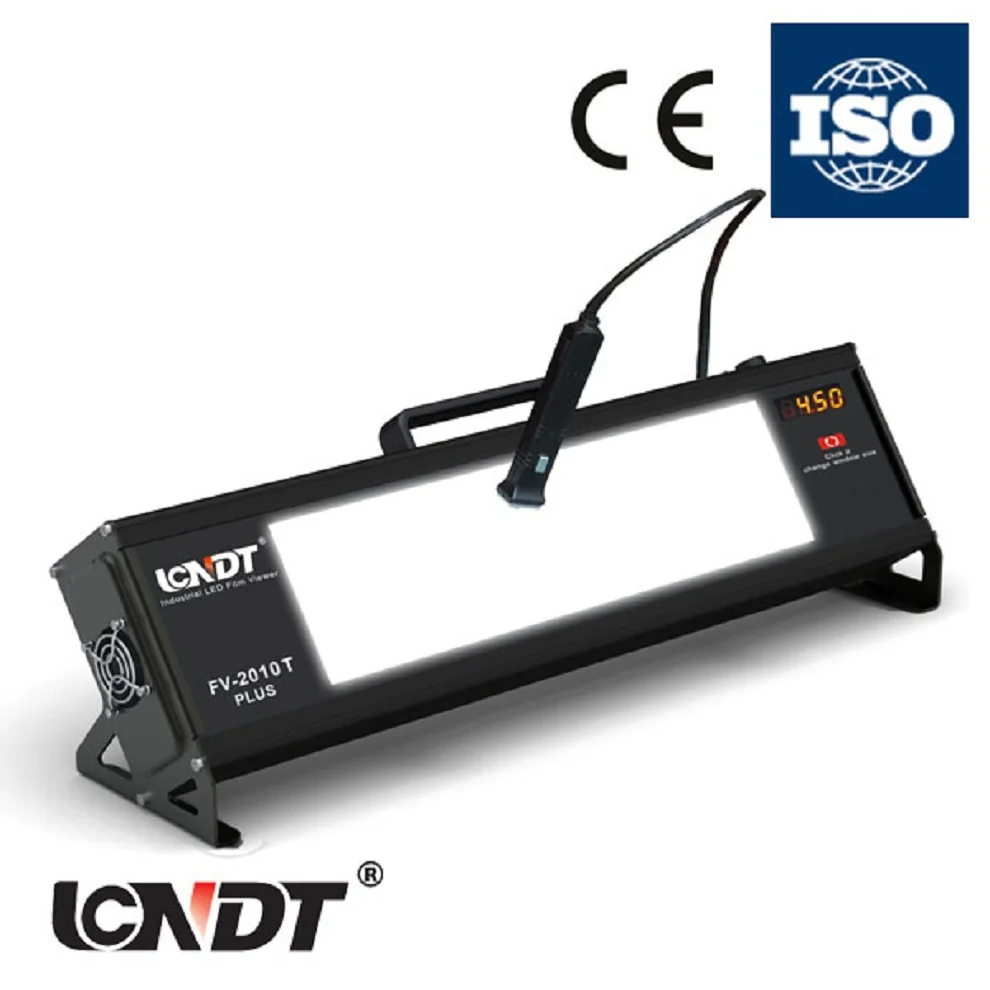

FV-2010T PLUS Portable 4.5x17" screen LED Film Viewers and Densitometer
Product Description
Specication
| Max. Luminance | ≥130,000Cd/m² (408,200Lux) |
| Uniformity | 0.95 |
| Diffusion factor | 0.95 |
| Large viewer window | 400×100mm (15.75"×3.94") |
| Maximum Density | ≥4.2 H/D |
| Densitometer High Accuracy | ±0.02D |
| Max. Density(Densitometer) | ≥5.0 H/D |
| Electronic Light mask - World First | |
| Low noise | Fan with temperature depended |
Related Products

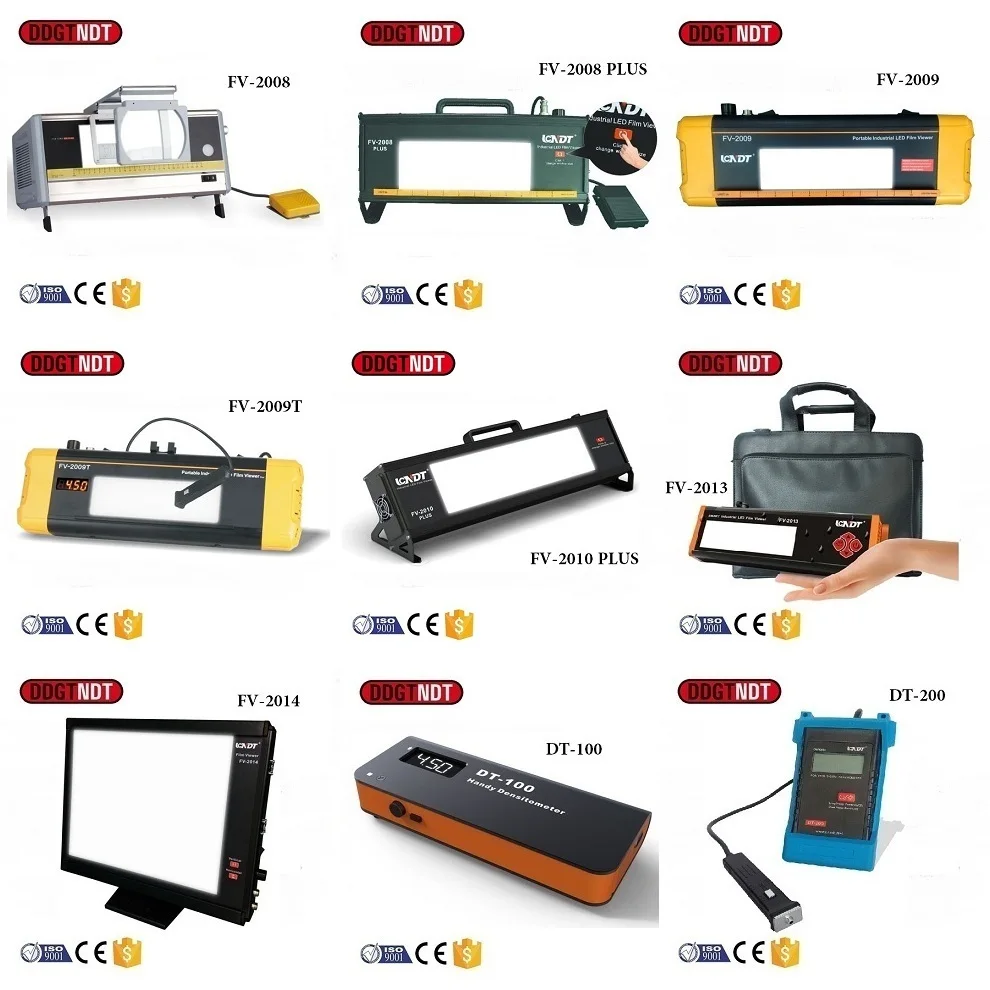

LCNDT Film Viewer Series

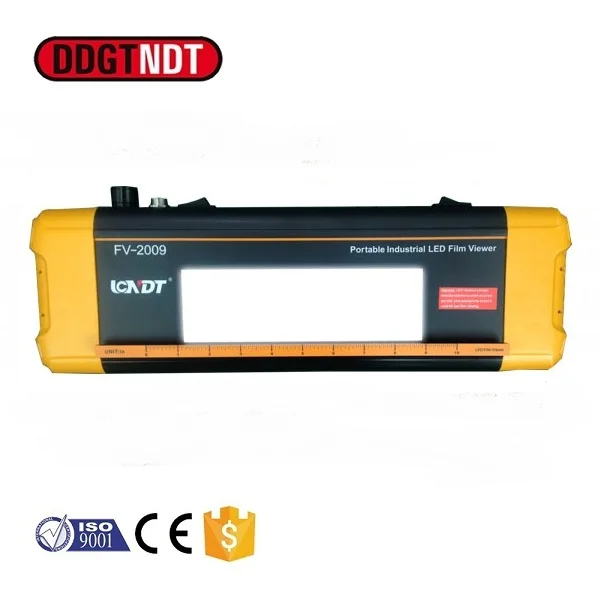

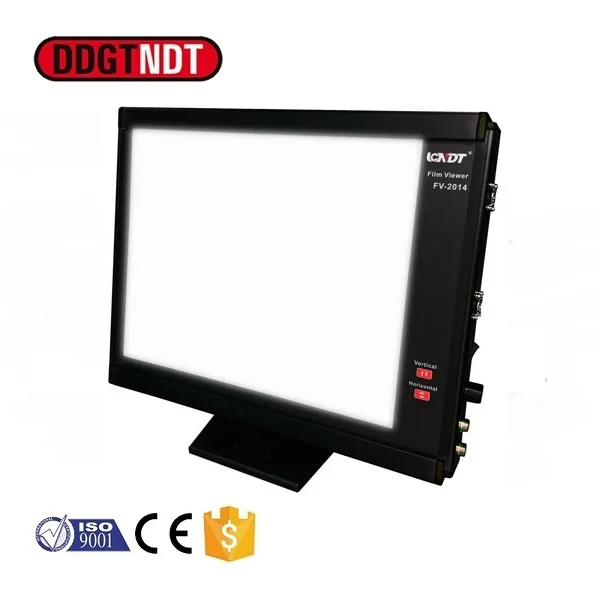

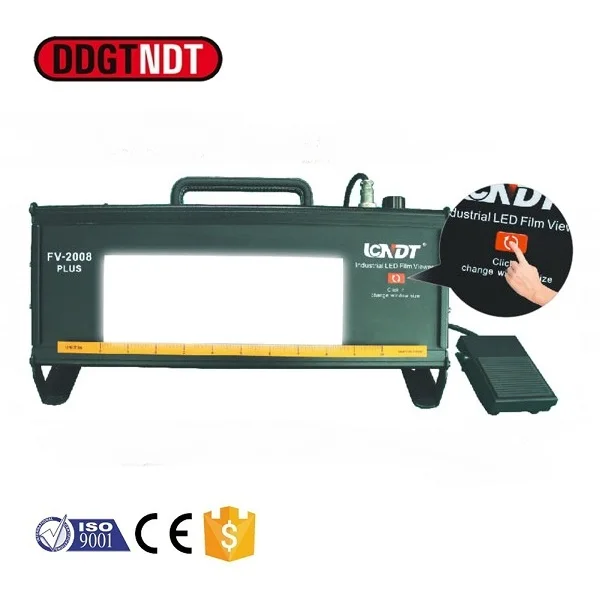

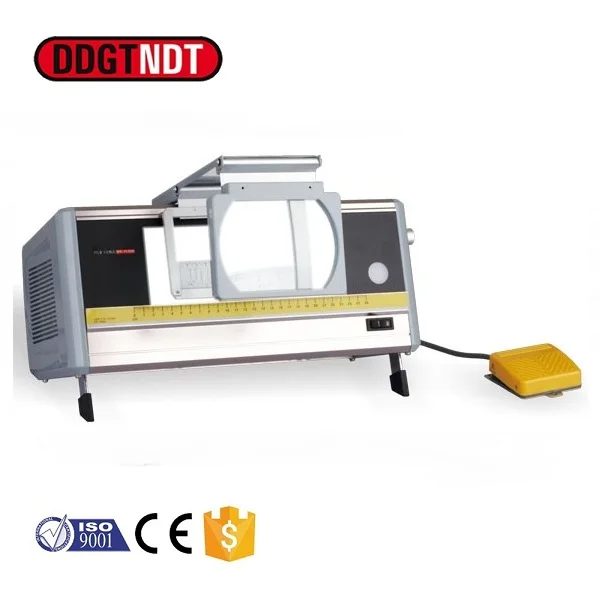

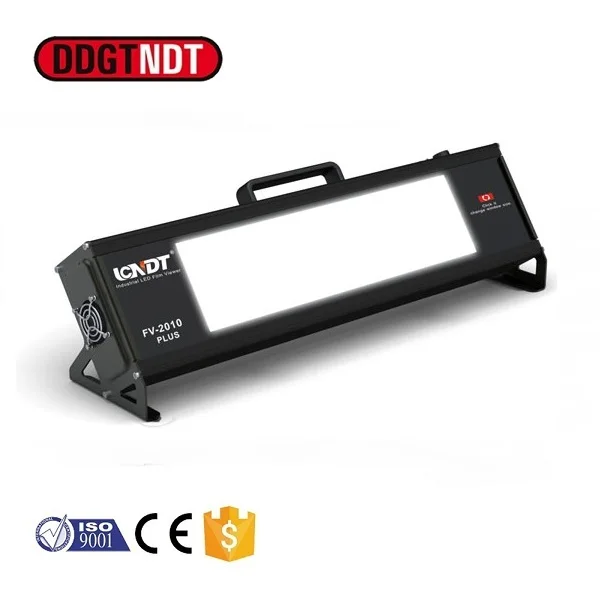

| Model | FV-2008 | FV-2008 PLUS | FV-2009 | FV-2009T | FV-2010 PLUS | FV-2010T PLUS | FV-2013 | FV-2014 |
| Luminance | ≥205,000Cd/m² (643,700Lux) | 300,000Cd/m² (942,000Lux) | 103,000Cd/m² (323,420Lux) | ≥120,000 Cd/m² | ≥130,000Cd/m² (408,200Lux) | ≥130,000Cd/m² (408,200Lux) | >110,000Cd/m² | ≥82,800Cd/m² (260,000Lux) |
| Uniformity | 0.9, Diffusion factor:0.95 | |||||||
| Viewer Window | 220×80mm (8.66"×3.15") | 220×65mm (8.66"×2.56") | 200×60mm (7.87"×2.36") | 200×60mm (7.87"×2.36") | 400×100mm (15.75"×3.94"), 400×85mm(15.75"×3.35") are available | 400×100mm (15.75"×3.94") | 150×45 (5.90" ×1.77") | 150×45mm (5.90"×1.77") |
| Maximum Density | ≥4.3 H/D | ≥4.5 H/D | ≥4.0 H/D | ≥4.1 H/D | ≥4.2 H/D | ≥4.2 H/D | ≥4.0 H/D | ≥3.8 H/D |
Packing
Packing List
| NO. | Item | Qty. |
| 1 | FV-2010T PLUS Film Viewer | 1 |
| 2 | Foot pedal | 1 |
| 3 | Light mask | 1 |
| 4 | Carrying Bag | 1 |
| 5 | Manual (English) | 1 |
| 6 | Warranty Card(English) | 1 |
Payment and Shipping
Company Information
Our company was founded in 1988, which is one of the well known companies specialized in Non-dectructive testing (NDT) equipments. After 20 years' development, we have accumulated abundant technical force and established a wealth of design and practical experience. We are a manufacturer and trading company. Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV. Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV. Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing. Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers. They can be widely used in many fields such as mechanism, electron, petroleum, chemical industry, electric power, bridges, boats and ships, vehicles. aviation, heating power, boilers, pressure vessels and war industries. Our sales network covers the whole world and we maintain good business relationship with more than 200 customers. We will serve the first-class technology, first-class products and first-class service for you.
Certificate
FAQ
1. The warranty period?
12 months.
2. If you could repair by yourself?
We could provide the free spare parts and guide for you.
3. The delivery term?
Express
4. The delivery time?
After payment, the testing needs 2 days. After deliverying, you will get it within 6 days.
The contact details
The contact person: Mr. Frank Chen
Tel: +86-415-2883568
Fax: +86-415-2824917
Mobile: +86 15842587084
Skype: fchen011
Wechat: ct112611
Email: frank (at) ddgtndt.com ; frank.chen01 (at) hotmail.com
Website: //ddgt.en.alibaba.com
