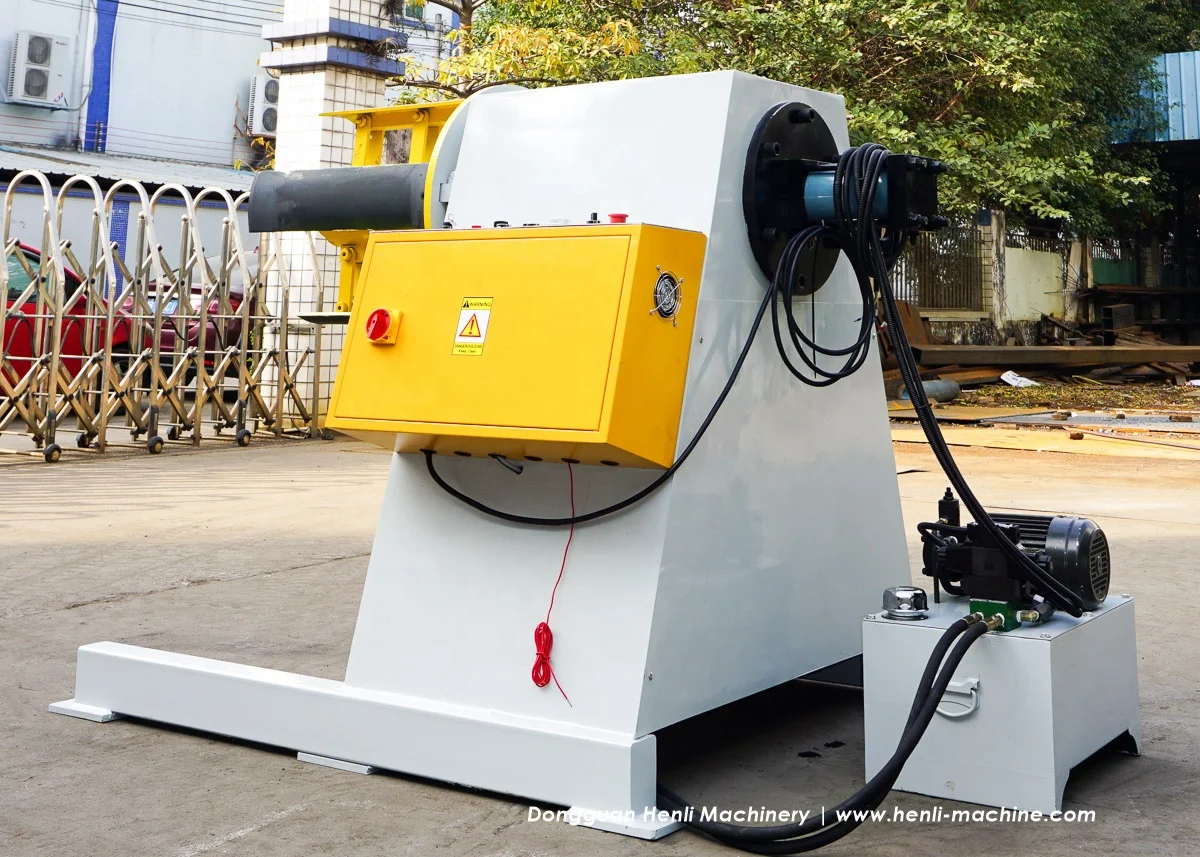

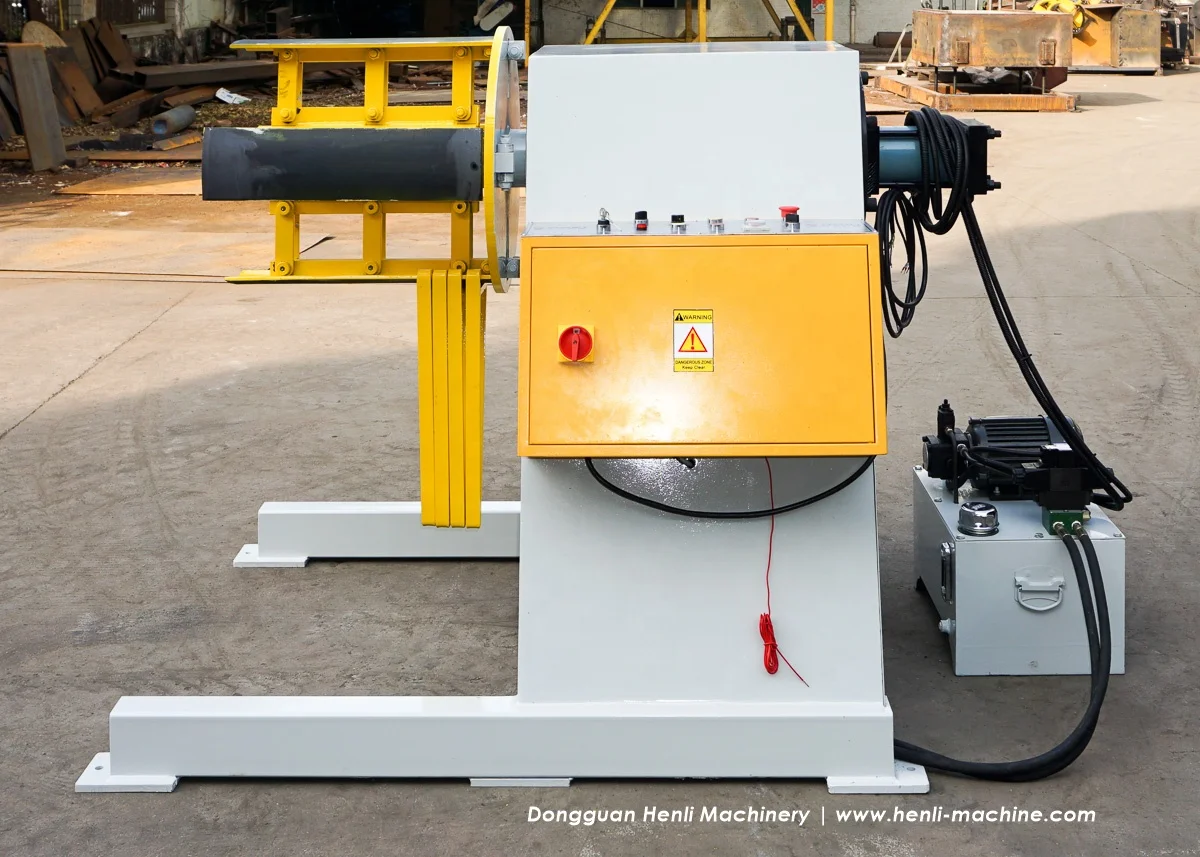

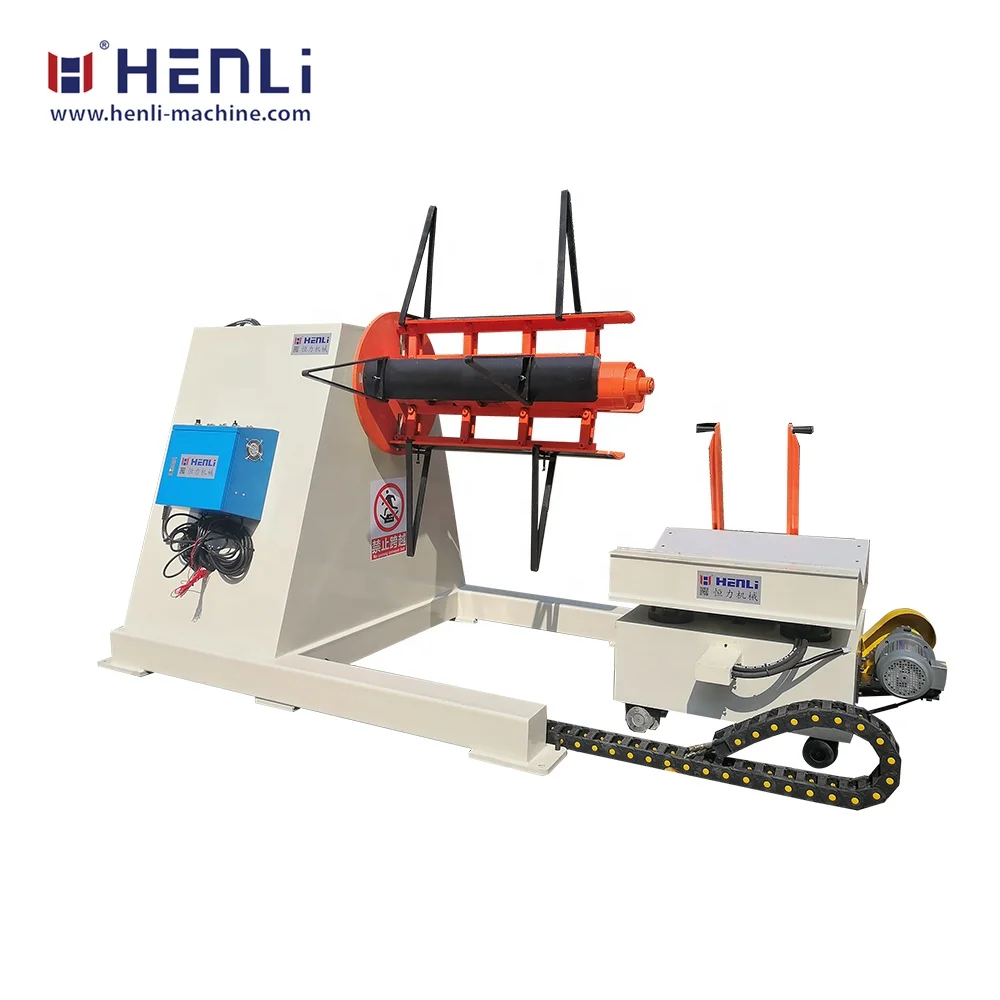

HENLI Machinery MT 300 Good Price Sheet Metal Decoiler for Steel Plate used in punching machine
- Category: >>>
- Supplier: Dongguan Henli Machinery Equipment Co. Ltd.
Share on (60764415243):
Product Overview
Description
| Model # | MT- 200 | MT- 300 | MT- 400 | MT- 500 | MT- 600 | MT- 700 | MT- 800 |
| Coil sheet Width (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Coil Weight (Max. Kg) | 500-800 | 800-1000 | 1000-2000 | 2000-3000 | >=3000 | >=3000 | >=3000 |
| Coil Inner D. (mm) | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 |
| Coil Outer D. (mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Uncoiling Speed (m/min.) | 15 | 15 | 15 | 15 | 15 | 15 | C15 |
| Shape D. (m) | 0.9×0.9×1.2 | 0.9×1.0x1.2 | 1.2×1.3×1.3 | 1.3x1x1.3 | 1.4x1x1.3 | 1.4x1x1.4 | 1.5×1.1×1.5 |
| G.W. (Kg) | 500 | 550 | 800 | 450 | 475 | 553 | 630 |
| Uncoiling Type | automated | automated | automated | automated | automated | automated | automated |
| Expansion Type | Manual | Manual | Manual | Manual/Hydra | Manual/Hydra | Manual/Hydra | Hydra |
| Uncoiling Motor Power | 1 HP | 1 HP | 2 HP | 2 HP | 3 HP | 3 HP | 3 HP |

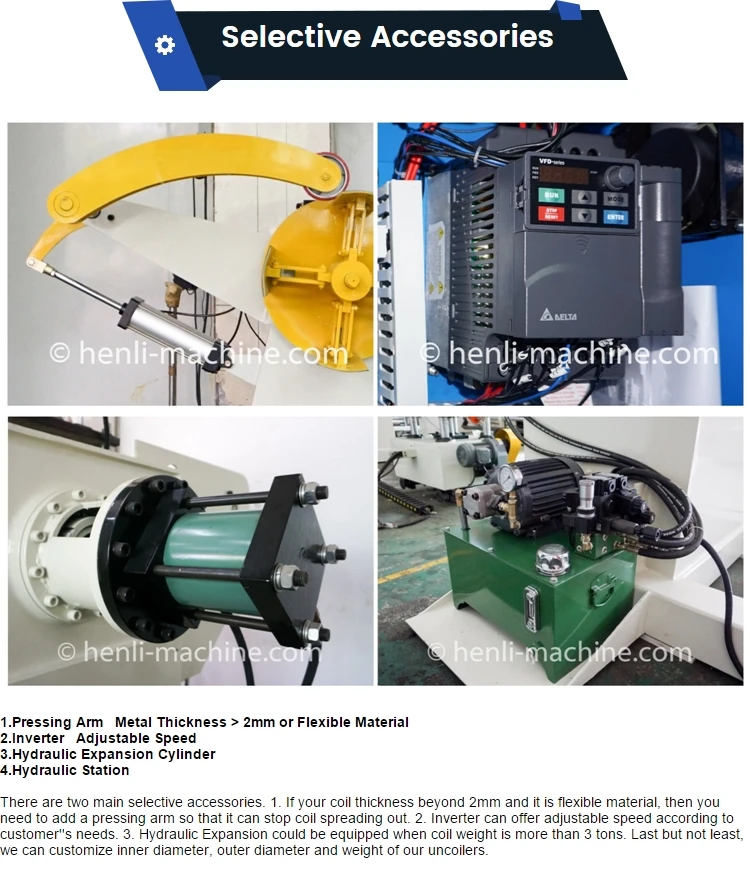

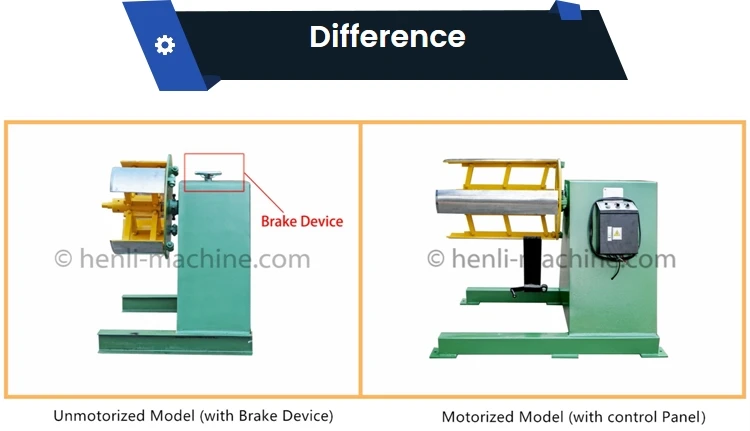

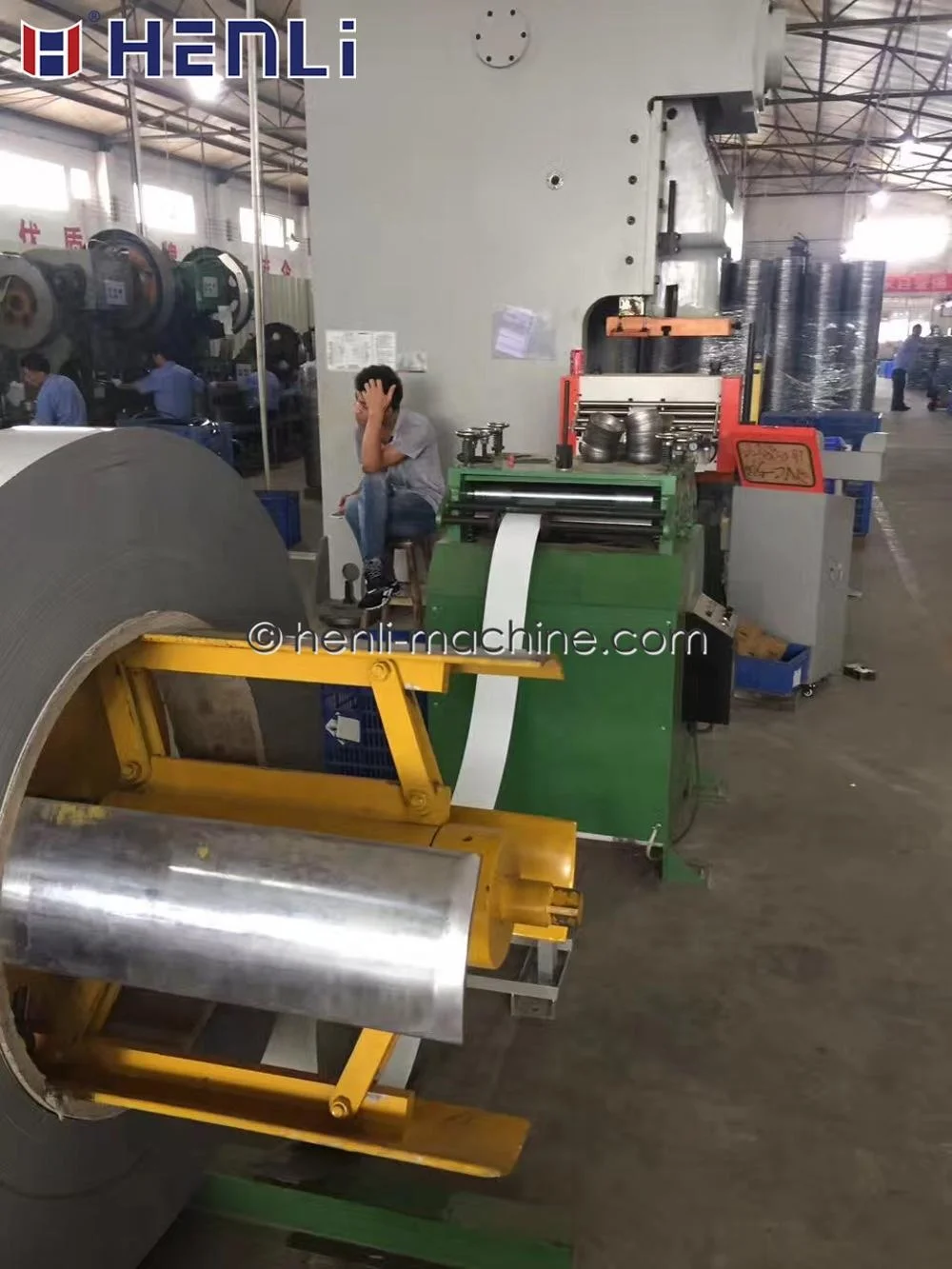

Decoiler is suitable for all kinds of coil material feeding, no matter "COVAR" alloy or other pure material. Decoiler works together with the straightener is normal; non-motive style is available as long as you need. The maximum load is 20 ton. And the m aximum material width is 1800mm. Decoilers are always our best-sellers because many customers order most, which made us design more and more good-look and high-quality uncoilers for all of our clients. The special equipment (selective) has material pressing arm, oil pressure expansion style, oil pressure feeding device and motor adopted speed adjustable style. These special equipment will cost more, and please send inquiry to let us choose the most suitable selective for you~
1.The main body is welded by steel plate, and is annealed and polished after welding. Strong rigidity and good appearance. The key components are made of high-strength castings and supported by long-distance bearings to ensure the firmness and stability of the whole machine.
2.It adopts motor with reducer control, using belt drive, so that strong function, high reliability and reduced fault.
3.The support tile adopts four-blade design, the curvature of the tile is consistent with the material I.D. , the surface of the tile is smoothly and wear-resistant, firm and durable, and doesn''t cause any damage on the material during work at the same time.
4.Electrical components such as AC contactor, intermediate relay and time relays are use well-known brand components to ensure long-term stable production.
5.The spindle uses a reinforced type, 4seamless tube and after tempering treatment. Even if it is loaded for a long time, it will not cause deformation.

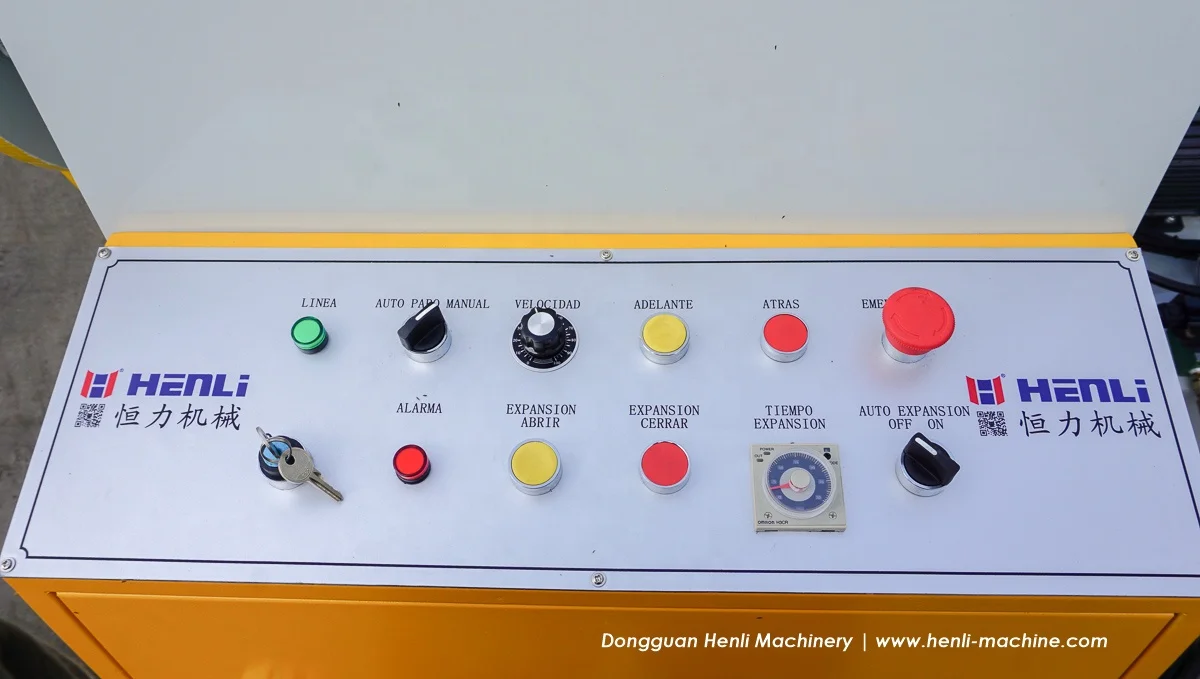

6.Using a simple electrical control box, the machine is easy to operate.

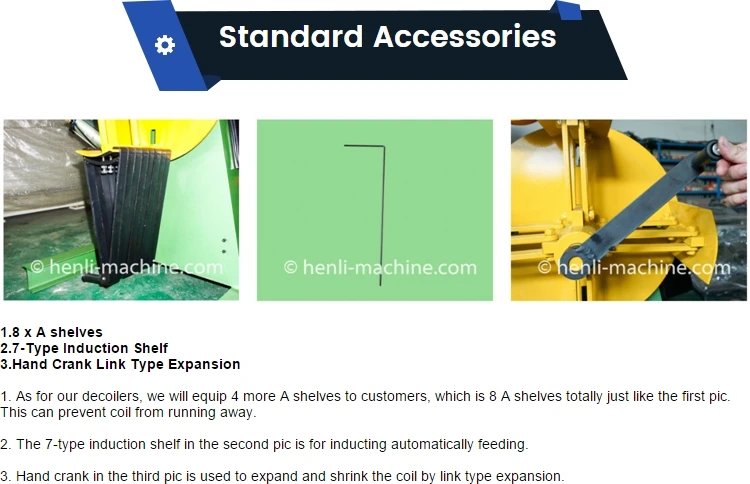

7.With heavy loading, simply feeding, and the operation is stable. The induction frame controls the opening and stopping of the decoiler automatically, no manual inspection is required, and high automation.
