Ultrasonic Cleaner 30 liter Manual For Mobile Surgical Instrument Repair
- Category: >>>
- Supplier: Shenzhen AG Sonic Technology Co. Ltd.
Share on (60764421331):
Product Overview
Description
Medical Ultrasonic Cleaner
Effective sterilization requires effective Medical Ultrasonic Cleaner and when it comes to cleaning reusable instruments and equipment, our equipment & detergents meets the most demanding criteria. Our industrial ultrasonic cleaners are used to assist with the cleaning of instruments that cannot be adequately cleaned manually such as spiral wound instruments like biopsy forceps etc. The ultrasonic vibration at the frequency used for cleaning does not kill microorganisms and infective aerosols may be produced.Ultrasonic cleaners work by subjecting instruments to high frequency, high-energy sound waves. This causes the soil to be dislodged from instruments and drop to the bottom of the tank, or be sufficiently loosened that it will be removed during the rinsing process. The detergent used in the ultrasonic tank must be carefully selected in accordance with advice from the tank's manufacturer. Optimally it will be a neutral, low-foaming product and enzymatic cleaners will have enhanced benefits in this process.
Product Description

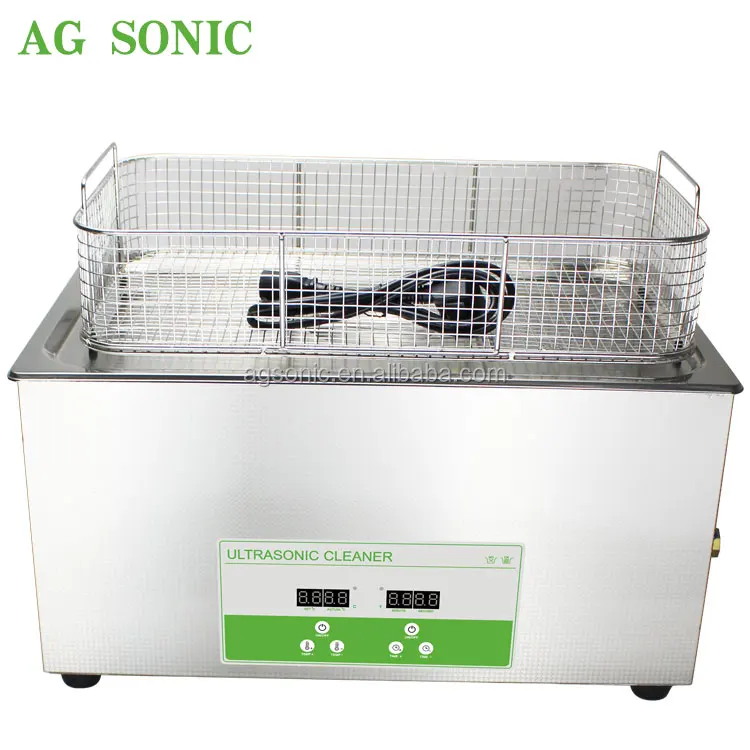

30 Liter Lab Benchtop Ultrasonic Cleaner For Mobile Surgical Instrument Repair
How an ultrasonic cleaner works to clean Medical Device
special solvents designed for cleaning Medical Device can be utilized however very good results can also be obtained by using water and an environment friendly low pH cleaning agent. Low pH or excessively high pH chemicals should be avoided. These aggressive chemistries in combination with heat and the ultrasonic activity can potentially cause damage to delicate pieces.
In the cleaning process, items are submerged in the cleaning solvent. The intensity of the cleaner as well as the heat of the solution should be adjusted to successfully engage the application. Ultrasonic cleaners work quickly to completely remove dirt and other contamination through a cavitation process.
Medical Device is cleaned in the same way as other items. Medical Device are submerged into a gentle solvent and the cleaning process sends ultrasonic waves through the solution which creates bubbles that clear away all dirt and grime clinging to the jewelry’s surface. In most cases a short two to three minute cleaning is all that is required for optimum results.
Benefits of cleaning Medical Device with an ultrasonic cleaner
• The process reaches parts of the Medical Device that are extremely difficult to clean with traditional cleaning methods.
Medical Device gets completely clean, leaving it looking brand new.
• No need to disassemble the jewelry.
• Multiple pieces can be cleaned at once, saving time and money. Follow manufacturer recommendations for maximum pieces in your ultrasonic cleaner.
• Gentle cleaning does not damage delicate pieces and allows for cleaning as often as necessary.
Steps to cleaning Medical Device with an ultrasonic cleaner
1. Fill chamber with cleaning solvent
2. Note that water must be hot. Ideally, you would use an ultrasonic cleaner with a heater.
3. Run a pre-cleaning cycle
4. Submerge Medical Device into cleaning solvent
5. Run the cleaning cycle
6. After the cycle is complete, remove the items from the parts basket and rinse the solution from the items
7. After rinsing brush the pieces with a soft-bristled brush. Paying special attention to brushing around the claws and crowns that hold the gemstones or diamonds in place.
8. Complete with a final rinse. Place the jewelry in water only and dry with a soft cloth once rinse cycle is complete.
Digital Medical Ultrasonic Cleaner
Our digital series of medical ultrasonic cleaner is eqquiped with LED digital readouts of timer as well as temperature controller. The machines comes with micro-processor based ultrasonic generator which is installed within the cleaning machines thereby saving a lot of space and making it a benchtop cleaning applicaion machines.
Our digital medical ultrasonic cleaner holds upto- 25-30 liers of water capcity and can Clean all types of surgical instuments within 3-5 minutes of applications. The machine is very handy and easy to operate and come with a stainless steel mesh basket. We use SS body for all our machines makes.
How an ultrasonic cleaner works to clean Medical Device
special solvents designed for cleaning Medical Device can be utilized however very good results can also be obtained by using water and an environment friendly low pH cleaning agent. Low pH or excessively high pH chemicals should be avoided. These aggressive chemistries in combination with heat and the ultrasonic activity can potentially cause damage to delicate pieces.
In the cleaning process, items are submerged in the cleaning solvent. The intensity of the cleaner as well as the heat of the solution should be adjusted to successfully engage the application. Ultrasonic cleaners work quickly to completely remove dirt and other contamination through a cavitation process.
Medical Device is cleaned in the same way as other items. Medical Device are submerged into a gentle solvent and the cleaning process sends ultrasonic waves through the solution which creates bubbles that clear away all dirt and grime clinging to the jewelry’s surface. In most cases a short two to three minute cleaning is all that is required for optimum results.
Benefits of cleaning Medical Device with an ultrasonic cleaner
• The process reaches parts of the Medical Device that are extremely difficult to clean with traditional cleaning methods.
Medical Device gets completely clean, leaving it looking brand new.
• No need to disassemble the jewelry.
• Multiple pieces can be cleaned at once, saving time and money. Follow manufacturer recommendations for maximum pieces in your ultrasonic cleaner.
• Gentle cleaning does not damage delicate pieces and allows for cleaning as often as necessary.
Steps to cleaning Medical Device with an ultrasonic cleaner
1. Fill chamber with cleaning solvent
2. Note that water must be hot. Ideally, you would use an ultrasonic cleaner with a heater.
3. Run a pre-cleaning cycle
4. Submerge Medical Device into cleaning solvent
5. Run the cleaning cycle
6. After the cycle is complete, remove the items from the parts basket and rinse the solution from the items
7. After rinsing brush the pieces with a soft-bristled brush. Paying special attention to brushing around the claws and crowns that hold the gemstones or diamonds in place.
8. Complete with a final rinse. Place the jewelry in water only and dry with a soft cloth once rinse cycle is complete.
Digital Medical Ultrasonic Cleaner
Our digital series of medical ultrasonic cleaner is eqquiped with LED digital readouts of timer as well as temperature controller. The machines comes with micro-processor based ultrasonic generator which is installed within the cleaning machines thereby saving a lot of space and making it a benchtop cleaning applicaion machines.
Our digital medical ultrasonic cleaner holds upto- 25-30 liers of water capcity and can Clean all types of surgical instuments within 3-5 minutes of applications. The machine is very handy and easy to operate and come with a stainless steel mesh basket. We use SS body for all our machines makes.
Product specifications:
Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
TB-50 | 150x135x100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
TB-100 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 | |||
TB-150A | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
TB-150B | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
TB-200 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
TB-300 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
TB-400 | 500x300x150 | 530x325x285 | 22 | 400 | 480 | 600 | |||
TB-500 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |

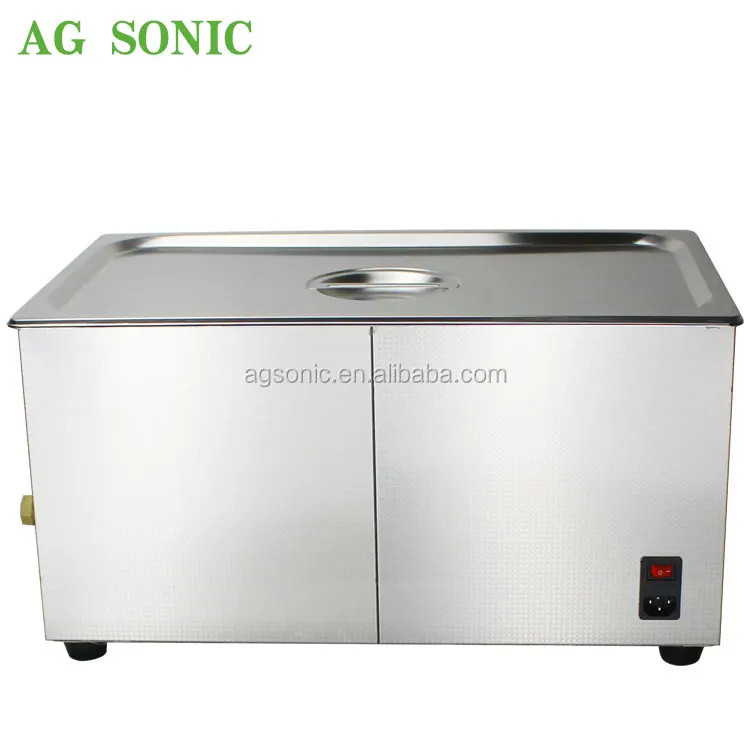

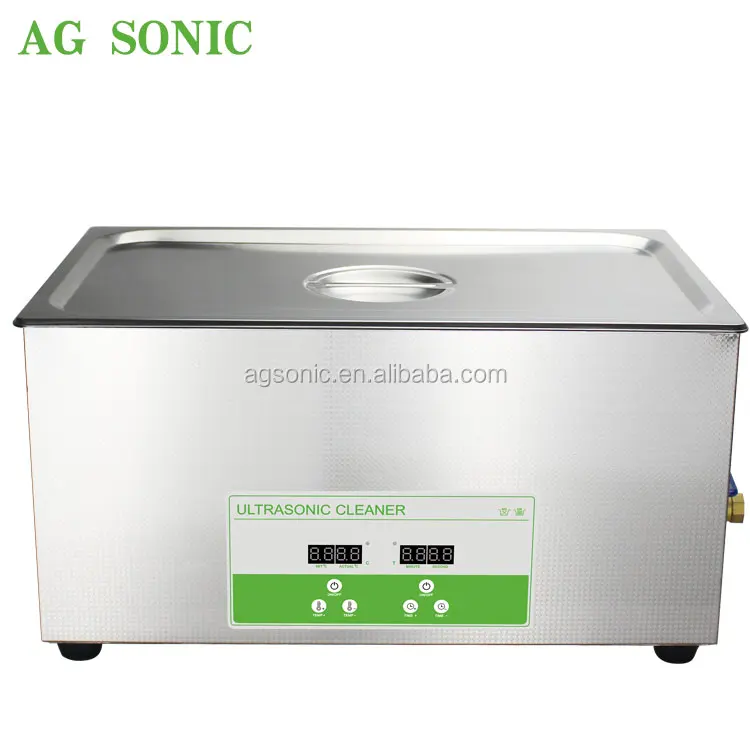

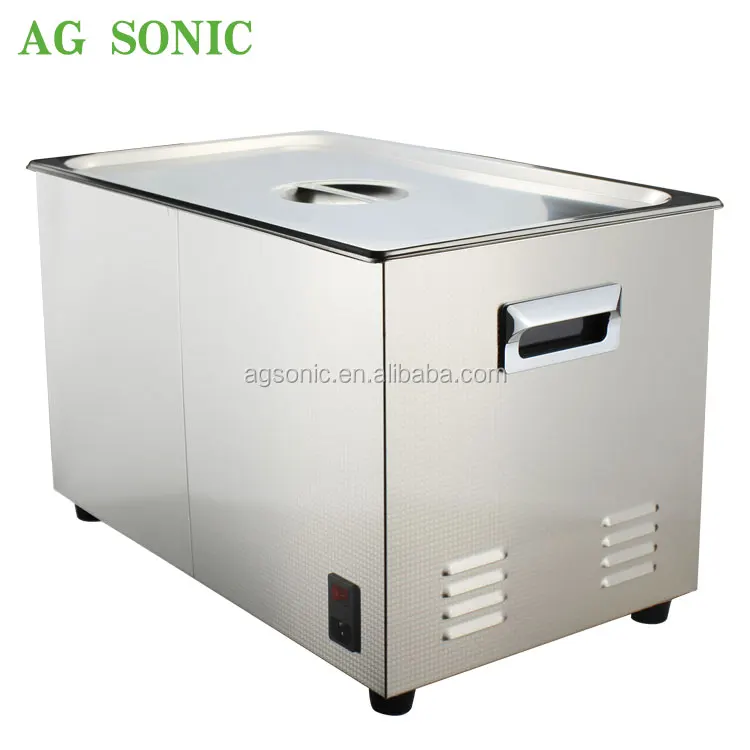

30L Ultrasonic Cleaner
Packaging & Shipping
30L Ultrasonic Cleaner Packing
Our Services
If any technical problem during warranty time, replacement parts will be sent free of charge.
Technical support is also available in whole time.
2. Our Advantage
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. OEM is available if the quantity is large.
4. We offer very competitive for all our products.
3. After-sales
Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards. It's safe and reliable quality for ultrasonic cleaning equipment.
Company Information
1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.
2. AG SONIC is an original ultrasonic manufacturer with R&D, production and sales teams. Our engineer is engaged in the filed for more than 20 years, so we have improved PCB design for stable and durable industrial use. High quality product and good after-sales services are available from us.
3. Not only standard ultrasonic cleaner, any non-standard can be designed by engineer.
Suggestion and drawing are professional for you.
4. Welcome to visit our factory in Shenzhen, and we are appreciate for your suggestions and hope to conduct business cooperation.
FAQ
Q: Why is Ultrasonic Cleaning so Efficient for Medical Surgical Instruments cleaning ?
A: When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.
Q: Why Clean all kinds of Surgical Instruments with Ultrasonics ?
AG Ultrasonic Cleaning Systems have been used successfully in the cleaning and maintaining of medical facilities. With AG Ultrasonics, equipment can be cleaned quickly and thoroughly. Additionally, our systems have been proven to eradicate the most resistant bacteria including Escherichia coli, Enterococcus, H1N1, MRSA and C-diff.
Q: Ultrasonic cleaning can offer:
A: Non-directional cleaning - clean where the sound and solution go
Reduced or eliminated need for disassembly
Consistent results - non-operator dependent
Non-contact cleaning - only the soil is removed, not the substrate
High efficiency - cleaning multiple parts at one time
