Product Overview
Description
Widely Used Plastic Glass Bottle Juice Filling And Packing Machine
Fruit Juice Plant For Sale Juice Factory
Product Description
Juice Filling Machine-- Features:
1) The machine has compact structure, complete control system, easy operation and high degree of automation.
2) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate.
3) The parts contacting media are made from SUS and have no process blind angles to enable easy cleaning.
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7) The machine applies a highly effective cap arranging system that has complete self control and protective device.
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9) Main electric components and pneumatic components apply world famous brand products.
10) The machine's operation is controlled by an advanced touch-screen that can fulfill human-machine communication.
Parameter
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Production capacity(500ml)(b/h) | 3000 | 6000 | 10000 | 14000 | 15000-20000 |
| Filling precision | ≤±5MM(Liquid Level) | ||||
| Feedback consumption | ≤10% | ||||
| Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 | ||||
| Suitable cap shape | (Plastic Screw Cap) | ||||
| Water pressure of washing bottle(Mpa) | 0.18 | ||||
| Wash bottle consumption water (kg/h) | 800 | 1600 | 2500 | 3500 | 3500 |
| Gas sourse pressure(Mpa) | 0.6 | ||||
| Gas consumption(m3/min) | - | 0.3 | 0.4 | 0.5 | 0.5 |
| Total power | 5.88 | 6.68 | 7.68 | 9.18 | 9.18 |
| Total weight | 2500 | 3000 | 4000 | 5000 | 5000 |
| Dimensions(L*W*H)(mm) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3600×2800×3150 | 3600×2800×3150 |
Machine Details

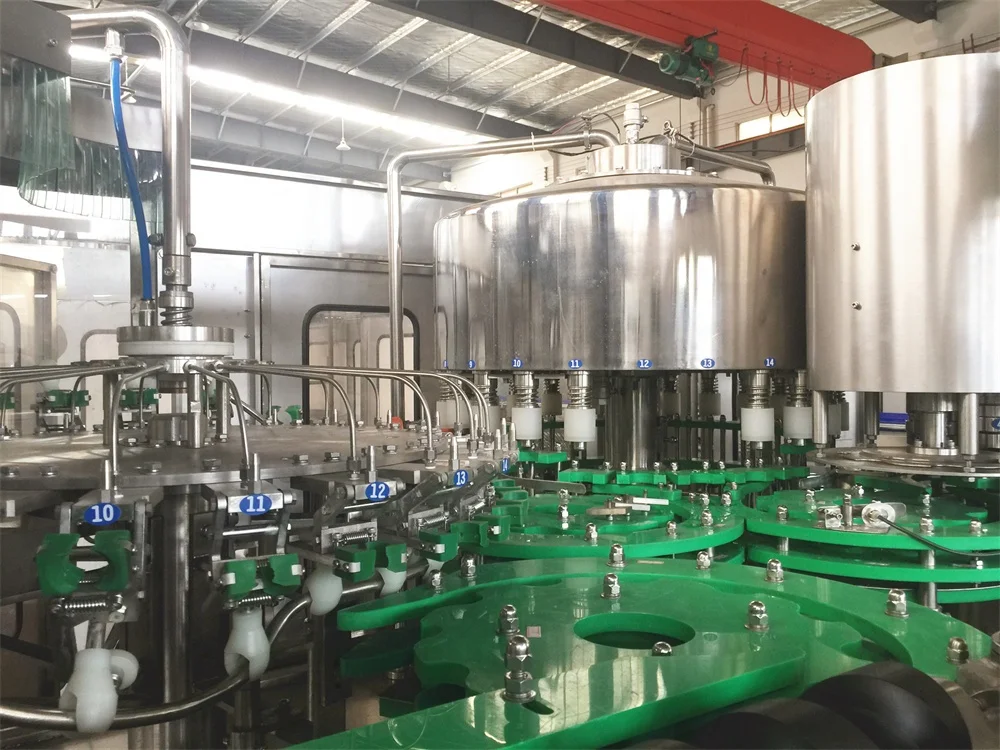

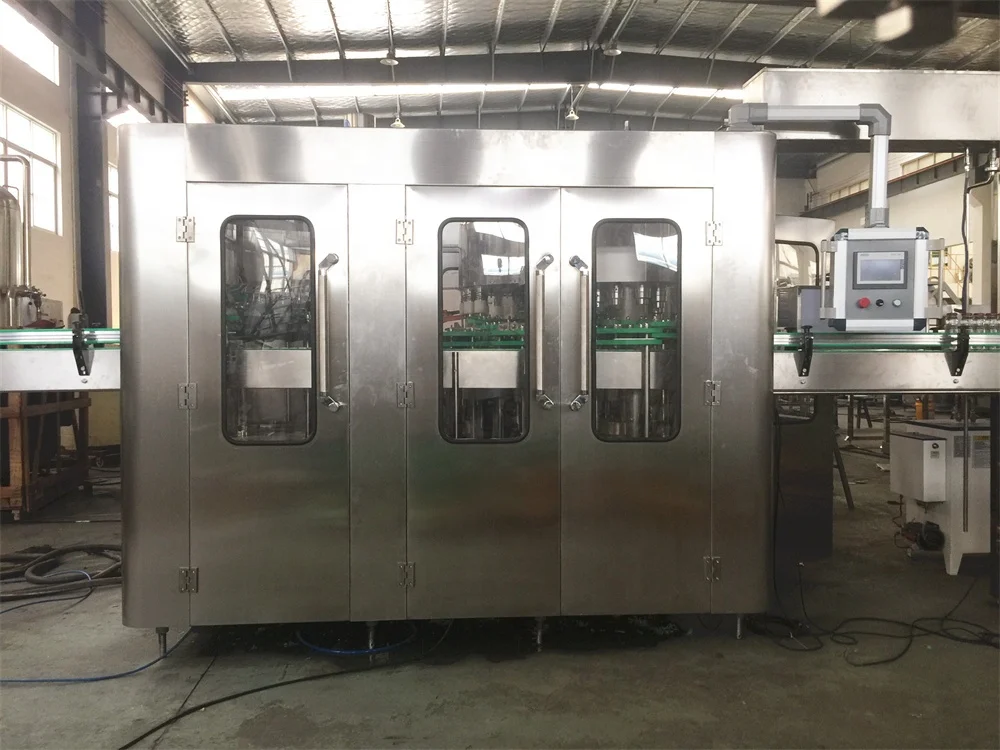

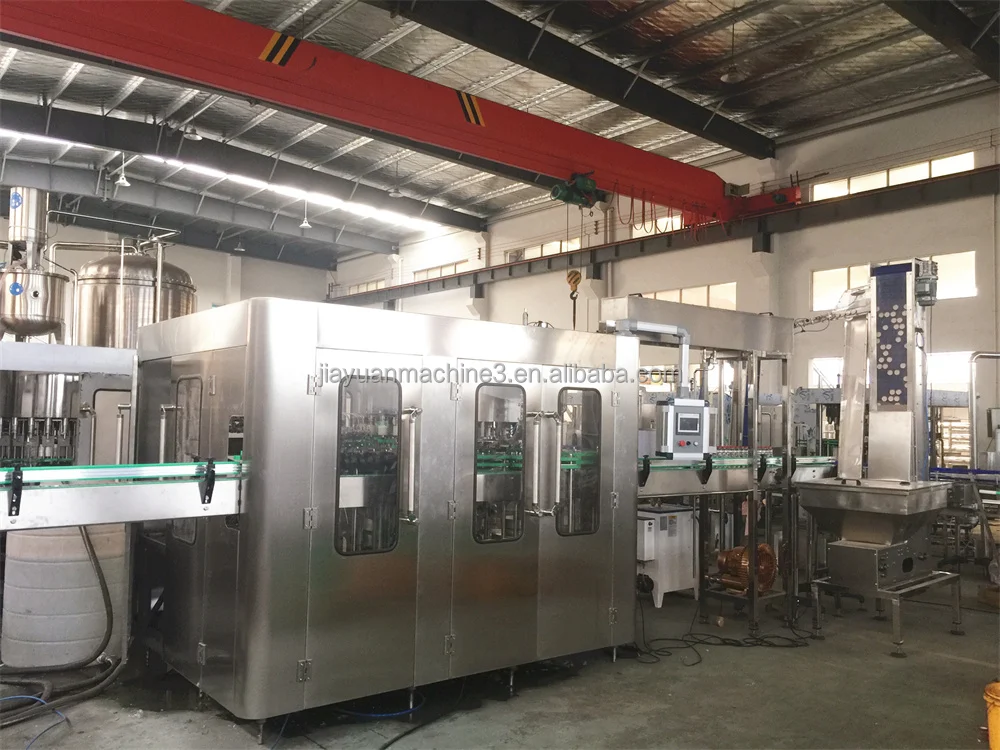

overall look

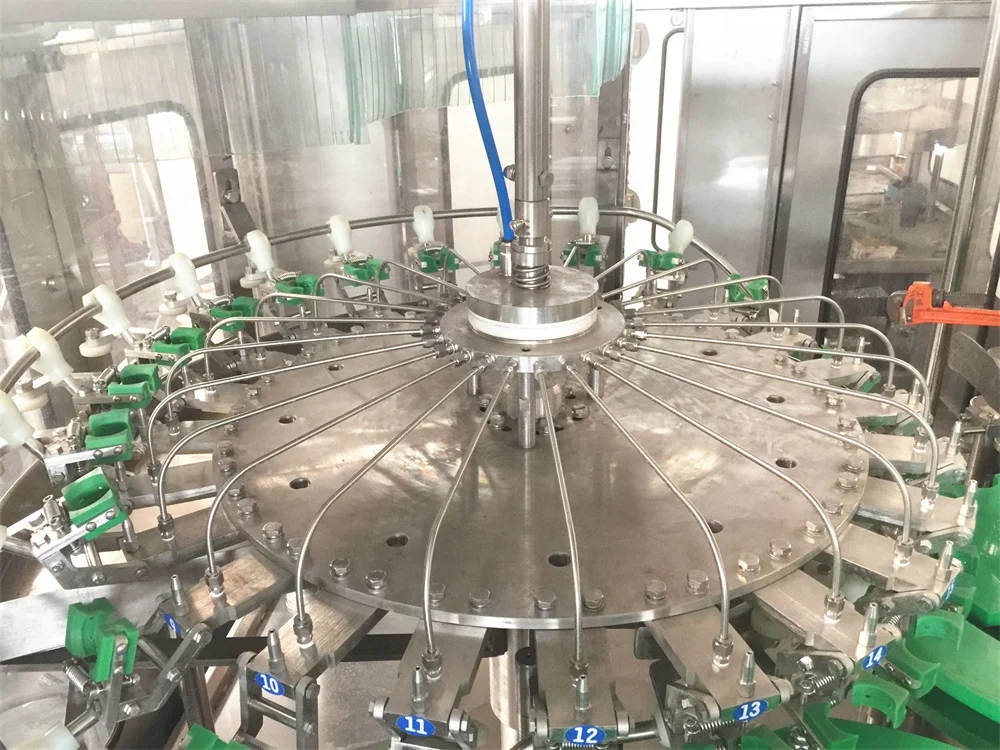

Washing Part _ Juice Rinser
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

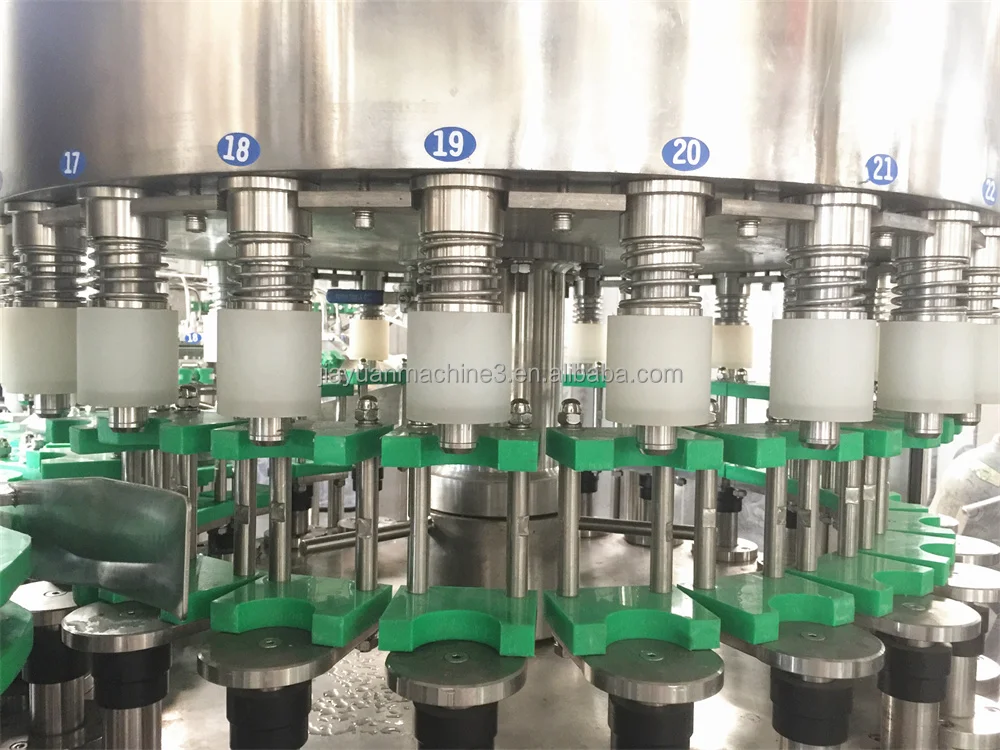

Filling Part _ Juice Filler
Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

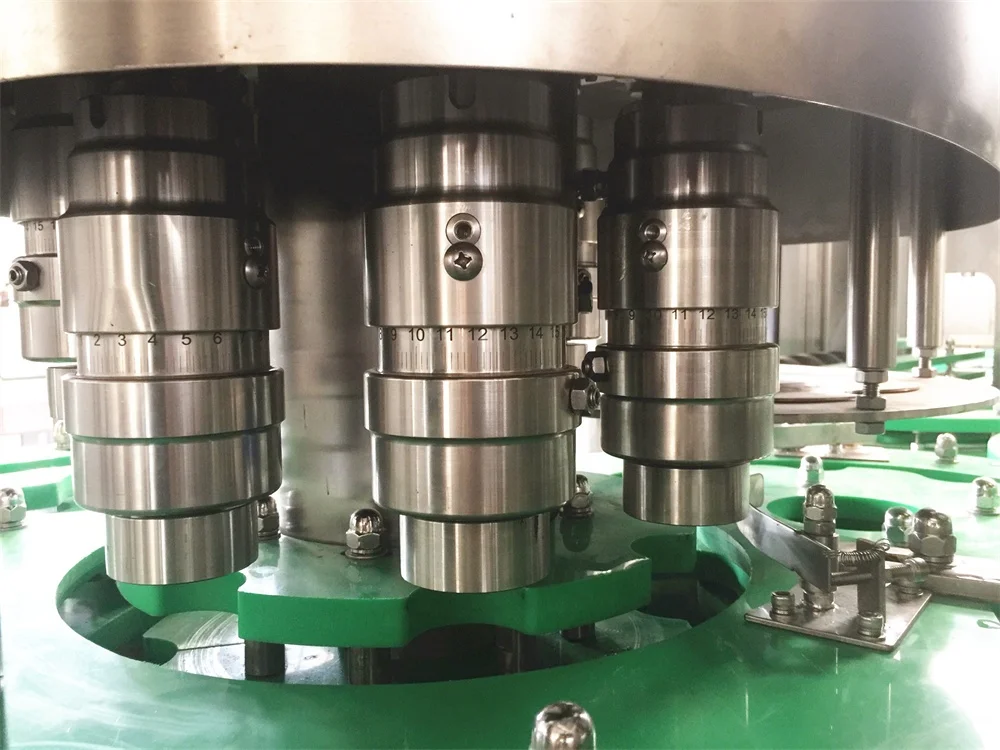

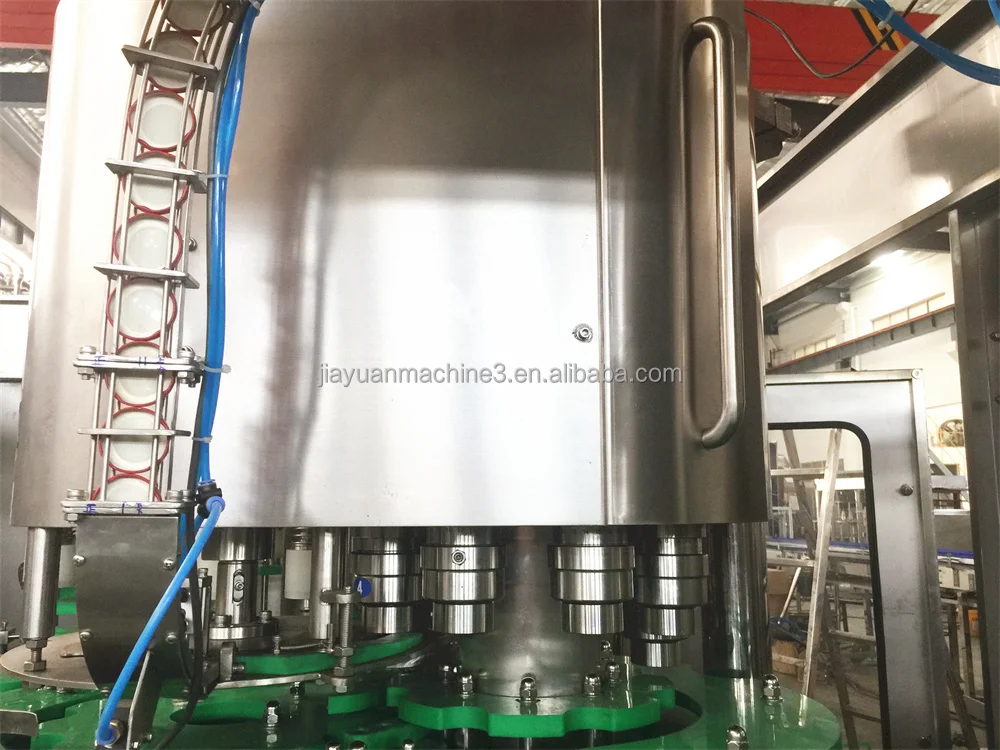

Capping Part _ Juice Capper
Capping part is mainly composed of capping heads, cap loader(seperated), acap unscrambler,cap drop rail,pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

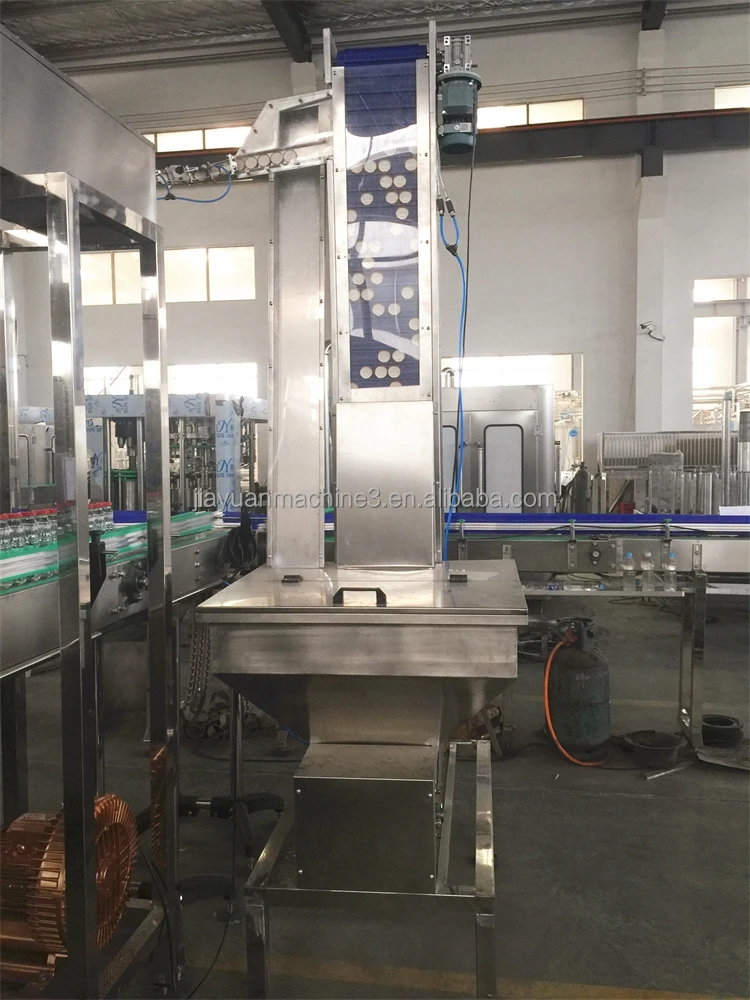

Cap Feeder

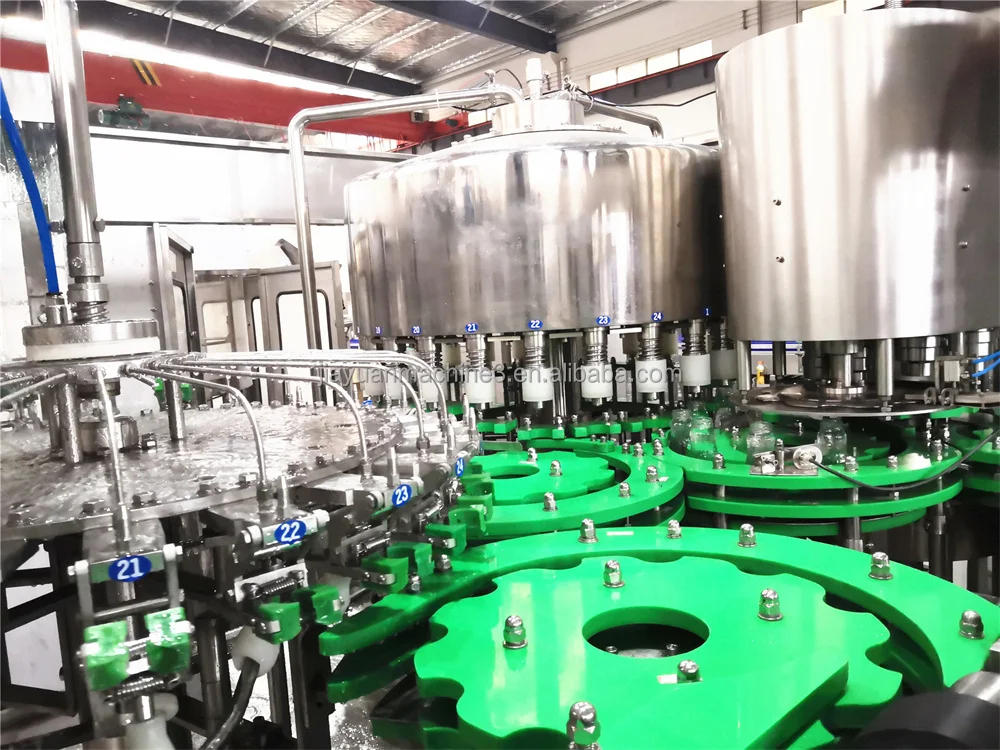

3-in-1 Inner Look
Related Products

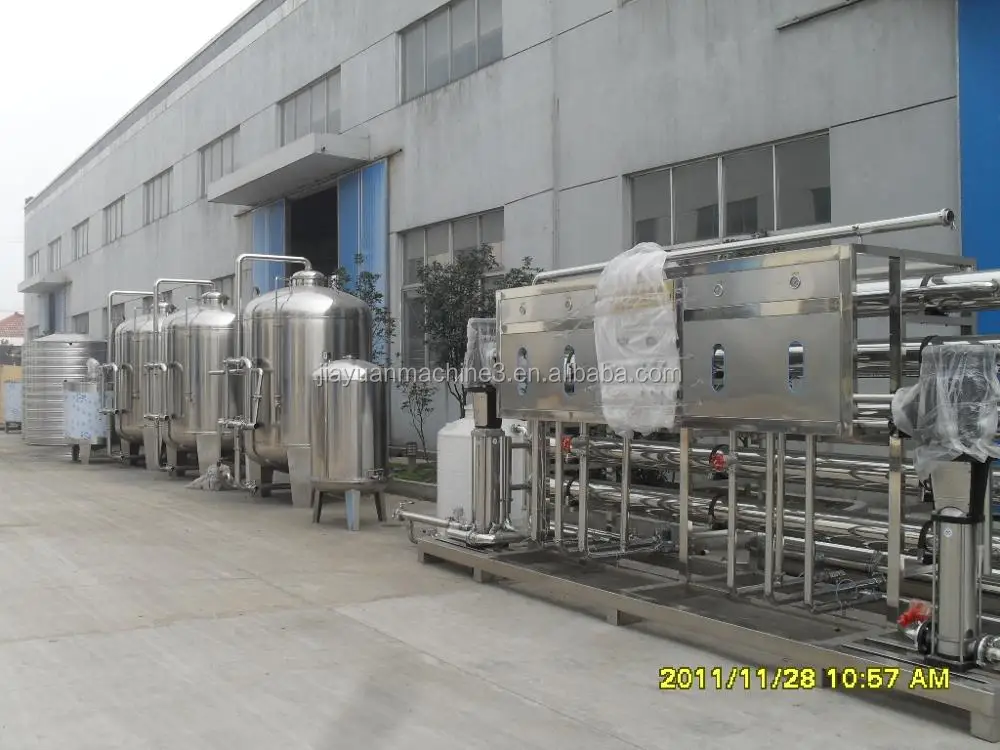

1.water treatment plants / RO plant in our workshop

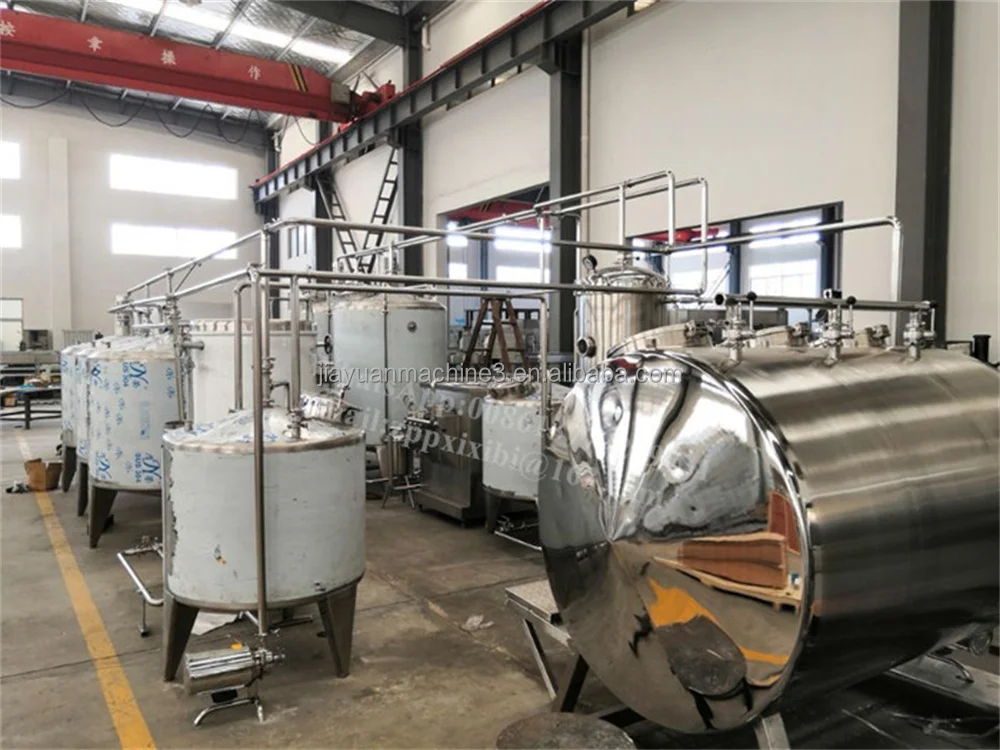

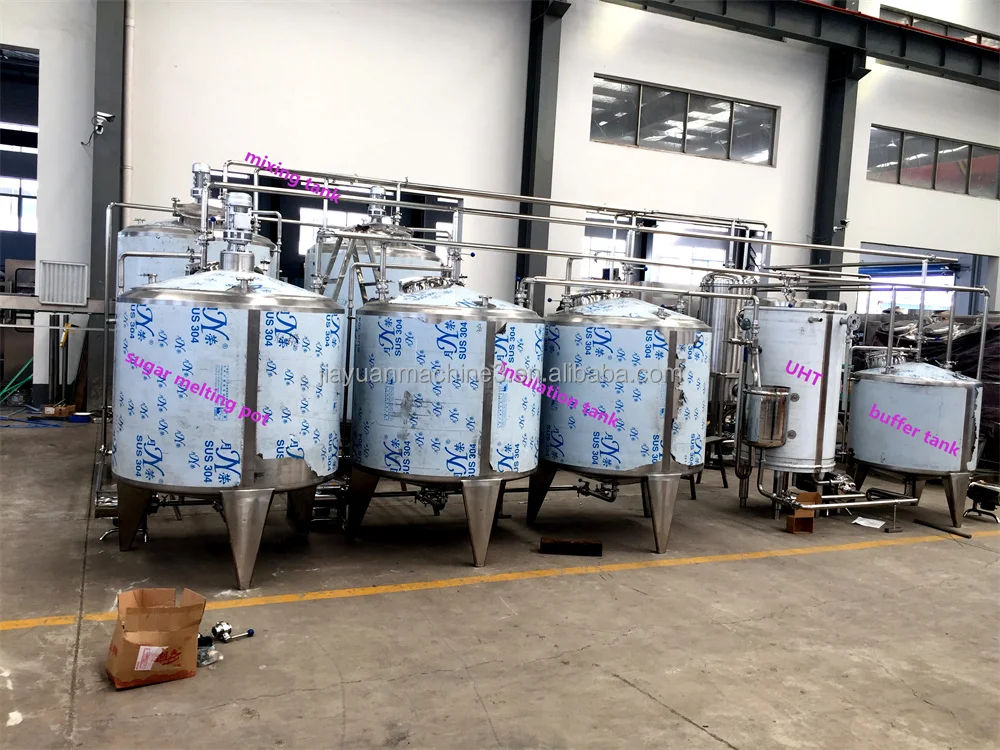

2.Juice Mixing System in our workshop
3.packaging system plants in our workshop
Company Information
JIAYUAN was established in 1997, is the first one of beverage packing machine manufacturer. Now we have the following production line:
1. Bottle Minera water/Pure water production line;
2. 5 gallong water production line;
3. Bottle carbonated drink production line;
4. Juice production line;
5. Canning drink production line;
6. Beer filling line;
7. Oil filling line;
8. Tea/Wine filling line.
Advantages
Design Ability | All the machines designed by CAD |
Manufacturing Ability | Mechanical parts: high quality stainless steel, processed by CNC |
Reliability | Electrical parts from world famous suppliers |
Professional | Focus on beverage and pharmaceutical packing machines Exported to over 45 countries with good reputation 8 years Alibaba Golden supplier without complaint |
Good Service | Service include complete production line design, manufacturing, on-site installation & aftersales maintenance. |
Export Experience | Exported to over 45 countries, with good reputation. |
Profession on Export | Authorized import & export licence. |
Our Services
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Contact
If you are interested in the product, you are highly welcome to send me emails for more specifications and videos!~ Looking forward to your inquiry.
