THAICHEN 900-1000w high voltage transformer for 900-1000w microwave oven magnetron

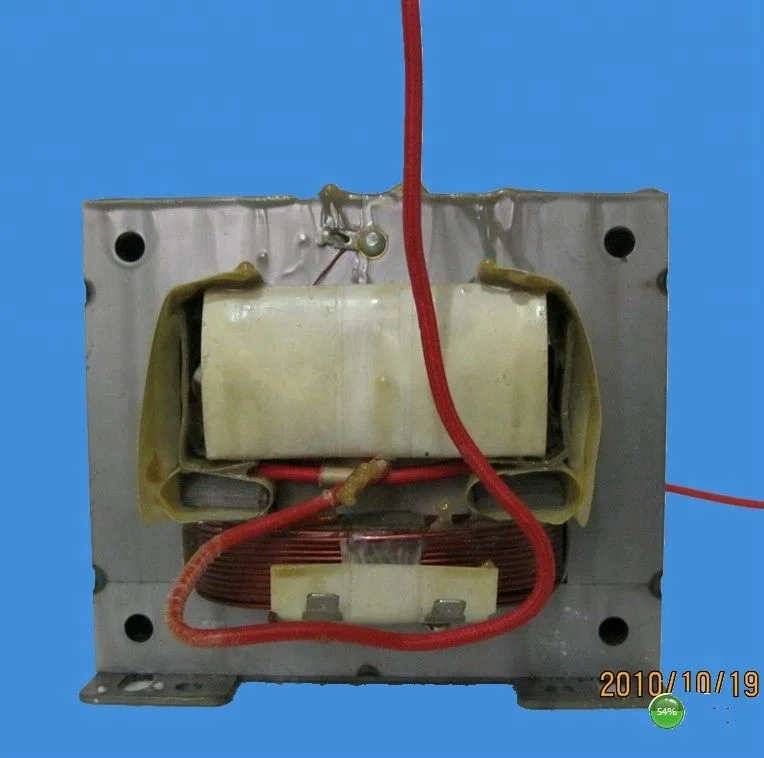

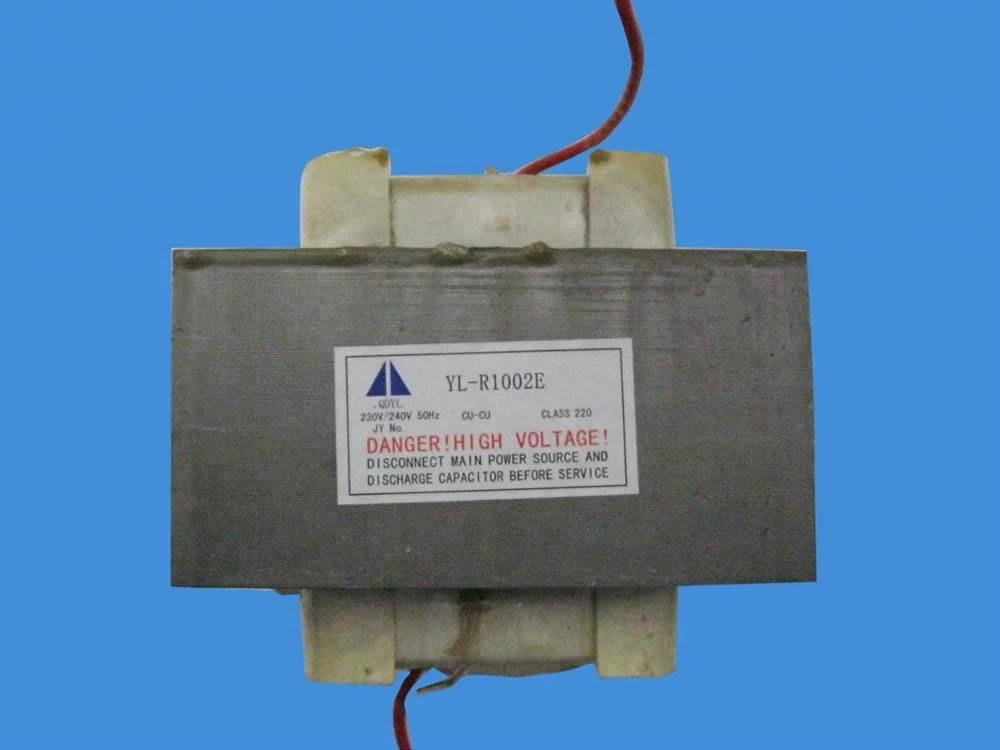

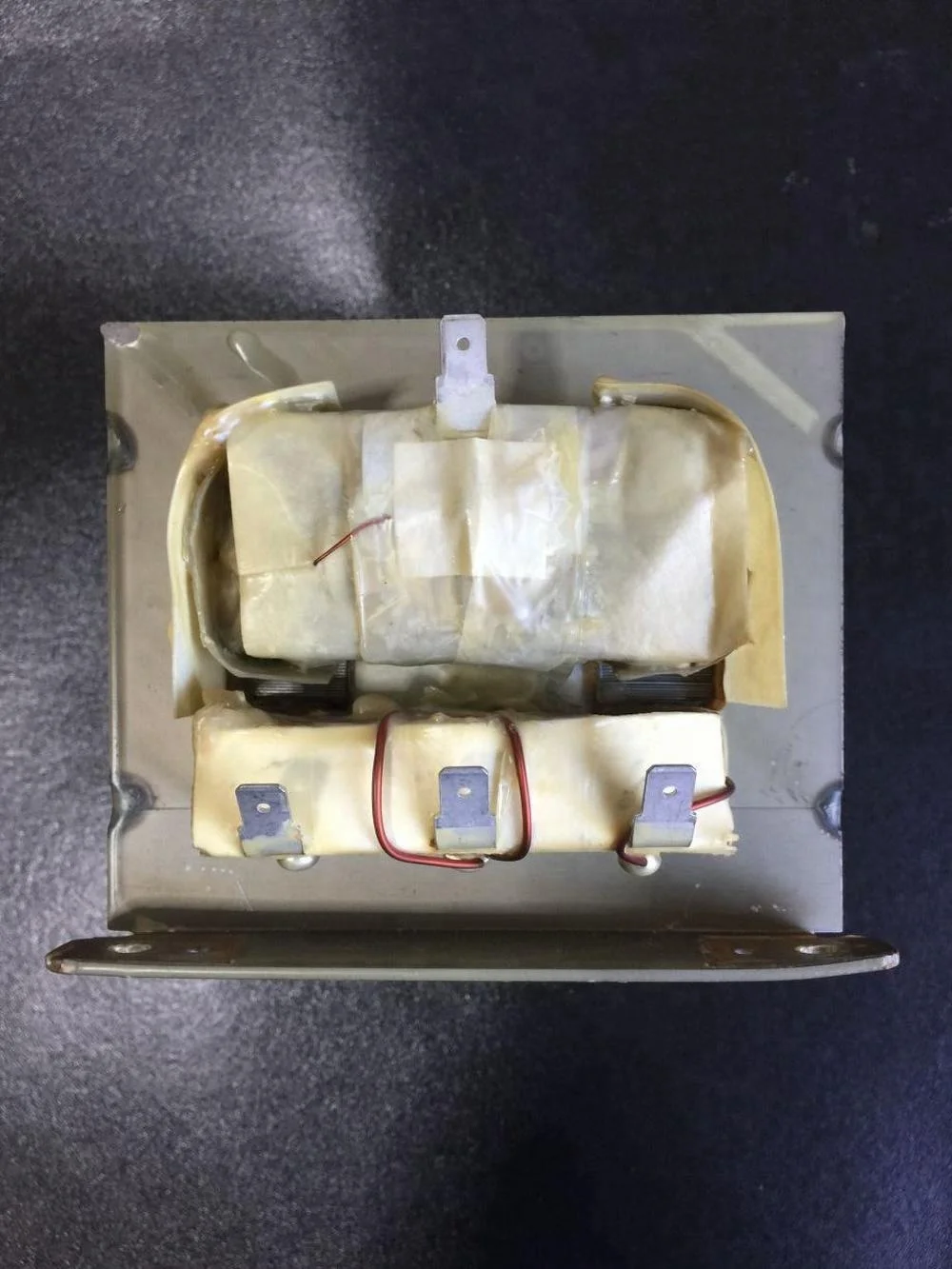

Product photo:
Product synopsis:
High voltage transformer is used for converting low frequency low voltage low frequency high voltage electromagnetic induction equipment.When a winding through the alternating current transformer to produce alternating magnetic field, through the induction effects of alternating magnetic field, the secondary winding is also corresponding to produce alternating magnetic field produced by ac electromotive force, high and low voltage of secondary winding and secondary winding turn ratio, the voltage is proportional to the number of turns, the main effect of high pressure is necessary for to convert low voltage to high voltage insulation are particularly important in the production process, many manufacturers of substandard products mainly reflects on insulation processing, completes the insulation is the key of the high voltage transformer production.
Industrial microwave 1500 w high voltage transformer, and 1500 w filament transformer connection work, matching Witt 1500 w magnetron (2 m463k / 2 m463j), usually to adjust in the routine use of filament transformer to adjust the action of microwave power.
Product parameters:
power
primary voltage
secondary high pressure
No-load current
No-load power
frequency
material
weight
1000W
220V
2290V
12A
160W
50HZ
copper
15KG
Appearance size: 162 mm * 170 mm * 170 mm wide, Floor size: 162 mm * 120 mm wide, long Fixed orifice size: 135 mm * 135 mm
Scope of application:
Suitable for all kinds of high temperature industrial microwave equipment (500-1200 degrees), conventional microwave drying/drying equipment 24 hours of continuous work for a long time.
Packaging & Shipping
72pcs of transformer per carton, 18pcs per layer ,total 4 layers. One carton of transformers will be loaded on one pallet.
