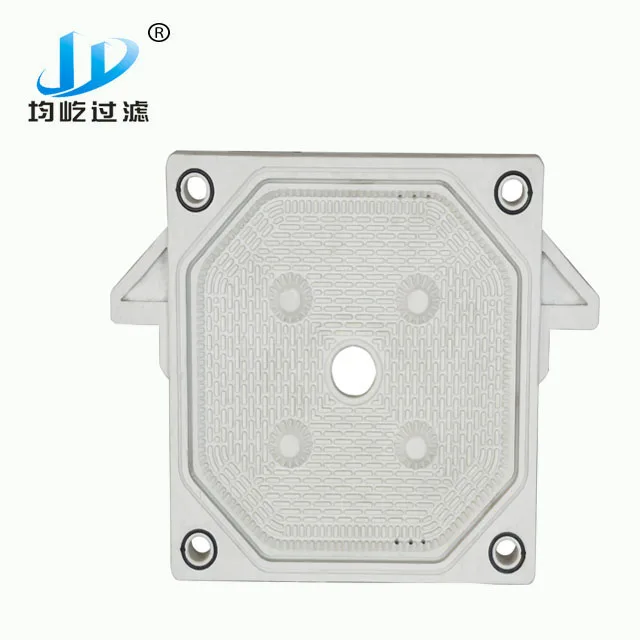

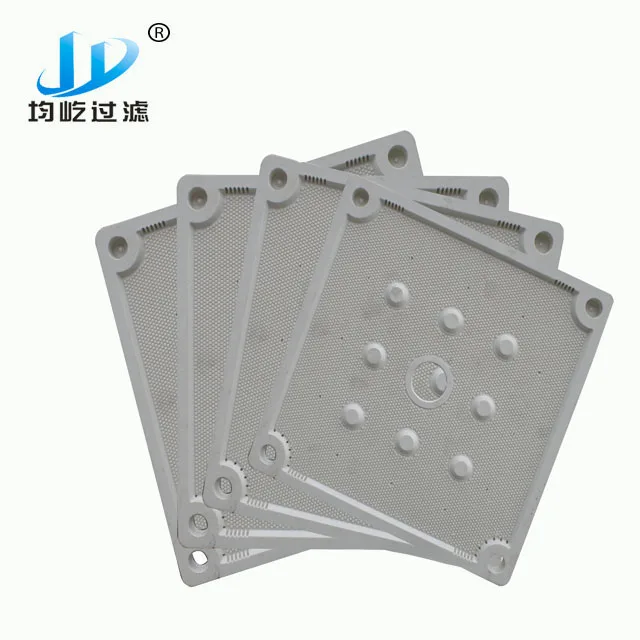

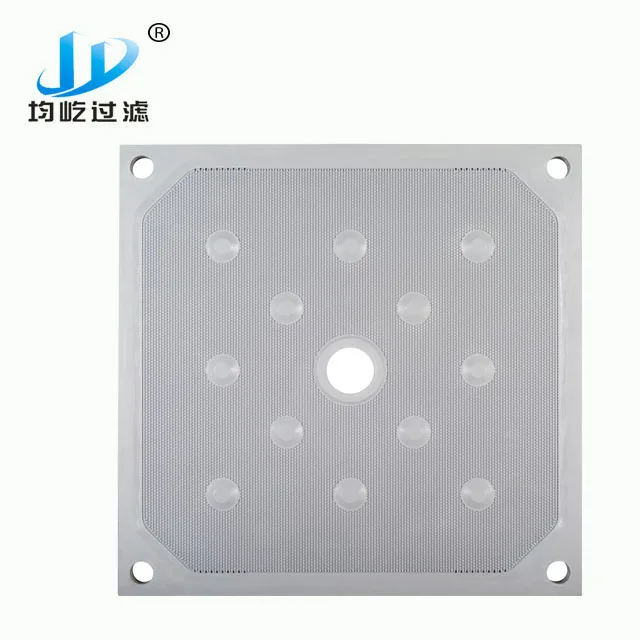

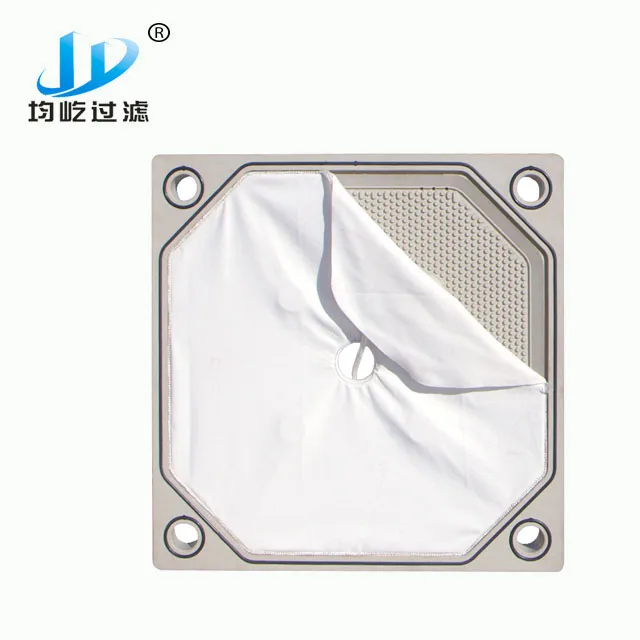

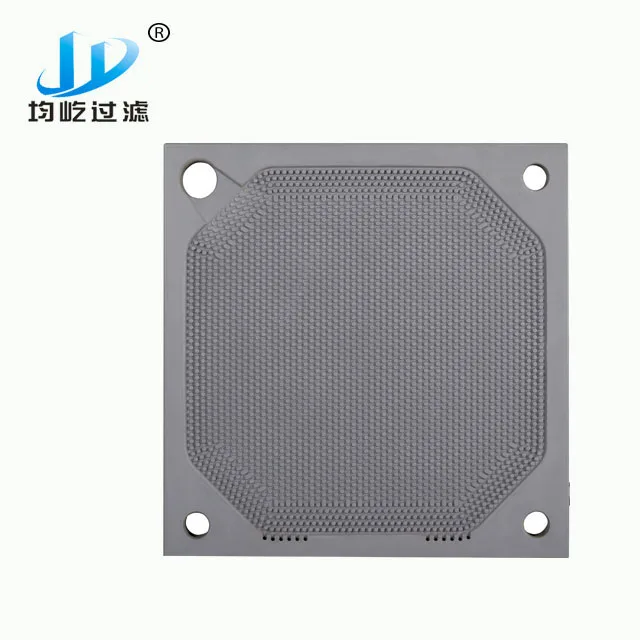

High Pressure PP Membrane Chamber Filter Plate for Sewage Treatment

Product Overview

Description



Description of Filter Plate
Filter plate is the core part of the filter press. Different materials, models and qualities will affect the whole machine's filtration performance directly. Its feeding hole, filter points distribution (filter channel) and water discharge channels have different designs according to different materials.

Fetures of  Filter Plate

Material of Filter Plate
It can be made of cast iron, steel Q235, cast steel, stainless steel, cast copper, aluminum alloy, PP, TPE elastomer, EPDM, NBR and etc.

Feeding Mode of Filter Plate
1. Middle feeding
2. Corner feeding
3. Upper middle feeding.



Technical Parameter of Filter Plate
1. Working temperature:80C
2. Filtration pressure:0.6Mpa-0.8Mpa
3. Squeezing pressure:1.0-1.3Mpa

Some Size for Your Reference
1500x1500mm
1250x1250mm
1000x1000mm
870x870mm
800x800mm
700x700mm
500x500mm
380x380mm
Round 800mm

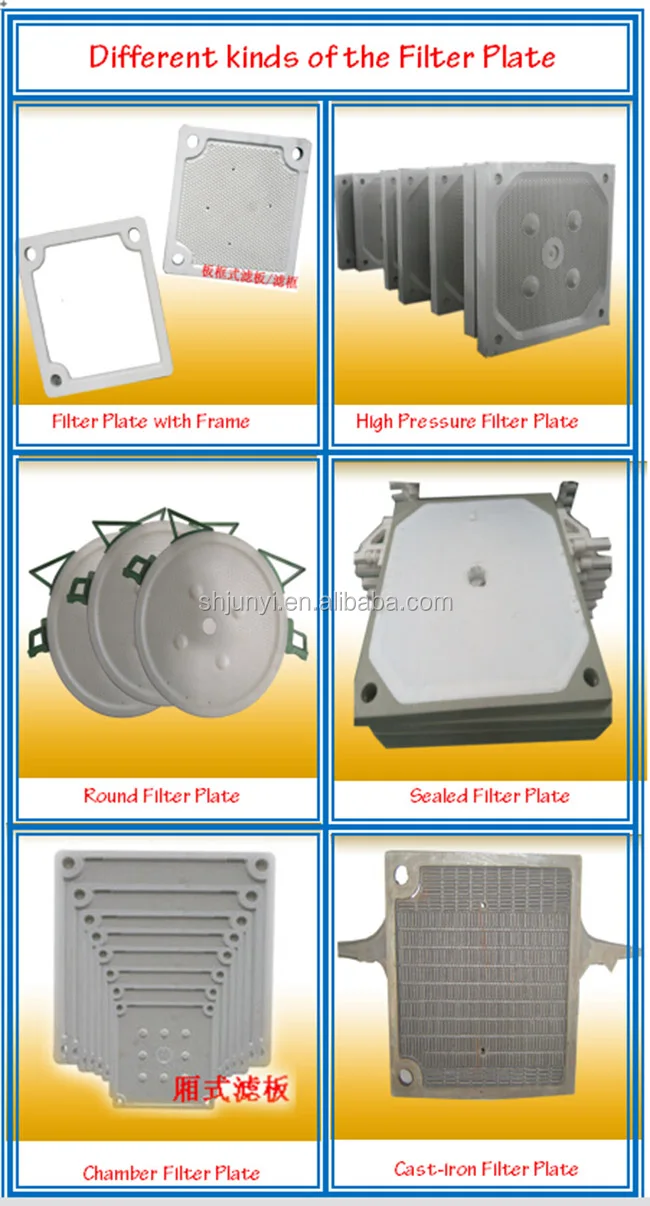

Different Kinds of the Filter Plate for Your Choice

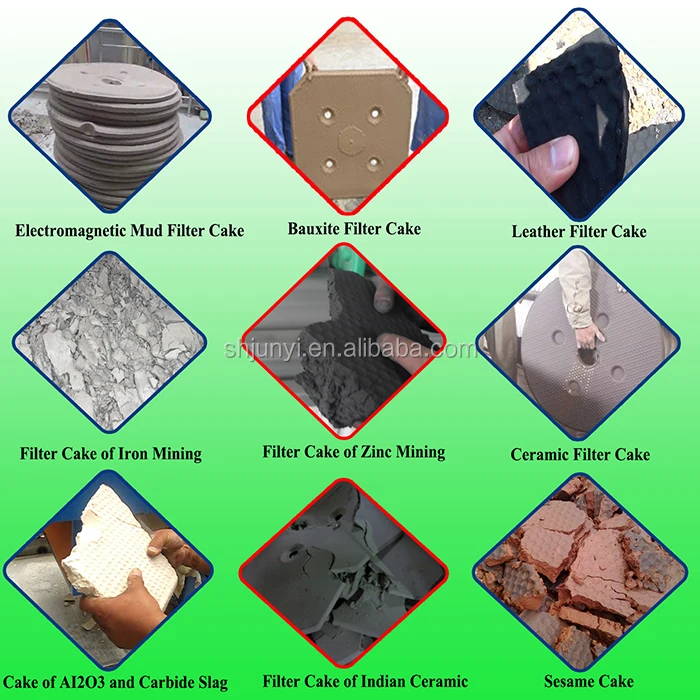

The filter cake after processed by the filter press

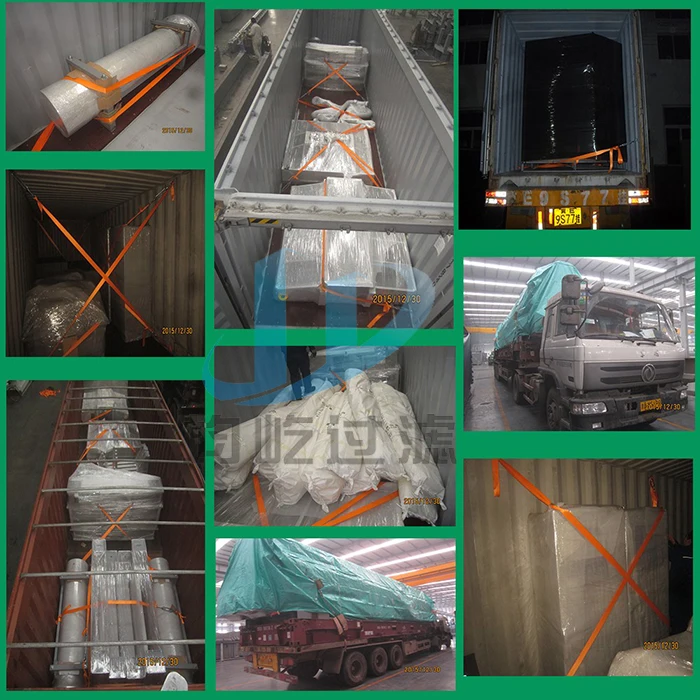

Package and Shippment

How to order the filter plate

Contact Us
