Product Overview
Description
custom printing silk screen printing machines offers flash dryer screen printing

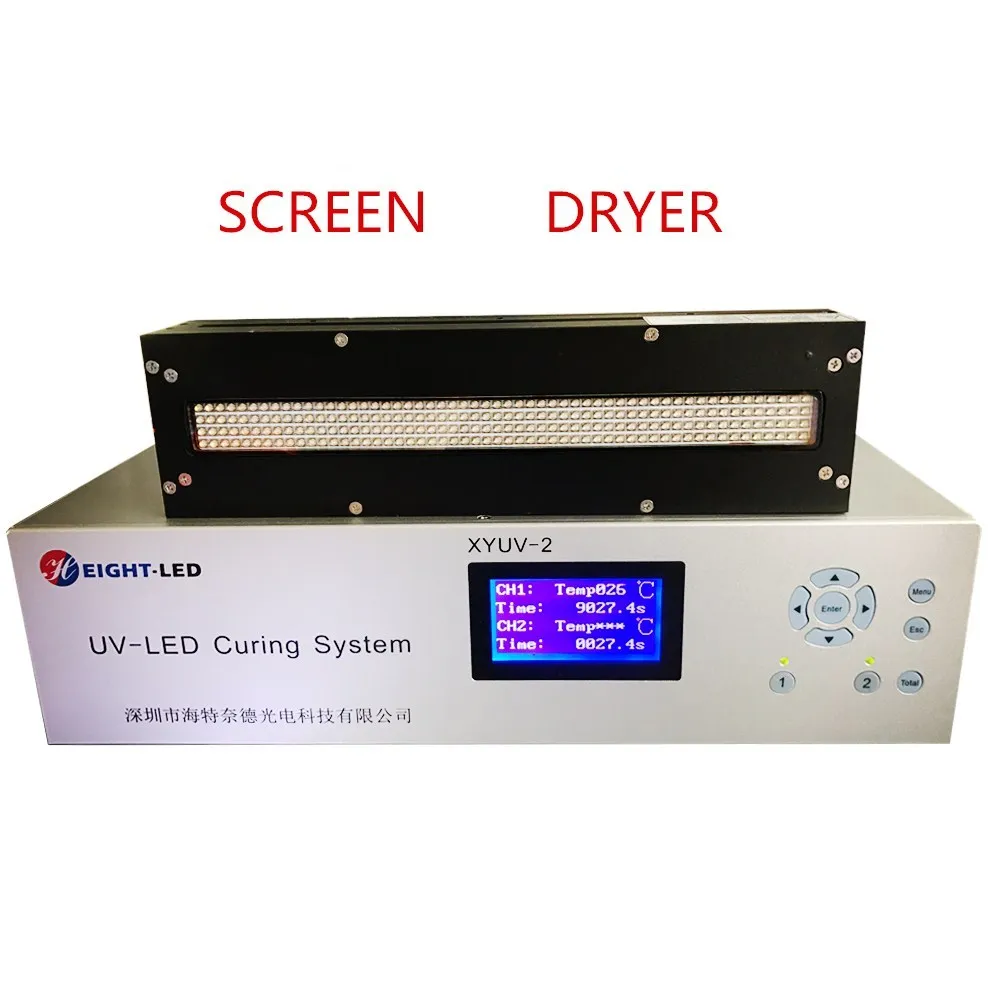

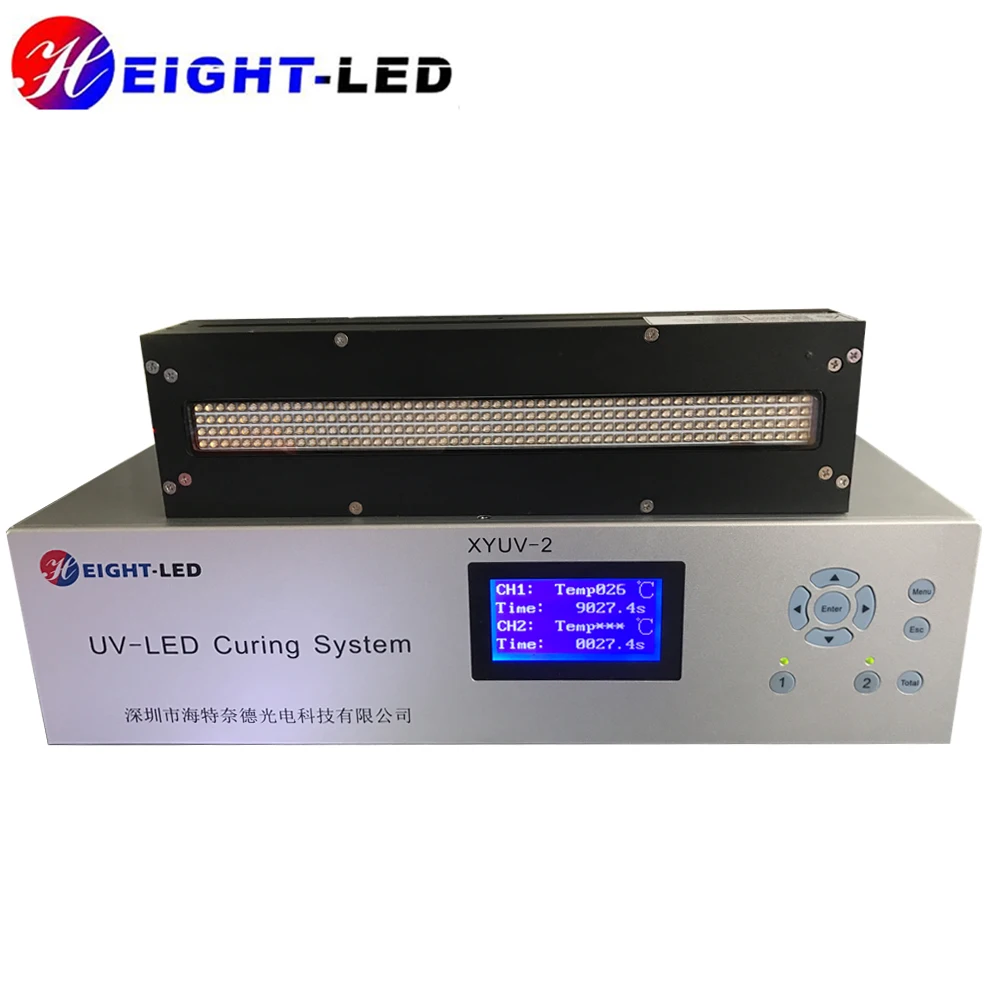

Controller Specification: | |||
Model | XYUV-2 | ||
Channel | two | ||
The size of controller | L400*W360*H110mm | ||
Terminal I/O | Input | Pedal switch & serial RS-232 communication signals | |
Output | serial RS-232 communication signals | ||
Cooling method of controller | Air cooling | ||
Power supply voltage | AC100~240V±10%(50/60HZ) | ||
Operation mode | KEY Panel | ||
Ambient temperature and humidity | Ambient temperature:-10℃—50℃ Relative humidity:25%—85%RH | ||
Dimming/Exposure control | Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S) | ||
Setting operation | Using the operating switch is set,Power key parameter switch,RS-232 | ||

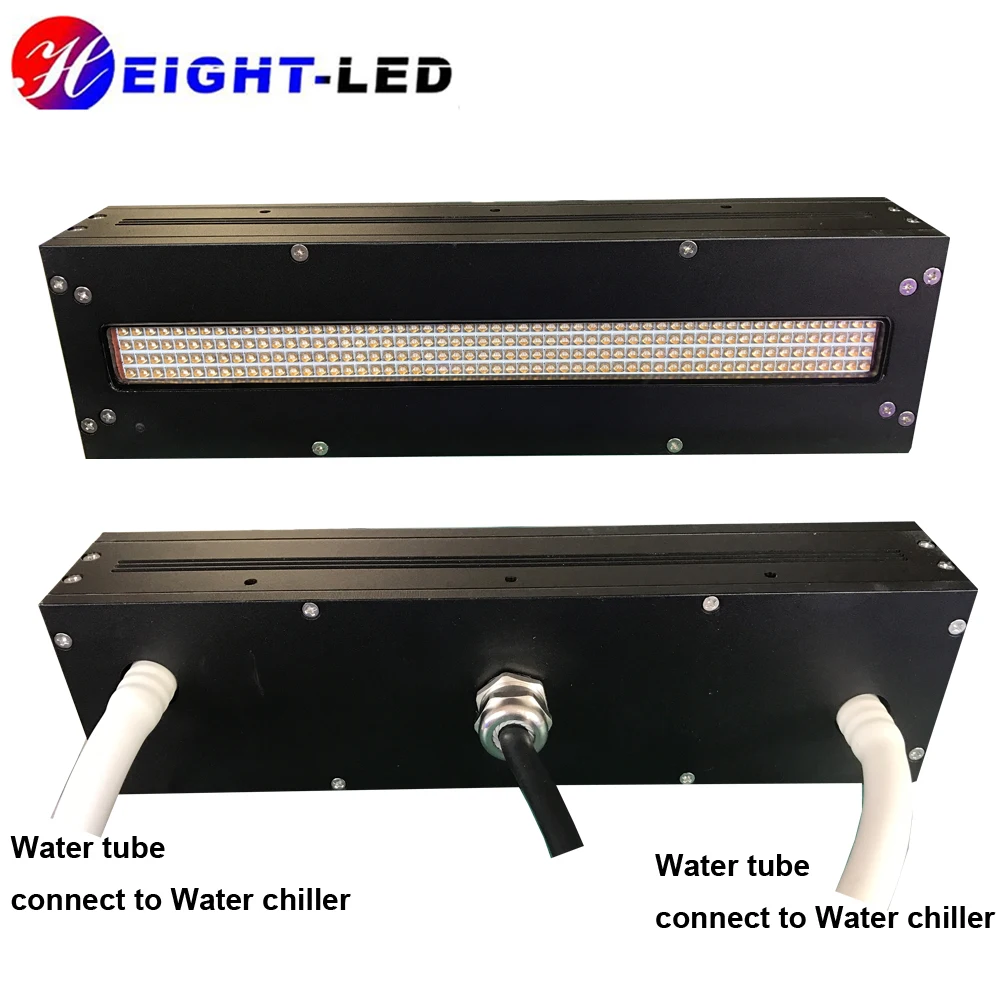

| Irradiation Specification: | |||||
| Model | wavelength | optic power | curing area | cooling method | irradiation distance |
| HTLD-S220-20X250 | 395nm | 10w/cm2 | 20x250mm | water cooling | 10-20mm |
More different uv led curing system can be customized
by your requirement.
And more high –power products waiting for your attention
Application

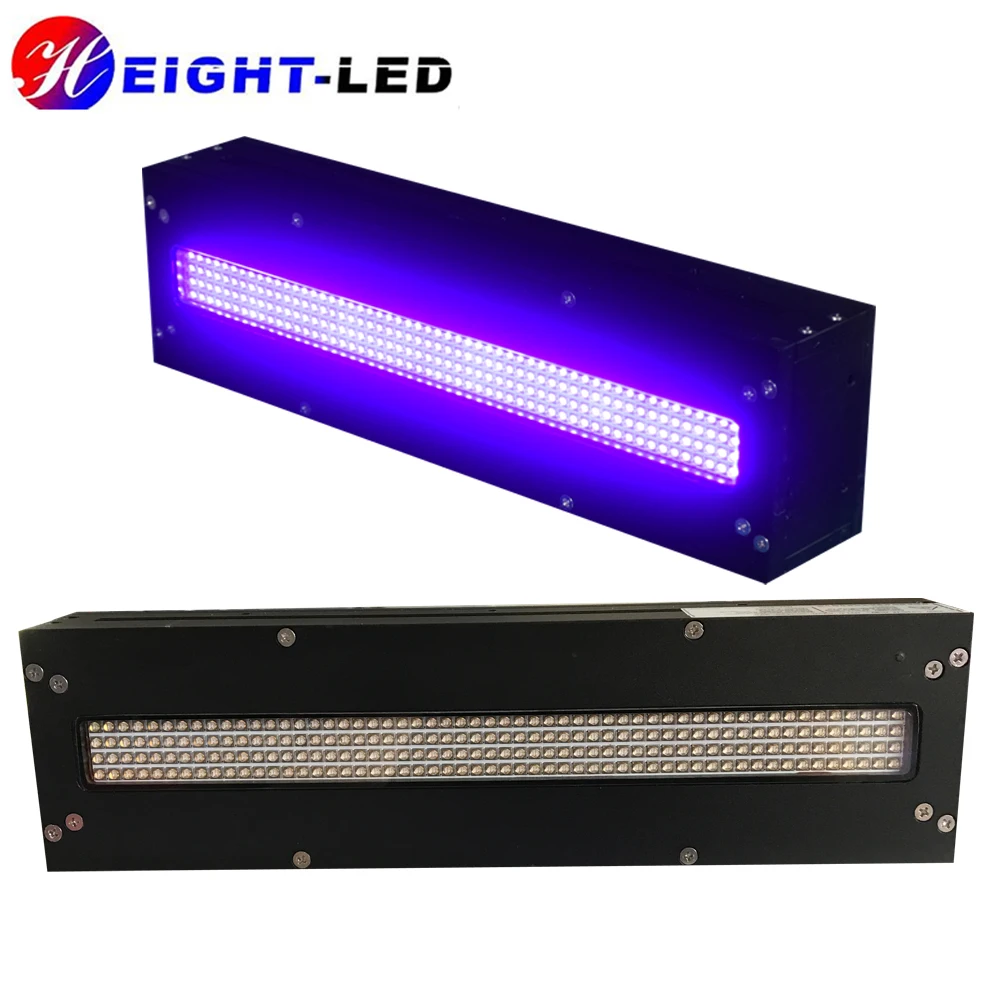

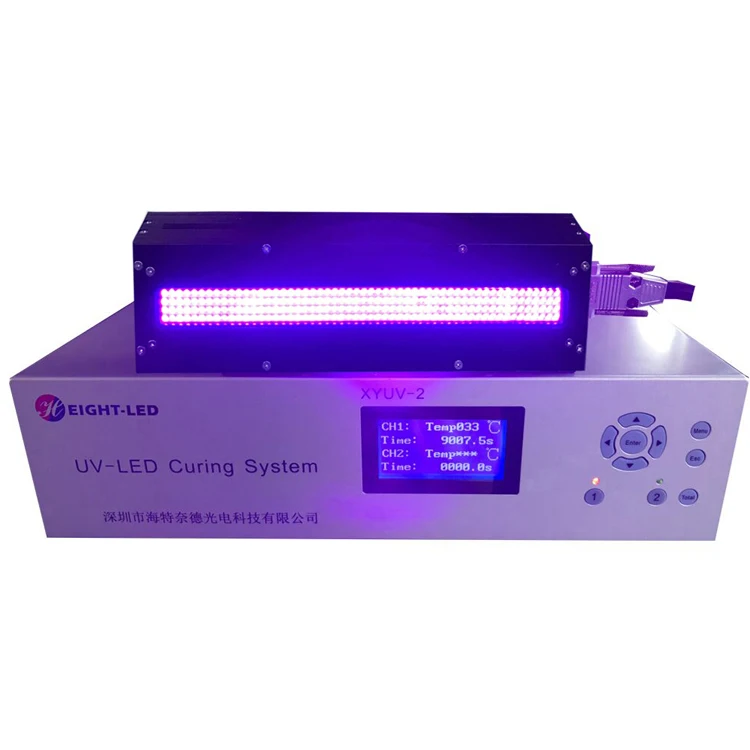

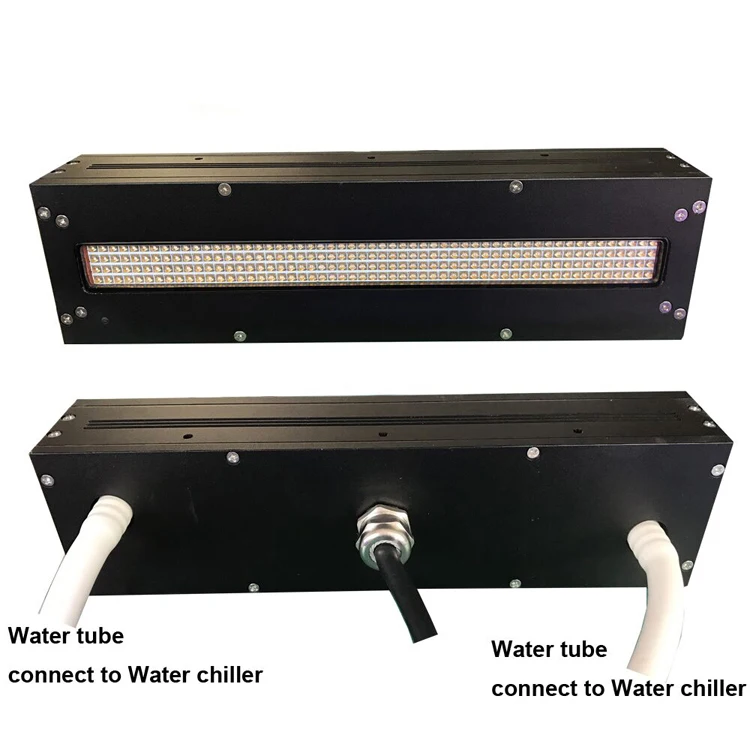

HTLD-S220-20x250 is a high quality UV LED area light source curing system, the system includes the controller, UV LED irradiation
head . UV LED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm,
the effective curing area of 20x250mm, support for external signal input and trigger, can be equipped with semi-automatic or fully
automated production line .
It can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.
Advantages of uv led
Replace the mercury lamp!
|
|
|
|
|
|
|
|
Competitive Advantages of our LEDs
|
|
|
|
|
|
FAQ
| Q1: Why choose HTLD UV LED curing system? |
| A:The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client. |
| Q2: What's the application of HTLD UV LED curing system ? |
| A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials. |
| Q3: What is the major advantages of UV LED curing system’s than other UV curing system? |
| A:Extra-long life, energy saving and environment friendly. |
| Q4: Which wavelength do I need? |
| A:It depends on your UV sensitive materials. |
| Q5: What's the emitting window do I need? |
| A:It depends on your product’s size that need to be cure. |
| Q6: What's the Peak Irradiance do I need? |
| A:It depends on your UV sensitive materials and your Production efficiency. |
| Q7: The common emitting window and Peak Irradiance can not meet my requirements? |
| A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized . |
| Q8: Where is your company located? |
| A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China. |
