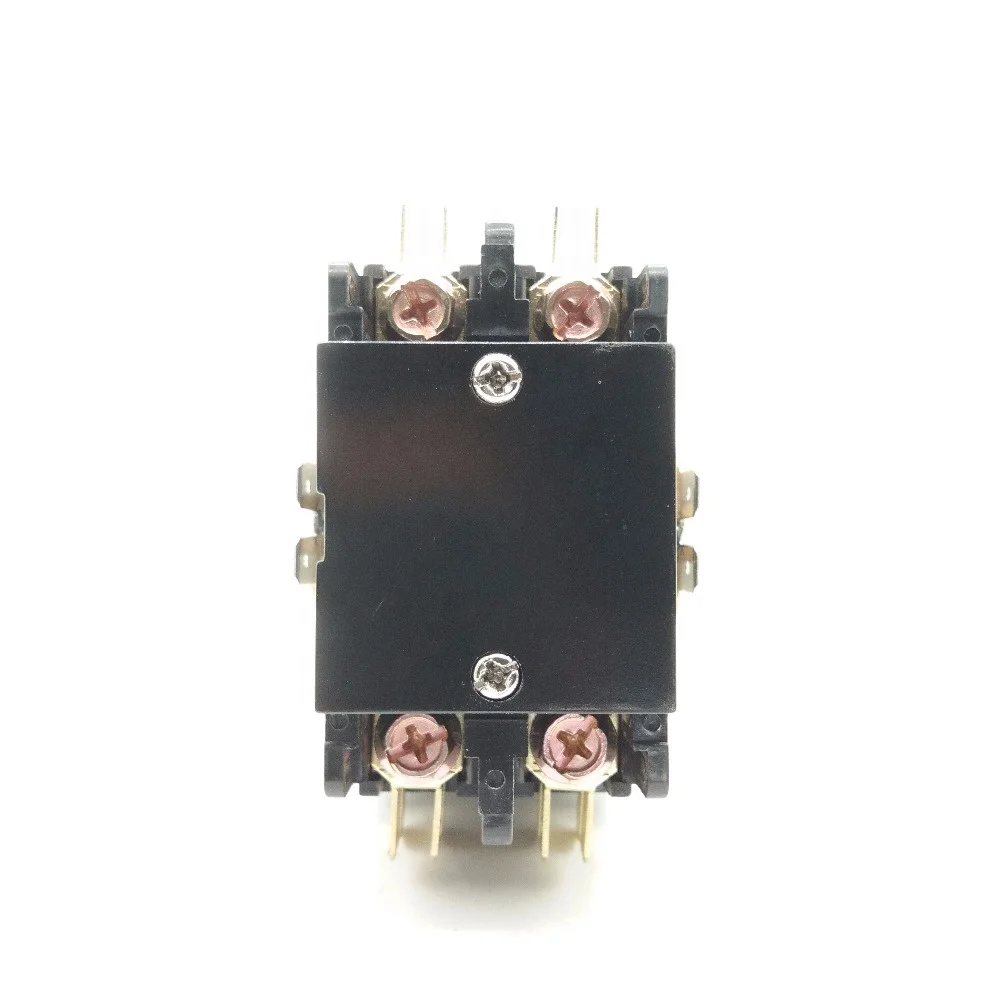

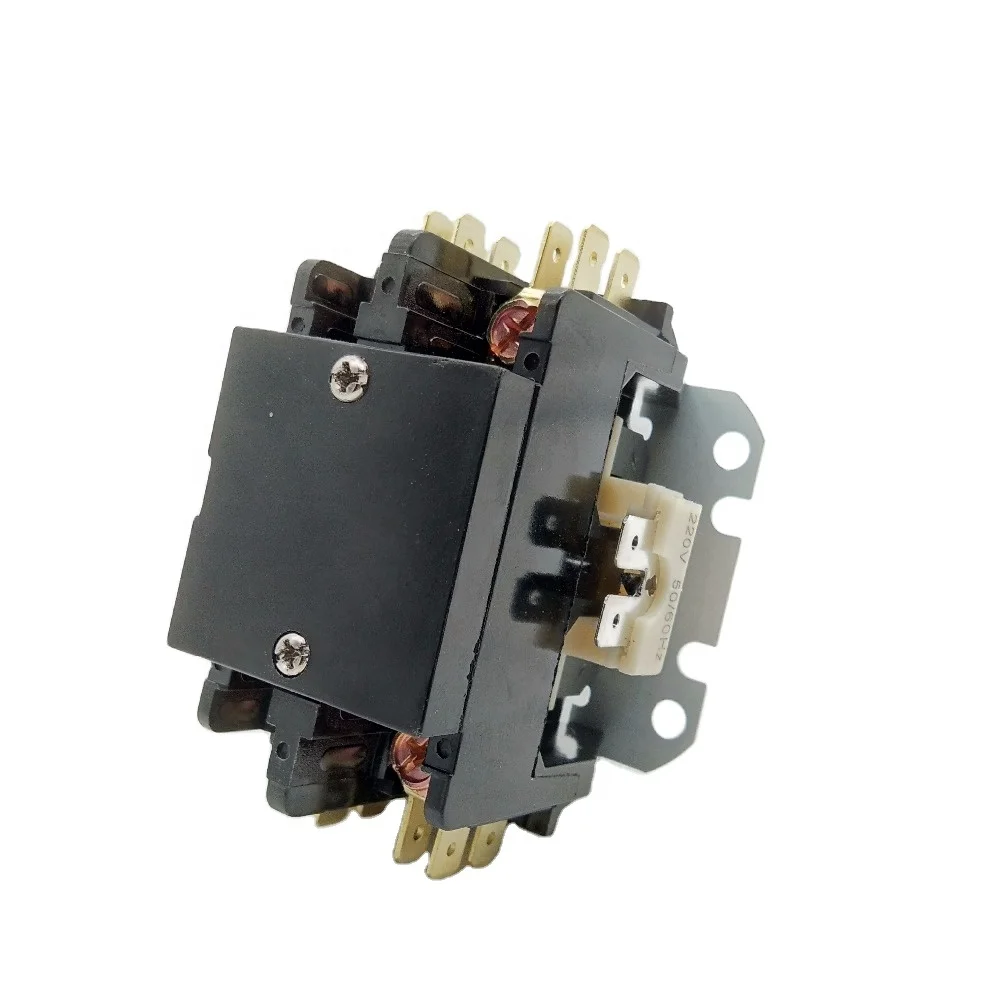

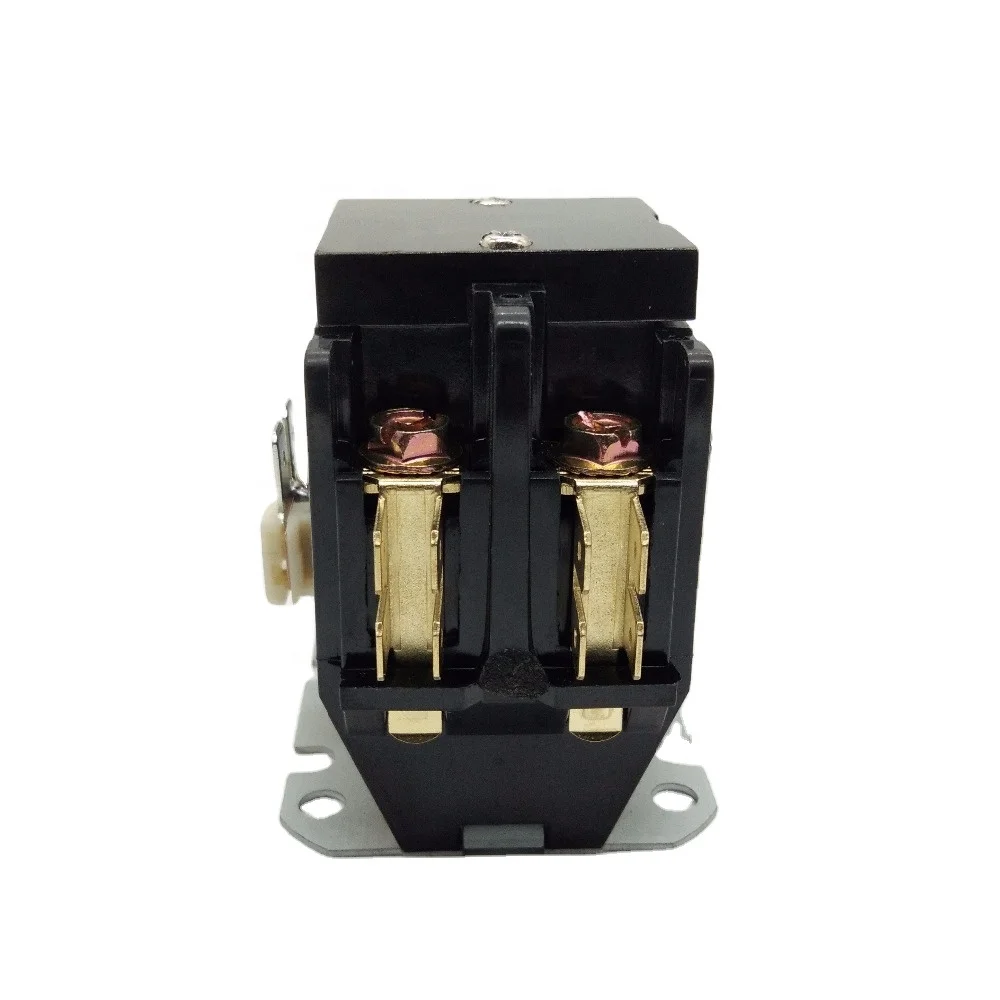

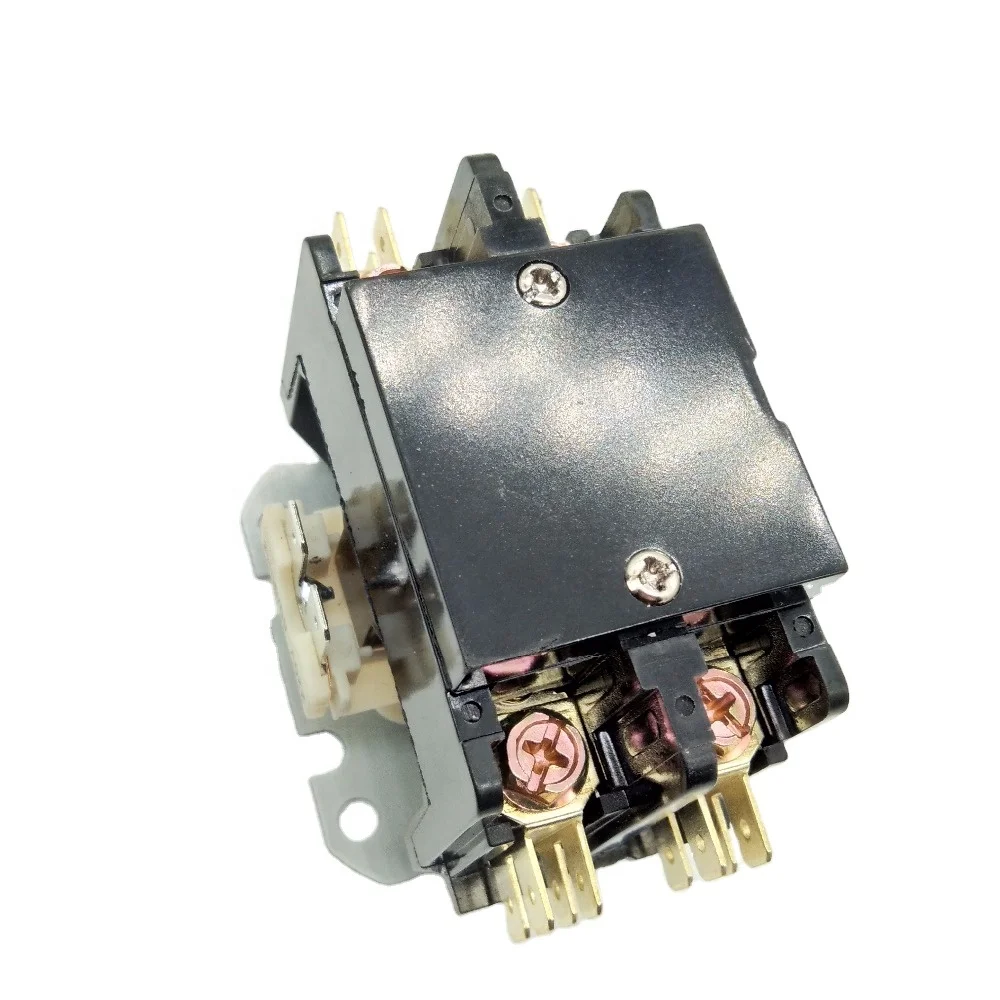

best quality DP ac contactor, 2P 30a definite purpose ac contactor

Share on (60764529600):


Price:$2.29

Quantity:


Product Overview

Description


The product will
\t
Coll voltage   50/60hz
\t
Full load        amps
\t
Line voltage
\t
Locked rotor amps
\t
Resistive amps rating
\t
Maximum horsepower
\t
Approx unit weight
\t
Voltage
\t
Single phase
\t
20FLA
\t
24 120 208/240 277
\t
20
\t
240/277
 460
600
\t
120
100
80
\t
30
30
30
\t
120
240

\t
2
3

\t
.6lb
.27kg
\t
25FLA
\t
24 120 208/240 277
\t
25
\t
240/277
 460
600
\t
150
125
100
\t
35
35
35
\t
120
240

\t
2
3

\t
.6lb
.27kg
\t
30FLA
\t
24 120 208/240 277
\t
30
\t
240/277
 460
600
\t
180
150
120
\t
40
40
40
\t
120
240

\t
2
3

\t
.6lb
.27kg
\t
COIL TECHNICAL DATA 50/60HZ
\t
Nominal Coil Voltage
\t
24
\t
120
\t
208/240
\t
277
\t
Maximum Pickup Voits
\t
18
\t
88
\t
177
\t
221
\t
Drop-Out Volts Range
\t
6-15
\t
20~70
\t
40~140
\t
50~165
\t
Nominal Inrush VA@50Hz
\t
31
\t
31
\t
35
\t
31
\t
Nominal Inrush VA@60Hx
\t
28
\t
28
\t
32
\t
28
\t
Nominal Seaied VA@50Hx
\t
6
\t
6
\t
7
\t
6
\t
Nominal  Sealed VA@60Hz
\t
5
\t
5
\t
6
\t
5
\t
Nominal  DC Resistance-Ohms
\t
17.5
\t
450
\t
1800
\t
2252
\t
OTHER SPECIFICATIONS
\t
20~35FLA
\t

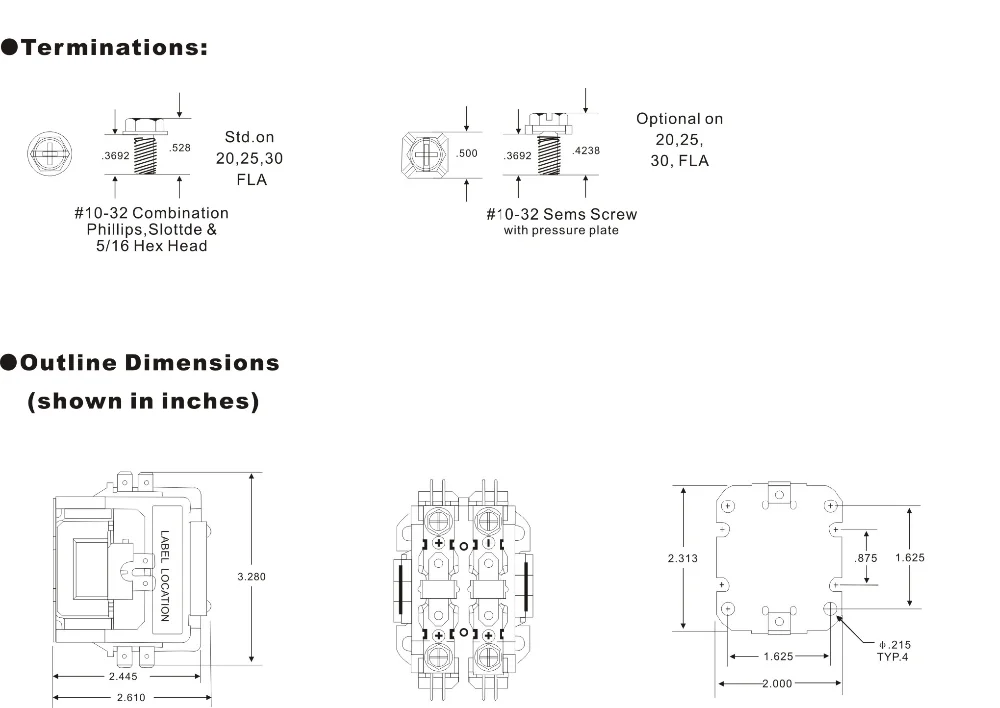

Line and Load Terminals
\t
#10~32 Screw*
\t
Wire Size AWG Min-Max
\t
16~8*
\t
Tightening Torque(recommended)
\t
25in.lbs
\t
Coil Termination
\t
Dual.250 QC(2)
\t
Quick Connects.250 std.-1 or 1 1-2Pole
\t
Dual or Quad
\t
ARC Cover
\t
Optional

*Stranding must be split for #8 wire.

**Permissible Ambient Temperature: -40℃/65℃     -40°F/150°F
