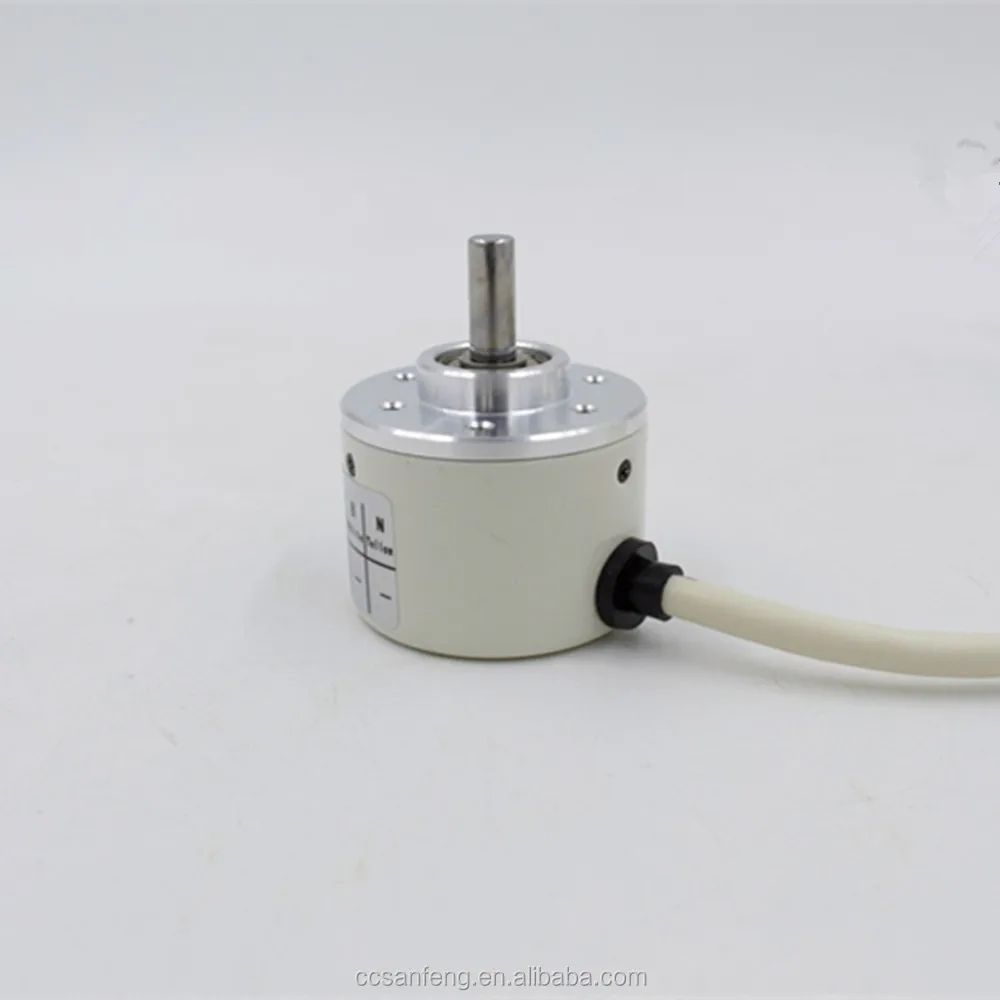

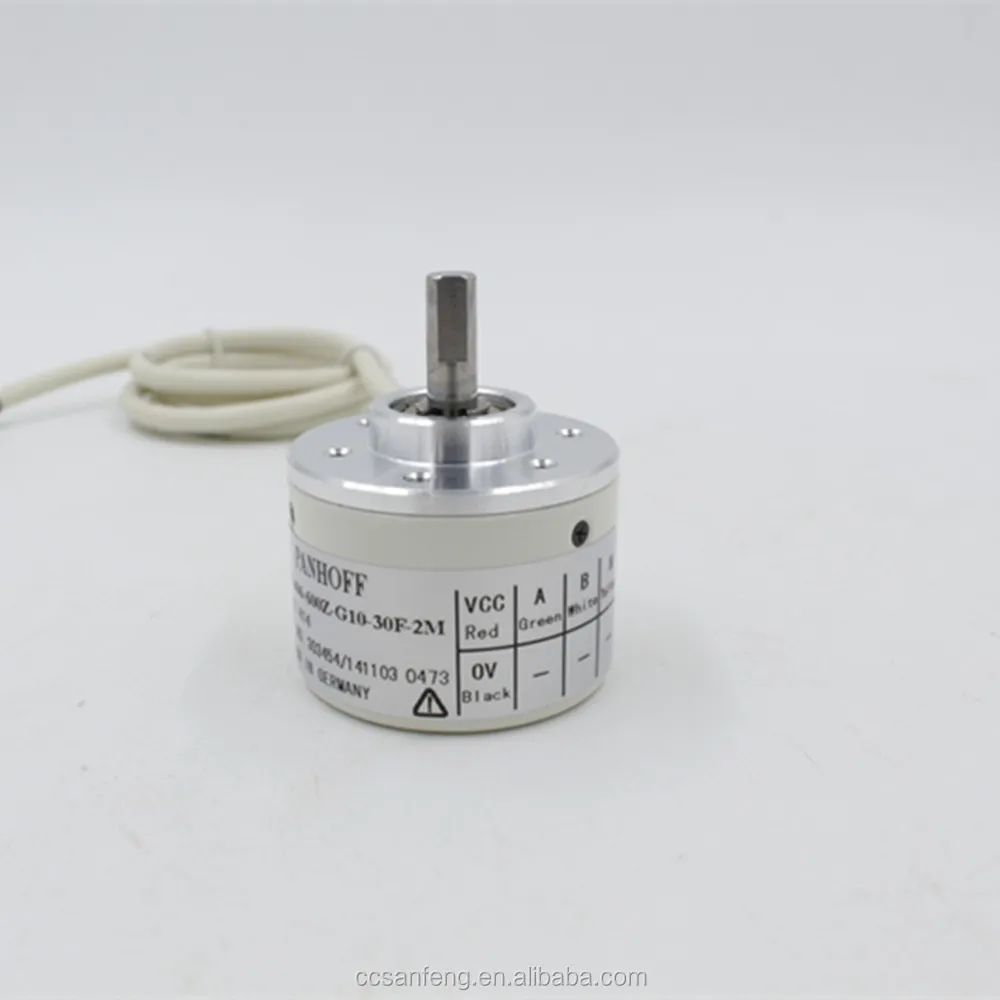

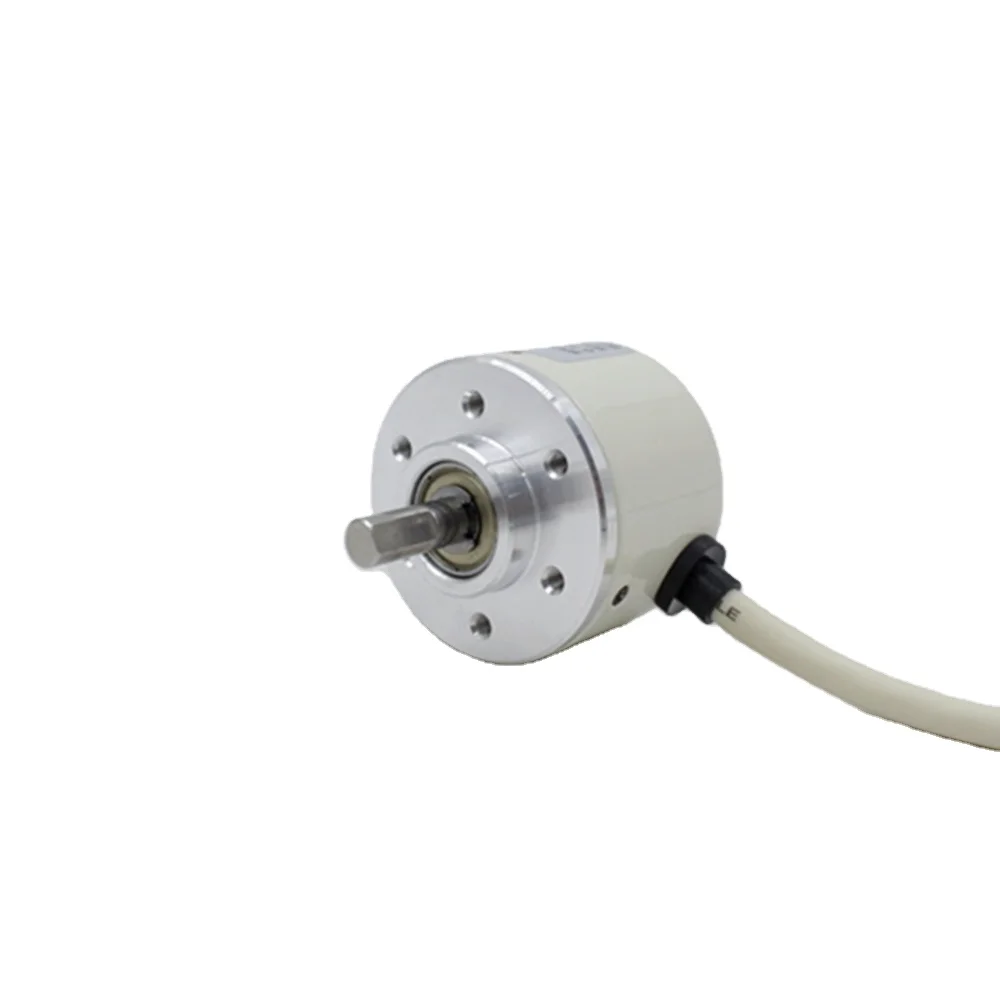

100ppr 200ppr 400ppr 500ppr outerdiamter 40mm 6mm solid shaft rotary encoder

Resolution

10~5000P/R

Supply Voltage

DC5~15V

V_H Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤50mA

Output Phase

A.B.Z

Frequency Response

100kHz Max

Rise / Fall Time

≤1μS / Driver≤0.1μS

Starting Torque

5*10^-2N*m(+25℃)

Shaft Loading

Radial

50N

Axial

50N

Rotating Inertia

1.3*10^-5Kg*m²

Max Rotating Speed

6000r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in XYZ Direction

Shock Resistance

980m/s²(3 Times in XYZ Direction,continue 6ms)

Protection

IP54

Operation Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.65Kg

Accessories

SF/PF Coupling

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

C/E/F

VCC

0V

A

B

Z

-

-

-

FG

P/L/D/H/M

VCC

0V

A

B

Z

A(_)

B(_)

Z(_)

FG

CX16K19P plug

8

10/12

1

3

2

17

CX16K19P plug

8

10/12

1

3

2

13

15

14

17

CX16K17P plug

H

K

A

C

B

N

R

P

E
