Piggery equipment Nursery Crate Animal cages Nursery Fence Nursery Stall

used for weaned piglets at 35days of age.

hot dip galvanized/PVC fence

plastic slat flooring, easy to clean and install, comfortable to the piglets

fiberglass beam or cast iron stringers

crate size can be customized.

characteristics:

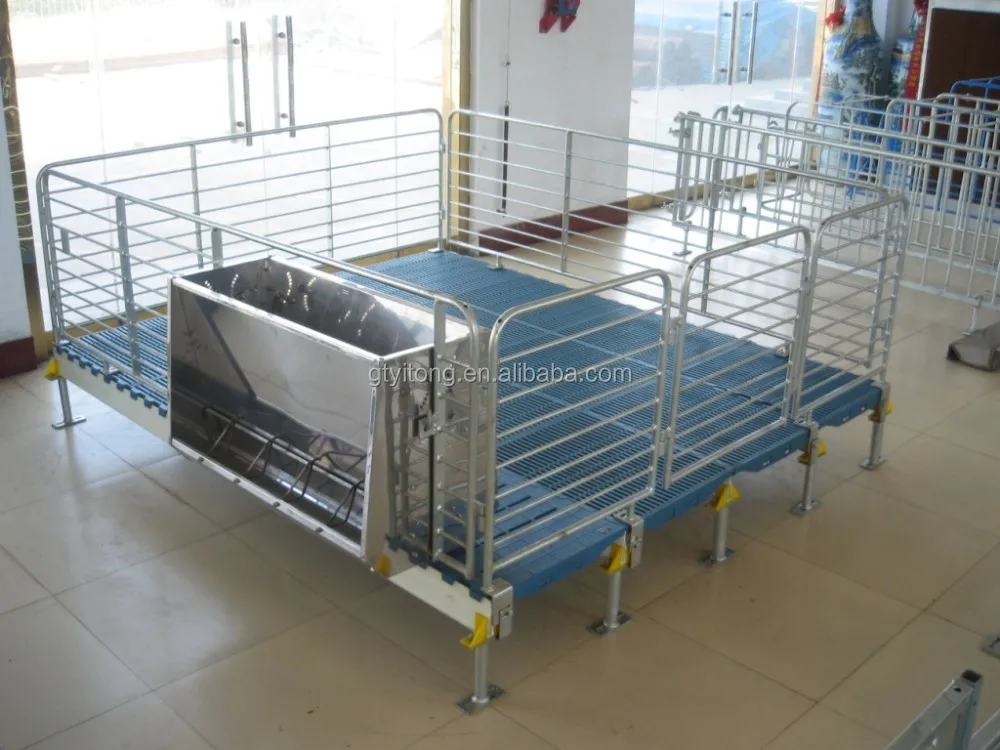

-Nursery enclosure is welded with hot galvanized steel pipe, acid alkali resistant and durable

-The bottom plastic leaking dung floor is made of pure plastic raw material, strong and durable

-Equipped with double-sided 10 hole SS pig feeder, stainless steel or galvanized sheet

-The bottom bed and the bed frame are bolted and assembled, and each column is connected with a pin to facilitate the assembly.

- Piglet feces fall into the cesspool through the leaking floor to avoid disease caused by fecal pollution and increase the survival rate.

•

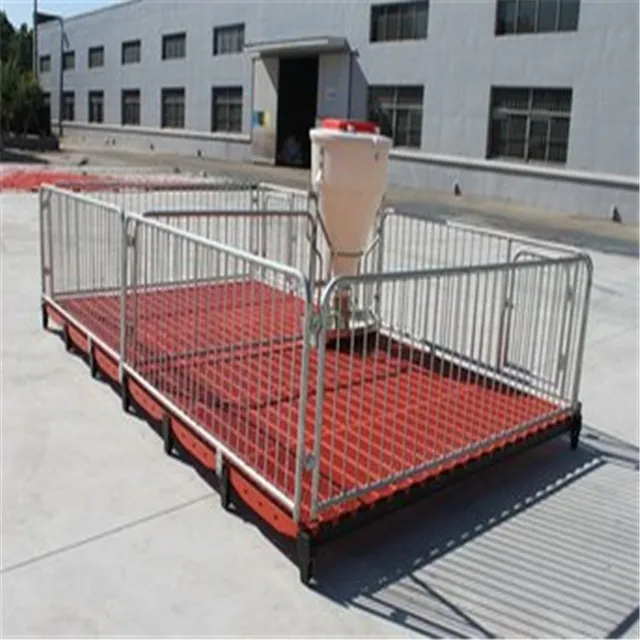

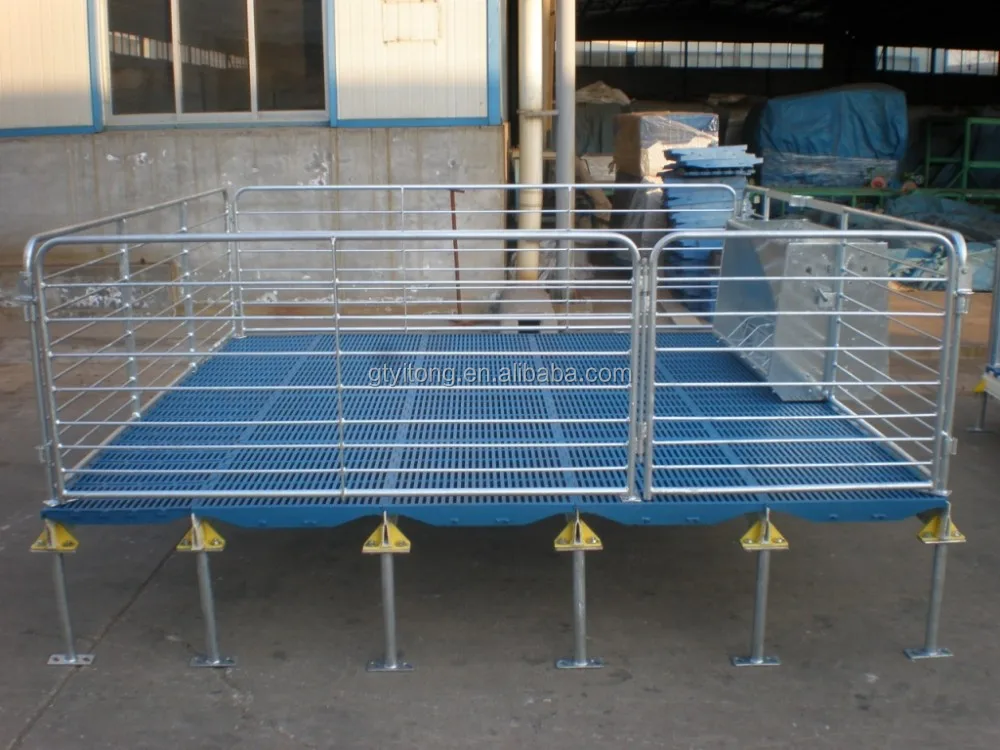

Nursery fence

Dimension\t2.4*1.8*0.75m(double nursery 2.4*3.6m)， custom-made

Description\tPVC fence，galvanized fence

Plastic slat floor\t600*600mm

Plastic solid floor\t600*600mm

Material \t30*500mm PVC panel， 20*30mm galvanized square tube, or D26*2.5mm steel tube

Feeder\tDry wet feeder or stainless steel double sided feeder.

Fixed parts\t feet clasp fittings

Advantage：

1. plastic leaky floor leakage effect is good, easy to clean.

2. plastic solid floor to prevent the waste of feed caused by pig feed in the process of feeding, and prevent the leakage into the sewage pool, which is not convenient for sewage treatment and so on.

3.PVC board insulation effect is good, will not cause other diseases such as piglet diarrhea.

The 4.PVC board has good effect on epidemic prevention and isolation, and it can be effectively isolated and controlled if there is epidemic situation.

5. hot-dip galvanized square tube high 25cm, the total height of 75cm, not only to protect the bottom of the pig's heat preservation, prevent the spread of bacteria; but also ensure the top ventilation, conducive to management personnel observation operation, prevent pig to pick out the column.

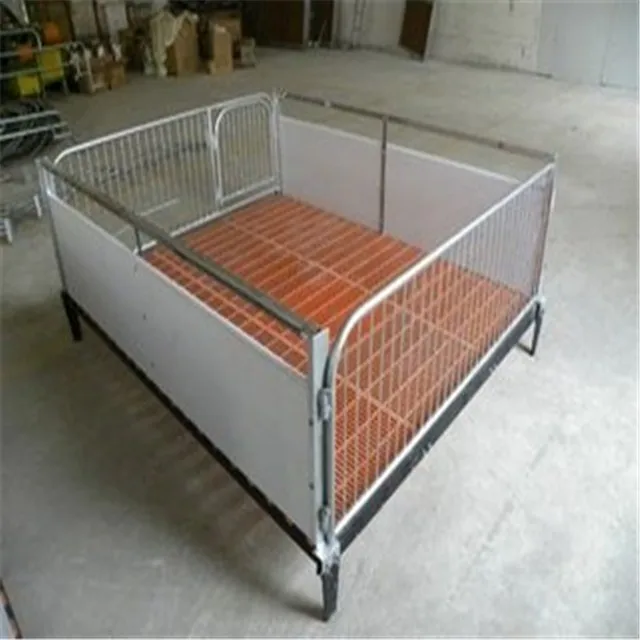

The design, PVC panels plus metal supports, makes sure the good ventilation, and also keeps away the cold wind blowing directly to the weaning piglets.

Weaning feeder can be chosen from the dry wet  feeder or SS double sized feeder.

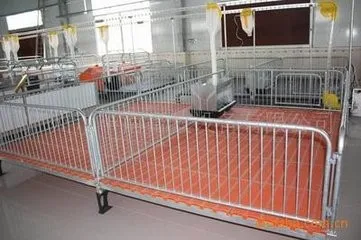

Application examples

Why do the piglets need to use plastic floors

It is easy to clean up, and the water vapor of plastic floor is easier to volatilize after the water pipe flushing, and the cement floor will form a wet condition after washing the floor for a long time. The body resistance of the piglet is poor after birth, and it will be due to other adverse reactions such as piglet diarrhea.
