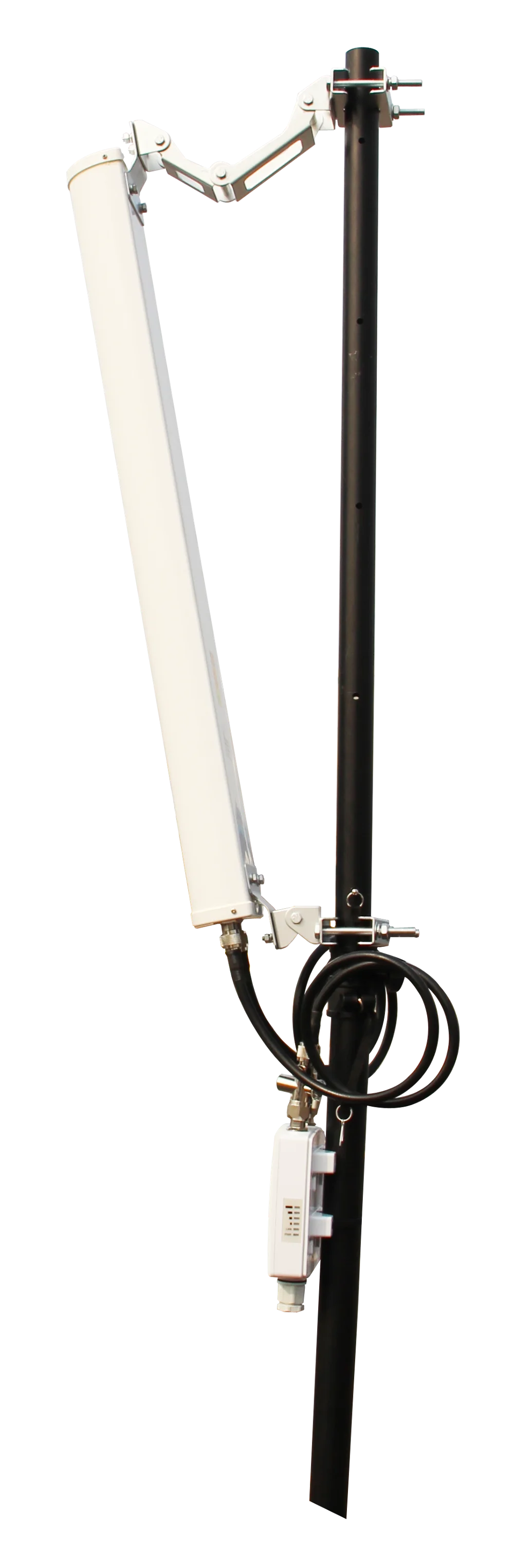

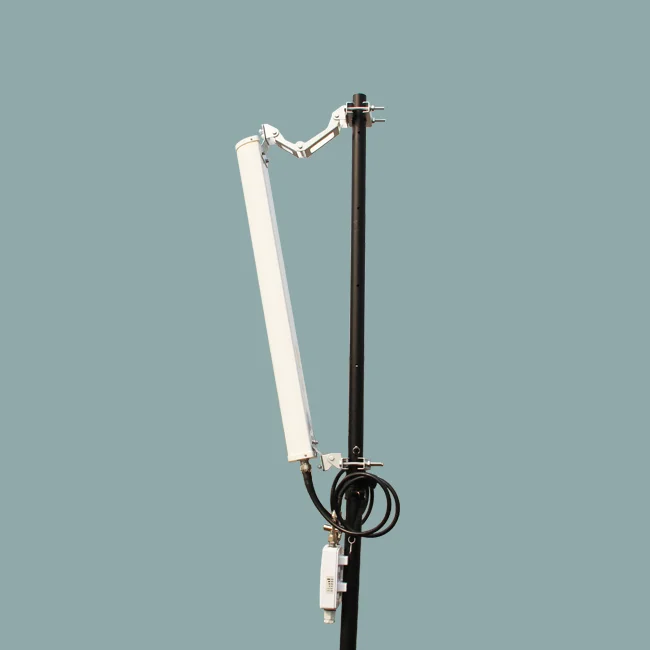

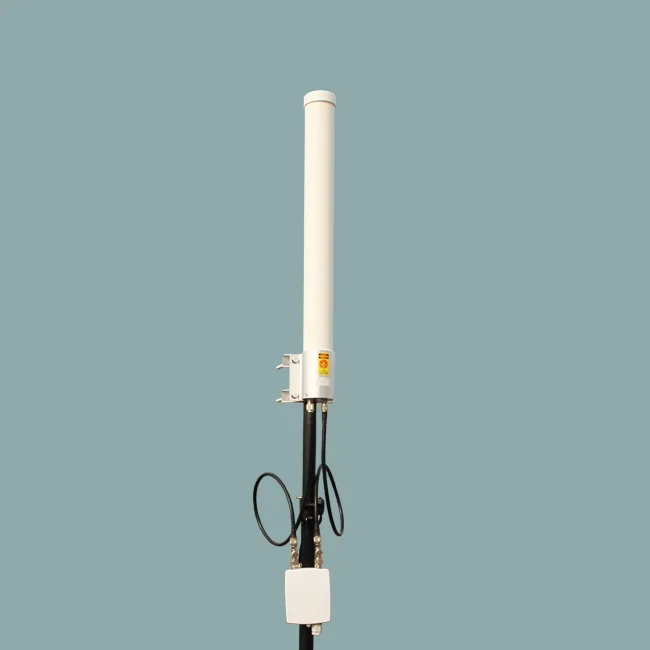

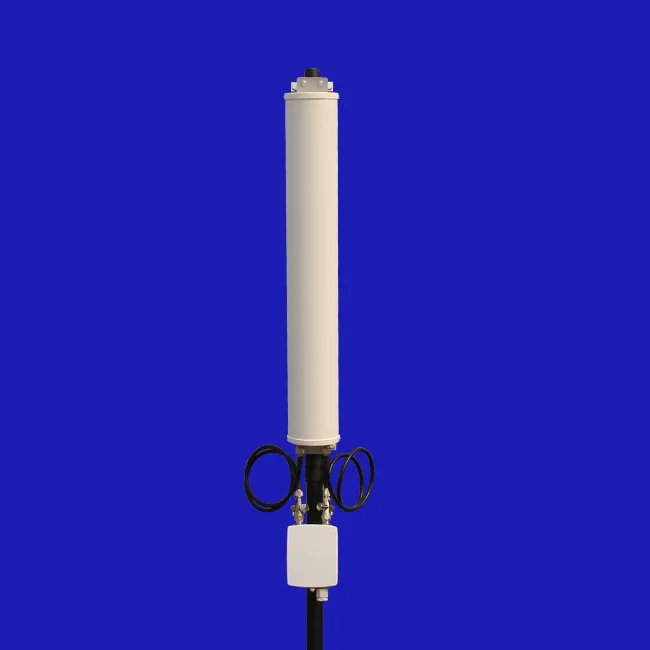

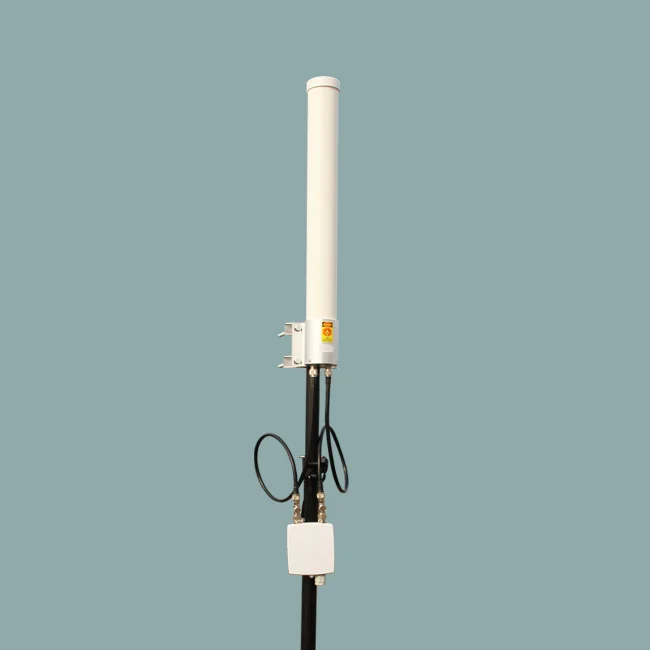

3km PTMP WISP 5Ghz wireless outdoor wifi access point cpe base station

Product Overview

Description

 Specification

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
80,000 PPS
170 Mbps capacity
High output power 29 dBm radio
External N - connectors
Distance recomendations: Antenna dependent
Powerful OS
Smart polling data transmission protocol
Weather proof (IP-65 rated) design
Free WNMS (WNMS – Wireless Network Management System)
Responsive HTML 5 based GUI
Wall and pole mounting option

Antenna Gain: 19dBi, Antenna Angle: 120 degree



Model	AP5
PTMP distance	3km
Frequency	802.11a/n 5.0~6.0Ghz
Chipset	AR9342
antenna gain	19dBi
antenna angle	120°
SPI Flash	16M
DDR2	64M
Power	12~24V DC
Size of Host Machine	110*36*145mm
Antenna Size	770*65*115mm



Wireless specifications



WLAN standard IEEE 802.11 a/n, Proprietary

Radio mode MIMO 2x2

Radio frequency band 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit power Up to 29 dBm (country dependent)

Receive sensitivity Varying between -97 and -75 dBm depending on modulation

Channel size 5, 10, 20, 40 MHz

Modulation schemes 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data rates 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error correction FEC, Selective ARQ

Duplexing scheme Time division duplex

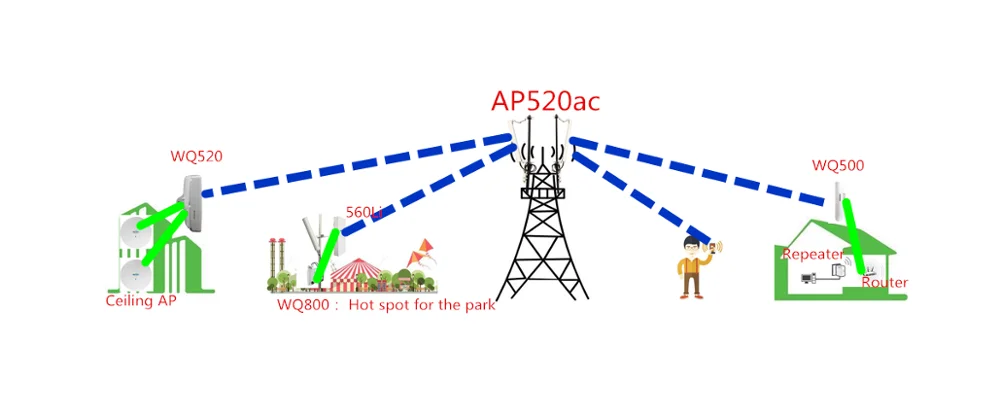

Application





Factory



Zibo Zunzhi Trading Co., Ltd, established in 2010, is a professional manufacturer engaged in the research, development, production, sale and service of wireless CPE, ceiling AP, wireless access point equipment etc.

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the united states, Canada, Malaysia, HongKong, Taiwan and Australia etc.

We also welcome OEM and ODM orders.

Our Team



We are a very energy team, most members of our team are the generation after 90s and 80s. Team training makes us keep high quality devices and services for our customers. If our sales team have some technical problems, we will try to solve it by ourselves or cooperation with technical team, to quickly response our customers.

Related Production

2.4Ghz CPE	Access Point
5.8Ghz CPE	Accessories

Feedback

Well received many feed back from customers with many thanks. We just start. We know we should do more for customers to gain more approved by customers. So your any ideas will be highly appreciated.

Thank you very much to every customers.



Certification



We have passed SGS factory certification. If you need ISO9001, CE, RoHs, FCC, CCC certification test, please feel free to contact with us. We would like to offer a sample order testing for you, to open our first cooperation. You deserve more quality devices and better services.



Package

Express package	Bulk package
Packing details: 1pc device, 1metal ring   Package: Neutral carton Package dimension: 306*120*60mm Gross Weight: 700g Accept custom-made package

Delivery







MOQ:1 pc, sample order is welcome

Delivery time: 2~5working days for sample order.

10~30 working days for bulk order

Shipping: by sea, by air and by express delivery
