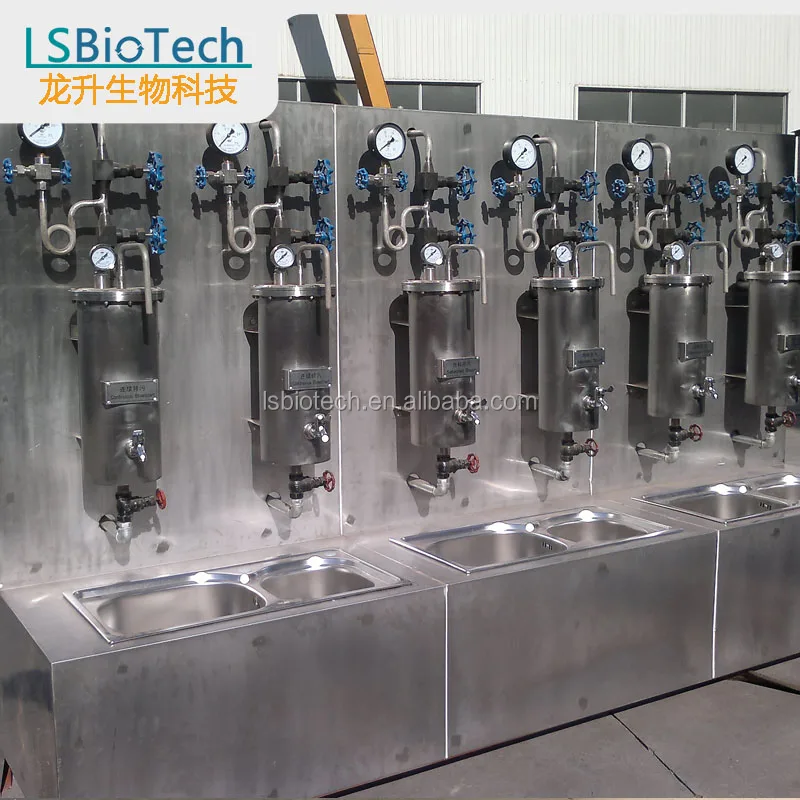

6 Points / Lines Stainless Steel Boiler Sample Cooler Chemical Analysis Certificated
- Category: Boiler & Parts >>>
- Supplier: Shandong Longsheng Biotechnology Co. Ltd.
Share on (60764614129):
Product Overview
Description
Product Parameter
Product Name | 6 points Stainless Steel Boiler Steam Water Sampling Cooler for Middle Pressure and High Pressure Boiler |
Sampling Points | - 6 points : Saturated Steam x 2 Continuous Blow Down x 2 Feed Water x 1 Superheated Steam x 1 |
Sampling Lines | 6 Piping Lines |
Shell Material | Stainless Steel : 304 |
Tube Material | Stainless Steel : 304 |
Rack Material | Carbon Steel |
Standard | China GB |
Manufacturer Grade | China A Grade, ABS Certificated, TUV Certificated |
Matched Boiler | 5 t/h ~ 670 t/h |
Steam Temperature | < 560 ℃ |
Cooling Water Temperature | < 30 ℃ (to be confirmed by Customer's plant design) |
Cooled Medium Temperature | < 37 ℃ (depend on Cooling Water Temperature) |
Working Pressure | < 20 MPa |
Welding | Automatic GMAW, GTAW(TIG) |
Dimension | 2,500 L x 700 W x 1,800 H mm |
Instruments | Pressure Gauge for Medium (0 ~ 20 MPa) Cooling Water Temperature Gauge (0 ~ 200 ℃) |

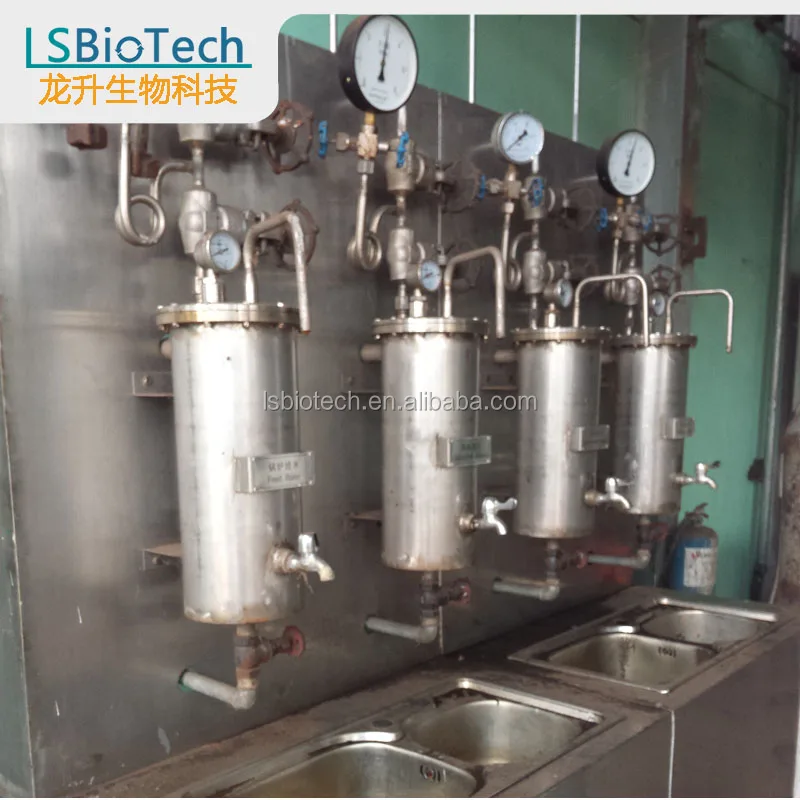

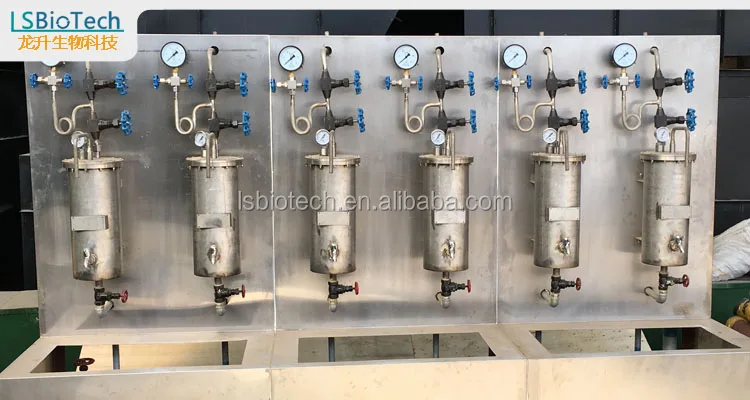

Product Show
Instruments
- Pressure Gauge for measured Steam/Water (0~20 MPa) for each line
- Temperature Gauge on each cooling water tank
- Separate stop valve for each line
Other Convenient Devices
- Hand wash tap x 6
- Hand wash basin x 6

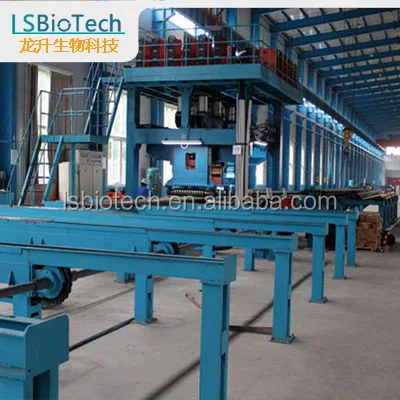

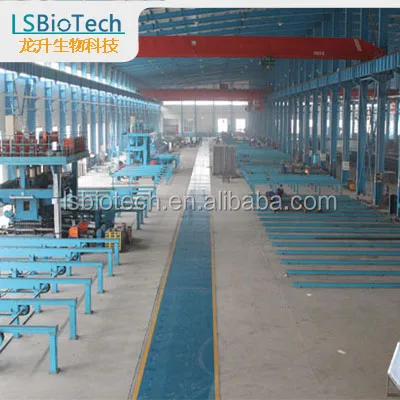

Factory Show & QA
Packing & Delivery
Packing
Different packing methods are chosen depend on transportation type.
1. Plywood Protection
for special material protection
2. Plywood Box Packing
for small and high value product
3. Steel Frame Packing
for general product
4. Steel Frame Packing
for general product
5. Steel Frame Packing
for general product
6. Steel Frame Packing
for general product
FAQ
Q: How long is your delivery time?
A: General small equipment/parts will be ready for shipment in 20-25 days if the materials were in stock, in 35-40 days if the materials were not in stock.
Large equipment delivery time should be determined after technical discussion. Please contact our sales.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample tube or sample materials for free charge, but the cost of freight should be paid by Customer.
Q: What is terms of payment ?
A: General small equipment/parts, the 100% of contract price should be paid after signing.
You could sign with us via Alibaba Trade Assurance Order online service, or via traditional offline type.
Large equipment payment schedule, please contact our sales.
Q: How long is the warranty period?
A: General small equipment we guarantee 12 months from the date of shipment departure.
