Product Overview

Description

Toshiba Cheap 9000 Btu Air Conditioner Split System

Sunchees 100% DC48V solar air conditioners range includes 9000btu ,12000btu, 180000btu and

24000btu systems.Due to solar votage fluctuations the unit cannot connect directly to solar

panels and must have a stable source of power such as batteries.



Depending on conditions, the entry-level set up can operate on 5 hours/12 hours/ 24 hours,

and use 4 to 12 solar panels. Batteries and charge controller must be sized appropriately.

Detailed design and specification please check following information.

Sunchees solar air conditioner advantage:



1.Use of world advanced technology to avoid the common air conditioner problem:

refrigerant not completely evaporate cause whole system running ineffective.



2.Easy installation & maintenance, same as the common air conditioner.



3.Running high efficiently, comfortable & safe, more energy-saving & money saving.



4.Toshiba Compresser, R410 refrigerant guarantee fluoride-free emission, solar energy ensure

freely and renewable.



5.Durable and long-lived, smooth running, Low-loaded operation of the compressor to extend

its duration.



6.Healthy and comfortable, constant temperature to keep air conditioner disease away.







Say goodbye to the electricity bill

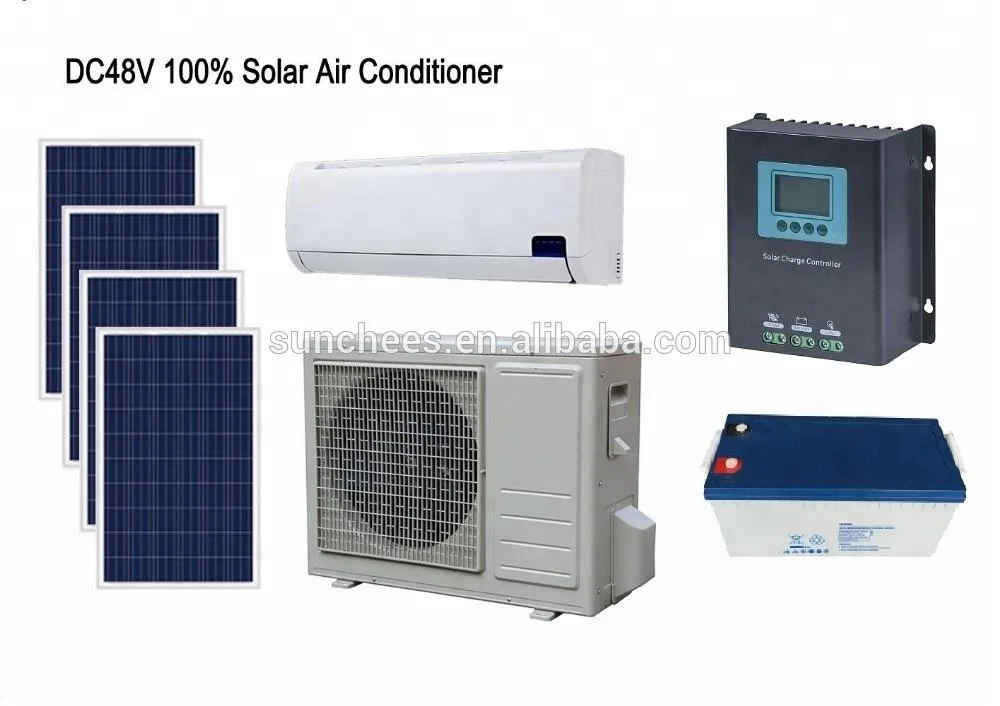

Sunchees 100% solar air conditioner system consists of solar panels, solar charging controller,

Gel battery and DC inverter air conditionr. It uses DC power directly without needing an inverter

or other AC power source. Thus, 100% DC solar air conditioner can assist people who living in

places short of power supply or grid power cost is very expensive, to enjoying air conditioner

freely and economically.

Main features of wall split solar air conditioner

1.Power Specification:48V DC

2.Driven by solar panels directly, no inverter required, no AC power required, 100% energy saving

3.Variable Speed BLDC(Brushless DC)

4.Cooling + heating model

5.Overnight operation available

6.Quiet operation

7.R410a refrigerant, Toshiba comprosser, high quality, more safe.

8.Multi-folds evaporator

9.Solar panel and battery requirements will vary based on application and local sunlight conditions.

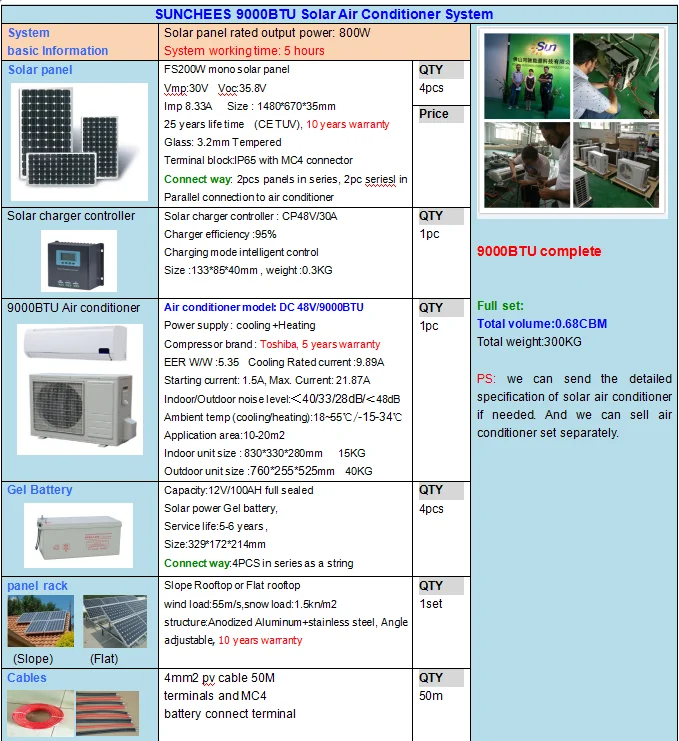

DC solar power air conditioner specification



SUNCHEES 9000BTU Solar Air Conditioner System
System   basic Information	Solar panel rated output power: 800W System working time: 5 hours		9000BTU complete     Full set: Total volume:0.68CBM Total weight:300KG   PS: we can send the detailed specification of solar air conditioner if needed. And we can sell air conditioner set separately.
Solar panel	FS200W mono solar panel Vmp:30V  Voc:35.8V Imp 8.33A   Size : 1480*670*35mm 25 years life time  (CE TUV), 10 years warranty Glass: 3.2mm Tempered  Terminal block:IP65 with MC4 connector Connect way: 2pcs panels in series, 2pc seriesl in Parallel connection to air conditioner	QTY 4pcs
		Price
Solar charger controller	Solar charger controller : CP48V/30A Charger efficiency :95% Charging mode intelligent control Size :133*85*40mm , weight :0.3KG	QTY 1pc
9000BTU Air conditioner	Air conditioner model: DC 48V/9000BTU Power supply : cooling +Heating Compressor brand : Toshiba, 5 years warranty EER W/W :5.35  Cooling Rated current :9.89A Starting current: 1.5A, Max. Current: 21.87A Indoor/Outdoor noise level:<40/33/28dB/<48dB Ambient temp (cooling/heating):18~55℃/-15-34℃ Application area:10-20m2 Indoor unit size : 830*330*280mm   15KG Outdoor unit size :760*255*525mm  40KG	QTY 1pc
Gel Battery	Capacity:12V/100AH full sealed Solar power Gel battery, Service life:5-6 years , Size:329*172*214mm  Connect way:4PCS in series as a string	QTY 4pcs
panel rack	Slope Rooftop or Flat rooftop wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable, 10 years warranty	QTY 1set
Cables	4mm2 pv cable 50M terminals and MC4 battery connect terminal	QTY 50m

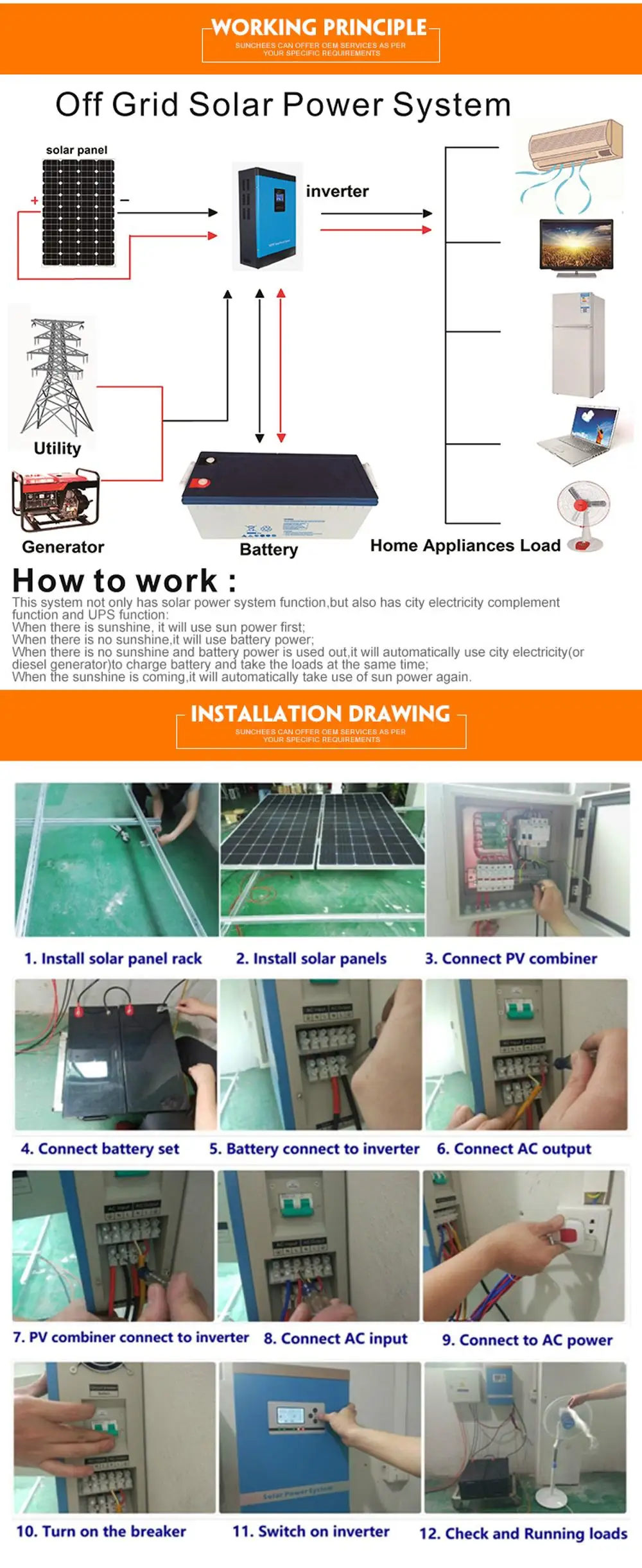

1. How does the solar air conditioner work?

PV Solar panels produce electricity. Electricity to be saved in battery group as energy bank;

Batteries drive air conditioner to run for cooling and heating. Solar controller protect the

whole system and provide stable power supply.



2. Do you need inverter to make DC power to AC?

Inverter is NOT required for our solar air conditioners, because our solar air conditioners were

100% driven by 48V DC power.



3.What is the function of batteries? Which kind of batteries and capacity recommended for your

solar air conditioners?

Battery is the energy bank to reserve electricity energy. We recommend you 4 x 12V deep cycle gel

solarbatteries for each solar system.



4. What’s Sunchees DC air conditioner's advantage?

Equipped with ecough-power self-produced DC compressor, Sunchees DC air conditioner has a

perfect cooling performance even at 45℃ ambient temperature.



5. What is the input voltage for the Sunchees DC/solar air conditioner?

Generally input voltage is DC 48or DC60V.



6.Is AC100~240V power accepted by Sunchees DC solar air conditioner?

AC100~240V  power can be input by an adapter;

Never input AC100~240V power to DC air conditioner directly.
