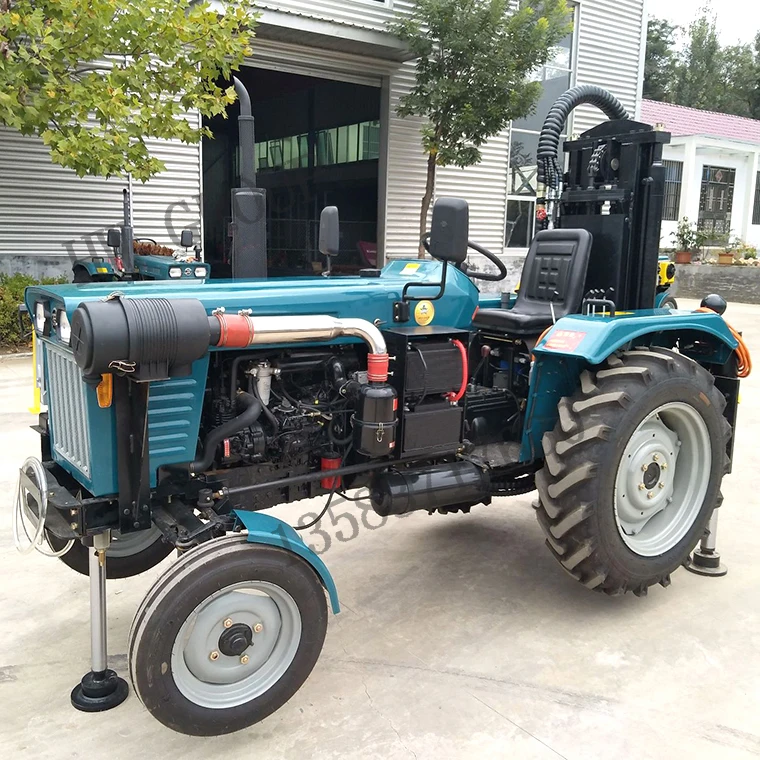

This product is the combination of tractor and pneumatic drilling rig, forming a rig tractor drilling equipment, conducive to walking and air compressor combination. So that the construction more convenient and efficient.
HQZ100 rock Well Drilling Machine adopts the new hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion, the factory multi-cylinder engine for the hydraulic system to provide power, two air filter and air compressor air intake design to extend the life of the diesel engine The
HQZ100 tractor-type drilling machine features:
HQZ100 tractor-type drilling machine can be equipped with black King Kong and Xuanhua company's CIR80 and IR90 submersible impacters and drill bits according to user's needs. HQZ100 vertical drilling machine for drilling workers, ground drilling, with a large diameter drilling, drilling depth, footage fast, flexible mobile, the use of geographical advantages.
| Item | parameter |
Drilling diameter(mm) | Ø110-300 |
Drilling depth(m) | 30-150 |
Drilling angle(°) | 90 |
Advance length(mm) | 1500 |
Rotating speed | 0~78 |
Air pressure(Mpa) | 1.3-2.7 |
Air consumption(L/min) | 18 |
Weight(KG) | 2500kg |
Tactor power(HP) | 25-50 |
Impactor | 350/360/380 |
Drill rod(mm) | Ø73/76/89 |
Follow pipe | Ø138-219 |
Dimension(mm) | 3300*1400*2500 |
