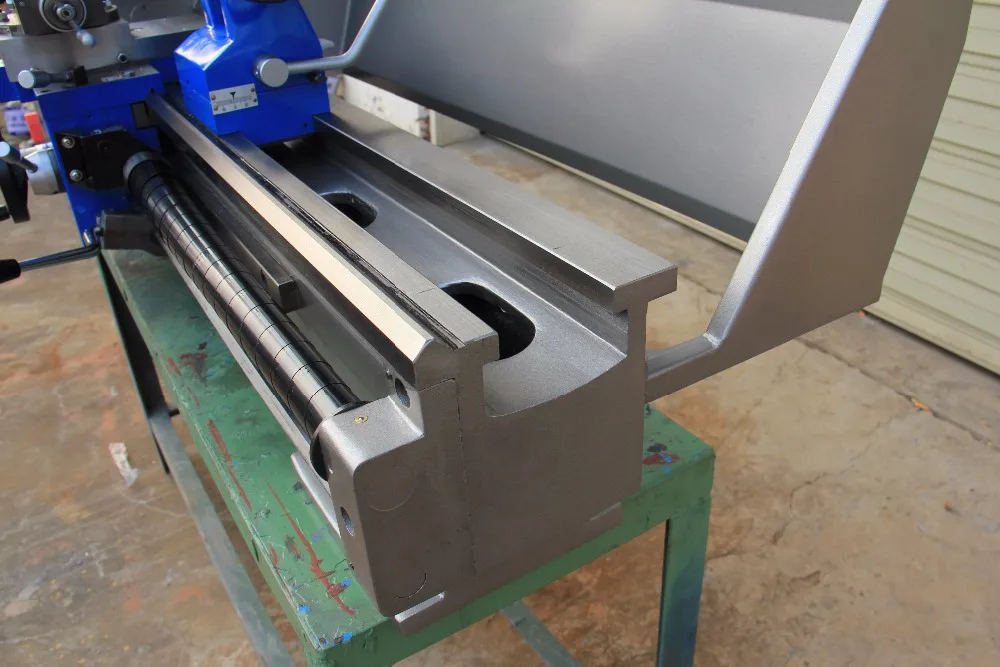

1. Precision ground and hardened bed ways. 2. The spindle is supported with precision roller bearings. 3. Headstock gears are made of high quality steel, ground and hardened. 4. Easy operating speed change levers. 5. Spindle speed range 60-1600rpm. 6. Two different lengths of bed are available. 7. With or without cabinet according to requirement.
Specification

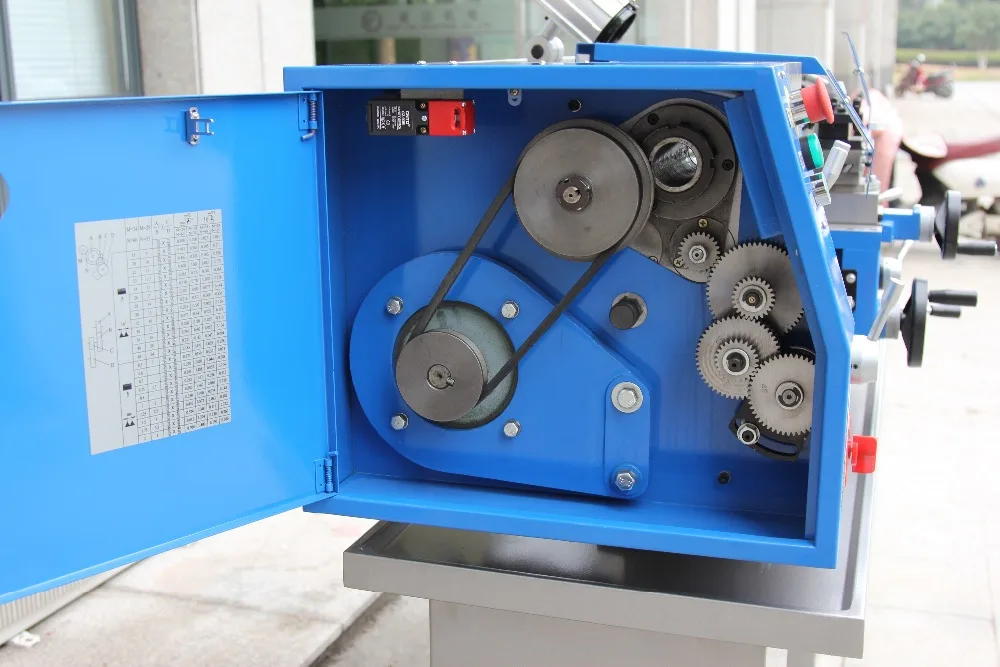

CJM320A-600/750mm
Max. swing over bed
330mm
Max. swing over cross slide
220mm
Max. length of work piece
600mm/750mm
Width of bed
160mm
Spindle taper and bore
MT5/38mm
Max.lateral stroke over tool post
160mm
Metric pitches range
0.5-4 mm
Inch pitches range
9-40 T.P.I
Longitudinal-feed range
0.135-1.80mm/r

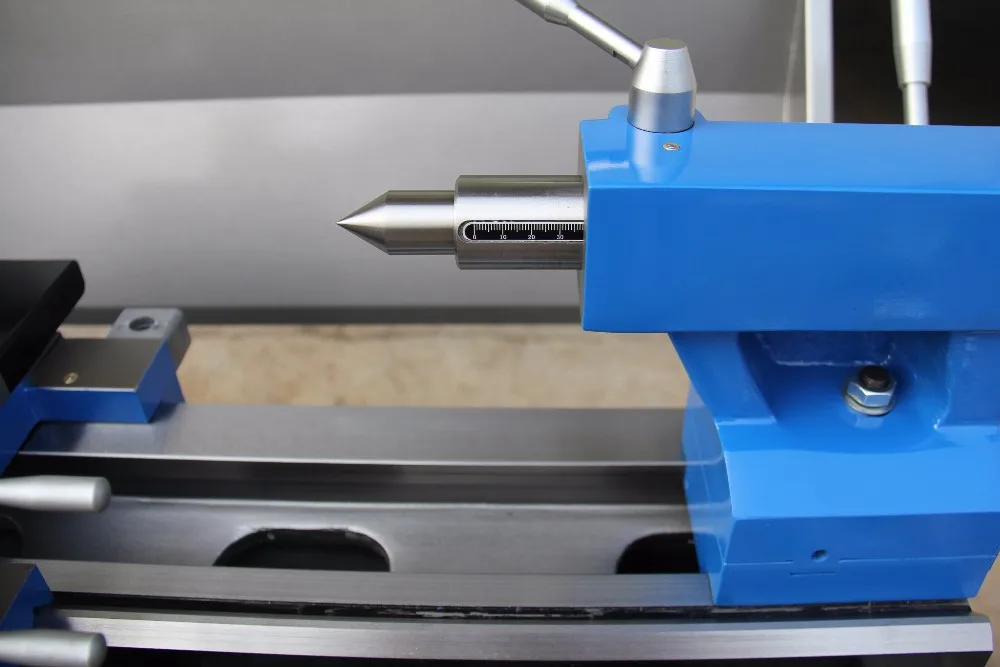

Max. travel of tailstock sleeve
70 mm
Tailstock sleeve taper
MT3
Spindle speeds range
60-1650r/min(50hz)
Motor
1.1Kw
NW/GW (without stand)
280/300kg 320/340Kg
Packing size (without stand)
1330x760x720/1550x760x720mm
Packing size
1330x760x1370/1550x760x1370mm
