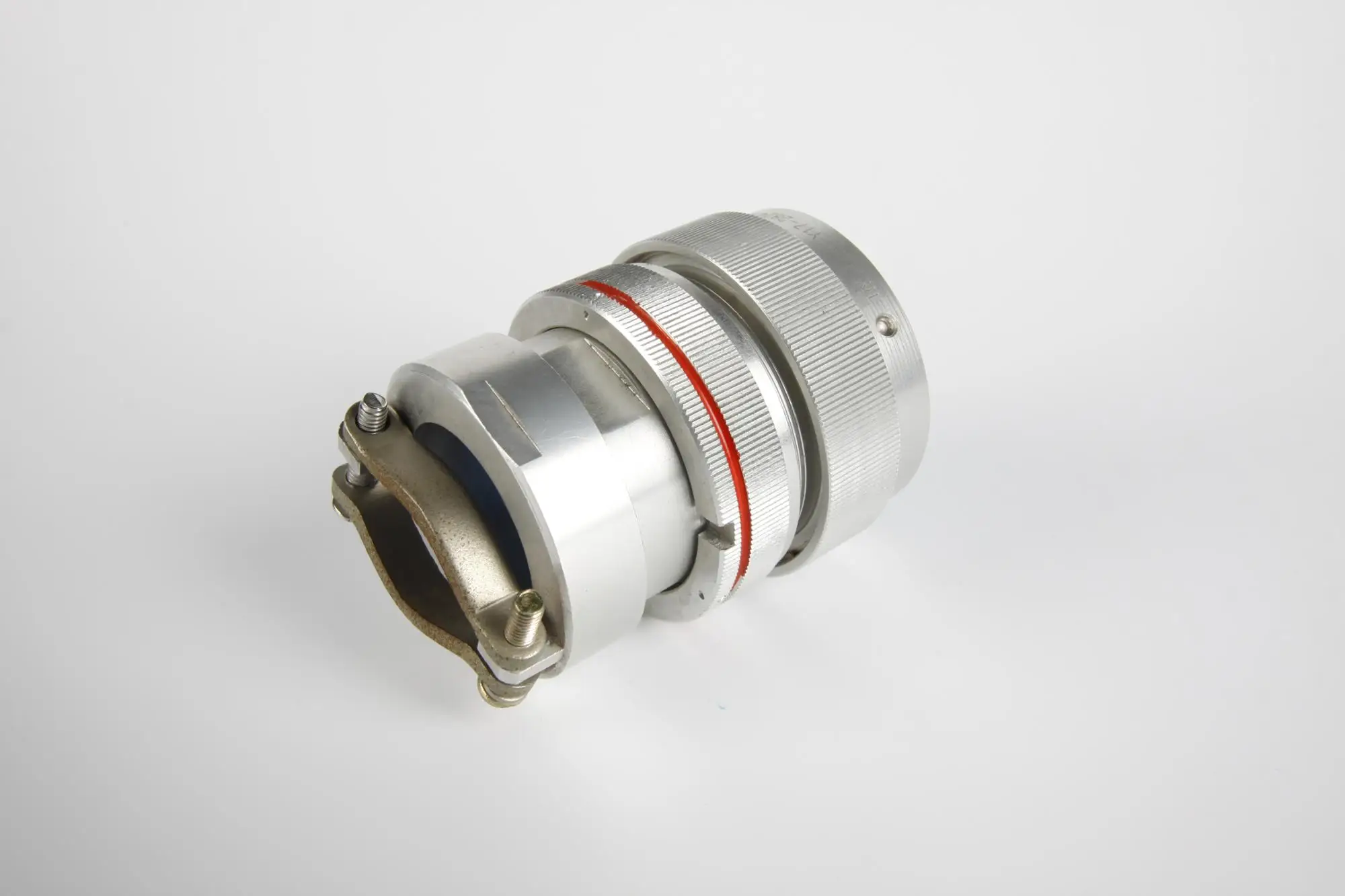

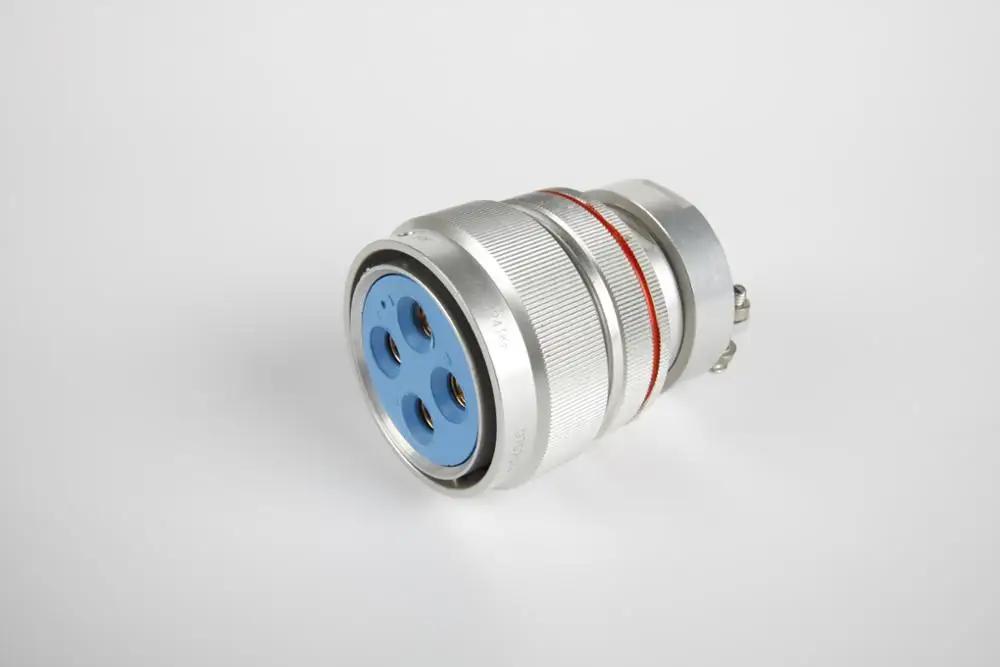

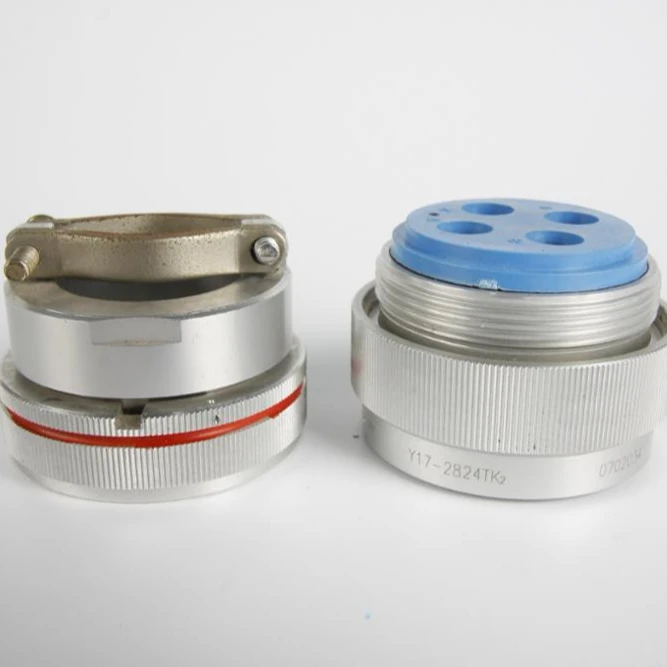

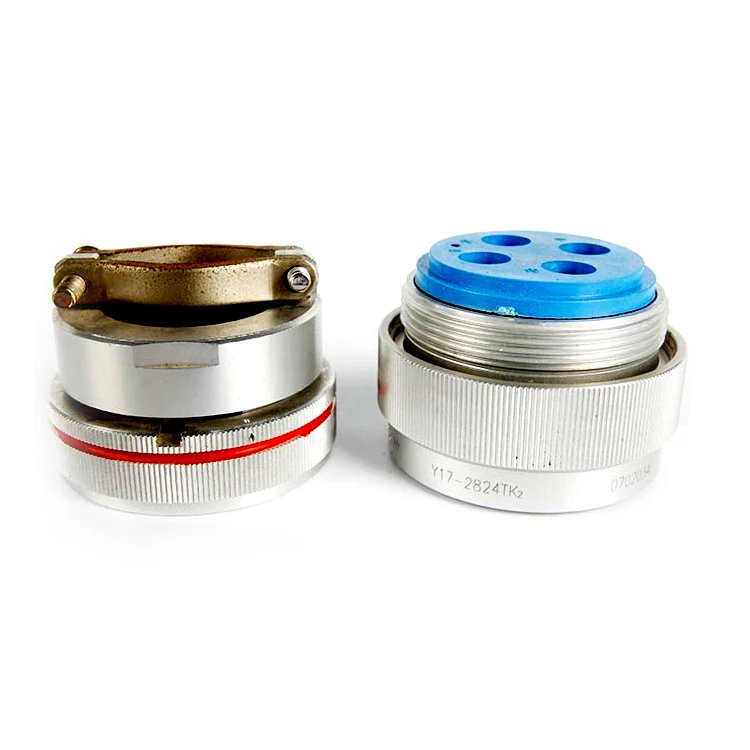

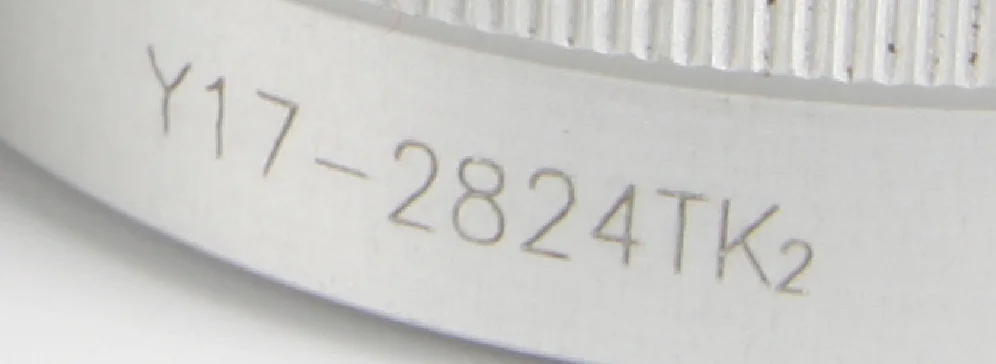

Y17 2824TK2 покрытые никелем, военный круговой разъемы от китайского поставщика
- Category: Circular Connectors >>>
- Supplier: Taixing Hangjie Electronic Co. Ltd.
Share on (60764664617):
Product Overview
Description
Product Description
Y17 series circular electric connectors adopts a bayonet type connection, convenient use, reliable locking, widely applicable to all kinds of electrical equipment between the circuit connection
HOW TO ORDER
| Marking, code and meaning | |||||||||||
| Series Y17 series circular electric connectors Y17 | -12 | 04 | Z | J | 10 | -2a | |||||
| Shell NO. 10,12,16,20,18 | |||||||||||
Contacts NO. 01,03,04,07,12,19,24 | |||||||||||
| Shell Type T-Plug Z-Receptacle | |||||||||||
| Contacts Type J-Pin K-Socket | |||||||||||
| Socket installation method and plug cable cover form | |||||||||||
| Socket installation method 10-Square Flange 11-Circular Flange | |||||||||||
| Plug cable cover form 2- Clamp Type 2a-Large Clamp Type(Only NO.20 Shell) | |||||||||||
| 2b-Small Clamp Type( Only NO.20 Shel) 3- Potting type | |||||||||||
| 4-90°curved type 5- Heat shrinkable tube I type 5a- Heat shrinkable tube II type | |||||||||||
| Socket cable cover type | |||||||||||
| 2-Clamp type 2a-Large clamp type(Only NO.20 shell) | |||||||||||
| 2b-Small clamp(Only NO.20 shell) 3-Potting type | |||||||||||
| 4-90°curved type 5-Heat shrinkable tube I type 5a- Heat shrinkable tube II type | |||||||||||
Type Designation Introduction
| NO. | Tpye Designation | Type | Design |
| 1 | Identification Code | Circular Connector | Y17 |
| 2 | Shell Size | 10,12,16,20,28 | Number |
| 3 | Arrangement NO.of Contacts | To"The Number and Arrangement of Contacts" | Number |
| 4 | Plug or Receptacle | Plug | T |
| Receptacle | Z | ||
| 5 | Contacts Style | Pin | J |
| Sockets | K |
Conditions of use environment
| Environmental temperature | -55 ° C ~ +125° C |
| Relative Humidity | at+40° C,95% |
| Working Height | Elevation 30000m |
| Sinusoidal Vibration | 10 ~ 2000HZ, 196m/s2 |
| Constant Acceleration | 490m/s2 |
| Shock | 490m/s2 |
| Rated Voltage | 500V |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Withstand Voltage | 1500V |
| Durability | 500 |
Company Information
Our products are widely used in aviation,aerospace,boat,telecommunication,railway,medical
appar- atus, car, oil survey and so on. Parts of them are sold abroad. Having excellent
characteristics such as small size,high density,suitable for any circumstance,leakage,proof,
nice shielding performance,easy to operate,high reliability and high contents of technological,
our products have received good remarks from our clients all over the world.
1> Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
2> Q:How can I get samples?
A: It's my honor to offer you samples,but we can only give
you one free sample,and the freight should be paied by yourself.
3> Q:How does your factory do regarding quality control?
A:Quality is priority.New era people always attach great importance to
quality controlling from the very beginning to the very end.Our factory
has gained ISO9001,GJB9001,QPL lSO14001,certificates.
