XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land
XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land

XDEM Drilling Machine for Water Wells Hydraulic Water Well Drilling Rig/Portable Digging Machines Hard Rocks Gravel Solid Land

Share on (60764689034):


Price:$8,000.00

Quantity:


Product Overview

Description

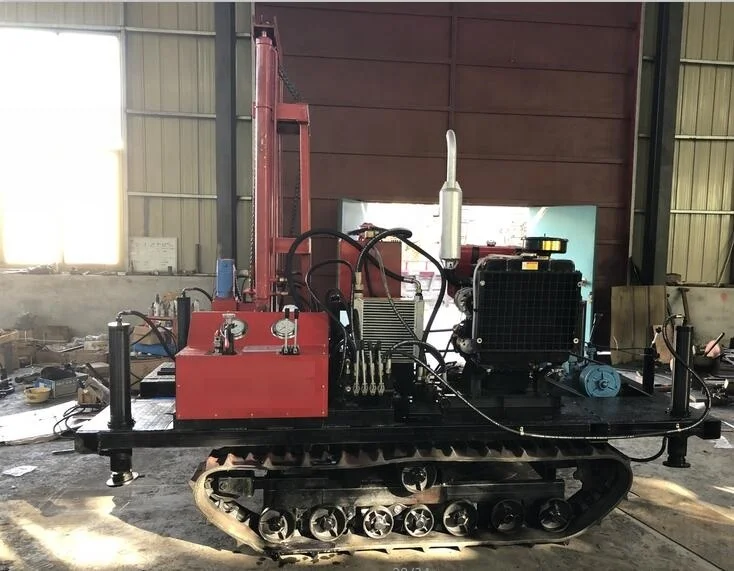

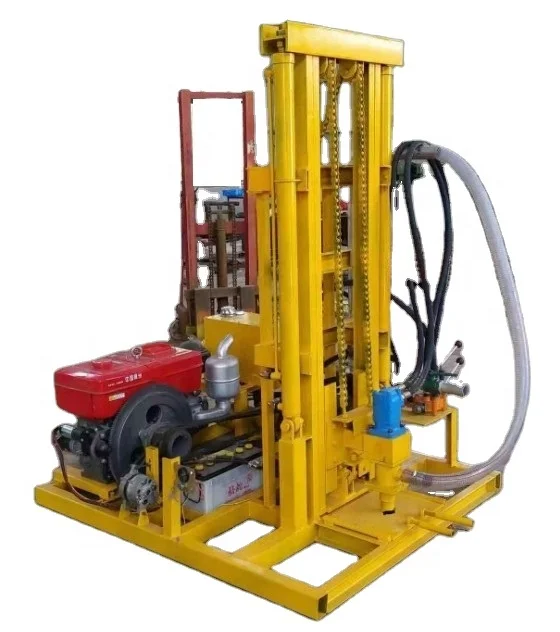

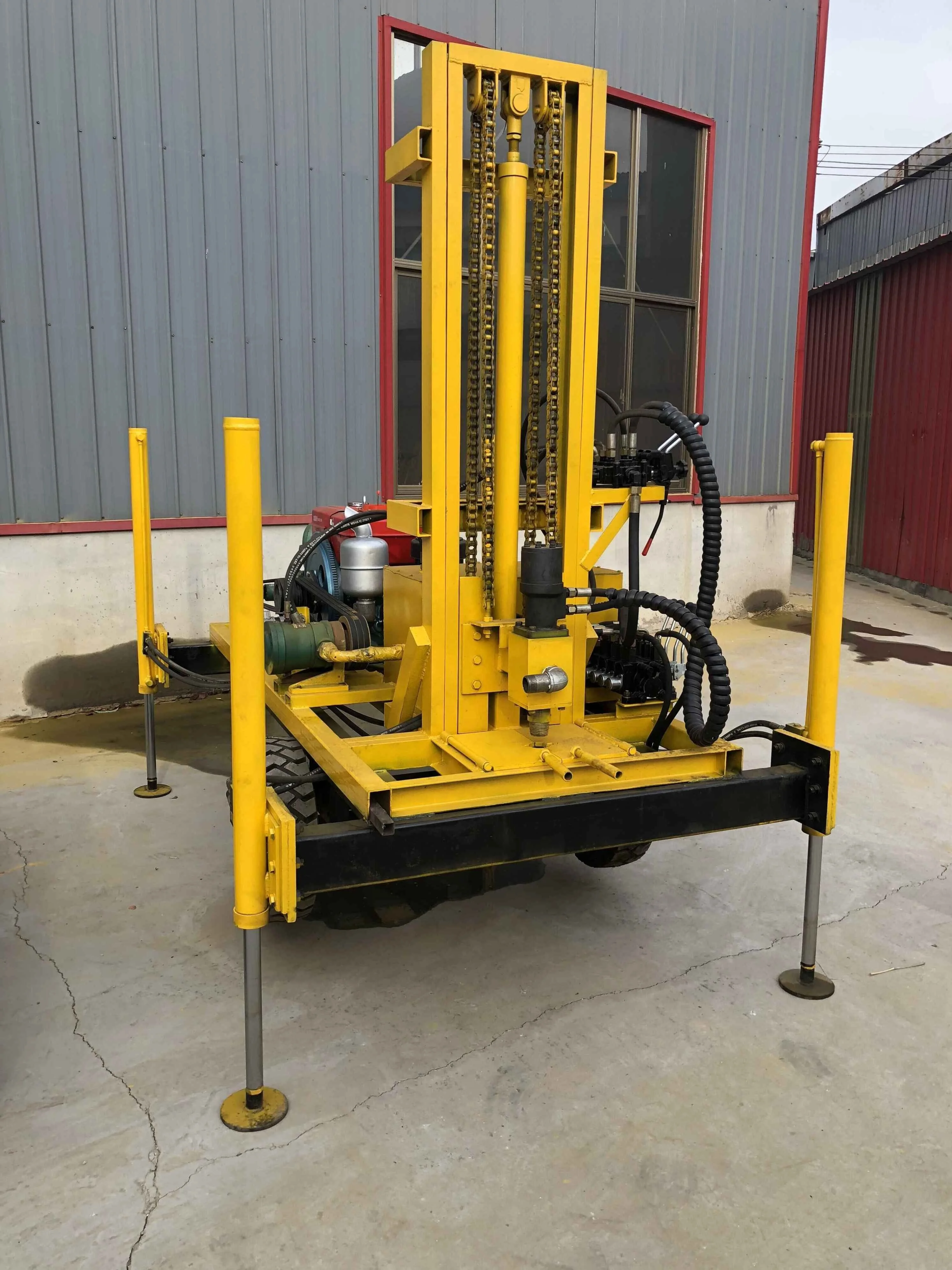

XDEM YZ50-150H full hydraulic drilling rig/portable digging machines/borehole drilling machine







This water well rig is suitable for drill rig is a portable hydraulic drive and great torque drill rig with water pump, mainly used in small water well, core drilling, exploration, road and building prospecting, etc.





YZ50-150H Features:


1. Telescopic drill tower;


2. Double hydaraulic rod lifting and lowering systems with strong power, lifting power up to 10ton.


3. Hydraulic chassis with wheels can be equipped;


4. Can drill all kinds of land condition from soft to hard.











Main Diameter of the water well rig:

























































Working Way



Hydraulic



Power Source



Diesel Powered



Total Power



25Hp



Max Drilling Depth



210m



Max Drilling Diameter



300mm



Drilling Angle



0°-  90 °



Rotation Speed



0-150r/min (Continuously Variable Transmission)



Max Torque



700Nm



Max Lifting Force



100KN



Machine Height



3.2 M (working state) 2.2M ( transportation state )



Weight



800 Kg



Dimension



3000 x 1300 x 2200 MM









Options:

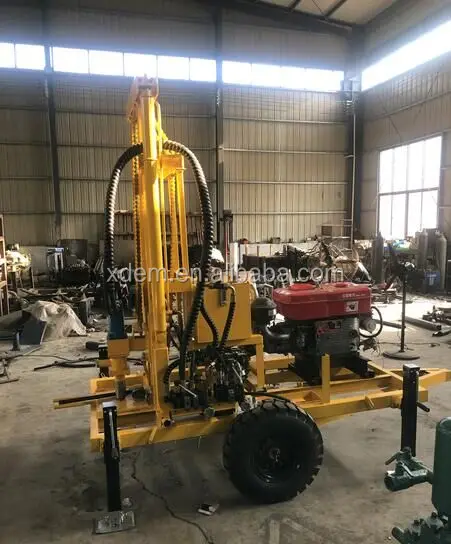

Wheels & Manual Legs:







Chassis with hydraulic legs:







Crawler with controls:







Matching mud pumps:


Matching mud pump.JPG


Drilling pipes and tools:


drilling pipes and tools.JPG
