Automatic High Effective Portable Ultrasound Bone Densitometer With CE Approval

Technical features:

1. Using the full dry technology,  makes diagnostic more convenient.

2. The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.

3. the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal

4. use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data

5. With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.

     6. With a special correction system, to correct the system error effectively, get more accurate measurement results.

     7. Multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

     8. It with multi countries clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100

     9. English menu

    10. The first one pass EMC test

    11. CE certificate.

    12. ISO Certificate.

Performance parameter:

 1. Measurement parts: radius and Tibia

 2.  Measurement  mode: double emission and double receiving

 3. Measurement parameters:  Speed of sound (SOS)

 4. Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year]  (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).

 5. Measurement  Accuracy : ≤0.3%

 6. Measurement Reproducibility:  ≤0.3%

 7. Measurement  time: <25 seconds

 8. Probe frequency : 1.20MHz

 9. Date analysis :  it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .

10.  Temperature control: Perspex sample with temperature instructions

      11.Probe measurement navigation:  this equipment display the Axial angle ,  the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data.  It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.

12.  Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.

13. Daily Calibration:  automatic calibrating after power on.

14. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old,  only need to input the age and recognizing automatically .

15. Temperature display calibration block:  the calibration with pure copper and Perspex,  the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.

16. report mode: color

17.  Report format: supply A4, 16K ,B5 and more size report

18. Bone densitometer main unit: Drawing Aluminum mould manufacturing, it is exquisite and beautiful

19. Bone densitometer main unit weight>3.3 kgs

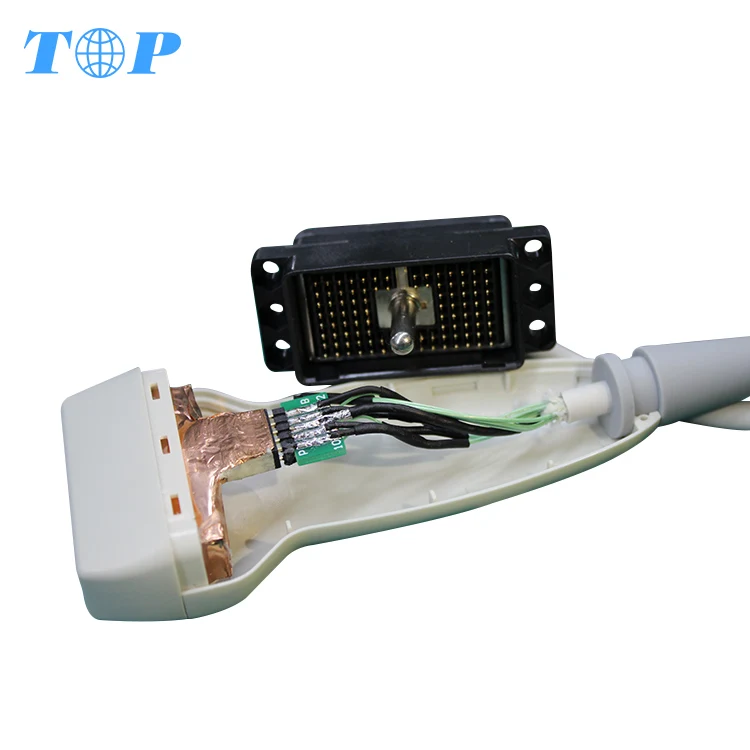

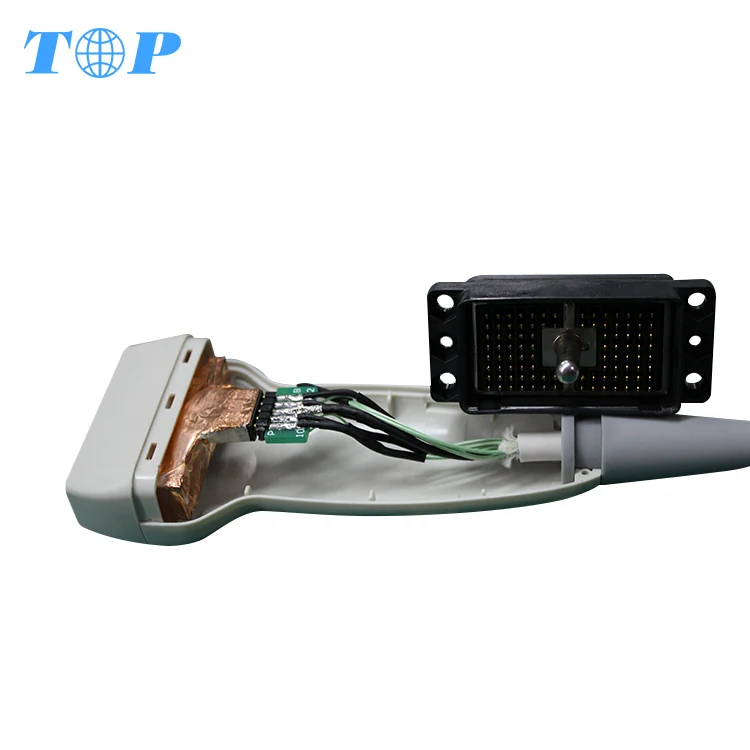

20.  Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

21. Computer Main Unit: the original Dell Rack business Computer. Signal processing and analysis are fast and accurate. (optional )

22. Computer configuration:  original Dell business configuration: G3240, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse. (optional )

23. Computer Monitor: 20’ color HD color LED monitor. (optional )

24. Trolley(optional)

25.Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7

26. External medical special power supply, power>60W

27.  Connect to the internet and provide remote services.

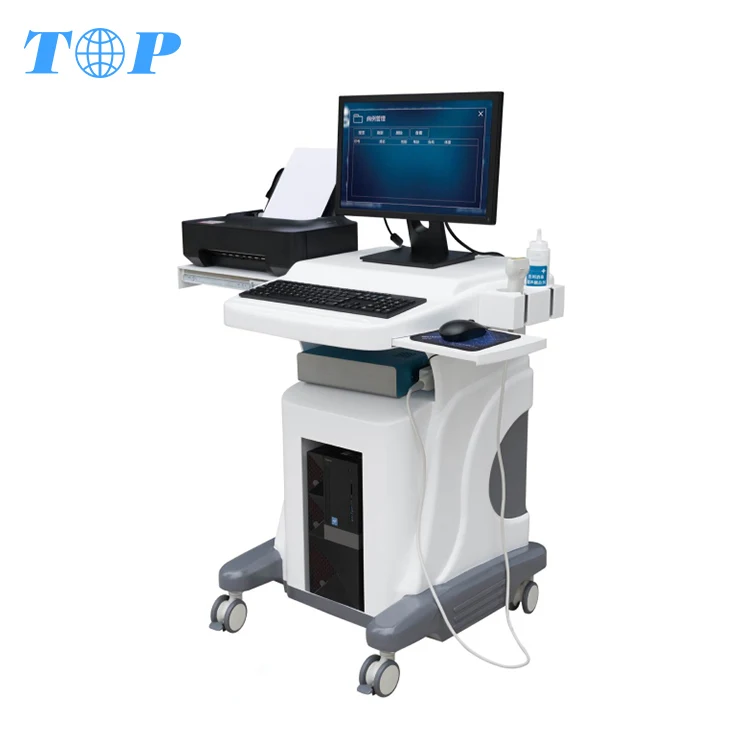

Configuration:

  1. BMD-A1 Ultrasound Bone Densitometer Main unit

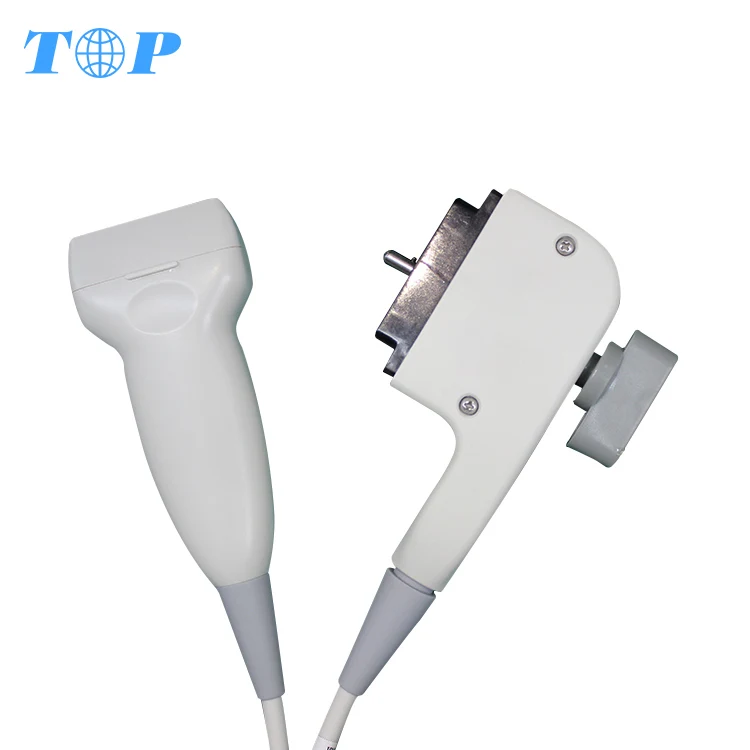

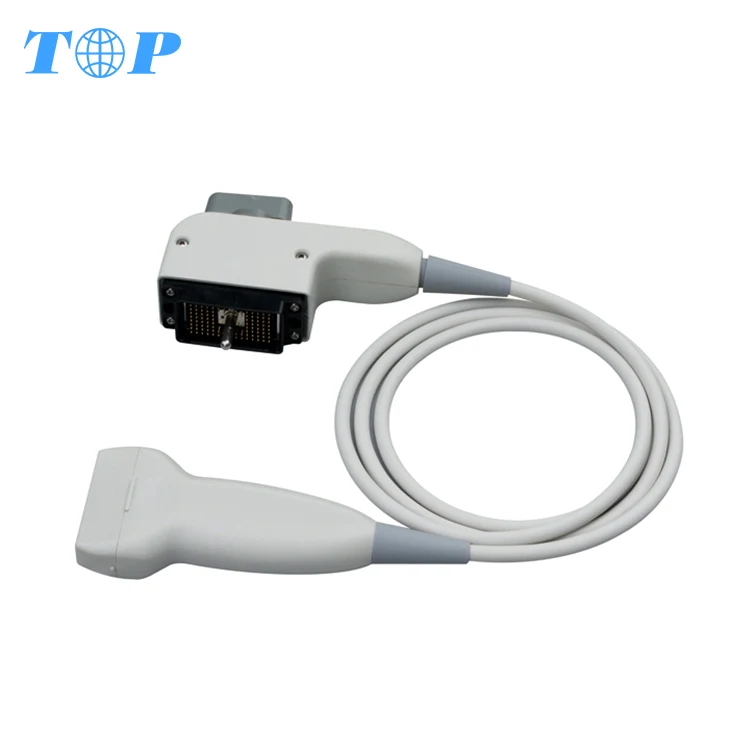

  2. 1.20MHz Probe

  3. Intelligent Analysis System

  4. Luxurious Trolley

  5. Dell Business Computer with i3 CPU

  6. Dell 19.5 Inch Color LED Monitor

  7. Canon Color Ink Jet Printer IP2780

  8. Calibrating Module (Perspex sample)

  9. Disinfectant Coupling Agent

1. One Carton

Size(cm): 61cm×58cm×49cm

G.W.20 Kgs

 N.W: 20 Kgs

2. One Wooden Case

Size(cm): 68cm×64cm×98cm

G.W.40 Kgs

 N.W: 32 Kgs

1. Can I have a sample order?

Yes, we welcome sample orders to test and check.

2. What are your trading terms?

We usually accept FOB Guangzhou, T/T 30% deposit, and 70% balance before shipment.

3. How do you ensure your products quality?

Production or inspection report before the goods packing. And we got CE, ISO certification.

4. What about your after-sale service?

We have a professional team for after-sale service. Our team will follow the order once you ordered.

5. What is your warranty policy?

1-2years due to different products and lifetime maintaining.
