Special factory sale kovar alloy 4J29 Techallony with strict QA&QC inspectors

Product Overview

Description

kovar alloy 4J29 Techallony



The expansion characteristics of Kovar match both borosilicate (or Pyrex) glasses and alumina ceramics, making it one of the most popular of the controlled expansion alloys for hermetic sealing applications.



Kovar alloy is a iron-nickel-cobalt, low expansion alloy whose chemical composition is controlled within narrow limits to assure precise uniform thermal expansion properties. Kovar alloy has been used for making hermetic seals with the harder Pyrex glasses and ceramic materials.



Specification



ASTM	UNS	W.Nr
F15	K94610	1.3981



Kovar Chemical composition



Grade	%	Ni	Cr	Fe	Co	Cu	C	Mn	Si	P	S	Mo
Kovar	Min	28.5		Bal.	16.8
	Max	29.5	0.2		17.8	0.20	0.03	0.50	0.30	0.02	0.02	0.20



Kovar Coefficient of linear expansion

Grade	a/10-6·K-1
Kovar	200-300°C	20-400°C	20-450°C
	/	4.6-5.2	5.1-5.5



















1.Delivery conditions and finishes:

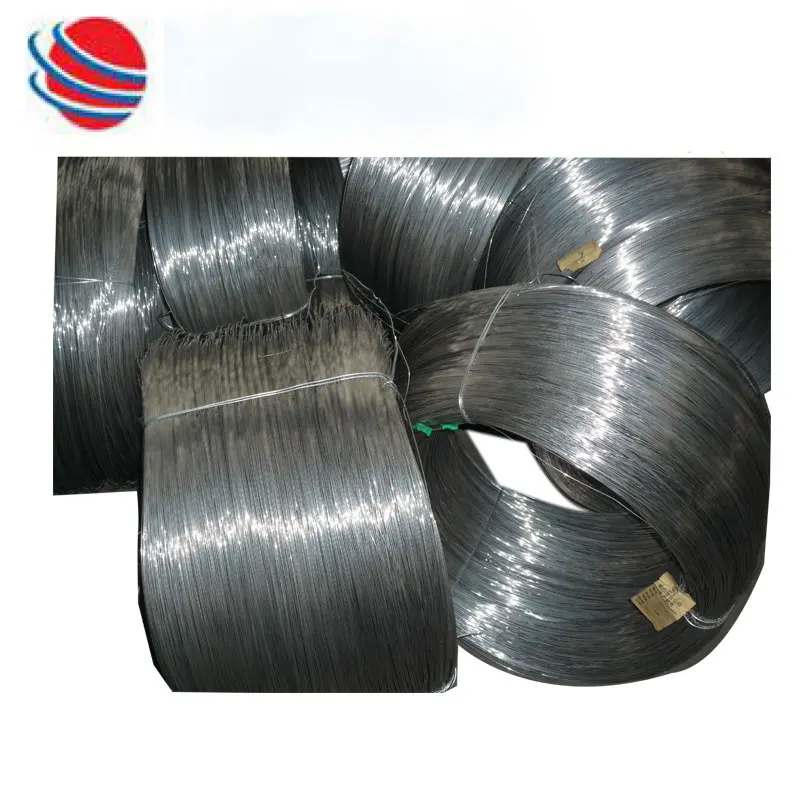

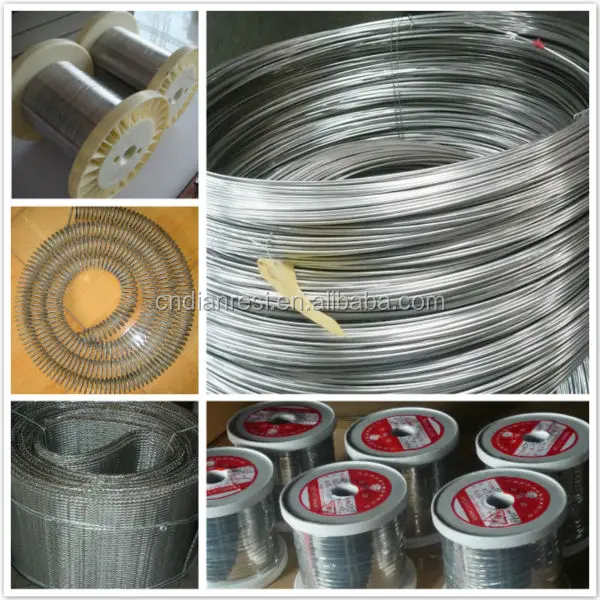

Wire & coils: bright soft in oxidation condition; annealed soft wire ; half-soft bright wire

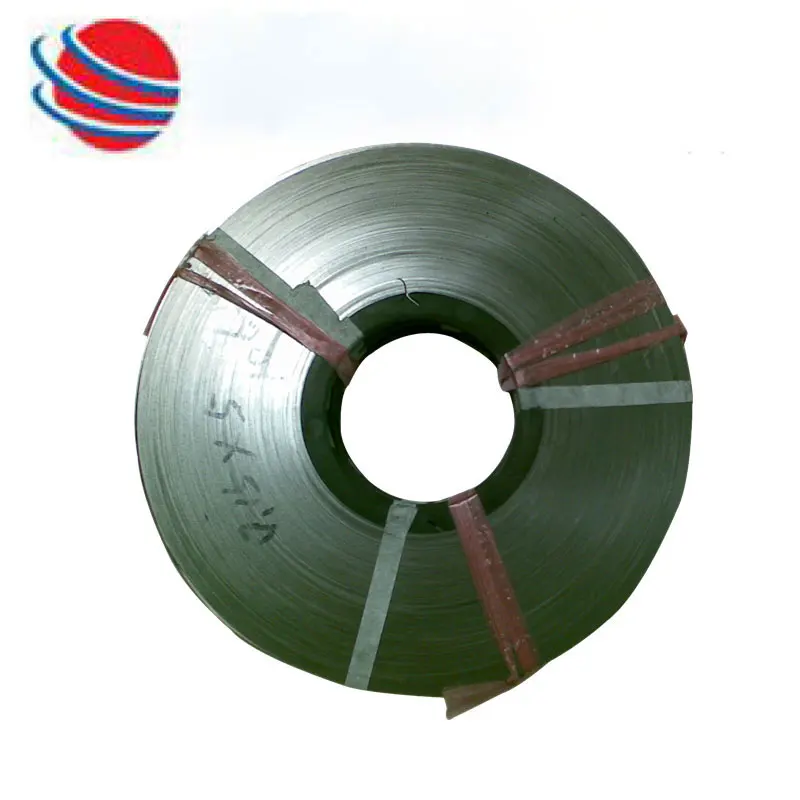

Strip:bright surface; special requirements made as the clients



Bar:hot-rolling, cold drawing, bright surface;  solid solution treatment; tempering etc;

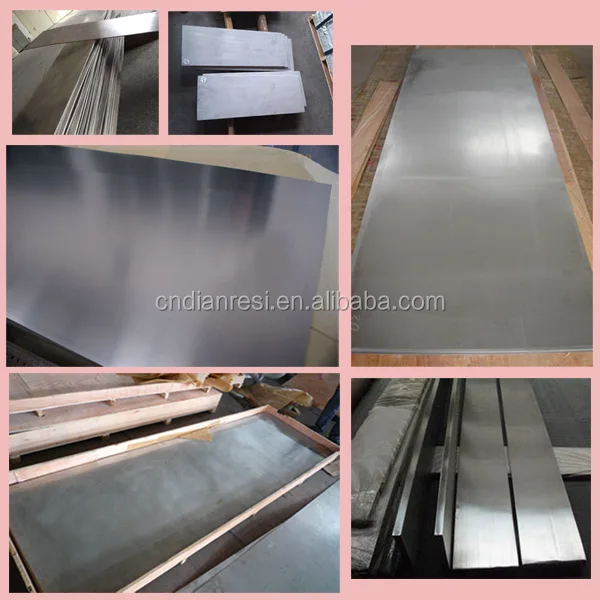

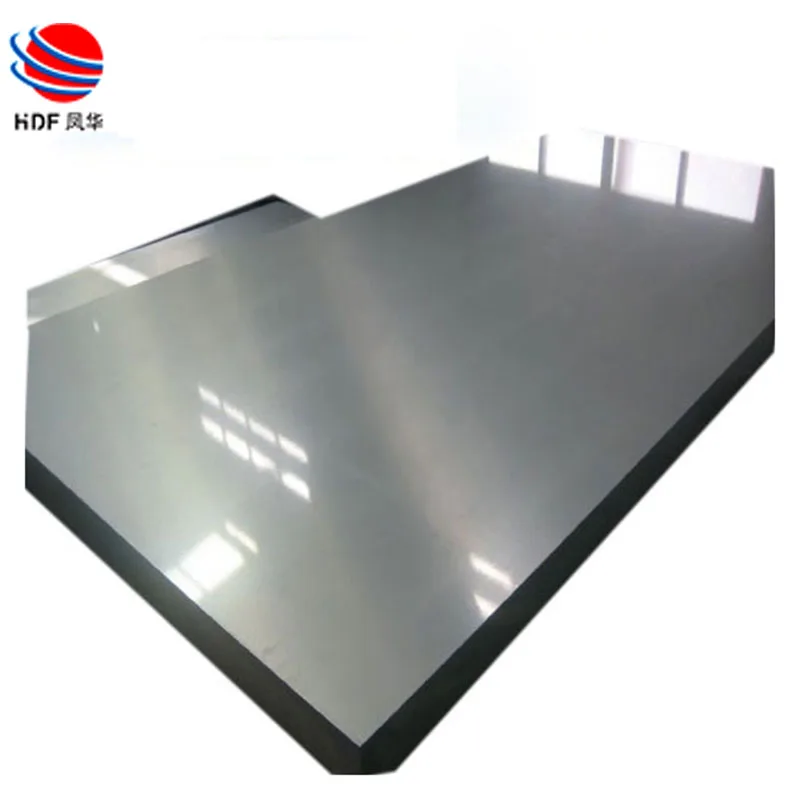

Sheet: hot-rolling, polishing, picking, bright etc



Forging: black surface, bright surface, picking etc

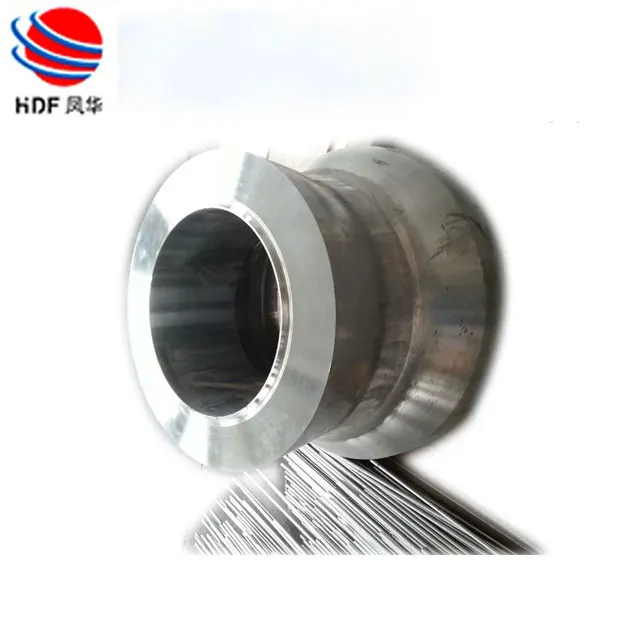

Machined Parts: made as per the clients requirements



Welding wire & welding strip



The quality certificate will be shipped along with goods.



2.MOQ:



50-100 kgs per each size



3.Packing



Standard export packing, carton with plywood case for safety



Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil

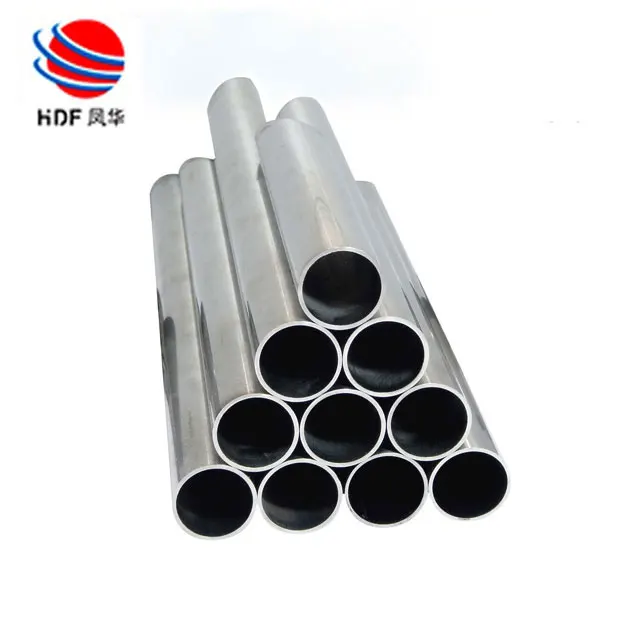

Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first



Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool



The goods can be packed as the clients demand.



4.Delivery time:



We can do the order 45-50days upon receive the 30% deposit or L/C document.



5. Payment:



T/T, 30% deposit and the balance paid against the B/L copy.



100% L/C at sight;



Wesetern Union;



Paypal;



6:Shippment:
By Sea;



By Air (DHL,TNT,UPS,FEDEX etc)
