JGR3L Professional Laboratory Chemical High Pressure Jacketed Glass Reactor
- Category: Reactors >>>
- Supplier: Shanghai,Yuanhuai,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

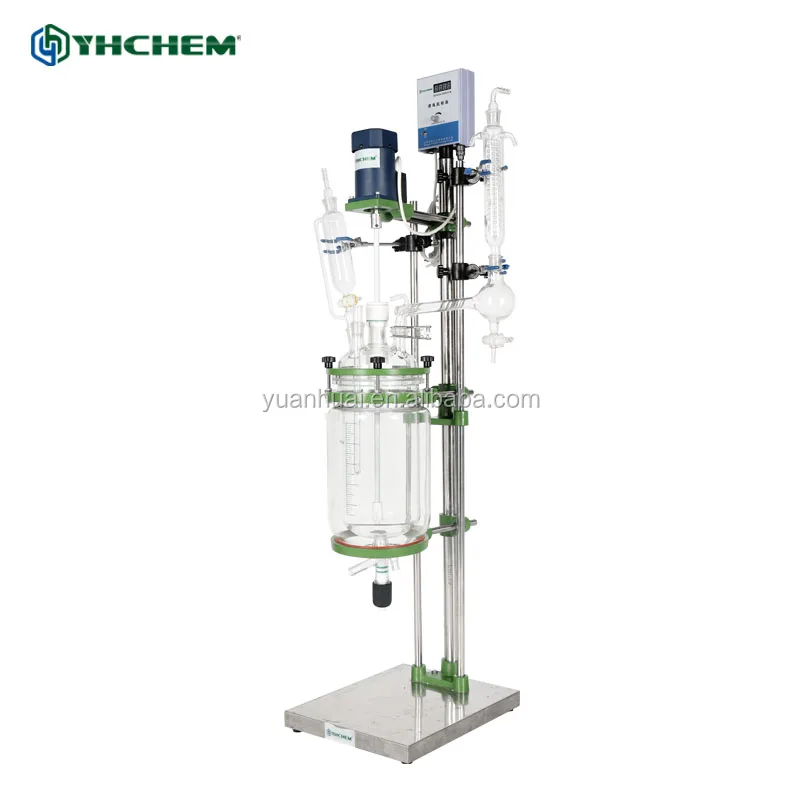

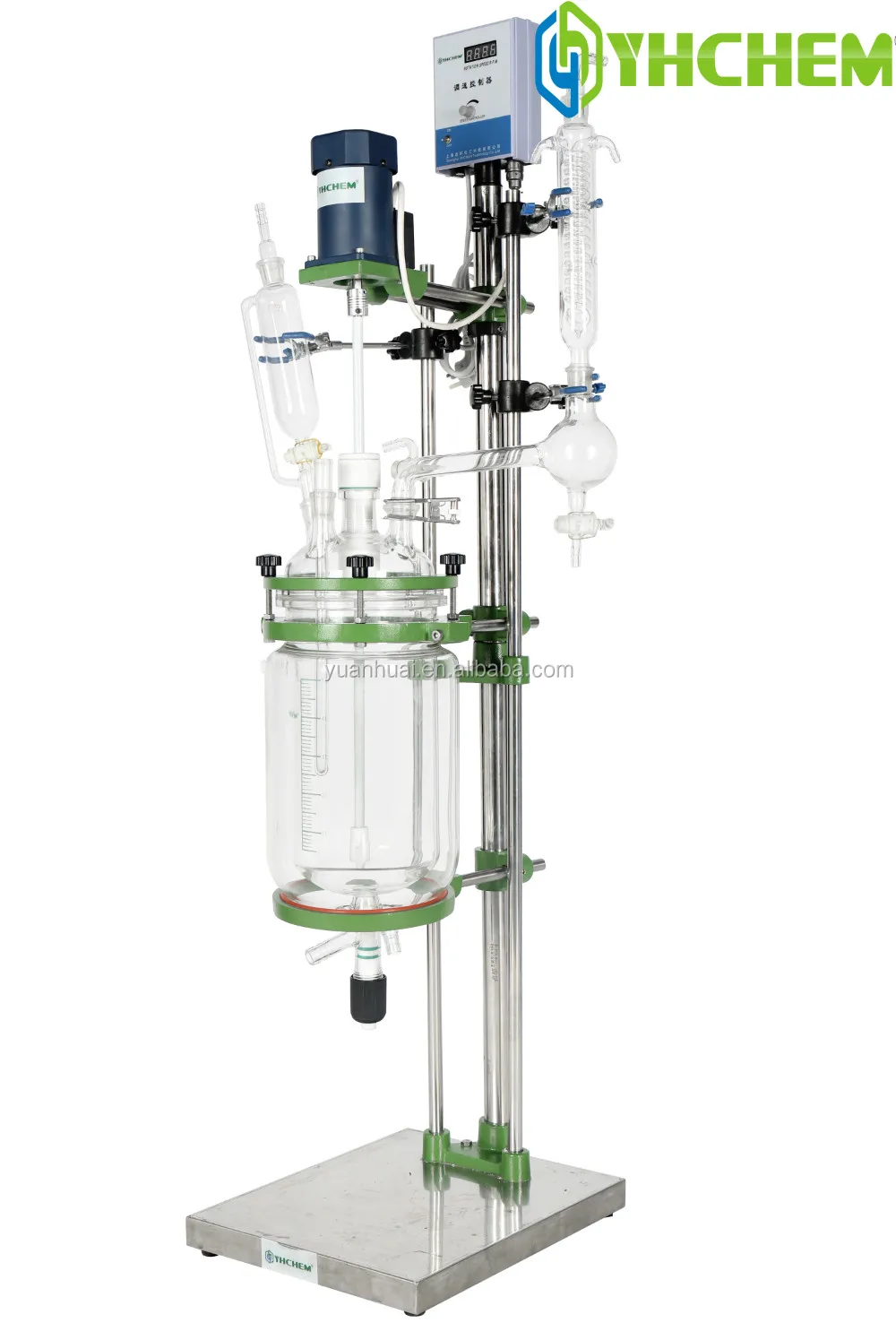

JGR3L Professional Laboratory Chemical High Pressure Jacketed Glass Reactor
About 3L Professional Laboratory Chemical High Pressure Jacketed Glass Reactor:
The photochemical reactor has been widely used in chemical reaction, combination, separation and concentration. Different heating or cooling liquids, such as water or oil, can be injected in the interlayer of 1L lab glass reactor for providing a constant temperature for reactions. It also can provide excellent mixing in the jacketed heating reactor under positive or negative pressure. The transparent glass structure can be helpful to monitor the complete reaction.
Structure demonstration of High Pressure Jacketed Glass Reactor:
Features of High Pressure Jacketed Glass Reactor:
- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties
- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
- Frequency-conversion stirring system + PTFE seal & bearing system
- Digital display and control
- Easy-to-install modular design for exceptional ease and low cost of maintenance
- High quality SUS304 frame
Specifications of High Pressure Jacketed Glass Reactor:
Model | JGR1L | JGR2L | JGR3L | JGR5L | |||
Volume (L) | 1 | 2 | 3 | 5 | |||
Neck No. on lid | 5 | 5 | 5 | 5 | |||
Jacket volume (L) | 0.5 | 1 | 1.5 | 2 | |||
Max. torque(N.cm) | 200 | ||||||
Stirring power(W) | 90W | ||||||
Rotating speed(rpm) | 0~1350 | ||||||
Power supply | 220V/50-60Hz (110V) | ||||||
Discharge | PTFE Bottom Discharge Valve | ||||||
working temp range | -60 to 200°C | ||||||
* Volume of photochemical reactor can be customized from 1L-200L
Attention here:
YHCHEM is a professional chemical and phramaceutical equipment manufacturer and we can produce customized photochemical reactor as per clients' required specifications. YHCHEM is also dedicated to provide the best product solution for clients' lab or pilot scale experiment.
Detailed Images
Machine Parts

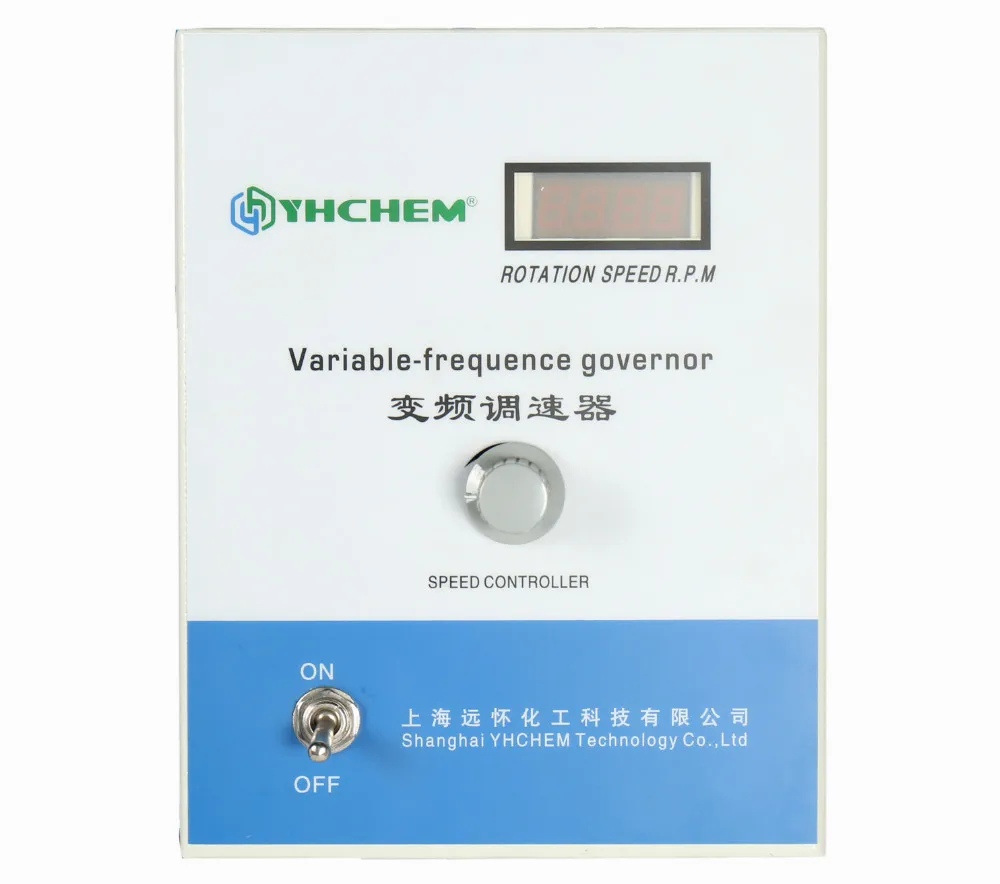

Name:Speed Controller
Brand: YHCHEM
Original:China (Mainland)
* Achieve accurate control of stirring speed
* We're professional manufacturer of bioreactor prices.
Machine Parts

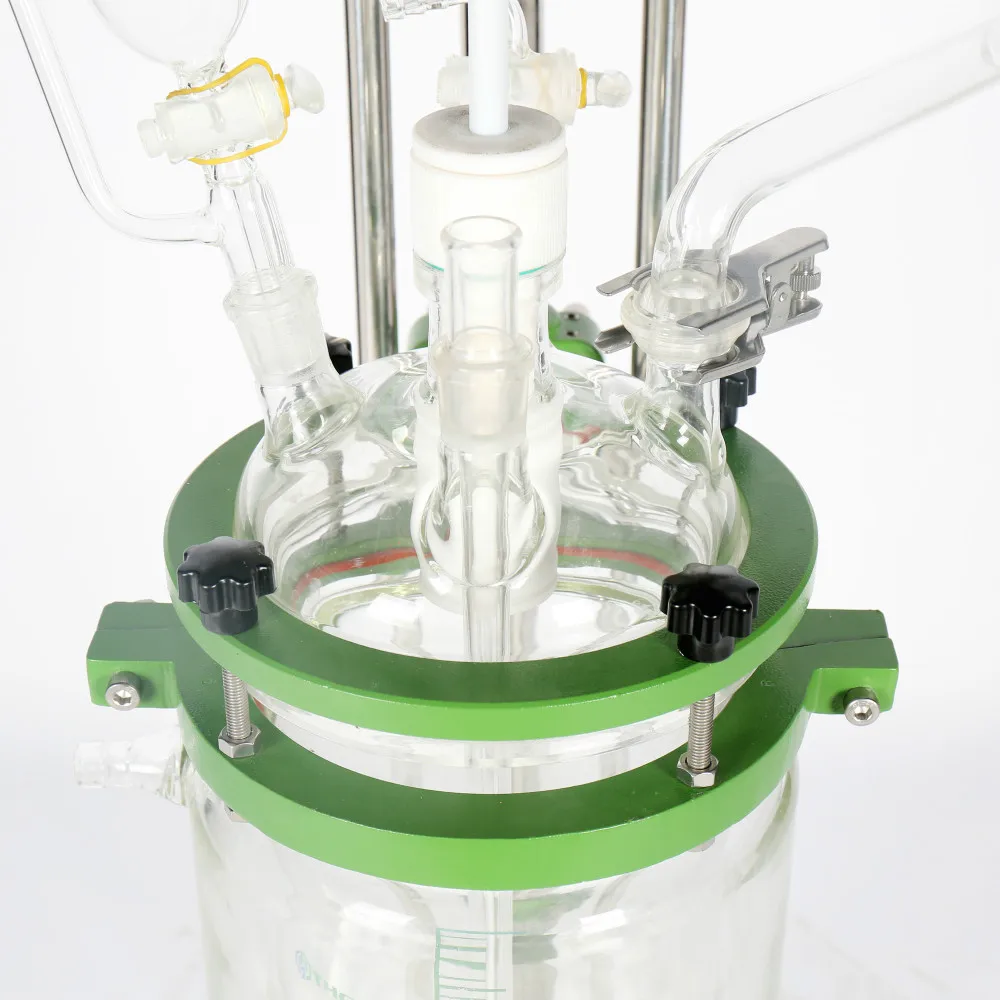

Name:Reactor lid
Brand:YHCHEM
Original:China (Mainland)
* 5-neck lid with additional powder addition port
* Perfect match between lid and reaction flask with
frosted surface for perfect sealing
* Double rugged steel-reinforced anti-corrosive
PTFE agitator with anchor to lead enough and
even mixing
Machine Parts

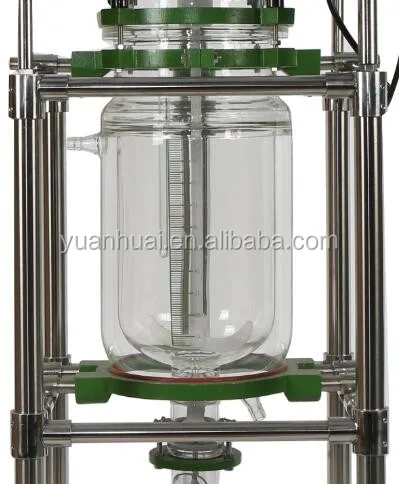

Name:Double layer jacketed kettle
Brand:YHCHEM
Original:China (Mainland)
* Made high-borosilicate glass 3.3, with good
physical and chemical performance
* Clear and transparent design allows the operator
to see lively reaction process.
* We also have single layer and triple layer reactors
◊ Excellent production skills to each small part , forsted port with good sealing, stable stainess steel base (SUS304) , rugged steel-reinforced PTFE agitator with anchor and discharge valve (PTFE).
Related Products
Matching products for High Pressure Jacketed Glass Reactor

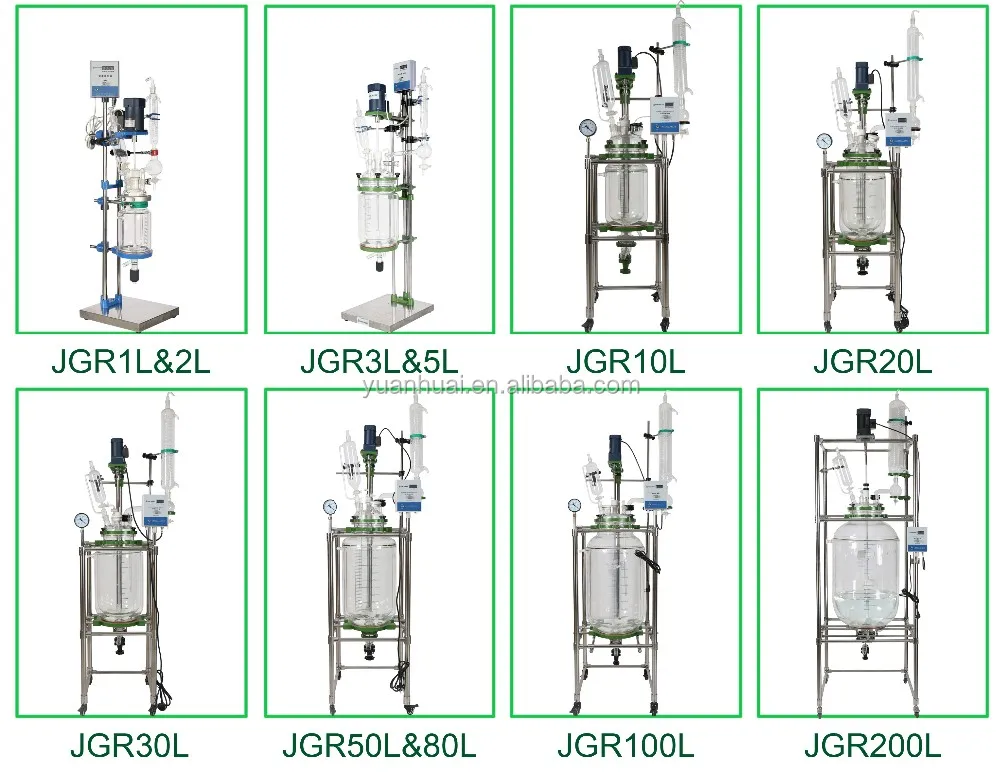

Product series of High Pressure Jacketed Glass Reactor
