Yanling Fanless Mini PC 6LAN 4USB3.0 Intel 3865U&Core I3 7100U Mini Computer (60764797956)

Share on:


Price:$185.00 - $190.00
Price in USD:Details

Quantity:


Product Overview

Description


 Notice: This link's price is barebone system price, with Intel celeron 3865u CPU, doesn't include ram and hard disk, if you need the ram and hard disk, please contact us, we will give you the best price

Yanling Fanless Mini PC Multi Lan Intel 3865U Core I3 7100U Pfsense Computer Support AES-NI

More product  information, please contact May(Skype:may@ ylgkdn.cn)

mini pc server

Product Feature



1) Intel Skylake Core i3 7100U dual core 2.4GHz, Kaby lake Celeron 3865U dual core 1.8GHz Optional

2) 1*HD+4USB3.0+6*LAN+1*Power switch+1*RJ45 COM(support console)

3) 2*DDR4 1866/2133MHz, max 32G

4) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT

5) High-quality Fanless pure aluminum Case

6) 1*MSATA, 1*SATA3.0, 1*mini-PCIE(support wifi /BT)

7) 6*Intel 82583V 1000M lan card, support wake on lan

8) DC-IN 12V power supply and AC power adapter

9) Applied in Firewall, VPN , Network Server, Network Security, Router etc .

Product Display

mini pc servermini pc servermini pc servermini pc servermini pc server

Specifications

Specification

Model

IBOX-501 N13

Case Color

Black(color can be customized)

Material

High-quality pure aluminum

CPU

Intel Skylake Core i3 7100U dual core 2.4GHz, Kaby lake Celeron 3865U dual core 1.8GHz Optional

Chipset

Adopt Intel chipset

Mainboard

120*120mm Nano ITX mainboard

RAM

2*DDR4 1866/2133MHz, support max 32G

Storage

1*SATA3.0, 1*MSATA (16G/32G/64G/128G/256G is optional)

Audio

N/A

Display Interface

1*HD

Display

Integrated Intel HD Graphic card 610/620

I/O

 4*USB3.0

1*HD

1*HDD LED

6*RJ45 Lan

1*Power LED

1*RJ45 COM(support console)

1*Power Switch

1*DC-In 12V

2*WiFi Hole

Network Card

6*Intel 82583V 1000M lan, support wake on lan

Expansion

 1*mini-PCIE, support Wifi/BT

Watch Dog Timer

Support

Power Supply

DC 12V-IN power supply and AC power adapter

Operating System

Windows 7/8/10, Linux, Pfsense

BIOS

AMI 64M DPI Flash ROM

Working Temperature

-10°- 60°C

Working Humidity

0% - 95% relative humidity, Non-condensing

Size

155*126.5*52.5 mm (L*W*H);

Weight

1.6kg;

Packaging & Shipping



 1.Delivery      Time:  1 ~ 3 Days for one sample, 15 Working days for a large quantity.

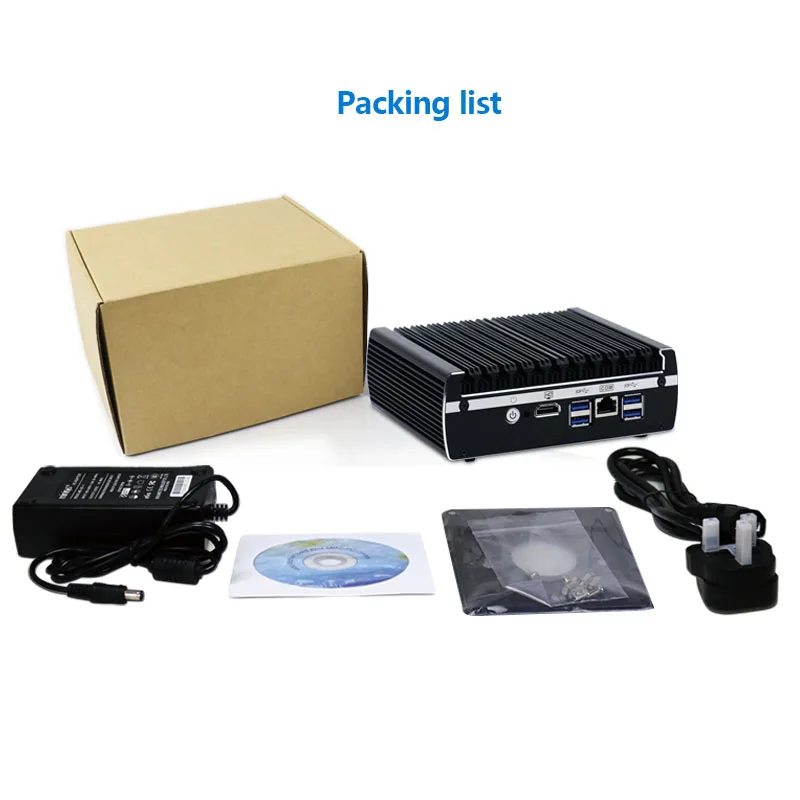

 2.Packaging Ways:  Each pc for one neutral box, ten or sixteen box for one carton.

 3.Shipping    Ways:  For small amount, we advise our customer to take DHL, Fedex, UPS.

                                       For a large quantity, we can support to ship by air or by sea.

mini pc server



Company Information



    YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd.established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.

 YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.mini pc server

     YanLing Industrial Computer Technology (ShenZhen) CO.,Ltd. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.

mini pc server

Exhibition

 mini pc server





Certifications

 mini pc server



Our Advantages



1. As a professional manufacturer and supplier of mini pc over 15 years,we win our customers with good quality,best service and competitive price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team serve for you diligently

4.Sample order is welcomed and will be delivered within 3 days.

5.We are Alibaba assessed 11 years Gold Supplier and more than 15 years industrial experience.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM service according to your requirements.

8.We provide 12 months maintenance warranty for our products.
