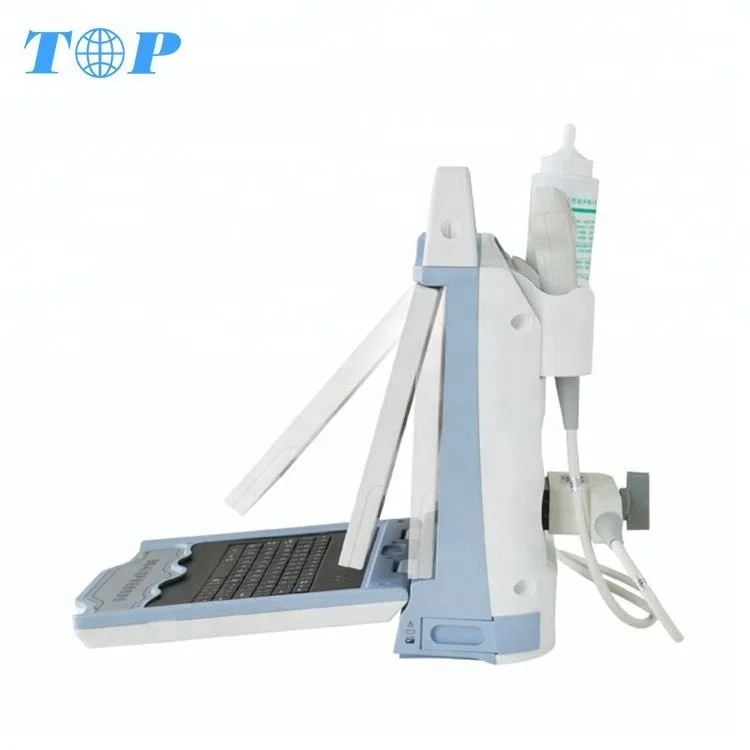

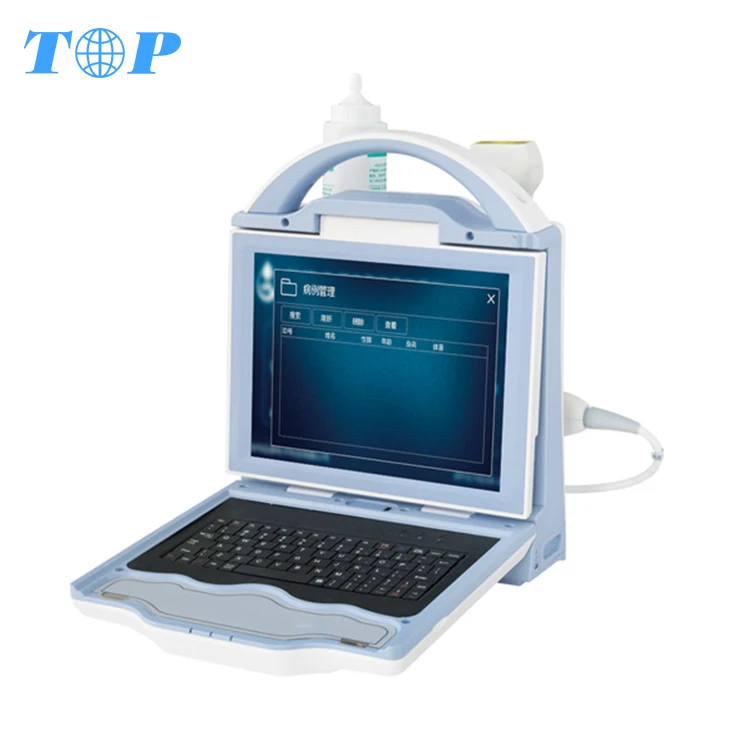

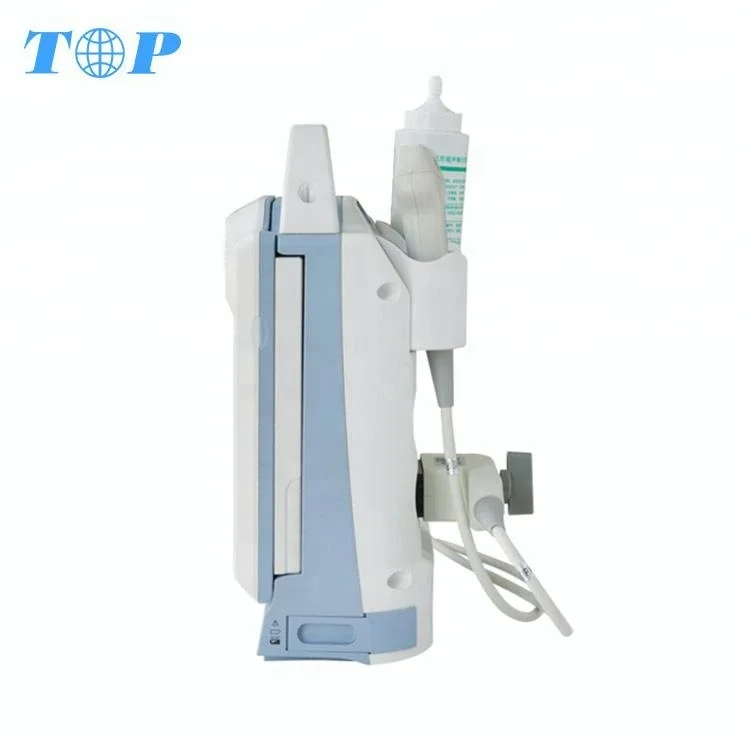

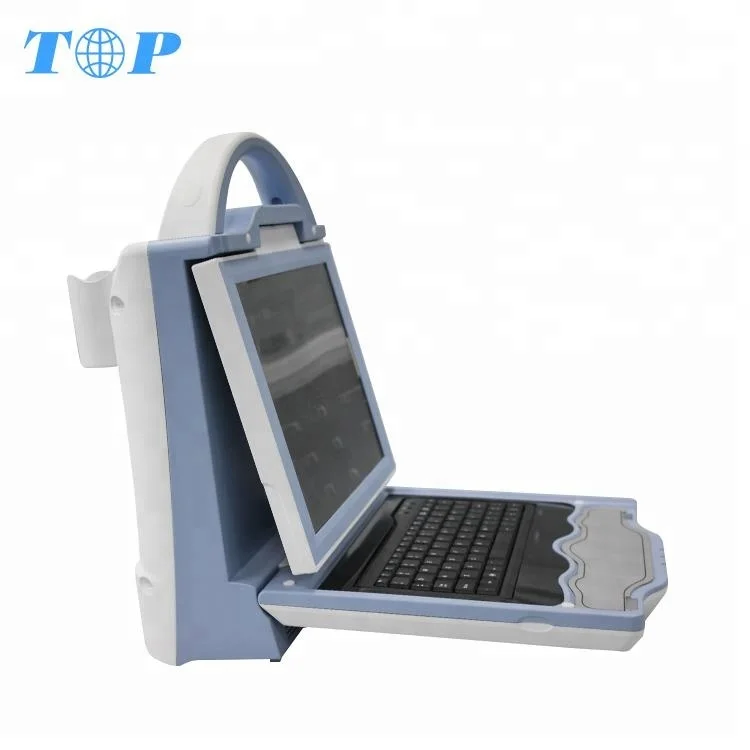

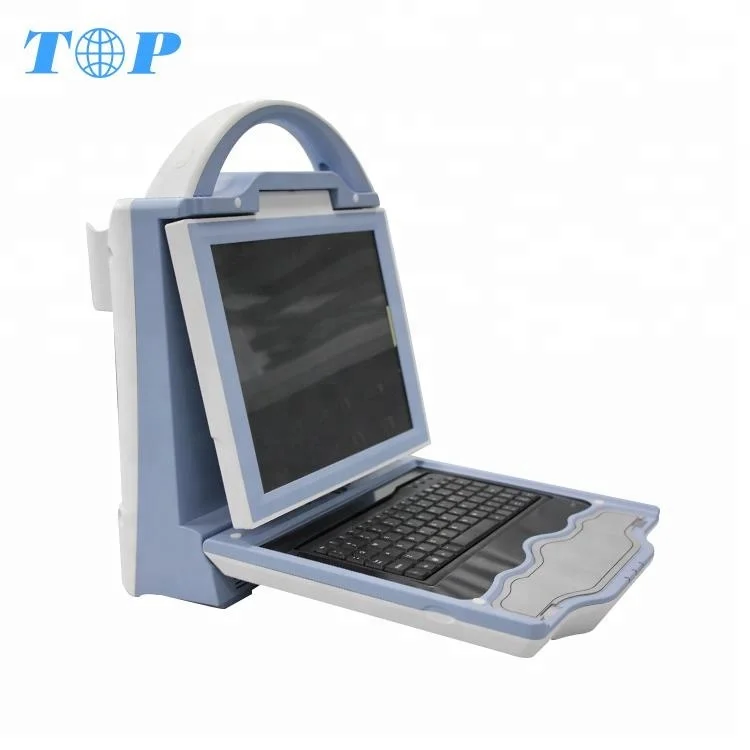

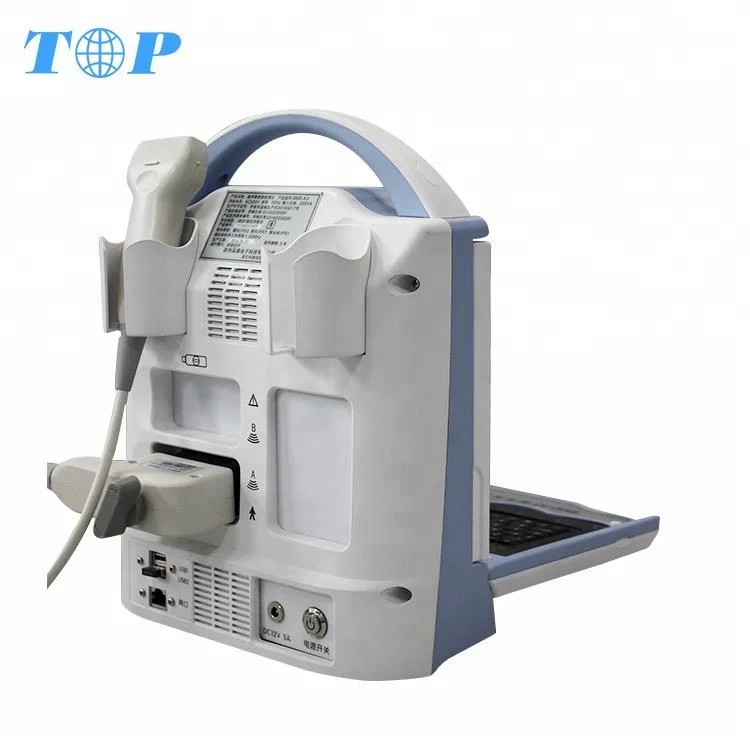

Automatic High Effective Portable Ultrasound Bone Densitometer With CE Approval

Application:

Ultrasound Bone Densitometer TOP-A1038 has extensive application. This portable model is the best choice for hospital outgoing examination, hospital wards, Mobile Inspection, Physical Examination Vehicle, Pharmaceutical factory, Pharmacy and Health Care Products promotion.

Our Ultrasound Bone Densitometer always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital, Bone Injury Hospital, Physical Examination Center, Health Center, Community Hospital, Pharmaceutical factory, Pharmacy and Health Care Products Promotion

The Department of the General Hospital, Such as Pediatric Department, Gynecology and Obstetrics Department, Orthopedics Department,  Geriatrics Department,  Physical Examination, Department, Rehabilitation department

Characteristics:

 1.Portable model, easy to move

 2.Precise and Artistic Mould Manufactured

 3.Full dry technology, Makes Diagnostic More Convenient.

 4.Measurement parts: Radius and Tibia.

 5.The measurement process is simple and fast

 6.High measurement speed, short measurement time

 7.High Measurement Accuracy

 8.Good Measurement Reproducibility

 9.The particular correction system to correct system error effectively.

10.it with different countries clinical database, including: European, American, Asian, Chinese,

11.WHO international compatibility. It measuring the people between the age of 0 and 100.(Children and Adult)

12.English menu and Color Printer report

13.CE Certificate, ISO Certificate

Technical Specifications

Large Scale Integrated circuit

Multi - layer circuit board design

High shielding Multi-point Signal Contact Mode

Precise Mould Manufactured

Famous Brand Embedded Industrial Control Computer

Special Analysis System Based on Different Countries People

Performance parameter:

1. Measurement parts: radius and Tibia

2.  Measurement  mode: double emission and double receiving

3. Measurement parameters:  Speed of sound (SOS)

4. Analysis Data: T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year]  (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).

5. Measurement  Accuracy : ≤0.25%

6. Measurement Reproducibility:  ≤0.25%

7. Measurement  time: <25 seconds

8. Probe frequency : 1.20MHz

9. Date analysis :  it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .

10.  Temperature control: Perspex sample with temperature instructions

11.  Probe measurement navigation:  this equipment display the Axial angle ,  the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data.  It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.

12.  Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.

13. Daily Calibration:  automatic calibrating after power on.

14. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old,  only need to input the age and recognizing automatically .

15.  Temperature display calibration block:  the calibration with pure copper and Perspex,  the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.

16. repot mode: color

17.  Report format: supply A4, 16K ,B5 and more size report

18. Portable model

19.  Computer configuration: CPU dual core, 4G memory, electronic hard disk, wireless mouse

20. Printer: optional

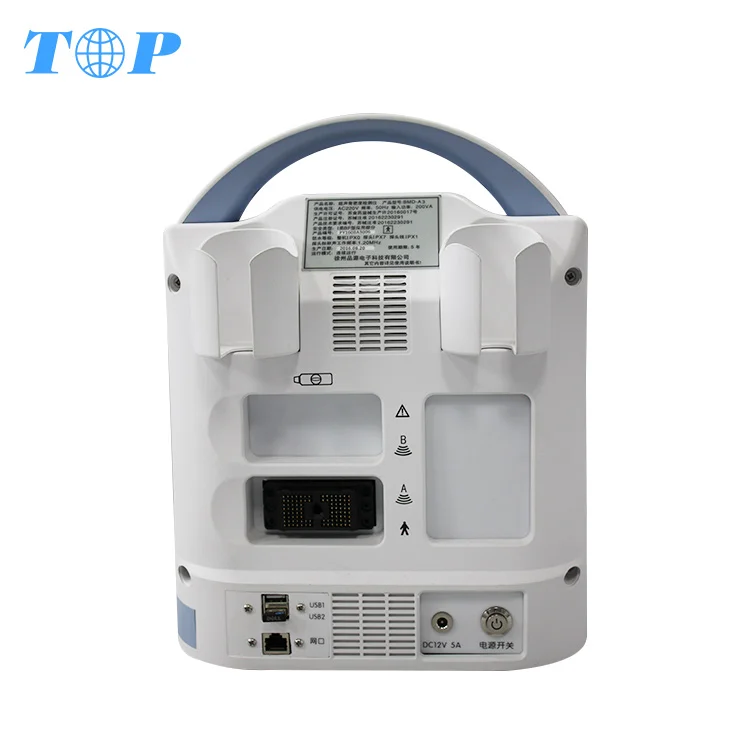

21. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

22.  External medical special power supply, power>60W

23.  Connect to the internet and provide remote services.

24. Monitor: 10.4’ color HD color LED monitor.

25.  Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7

26. Main unit weight< 4kgs, easy to carry

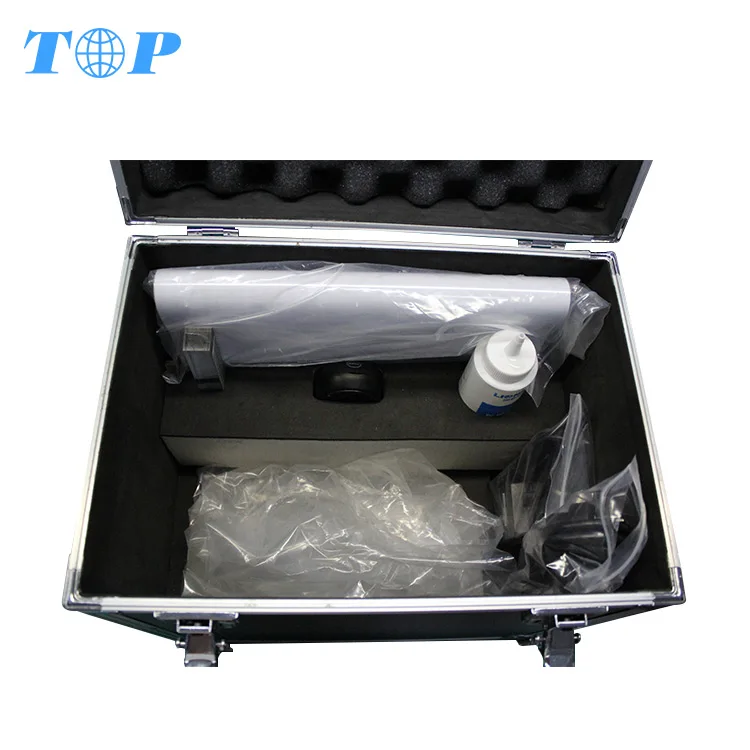

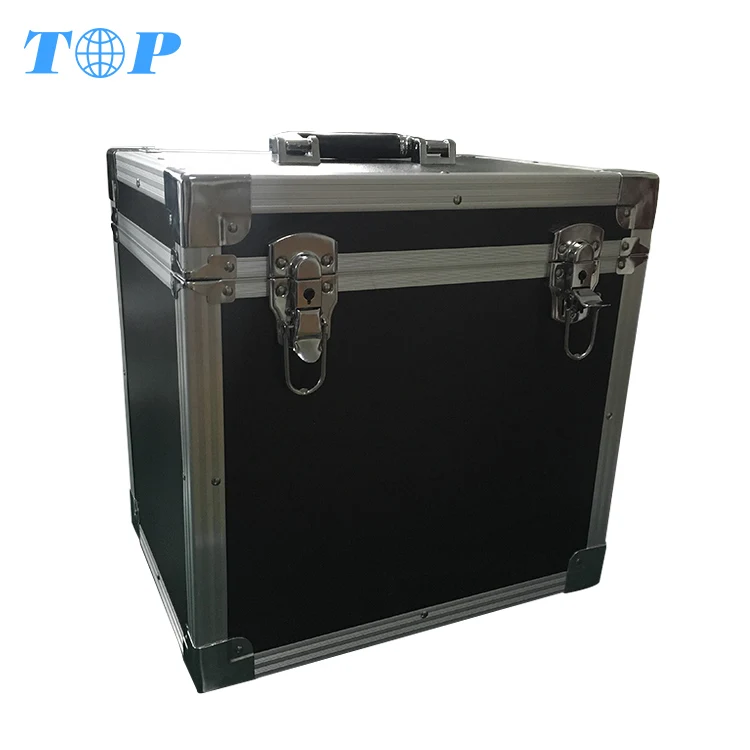

Configuration:

One Carton

Size(cm): 42cm×34cm×44cm

G.W.11Kgs

 N.W: 6 Kgs

FAQ:

1. Can I have a sample order?

Yes, we welcome sample orders to test and check.

2. What are your trading terms?

We usually accept FOB Guangzhou, T/T 30% deposit, and 70% balance before shipment.

3. How do you ensure your products quality?

Production or inspection report before the goods packing. And we got CE, ISO certification.

4. What about your after-sale service?

We have a professional team for after-sale service. Our team will follow the order once you ordered.

5. What is your warranty policy?

1-2years due to different products and lifetime maintaining.
