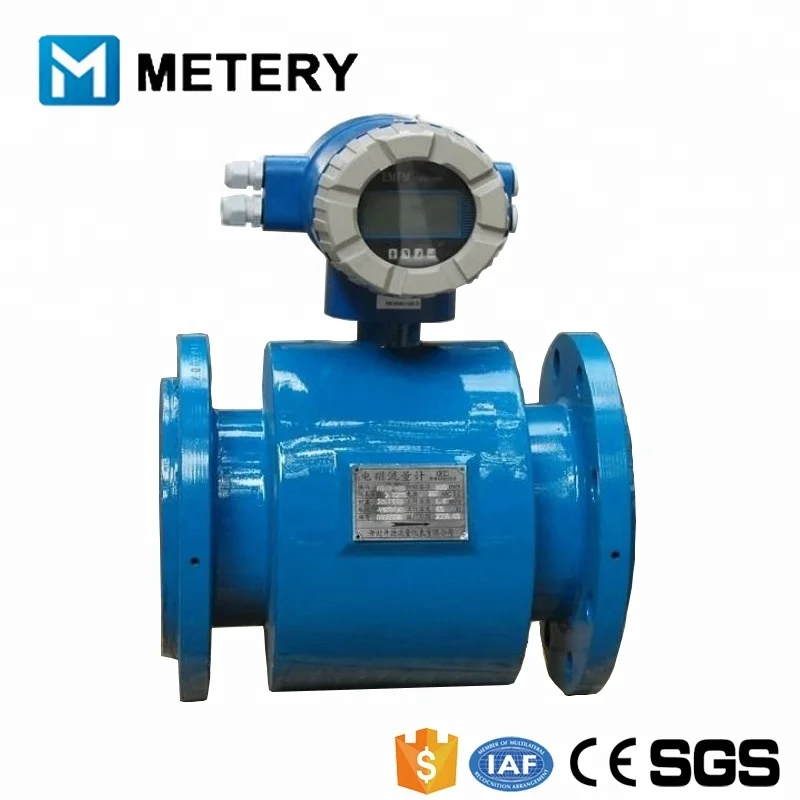

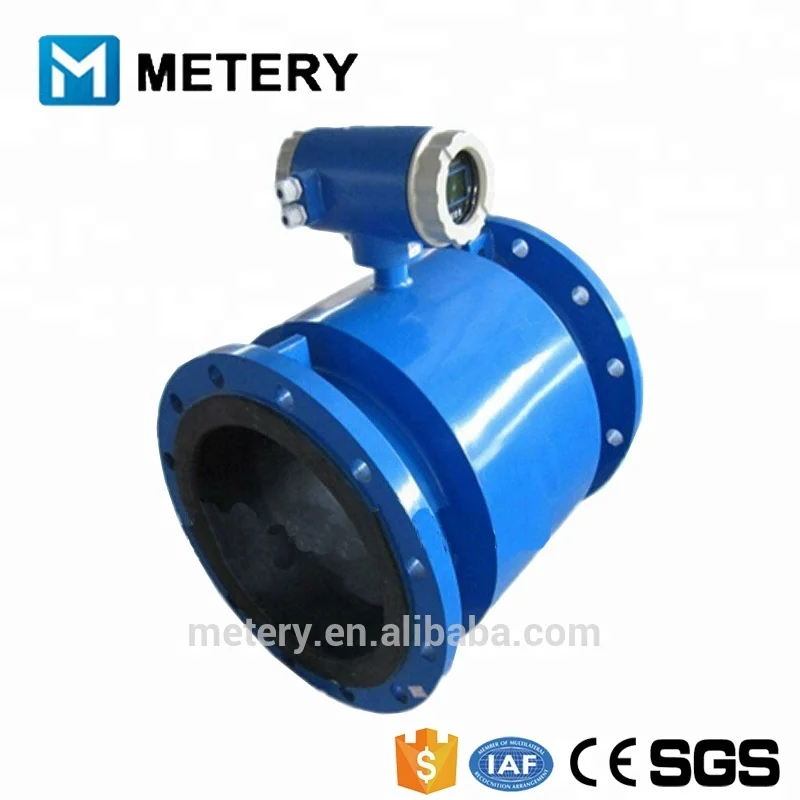

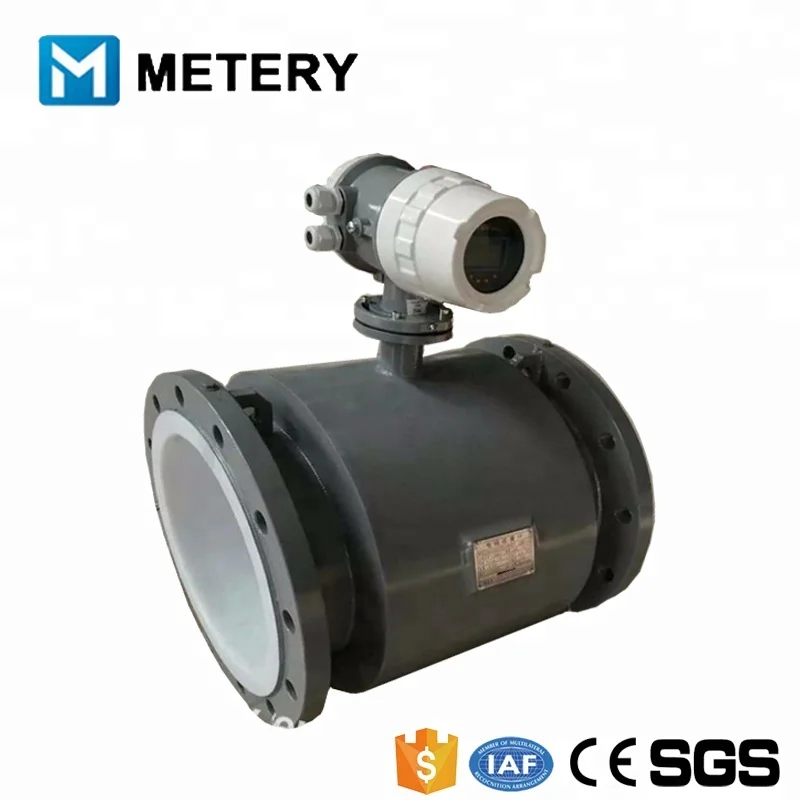

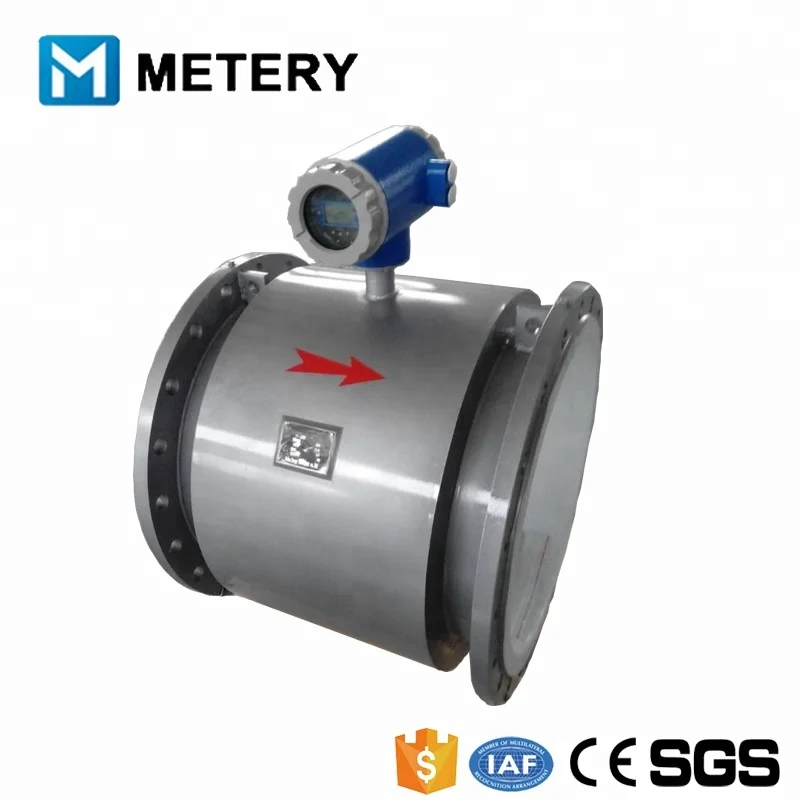

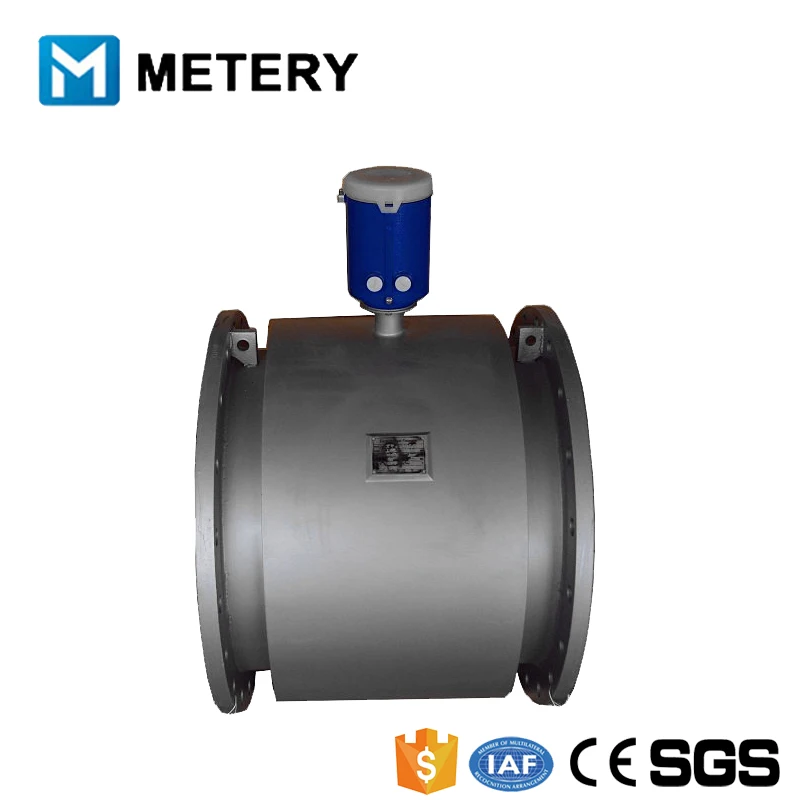

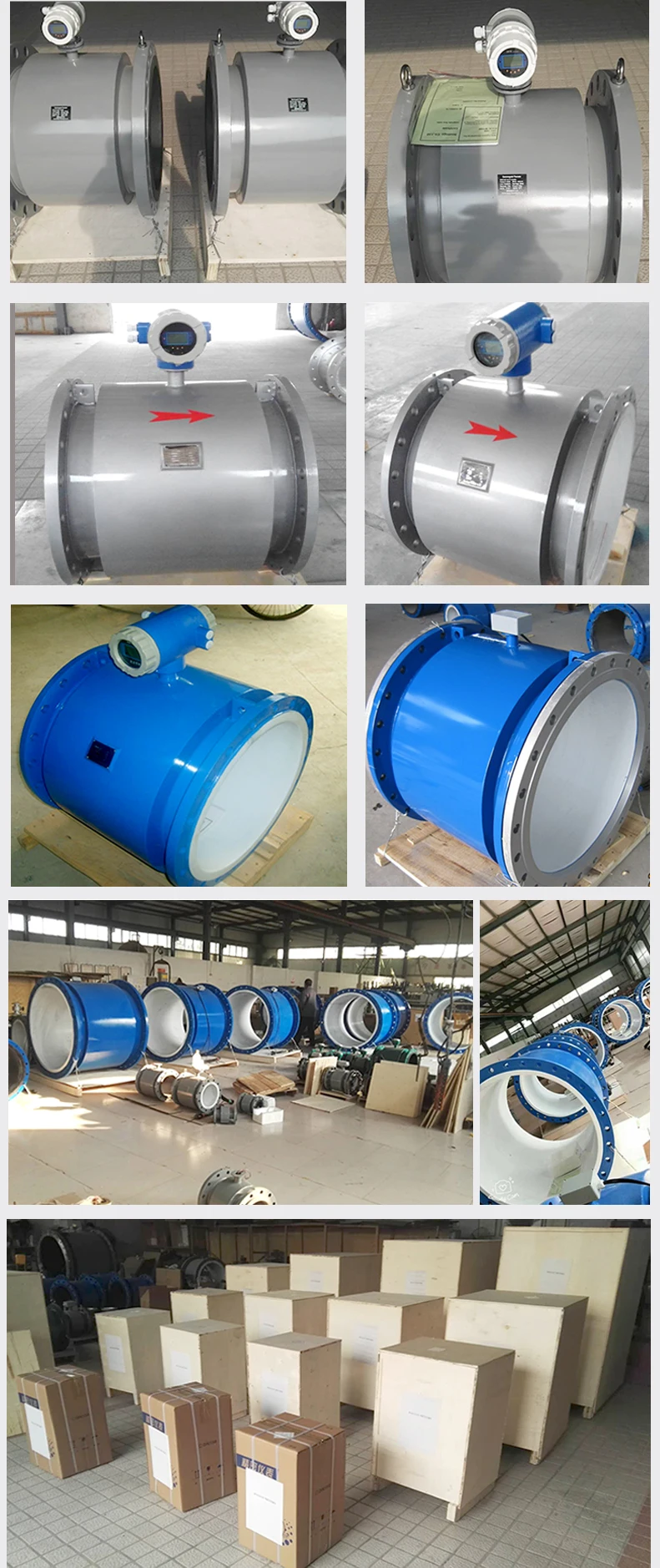

Big pipe Large Size Electromagnetic Flow Meter
- Category: >>>
- Supplier: Dalian Metery Technology Co. Ltd.
Share on (60764847127):
Product Overview
Description
Factory price electromagnetic flowmeter chemical material flowmeter
Product Description
| Nominal diameter | 15-2000mm | |||
| Velocity range | 0-10m/s | |||
| Degree of accuracy | ±0.1%R,±0.5%R,±1%R( | |||
| Nominal pressure | 1.0MPa | 1.6MPa | 2.5MPa | 4.0MPa |
| DN15-DN800 | DN15-DN800 | DN15-DN600 | DN15-DN50 | |
| Environment temperature | Sensor | 0℃ - +80℃ or -25℃ - +120℃ or + 70 -+ 250℃ | ||
| Compact type | -10℃ - +55℃ | |||
| Highest medium temperature | Compact type | +80℃ | ||
| Remote type | CR chloroprene rubber liner (CR) | +80℃ | ||
| Polytetrafluoroethylene lining(F4) | +120℃ | |||
| Politef lining(F46) | ||||
| Teflon(PFA) | +180℃ | |||
| Fluorosilicone rubber(FVMQ) | +250℃ | |||
| Output signal | 4-20mA;Pulse/Frequency 2kHz(Default),5KHz(Max) | |||
| Cable entry size | M20 × 1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector) | |||
| Supply voltage | 110/220VAC(100-240VAC),50Hz/60Hz;24VDC ±10% | |||
| Power dissipation | ≤15VA | |||
| Communication | RS-485,Support standard Modbus-RTU protocol;GPRS | |||
| Electrode material | Stainless steel 316L,Hastelloy C,Hastelloy B,titanium, tantalum, platinum | |||
| Form of electric | Interpolating, extrapolating electrode need to customize | |||
| Flange Standard | Conform to the international GB9119 ( customize according to customer's demand) | |||
| Flange material | Standard carbon steel and stainless steel are needed to be customized | |||
| Housing material | Standard carbon steel and stainless steel are needed to be customized | |||
| Cable length | 10m standard configuration connecting line, optional 15m, 20m, 25m, 30m. (Remote type) | |||

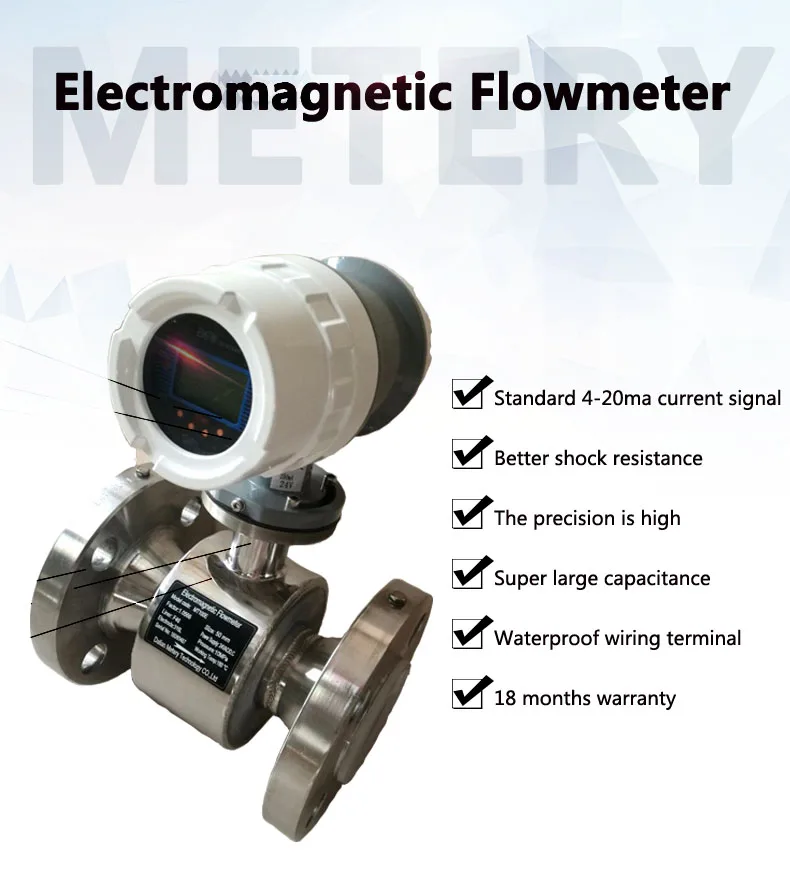

Product Features
Certifications
Related Products
Our Services
Packaging & Shipping
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
