200m depth Bore Well Drilling Machine Price/with mud pump or air compressor
- Category: >>>
- Supplier: Jining Luheng Machinery Equipment Co. Ltd.
Share on (60764888586):
Product Overview
Description
Product Description
Product Description
Product Description
Product Description
1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4. 24V electric-strat diesel engine reduces the operator`s labor intensity.
5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
Technology Parameter
| Whole machine parameters | Model | HW-160S | HW-190S | HW-230S | |
| Drilling depth(m) | 160 | 190 | 230 | ||
| Open hole dia. (mm) | 500,220 | 500,220 | 500,273 | ||
| End hole dia. (mm) | 75 | 75 | 75 | ||
| Drill rod dia. (mm) | 42,50 | 42,50 | 42,50,60 | ||
| drill angle (°) | 90-75 | 90-75 | 90-75 | ||
| Matching power (kW) | 11 | 13.2 | 15 | ||
| Weight (kg) | 2750 | 2800 | 3000 | ||
| Dimension(L*W*H) (m) | 4*1. 7*2. 3 | 4*1. 7*2. 3 | 4*1. 7*2. 3 | ||
| Spindle | Speed (r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 | |
| Stroke (mm) | 450 | 450 | 450 | ||
| Tricycle chassis | Model | wuzheng | wuzheng | wuzheng | |
| 7YP-1475D1 | 7YP-1475D1 | 7YP-1475D1 | |||
| Emission standard | GB19756-2005 (Ⅱ) | GB19756-2005 (Ⅱ) | GB19756-2005 (Ⅱ) | ||
| Rated power (kW) | 18. 3 | 18. 3 | 18. 3 | ||
| Rated speed (r/min) | 2200 | 2200 | 2200 | ||
| Drill Tower | Rated load (ton) | 18 | 18 | 18 | |
| Effective height (m) | 6.5 | 6.5 | 6.5 | ||
| Mud pump | Flow (L/min) | 160 | 160 | 160 | |
| Max. pressure (Mpa) | 1. 3 | 1.3 | 1.3 | ||
| reciprocal times /mi n | 165 | 165 | 165 | ||
| Inlet hose dia. (mm) | 51 | 51 | 51 | ||
| Outlet hose dia. (mm) | 32 | 32 | 32 |

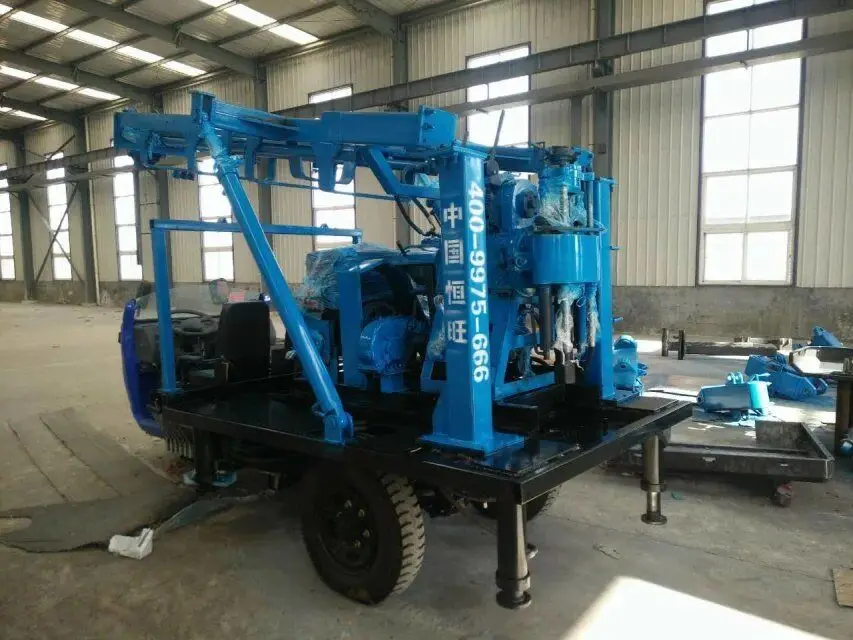

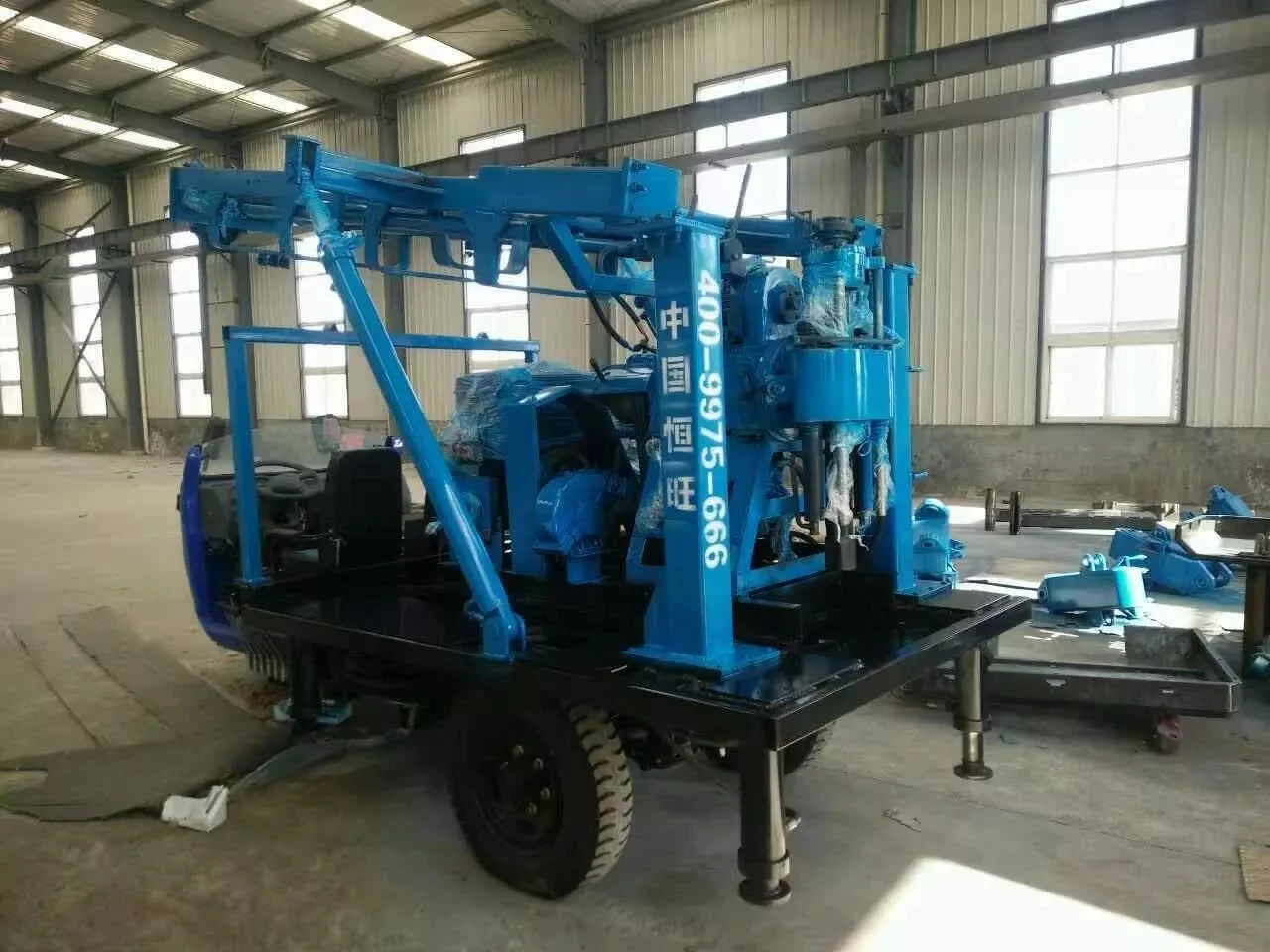

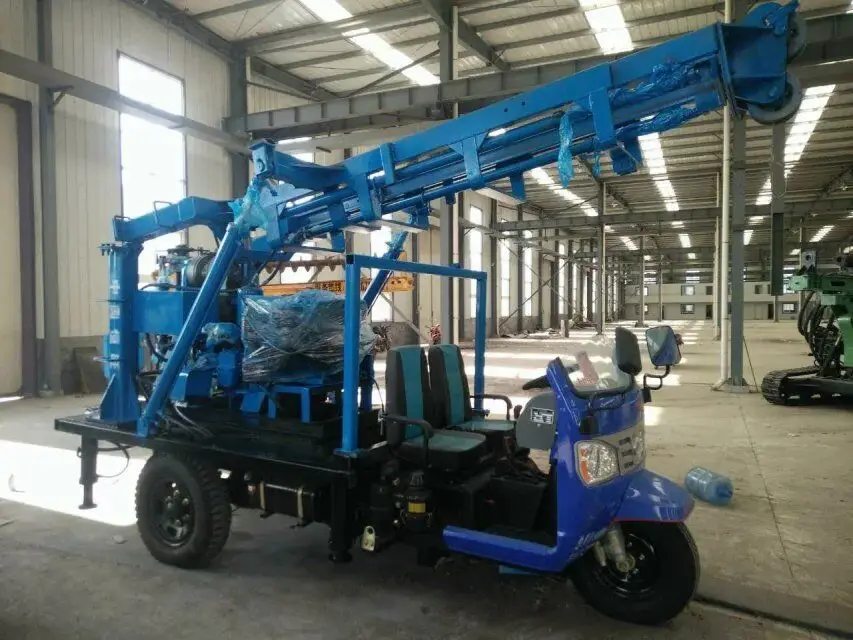

The photos
