1000W High Speed Folding Electric Scooter For Adult 55Km/H
- Category: >>>
- Supplier: Wuyi Shengte Vehicle Co. Ltd.
Share on (60764890596):
Product Overview
Description
Product Paramenters
Motor | 60v 800W rear hub Brushless motor -separate |
Battery | lithium Batteries /18650/60v 24AH CHINA 2600mAH |
Charger | AV110/240V, 180W 50 - 60Hz DC67.2V,2.0A |
Throttle lever | intelligent speed throttle ,35-45-55km/h (JP ) |
Controller PCB | Intelligent controller (JP) 60V 25AH |
Mian Frame | aluminum alloy 6061-12 |
Tyres | front tyrs is10inch CST 10*2.5 |
Rim | aluminum alloy 6061-12 -separate |
Front fork | DOUBLE spring suspenison fork |
F/R brake | front and rear with Disc -brake160/180 ,(ZOOM xtech ) |
Mudguard | front and rear printed plastic material |
Handlebar | aluminum alloy folding |
Stem | aluminum alloy , can be adjustable |
Brake lever | aluminum alloy zoom brand |
front lights | wuxing front light |
scooter cable | main waterproof cable , easy connector |
Max speed | 55km/h |
Driving distance | 70km , depend on different body weight |
Max loading | 120kgs |
G.W./N.W. | 28kgs/25kgs |
Products Description

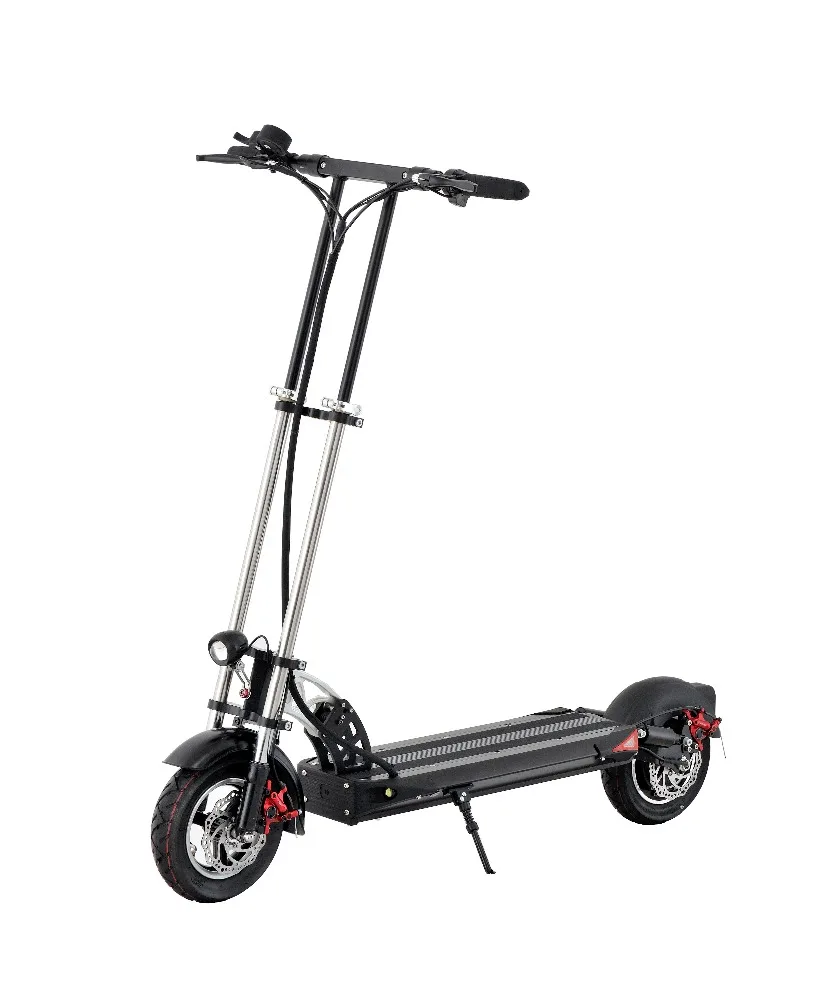

ST1011 ELECTRIC SCOOTER

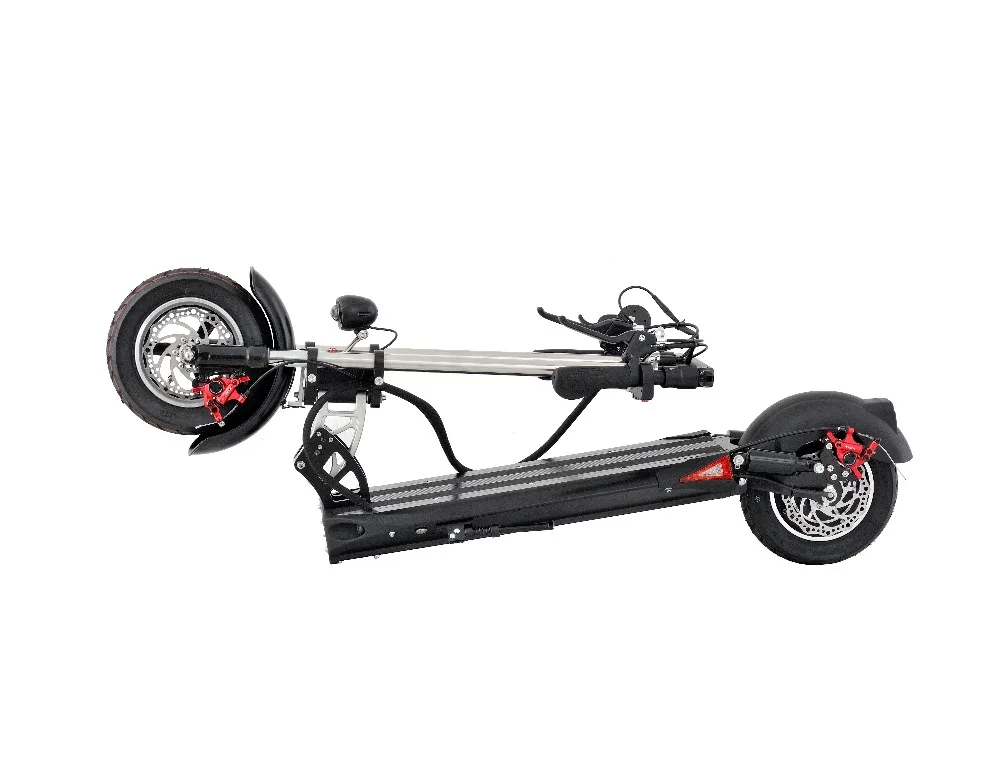

ST1011 ELECTRIC SCOOTER FOLDABLE
ST1011 ELECTRIC SCOOTER FOLDABLE SIZE:124*41*25CM
ST1011 ELECTRIC SCOOTER NO FOLDABLE SIZE:127*126*25CM

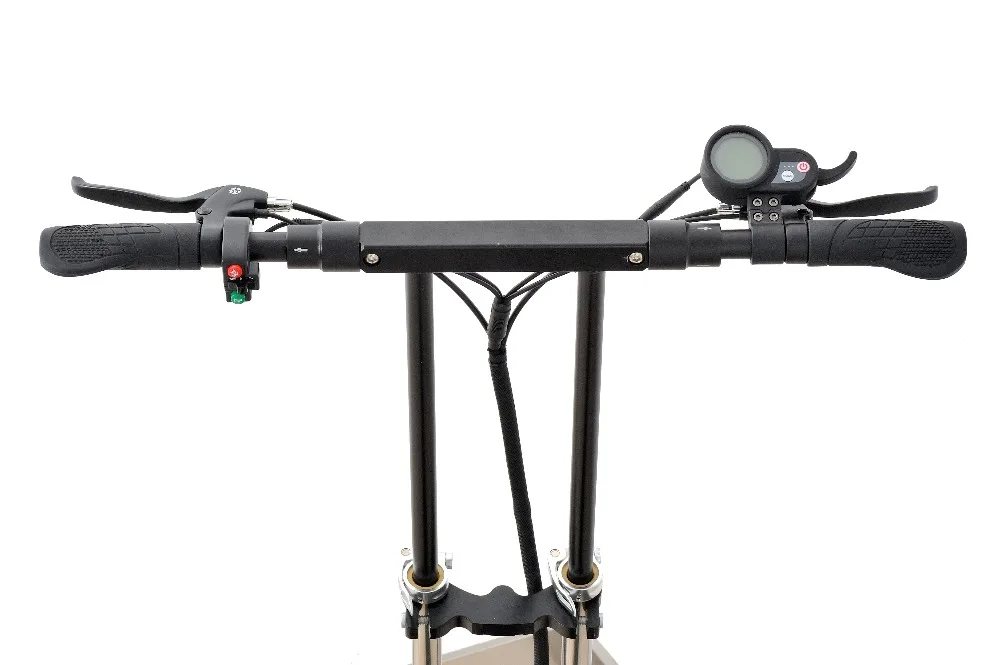

FOLDABLE HANDLEBAR
1.ZOOM brake lever
2.WUXING switch for front &rear light &turn light &horn
3.main cable
4.blue display
CHARGER PORT
1.charger port on right side
2.switch for four small light
TOP DECK
1. foldable
2.you can open on the deck
3.four deck cover
FRONT WHEEL
DOUBLE TUBE
KICKSTAND

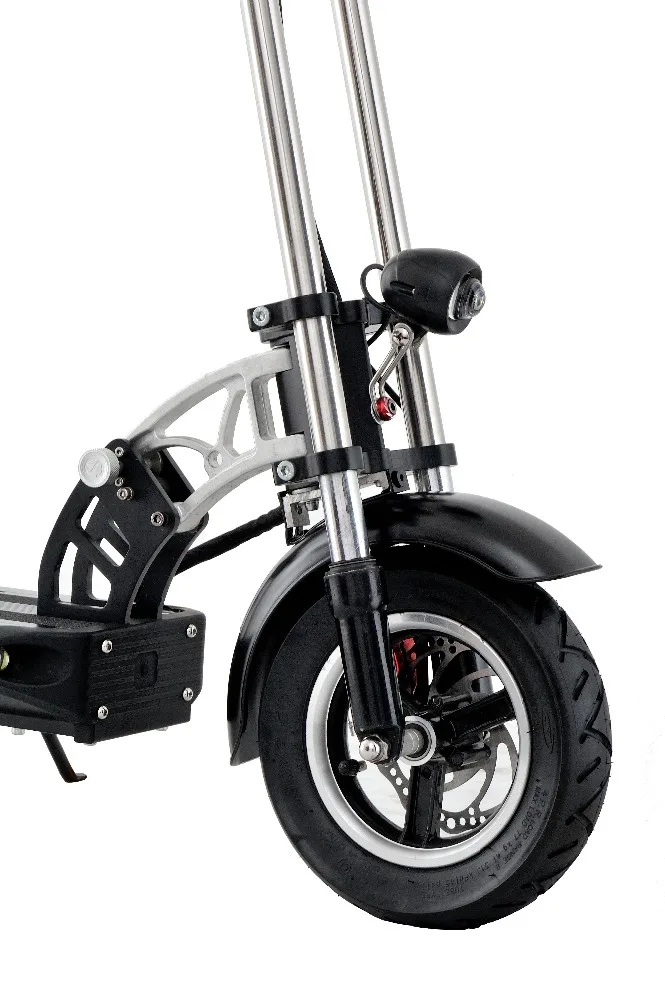

FRONT WHEEL
Front wheel separate two parts , means we can easy changed the air tube ,in case damaged the wheel .

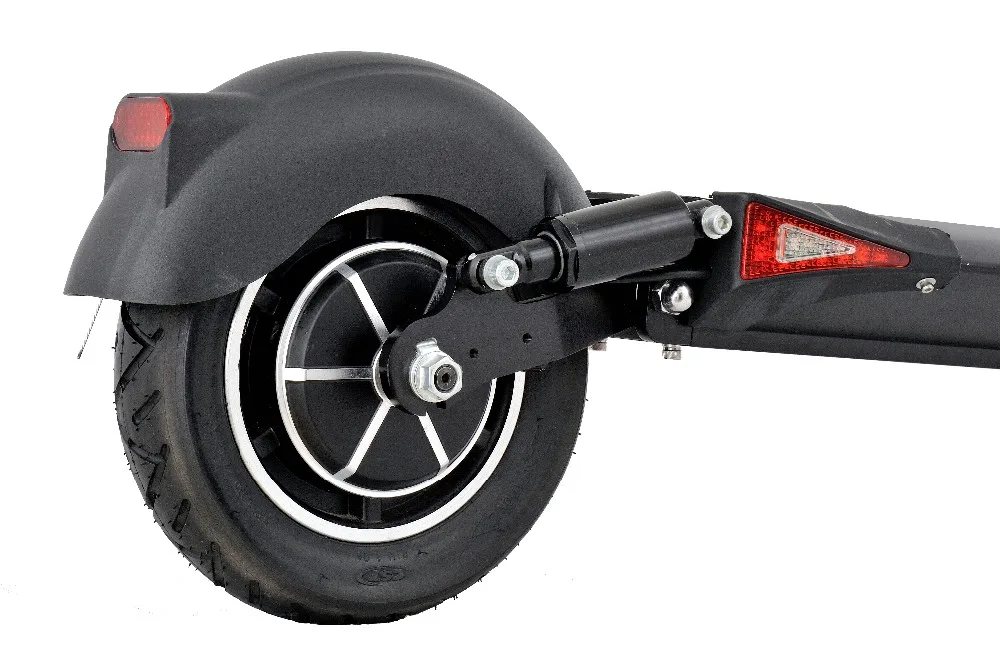

REAR MOTOR
Rear motor separate two parts , means we can easy changed the air tube ,in case damaged the motor
DISC BRAKE
Disc brake more safty when you ride the scooter , 10*2.5 tyres more better . 140mm disc .
Manufacturing Technique
Materials
we buy the frame Materials from supller ,if you want to control the quality , must be control from Materials .
Primary metalworking
Each whole materials need cut it , then put in CNC .
CNC make the deck
Frame made by CNC .
Deck make the screw hole
After CNC need make the frame screw hole .
Painted frame
we can painted many color ,if you want make some different color , it is ok . MOQ 30PCS then we can make the color you want that .
Plastic Products
The plastic parts also made by us , like the frender and deck cover and some small parts .
Laser the logo and number
Each scooter with the logo and different serial number
Assembling
we have four kind of this workshop ,each workshop have 8 work line . so 5000pcs only 20days no problem .
packaging
one scooter one carton , you can choose pallet or only carton without the pallet .
shipping
we accepted different forwarder , yours or ours .
Certifications
CE EMC CERTIFICATION
CE EMC CERTIFICATION
CE EMC CERTIFICATION
Design patent certification
Patent for new utility
Patent for new utility
Product packaging
Packaging inside
1.a complete scooter
2.one charger
3.one pumple
4.one tools
5.one manual
Complete carton
1.five pcs foam double protect the scooter
2. plastic film protect the scooter waterproof
3.each carton with different shippinng mark
4.shipping by pallet better .
FAQ
1Can I order a sample to find out about the quality? And how long can I get the sample?
Yes, of course. Samples are usually brand new sets as well, it will be sent within 7days upon receipt of the sample fee and shipping fees payments.
2. What are your payment terms and procedures?
We only accept T/T for new customers, LC (Line of Credit) can only be extended for repeat customers. Paypal is good too. All payments will be made to our bank in the CHINA.
3. What are the recommended spare parts to stock:
- Inner tube
- Drum Brake Pads
- Front and rear brake pads
- Rear and front fender
- LCD
- Controller
- Front and rear LED lights
- Kickstand
- Charger
- Outer Tire
- Motor
- Battery
- Drum Brake Pads
- Front and rear brake pads
- Rear and front fender
- LCD
- Controller
- Front and rear LED lights
- Kickstand
- Charger
- Outer Tire
- Motor
- Battery
4. What are the payment and delivery terms?
30% payment for confirmation of order and balance of 70% to be paid after BL COPY. Production typically takes between 20-45 days for completion depending on the size of the order.
5. What are the warranty terms and conditions?
To benefit from the limited warranty, motor, frame ,battery ,controller , display ,charger one year , another easy broken parts without warranty , like tyres , stwitch , light .....and so on .
6. I am a first timer looking to start my electric scooter business, can you introduce me to a freight forwarder/shipping agent?
Absolutely. We can introduce you directly to our own contacts so it is easier for you. If you like us to assist you with the shipping, we will just quote you exactly what the shipping agents quote us, pricing will be transparent so you will know your cost. We want long-term partners, if you don't make money, we won't have business as well.
7.can i do our logo on scooter and carton ? what is MOQ ?
yes , we can do your logo on scooter and carton , but you need send the logo PDF flie to us , then we make draw design for you , but MOQ at least 30pcs , more quantity better for us , beacuse easy talking with supplier .
8.can i get your spare parts list ? could you suggestion more easy broken parts for us ?
yes , each scooter have BOM and spare parts list , we can send to you then you choose it then let me know , or we help you choose it then you check and confirmed it .
Exhibition
CHINA CYCLE 2019
Wuyi shengte vehicle CO.,LTD
Welcome to our company and discuss our business cooperations based on the friendly consultation and our mutual benefit.We will establish a bridge of friendship with you in our good quality products and on the faith of empressement and credibility, So as to create beautiful future with you.
Welcome to our company and discuss our business cooperations based on the friendly consultation and our mutual benefit.We will establish a bridge of friendship with you in our good quality products and on the faith of empressement and credibility, So as to create beautiful future with you.

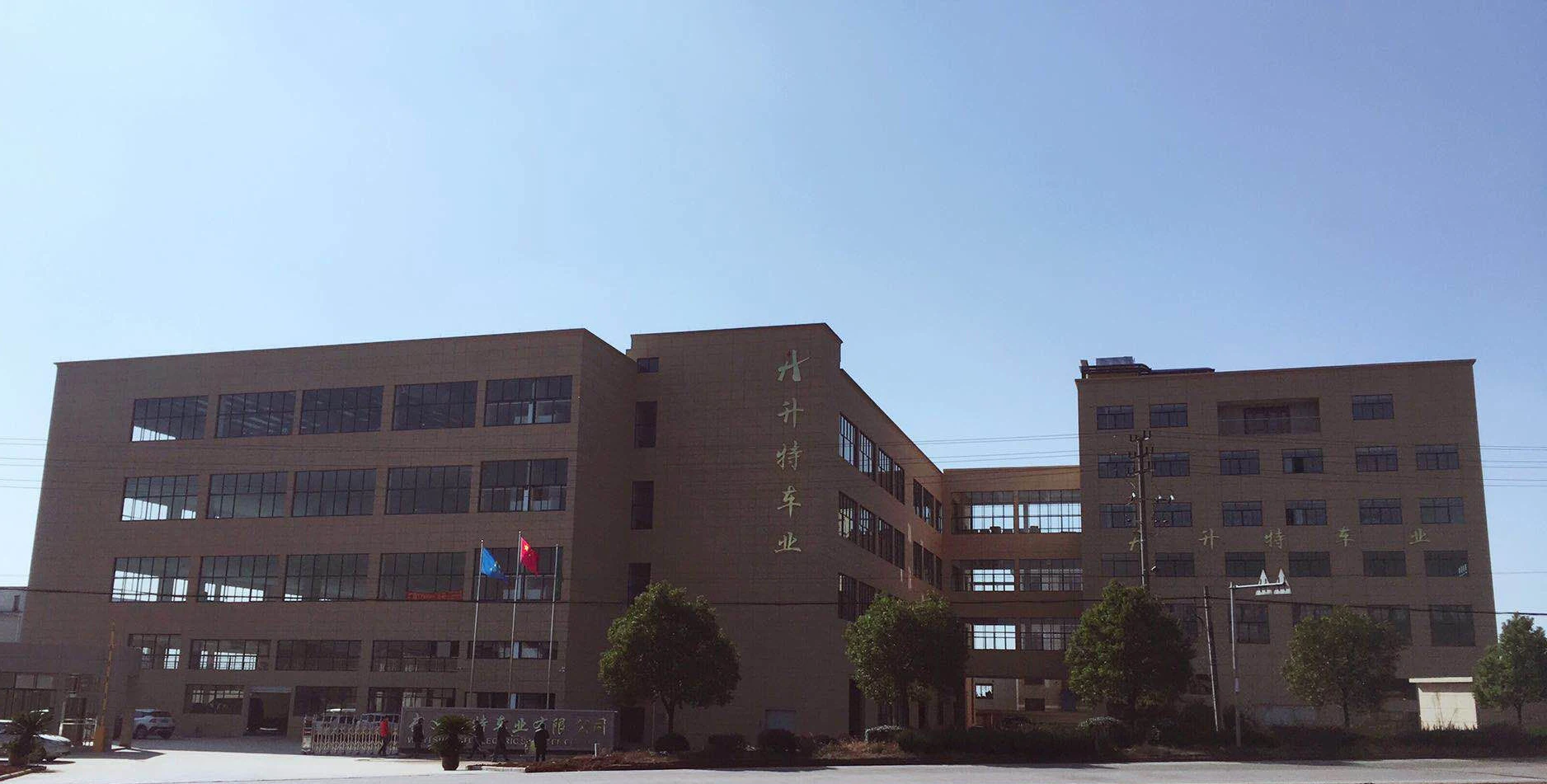

Company Profile
