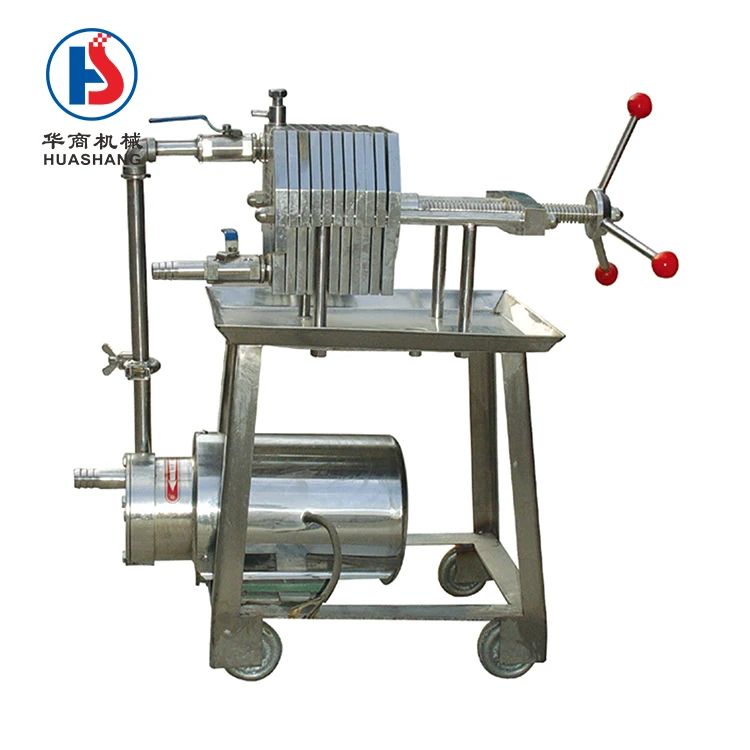

Stainless Steel 304/316 Frame Filter Press /Stainless Steel plate filter

Structures

1.The machine is used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries, is all kinds of liquid filtration, clarification, purification, sterilization treatment of the latest equipment

2.Use of bump-type filter plate, increasing the water cross-sectional area, reducing the liquid filtration, flow resistance, the flow of any improper liquid dead angle, to maintain the stability of liquid properties, bump filter plate filter material , Filter paper, etc.) is not easy to break, to extend the service life of various media

3.All the sealed parts of all installed (milky silicone rubber seals, non-toxic high temperature) no leakage, that is, in the filter box on the positive and negative sides, import and export of double-folding ring and other sealing parts are installed circular ring

4.The machine can be filtered liquid according to the different production processes (primary filtration, semi-fine filter, fine filter) requirements, the replacement of different filter users according to the size of the production flow, a corresponding reduction or increase filter frame material

5.When the filter work, pressing the seal ring, no loss of liquid, liquid clarity, and sterilization selection of microporous membrane filter, sterilization effect is particularly good.

Features of filter press

The filter is made of S.S.304 or S.S.316L, which are features of corrosion-resistant and long life-span. The filter plates use screw thread structure. It can change filtering media (if uses filter membrane, it can even remove the bacteria). According to your material and your technical requirements (primary filtration/medial fine filtration/fine filtration). The layers can be added or decreased to your actual capacity. The filter works under pressure with leakage and the filtrate is very clean. It can be used as multilevel filtering devices: the first level uses rough filtering media; the second level can use fine medias, so that it can improve the filtering effect and efficiency. All seals are made of silica rubber, which can endure high temperature and no toxicity, no leakage. The automatic flow returning device also can be customized according to your needs. When pump stops, open the return valve, all sediment will be discharged automatically (beside have the air discharging function), and at the same time, it will be backwashed by clean water via the return pipe. It's very easy for operation.

Detailed Images
