Factory Hotest 1 3 Tons per hour Diesel Engine Compound Crusher Jaw Crusher
- Category: Crusher >>>
- Supplier: The Nile Machinery Co. Ltd.
Share on (60764928296):
Product Overview
Description
Product Description

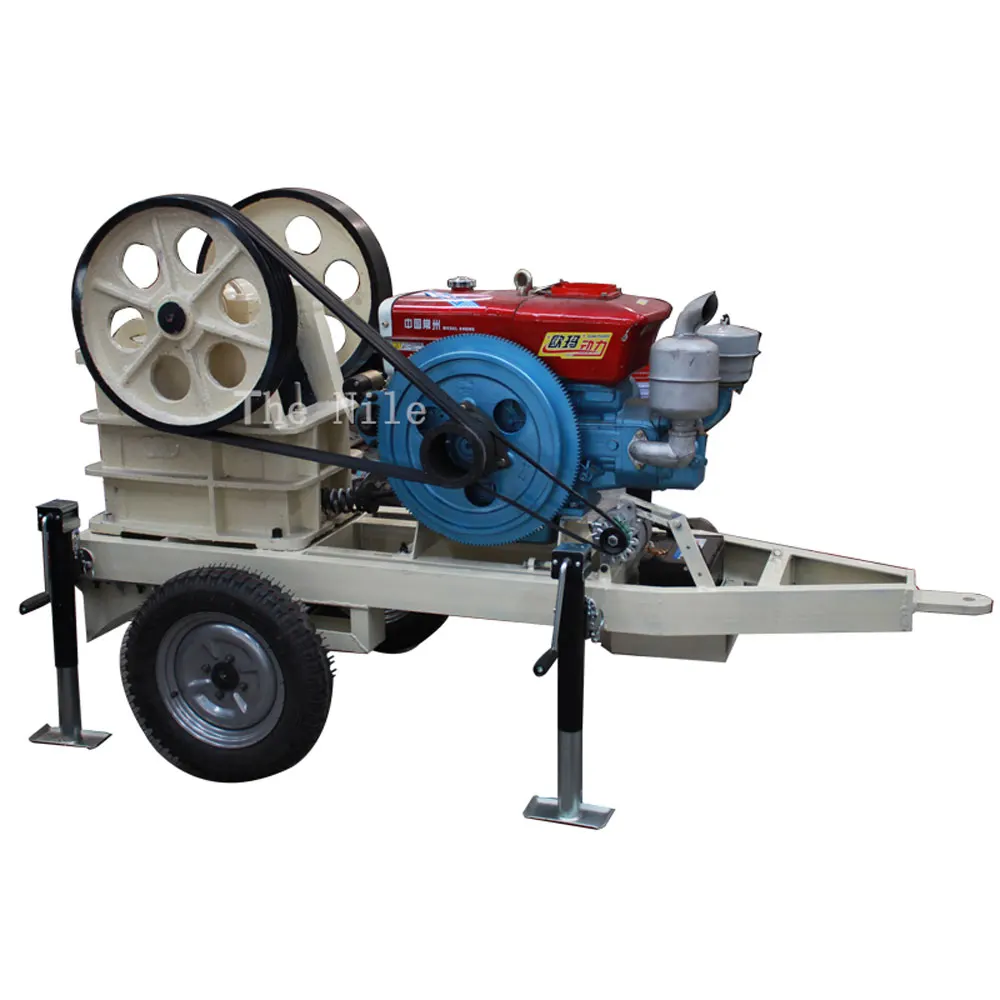

Diesel Mobile Jaw Crusher
Diesel mobile jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
Features
1. Be movable and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
Application
Processing Material:
Granite, Basalt, Quartz, Gold Ore, Copper Ore, Iron Ore, River Pebbles, Marble.etc
Granite, Basalt, Quartz, Gold Ore, Copper Ore, Iron Ore, River Pebbles, Marble.etc
How to Work
The working principle of the jaw crushers is very simple. Powered by a diesel or gas motor, the jaw crusher brakes materials in a crushing chamber. The materials are pushed inside the chamber from the top opening and when crushed they are released through the bottom opening.
Technical Data
Model | Max.Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 |
PE1200*1500 | 1020 | 150-350 | 400-800 | 220 | 93 |
PE1500*1800 | 1200 | 220-350 | 500-1000 | 280 | 122 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 |
PEX300*1300 | 250 | 20-90 | 16-105 | 55 | 15.6 |

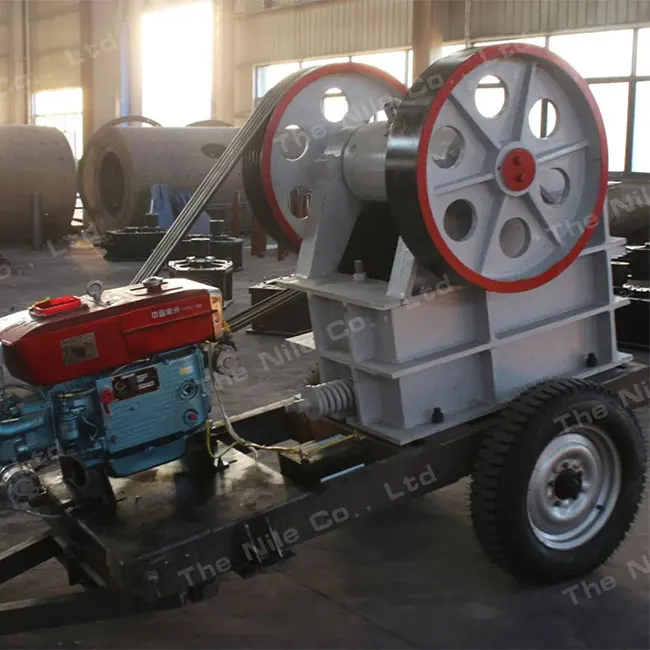

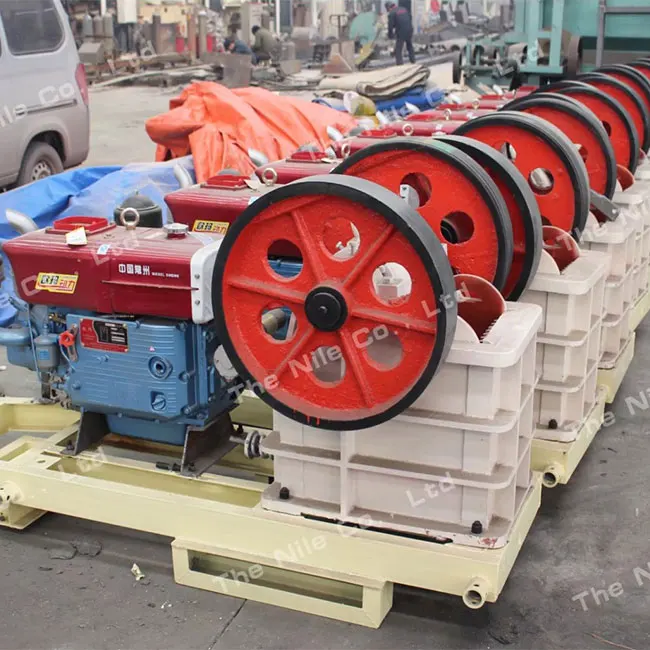

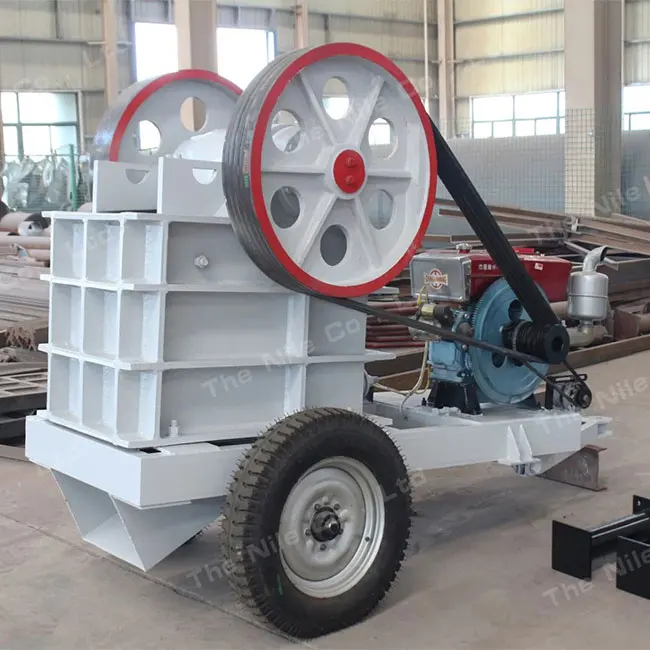

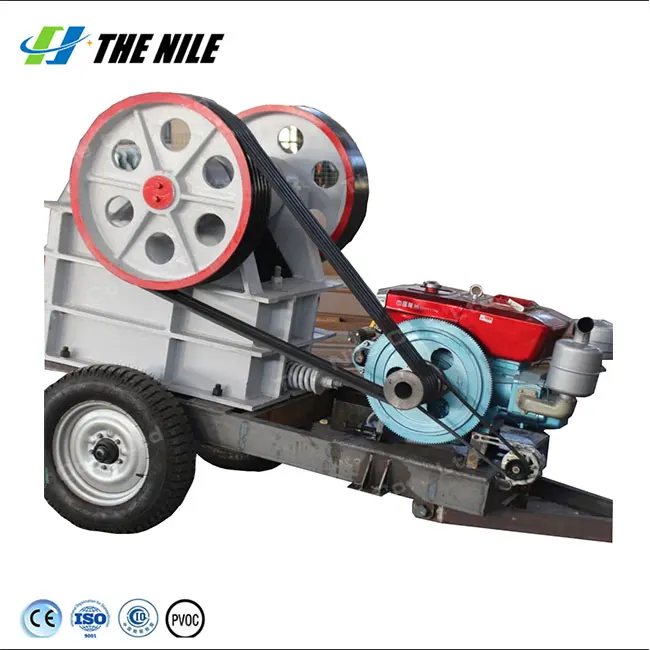

Product Details
Customer Site
Packing&Shipping
Company Profile
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.
Our Advantages
Overseas Service
1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .
2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .
Factory and Warehouse in Kenya
Welcome to visit our factory in China and Kenya .
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
