Полная био органические удобрения экспорт органическое удобрение гранул производственной линии
- Category: Granulators >>>
- Supplier: Harbin Dadi Biology Organic Fertilizer Co. Ltd.
Share on (60764943027):
Product Overview
Description
Complete Bio Organic Fertilizer Granulation Plant
Organic Fertilizer Granulation Production Line
Product Description
The bio fertilizer plant is mainly used to make organic waste into UNIFORM Round ball or Cylindrical ferilizer granules.
The raw materials can be:
1.Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2.Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse Waste,Fish Market,Urine and dung of cow,Pigs,Sheep,deer,Chicken, Ducks, Geese,Goat,earthworm cast etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue,Bean cakes, Vinasse slag, Biogas residue, Fruit residue, palm oil residue etc.
4.Residues of urban rubbish or sewage treatment plants.
5.Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
Capacity: 0.5 to 10 Tons per hour
This is just our proposal,You can select machines according to your actual situation.

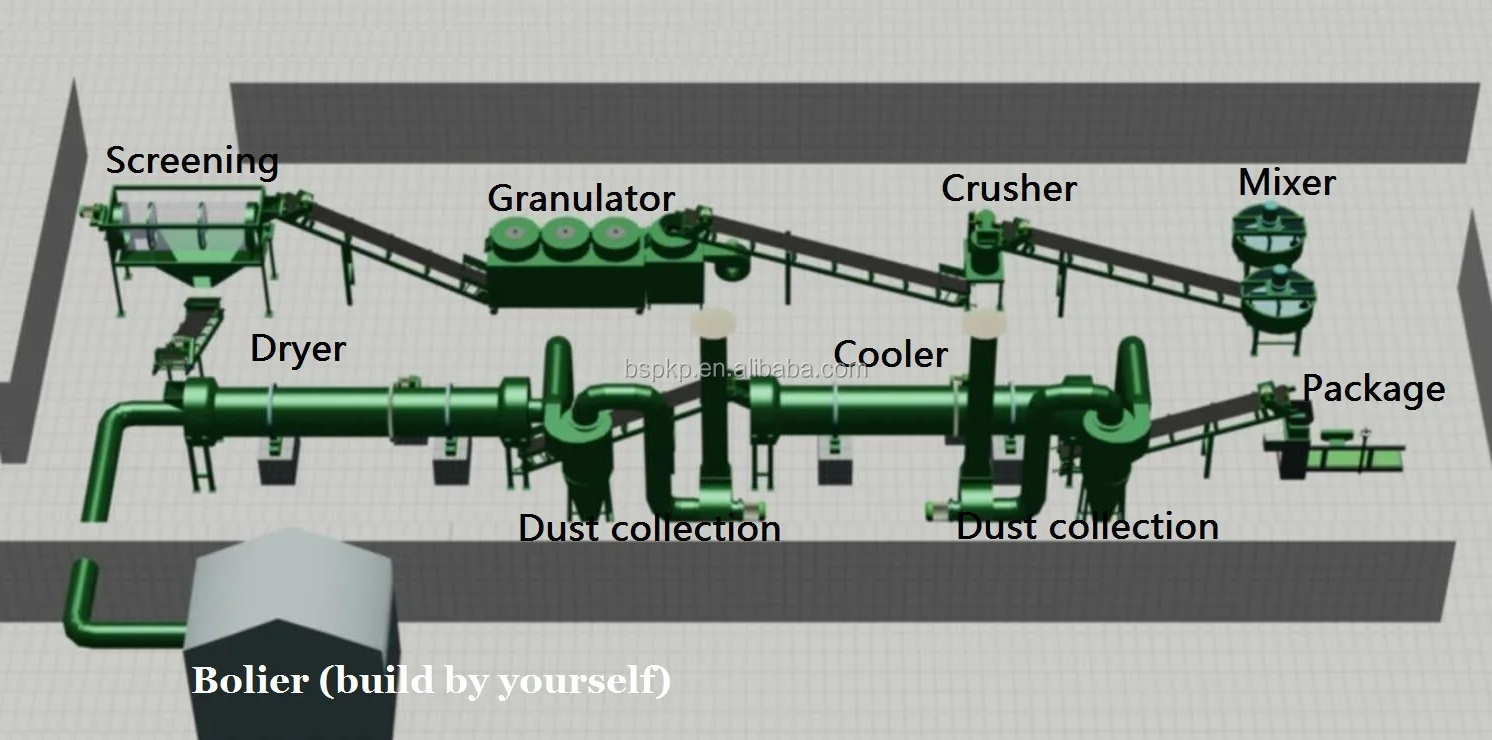

The bio fertilizer plant include Screening Machine,Crusher,Mixer Machine,Organic fertilizer Granulator machine,Rotary Drum Dryer,Rotary drum Cooler,Weighing&Packaging Machine and Belt Conveyors.
| Machinery | Sets |
| Semi-wet crusher | 2 |
| Mixer machine(with pump) | 1 |
| Ring Die Granulator | 1 |
| Belt Conveyors | 9 |
| Rotary Drum Dryer(cyclone dust collection+fan+pipeline) | 1 |
| Rotary Drum Cooling(cyclone dust collection+fan+pipeline) | 1 |
| Grading screen Machine | 2 |
| Weighing&Packaging machine | 1 |
Advantages of bio fertilizer plant:
1)One-time production of uniform spherical fertilizer granules.
2)Adjust the hole diameters of ring die to achieve the optimal pelletizing results.
3) The materials granulation rate can reach 100%,all the raw material can be made into rounded fertilizer.
4) The rate of FINISHED product is more than 90%.
5) The organic content can be high to 100%, make pure organic granules.
6) No need to add binder.
Ring Die Granulator
| Model | KHL-700 |
| Capacity:Tons per hour | 3.5-6 |
| Input material moisture:% | 30-35 |
| Input material particle size:mm | 0.3-0.5 |
| Rate of finish product:% | >90 |
| Pellet temperature raise:°C | <50 |
| Granule size:mm | 3.5-5.5 |
| Power:kw | 123 |
| Size:L*W*H (m) | 7*2.6*1.8 |
| Weight:Kgs | 8000 |
| Voltage:V | 380V-50HZ-3phase(it can be change under your need) |

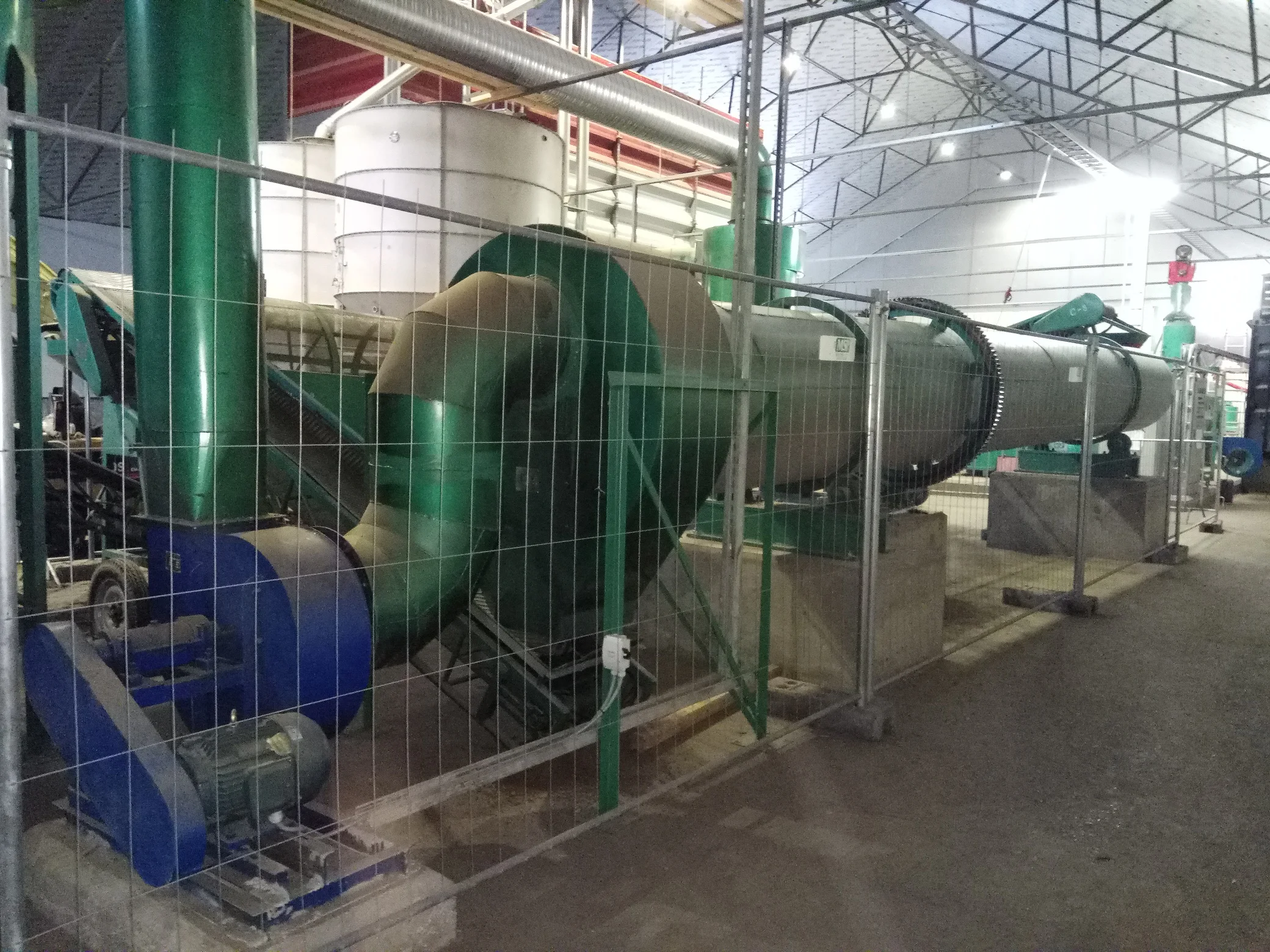

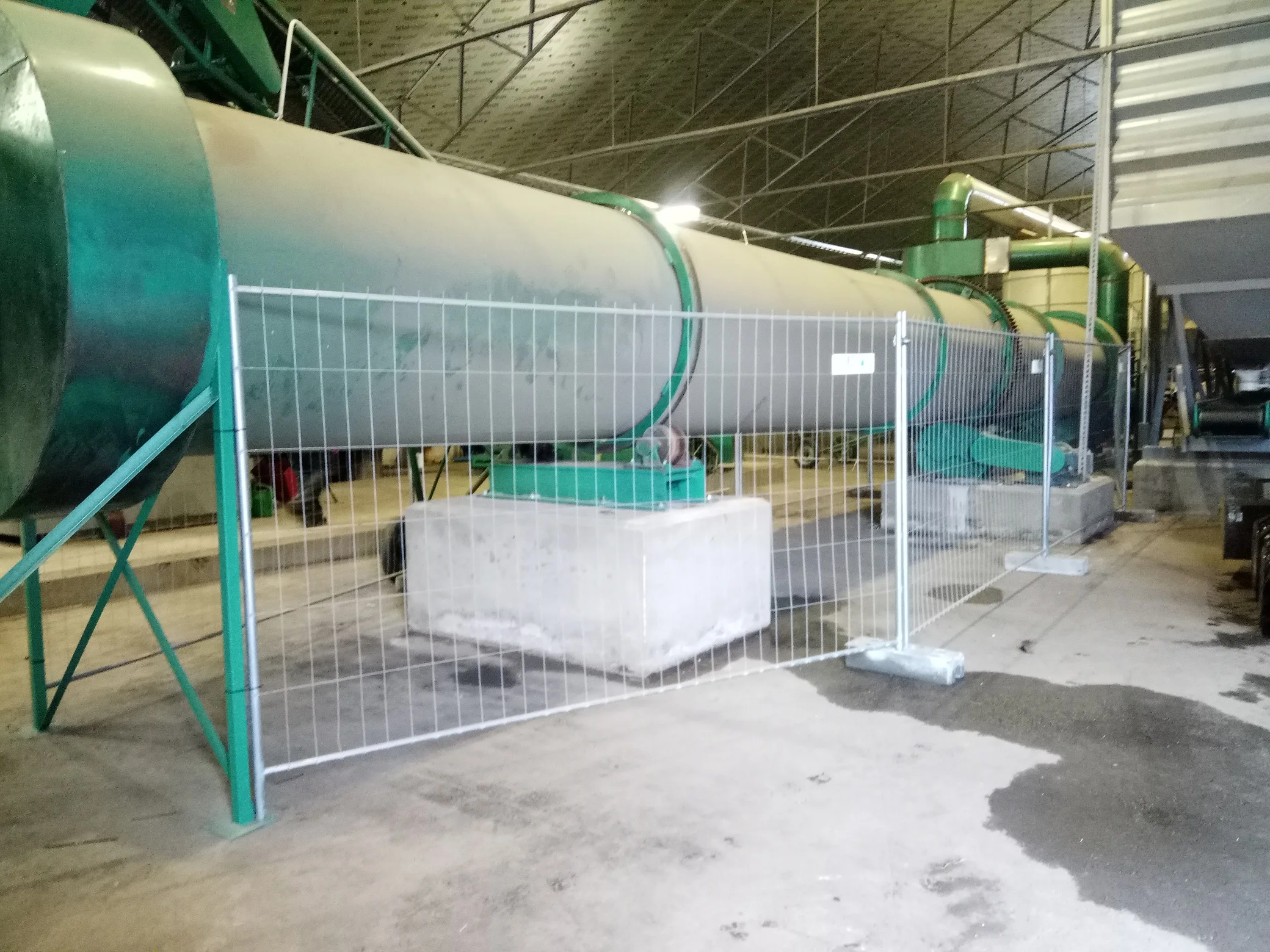

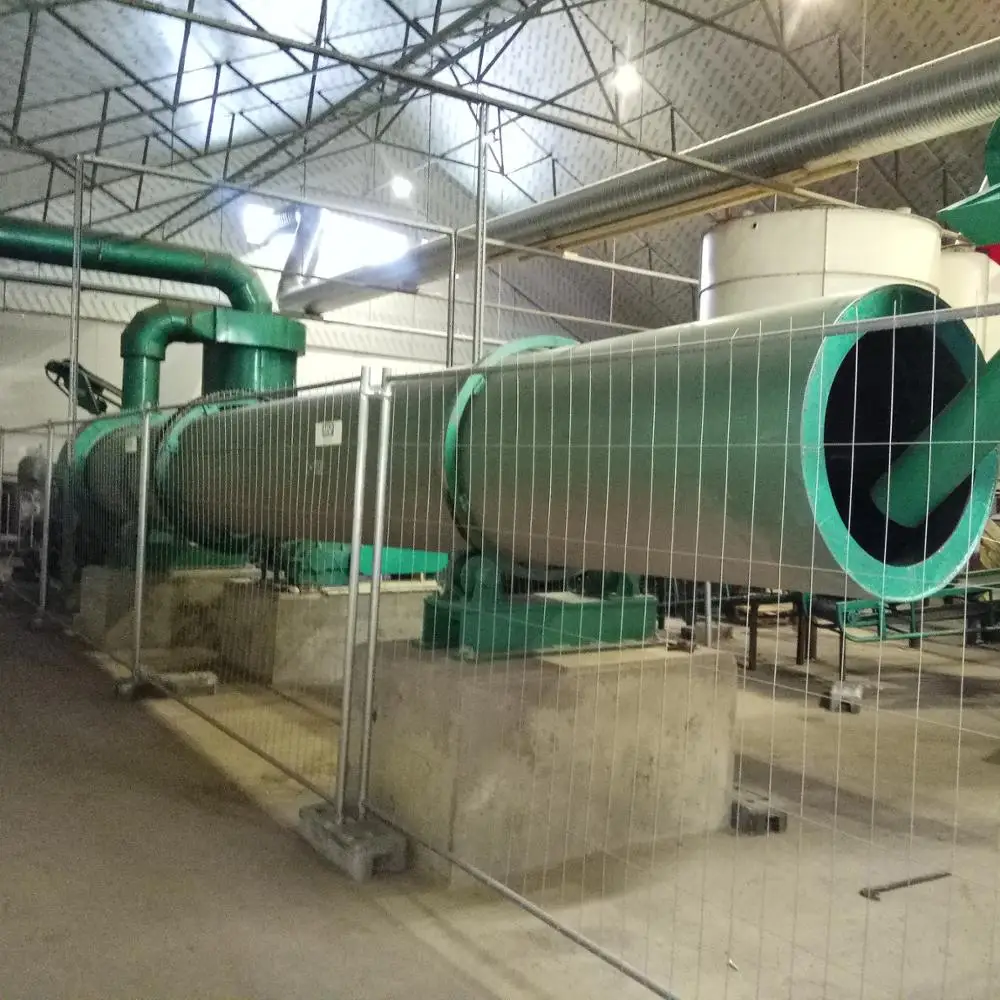

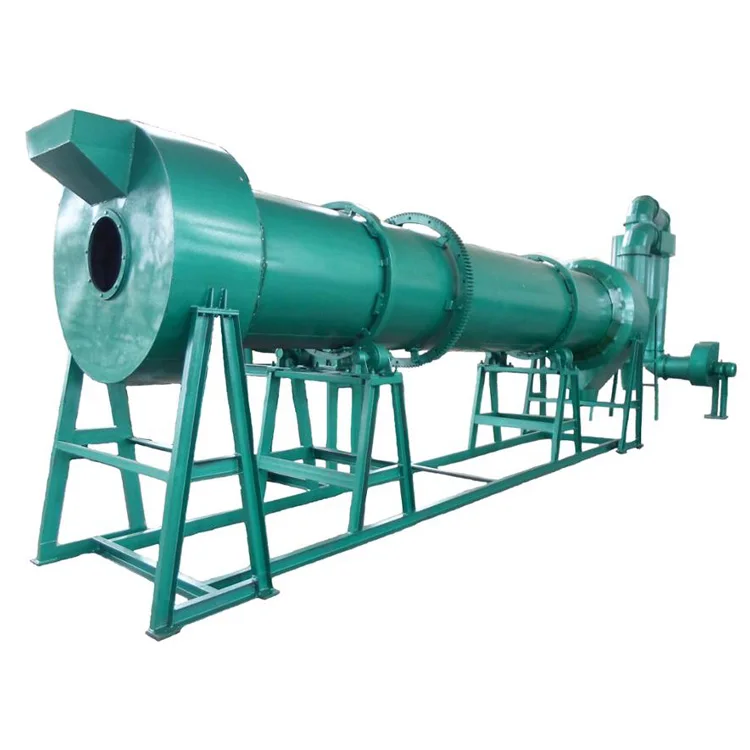

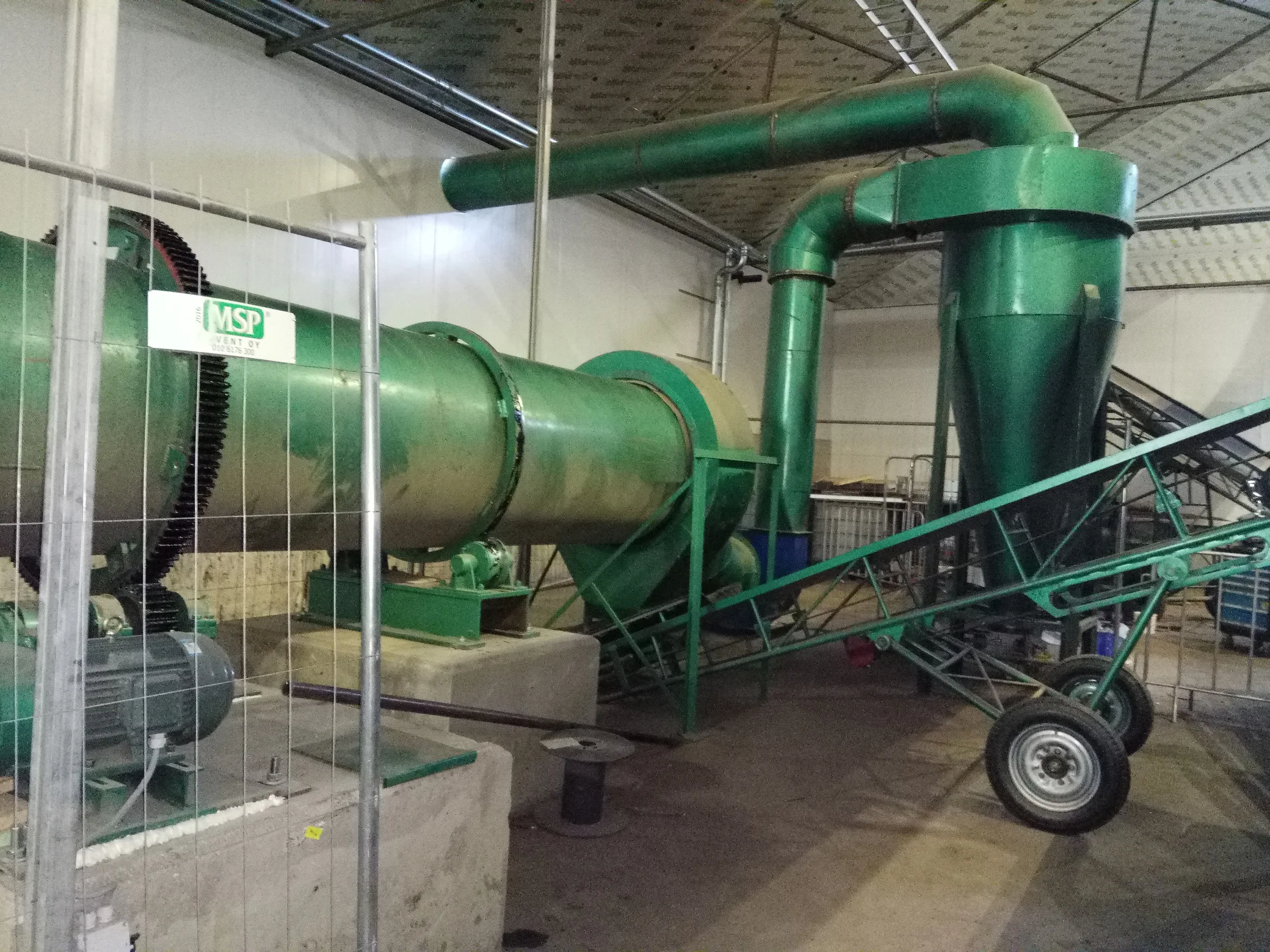

Rotary Drum Dryer
| Model | RDD-7 |
| Capacity: Tons per hour | 3.5-6 |
| Temperature input required: | 200-300 °C |
| Temperature output: | 60 °C |
| Lifting impeller | Z type |
| Inclination | 1-1.5° |
| Revolving speed(r/min) | 3-8 |
| Diameter of Cyclone(m) | 1.4 |
| Diameter of pipeline(m) | 0.8 |
| Power (dryer) :kw | 22 |
| Power (fan):kw | 30 |
| Size:L*W*H (m) | Φ1.8×20 |
| Weight:Kgs | 17500 |
| Voltage:V | 380V-50HZ-3phase(it can be change under your need) |

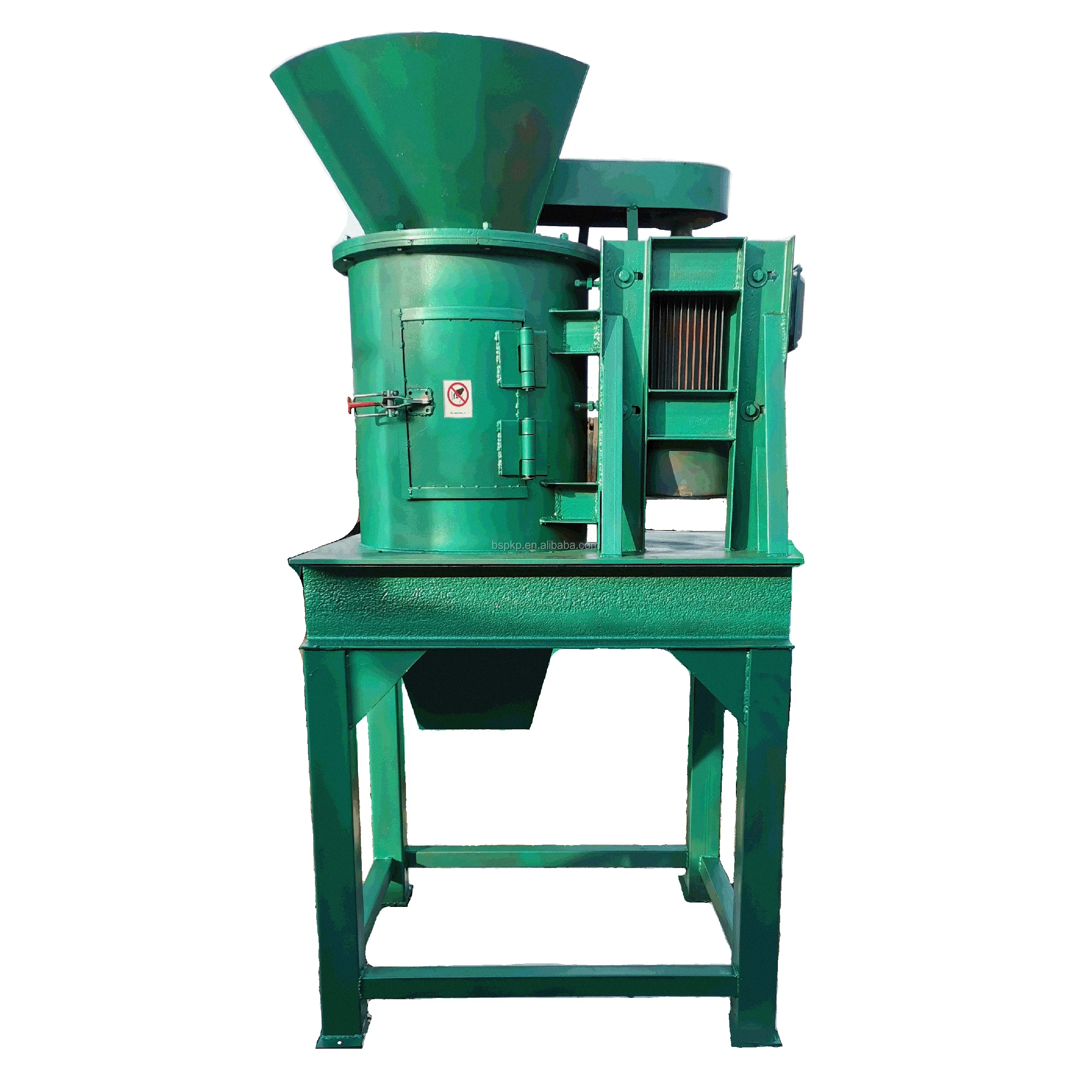

Semi-Wet Crusher
| Model | SWC-3 |
| Capacity:T/h | 3.5-6 |
| Crushing particle size:mm | 0.5-5 |
| Power:kw | 15 |
| Size (L*W*H): m | 1.1*1.1*1.4 |
| Weight: Kg | 1200 |
| Voltage: V | 380V-50HZ-3Phase (it can be change under your need) |

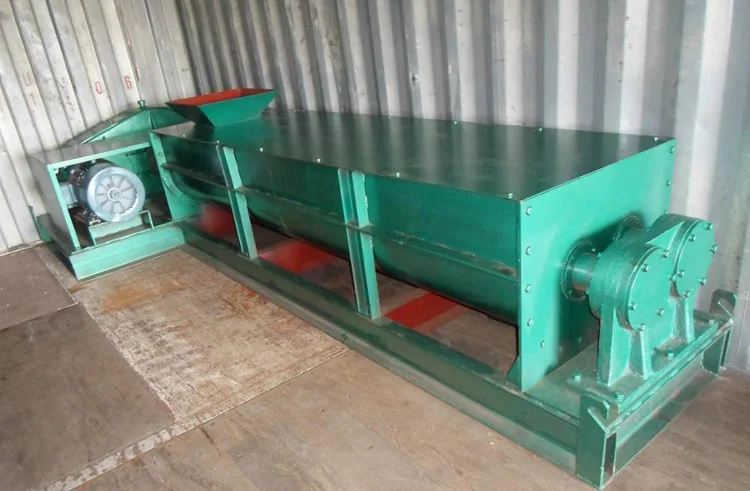

Mixer
| Model | DSM-2 |
| Capacity:T/h | 3.5-6 |
| Revolving speed: r/min | 4 |
| Power: kw | 15 |
| Size (L*W*H): m | 3.5*1.6*1.1 |
| Weight:kg | 2400 |
| Voltage:V | 380V-50HZ-3Phase(it can be change under your need) |

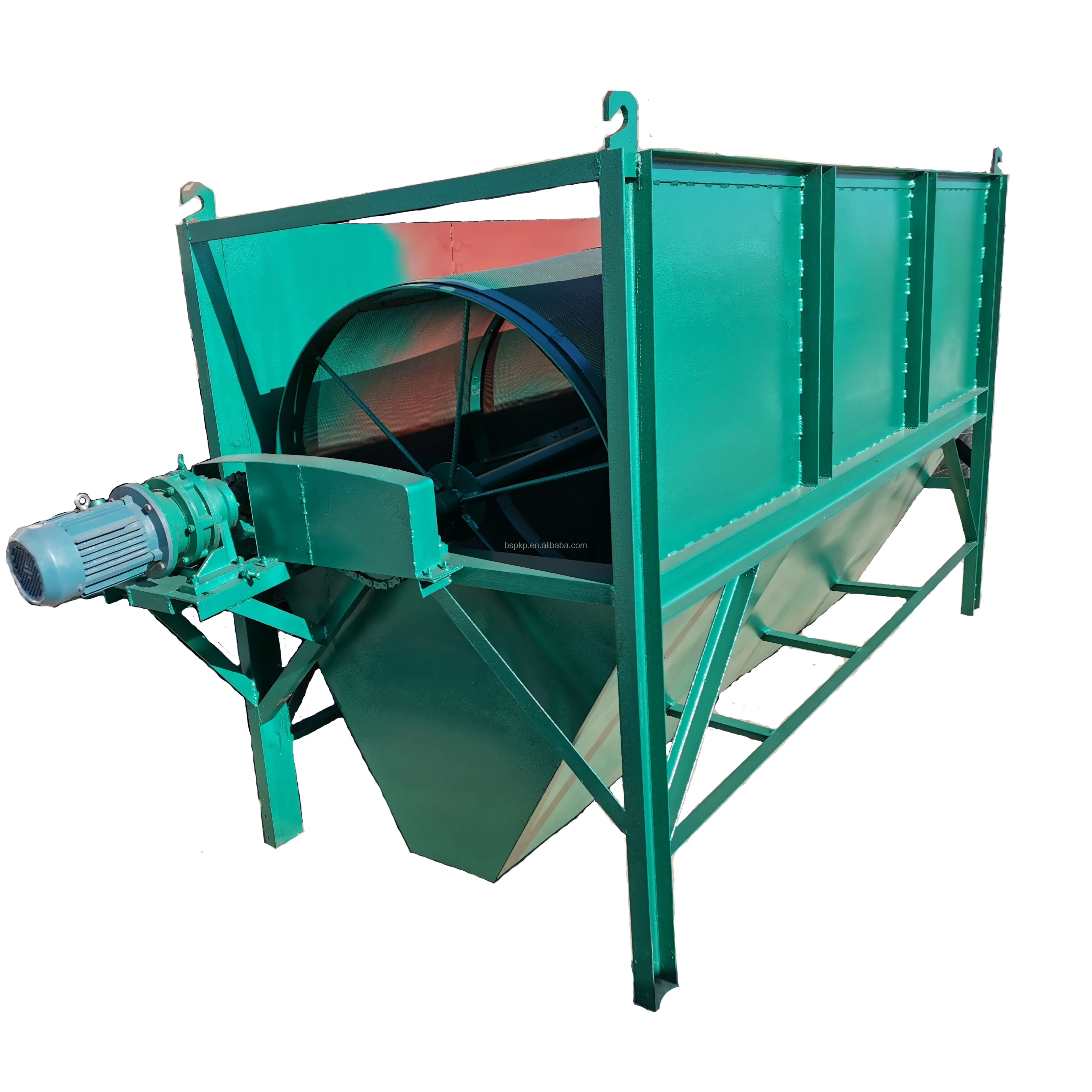

Screening Machine
| Model | SGM-5 |
| Capacity:T/h | 3.5-6 |
| Revolving speed:r/min | 22 |
| Power:KW | 2.2 |
| Size (L*W*H):m | 5.5*1.5*2 |
| Weight: kg | 2000 |
| Voltage: V | 380V-50HZ-3Phase(it can be change under your need) |

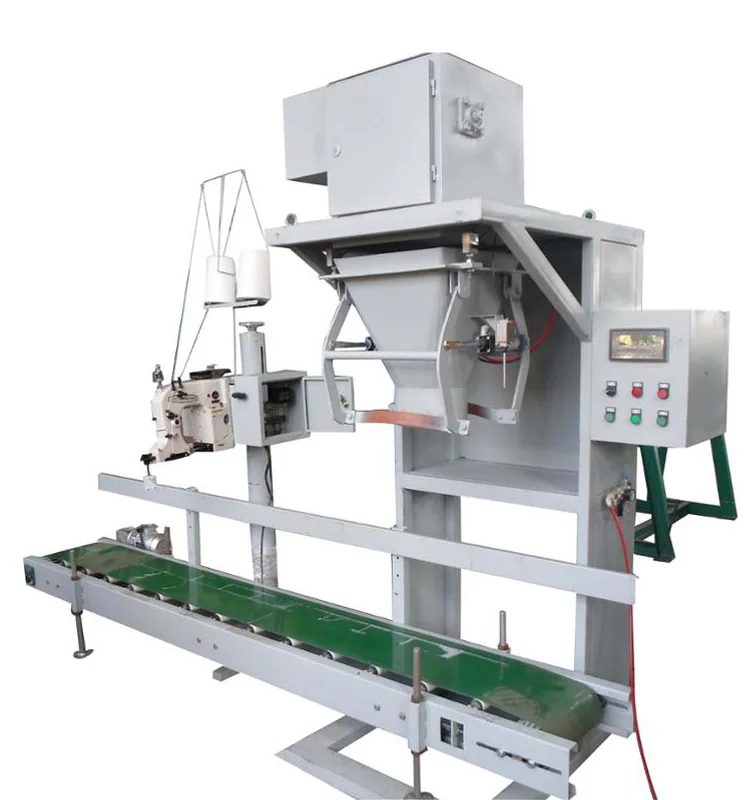

Packing & Weight Machine
| Model | WPM-500 |
| Weighing accuracy | 0.2 x |
| Voltage:V | AC220V(-15%~+10%)-50Hz |
| Power: kw | 0.2kw |
| Portioning Range | 5-50 kg |
| Surrounding Temperature | -20~+40℃ |
| Power (Conveyor,package) | 2.2 kw |
| Power (weight) | 0.2 kw |
| Packaging speed | 5 kg:600 bag/ H,x(0.2) 10 kg:600 bag/ H,x(0.2) 50 kg:240 bag/ H,x(0.2) |
Packaging & Shipping
| LCL | FCL | |
| Way | Wooden cases with steel frame | Container |
| Packaging Details | The normal package is wooden box (Size:L*W*H).If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pefilm for packing or pack it according to customers special request. | Loaded into container |
Our Services
1. Design the production line for you.
2. Design factory layout according to your requests and factory size.
3. Sample testing support.
4. Offering comprehensive technical and business consultation services.
5. Fast & Safe Delivery.
6. Training how to install the machine, how to use the machine and maintain.
7. Engineers available to service machinery overseas.
You can enjoy drawing design, equipment building, installation and running etc.full one-stop services from us.
